扬声器 - 行人警示（拆卸和更换）

校正代码 17541002 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2023-09-12: Optimized the procedure to improve efficiency.
Warning
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

拆卸

  1. Remove the RH front wheel. See 轮毂（拆卸和安装）.
  2. Remove the clips (x9) that hold the RH front wheel liner to fascia, and move the wheel liner aside for access.
  3. Remove the clip that attaches the harness to the pedestrian warning speaker assembly.
  4. Release the locking tab by sliding it away from the connector, then depress the grey locking tab to release the pedestrian warning speaker connector.
    Note
    接触连接器的方式可能会因安装在车辆上的超级喇叭音频扬声器版本不同而不同。可能需要使用袖珍螺丝刀或小型尖凿松开具有防篡改功能的红色锁片。

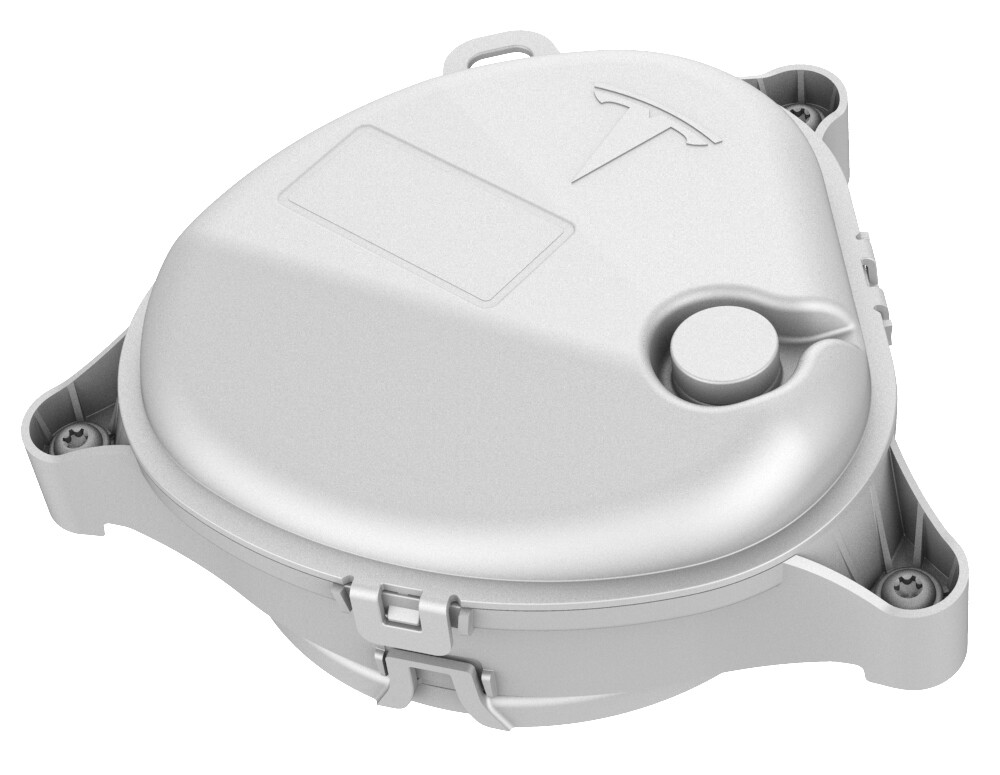

  5. Remove the screws (x3) that attach the pedestrian warning speaker assembly to the front fascia, and then remove the pedestrian warning speaker from the fascia.
    1.8 Nm (1.3 lbs-ft)
    Tip
    推荐使用以下工具
    • 回旋头棘轮/回旋头扭矩扳手
    • 2 英寸加长件
    • T25 梅花套筒
    • 棘轮/扭矩扳手

安装

  1. Install the screws (x3) that attach the pedestrian warning speaker assembly to the front fascia.
    1.8 Nm (1.3 lbs-ft)
    Tip
    推荐使用以下工具
    • 2 英寸加长件
    • T25 梅花套筒
    • 棘轮/扭矩扳手
  2. Engage the locking tab to connect the pedestrian warning speaker connector.
  3. Install the clip that attaches the harness to the pedestrian warning speaker assembly.
  4. Install the clips (x9) that hold the RH front wheel liner to fascia.
  5. Install the RH front wheel. See 轮毂（拆卸和安装）.
