闩锁 - 座椅靠背 - 第二排 - 左侧（拆卸和更换）

校正代码 13055902 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 拆下第二排中央座椅安全带总成。请参阅安全带 - 第二排 - 中间（拆卸和更换）。

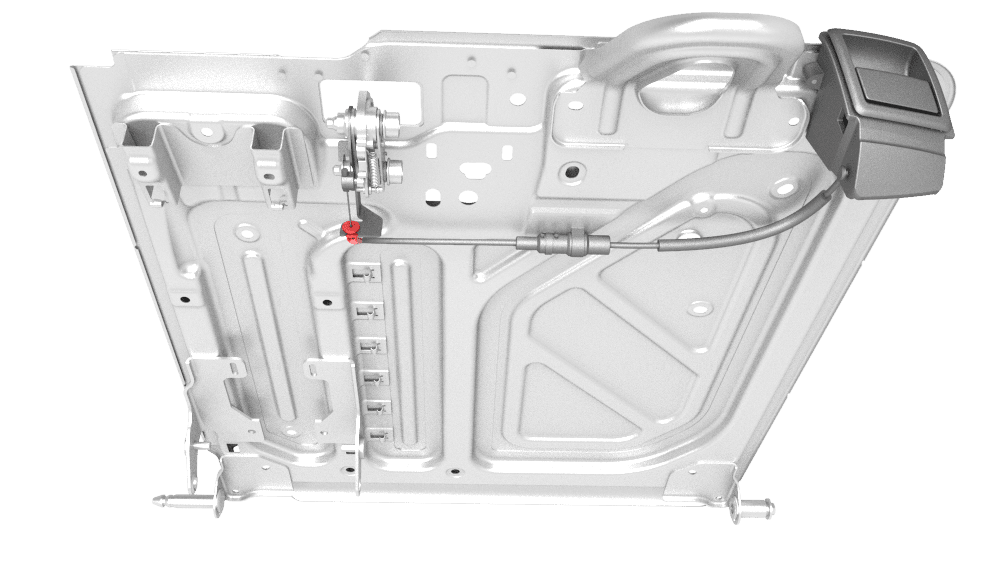

  2. 松开将闩锁支架固定到座椅靠背的缆索夹。

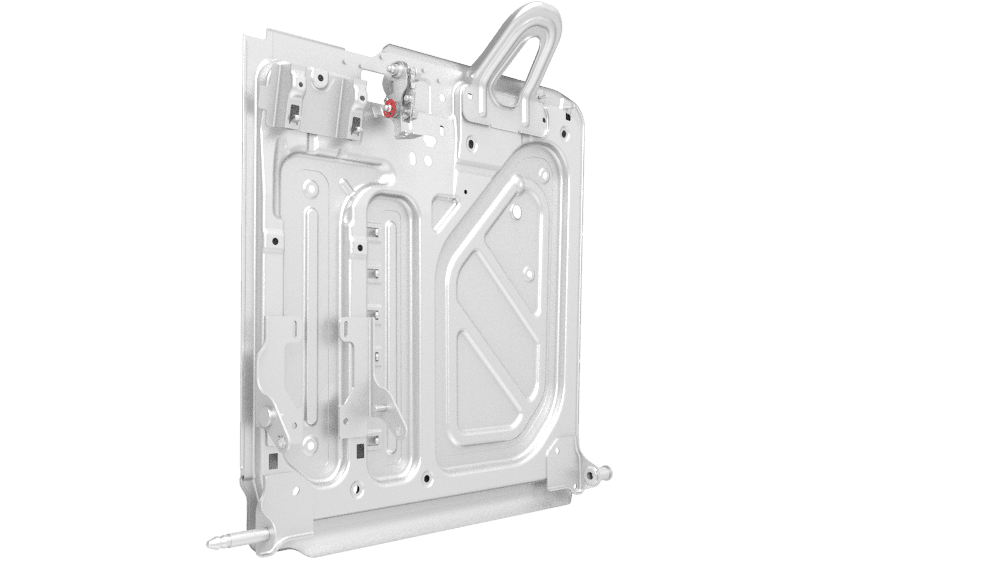

  3. 松开将支架螺柱固定到座椅靠背的夹子。

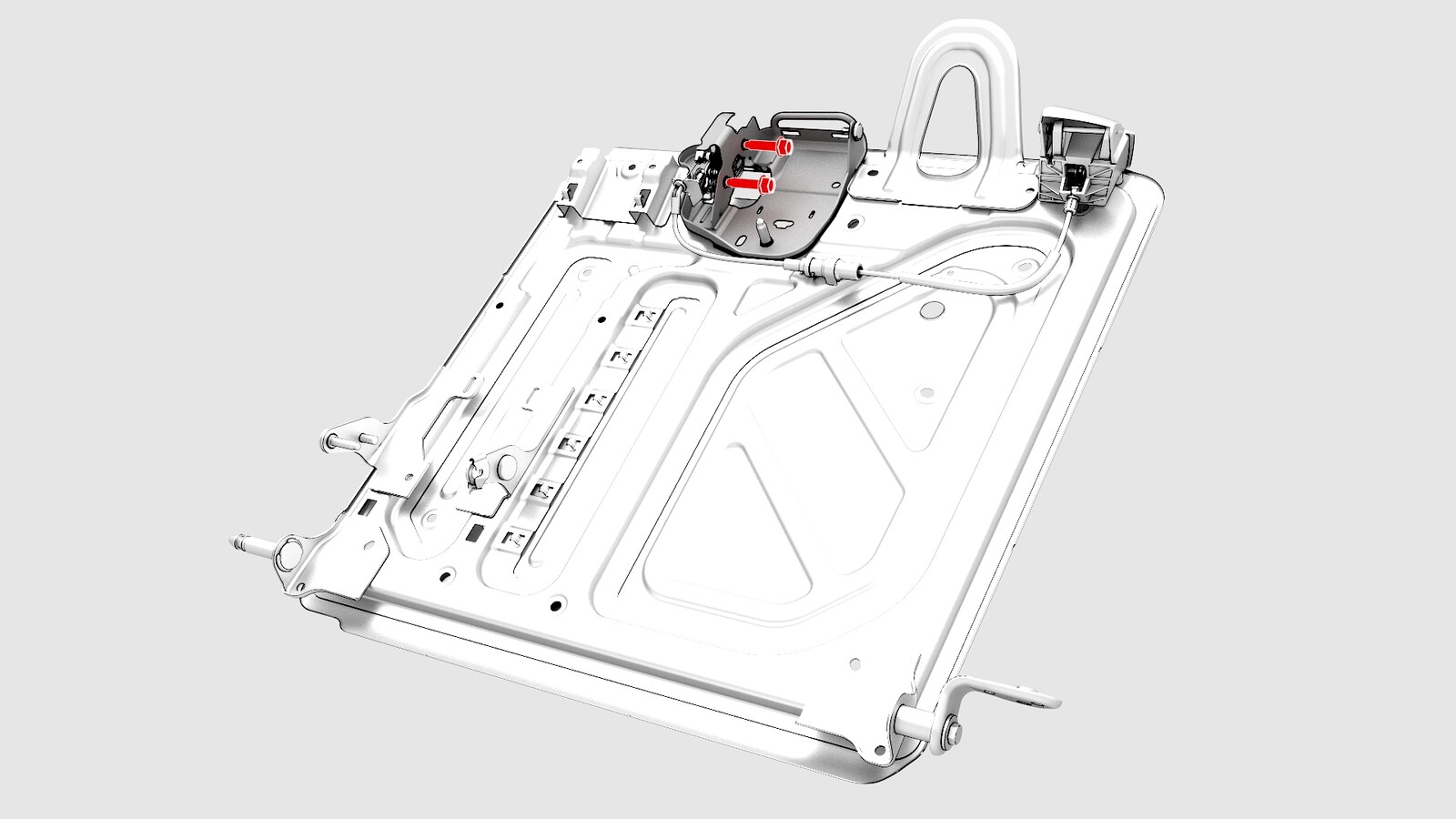

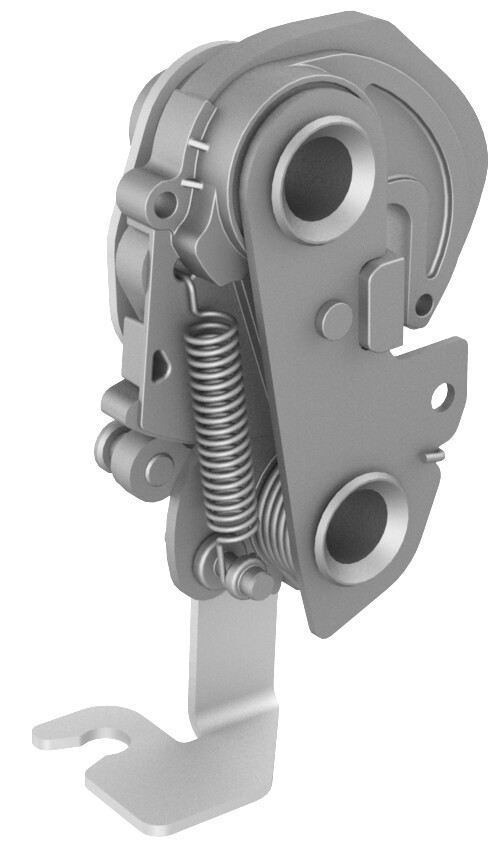

  4. 松开将第二排座椅 LH 靠背闩锁固定到座椅靠背的螺栓，然后从座椅靠背上拆下闩锁。
    40 Nm (29.5 lbs-ft)

安装

  1. 将第二排 LH 座椅靠背闩锁安装到座椅靠背上，然后安装将闩锁固定到座椅靠背的螺栓。
    40 Nm (29.5 lbs-ft)
  2. 紧固将支架螺柱固定到座椅靠背的夹子。
  3. 紧固将闩锁支架固定到座椅靠背的电缆夹。
  4. 安装第二排中央座椅安全带总成。请参阅安全带 - 第二排 - 中间（拆卸和更换）。
