Lumbar Support - Backrest - Driver Seat (Remove and Replace)

校正代码 13043002 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

  • 2024 年 4 月 30 日：添加了一个演示如何拆卸和安装座椅腰部支撑的视频，修复了无效链接。

拆卸

  1. 拆卸驾驶位座椅靠背外壳。请参阅Shell - Seat Back - Driver (Remove and Replace)。

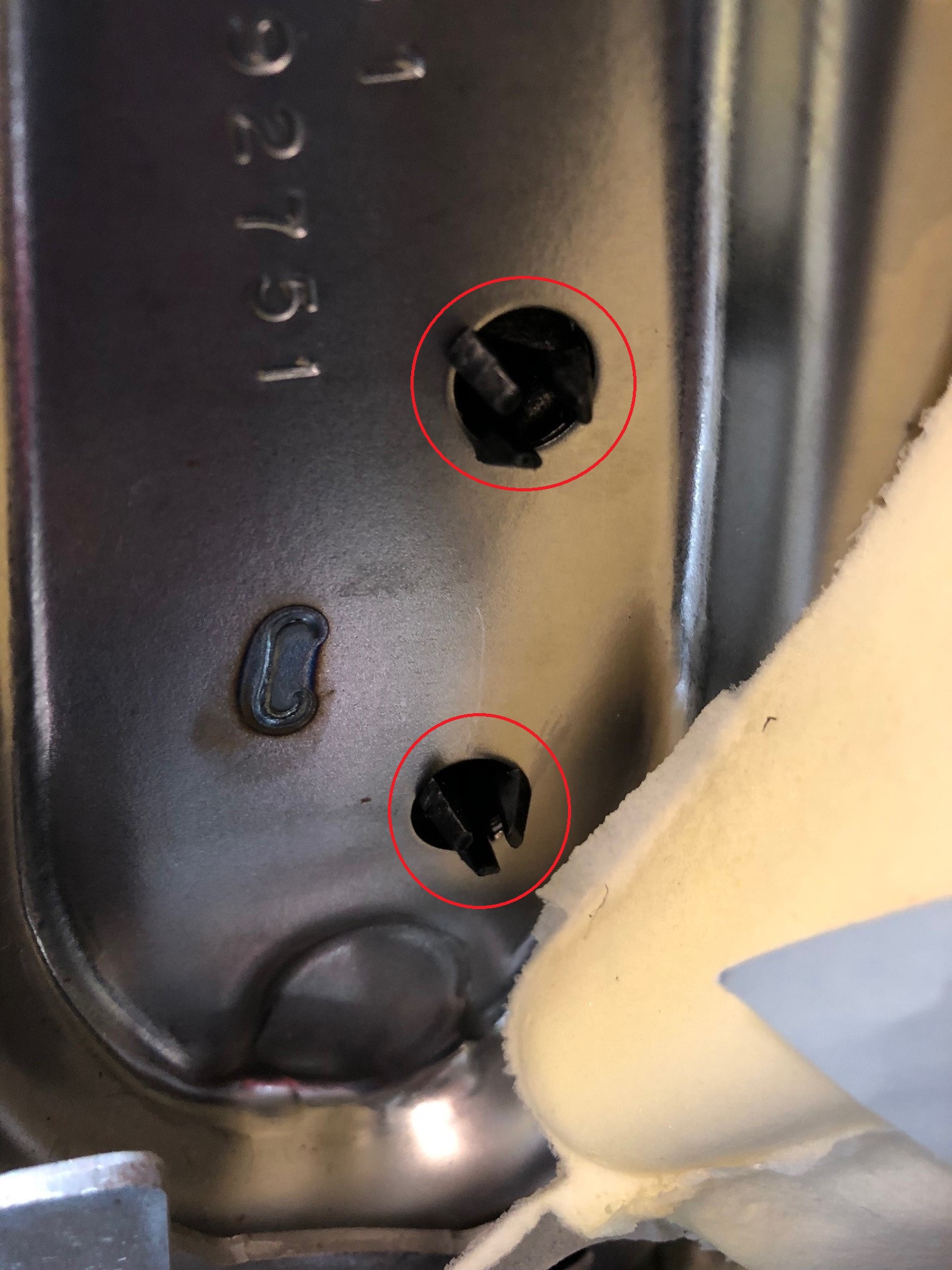

  2. 松开将座椅靠背盖板外侧固定到座椅靠背框架的卡子。
    Informational PurposesAn informational icon, calling your attention
    TIp
    转动锁片，然后从内向外将其从框架中松开。
  3. 将座椅蒙皮拉离气囊，以便接触电气连接器；然后向下拉动两个橘色锁片，以松开并断开气囊电气连接器。
  4. 将电气线束从靠背倾角调节电机连接器上断开。
  5. 将电气线束从腰托阀组和电子控制单元 (ECU) 上断开。
  6. 将电气线束从腰托泵连接器上断开。

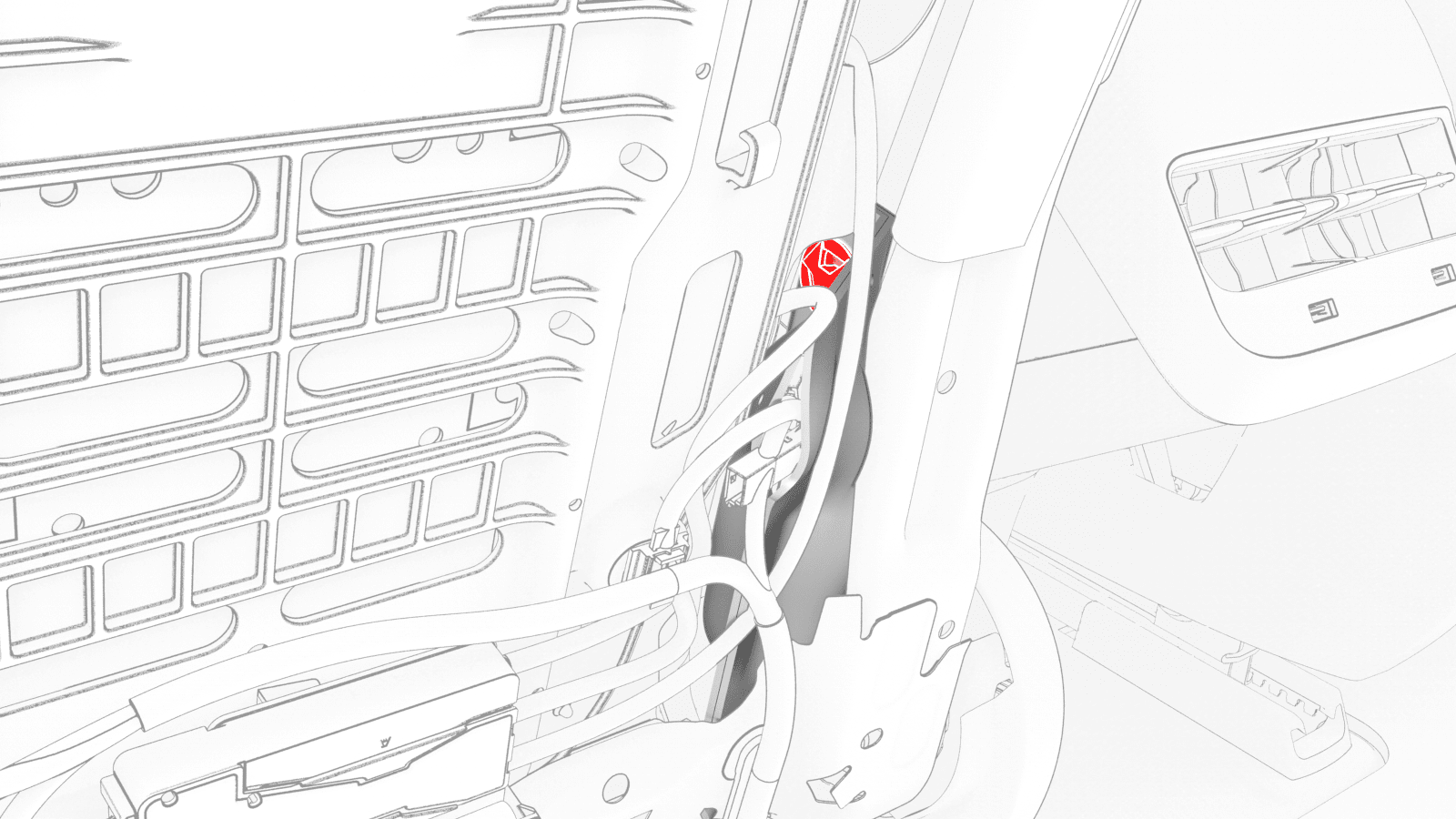

  7. 使用饰板工具松开将电气线束固定到座椅框架的夹子。
  8. 松开将座椅饰板固定到腰部支撑总成的卡子。

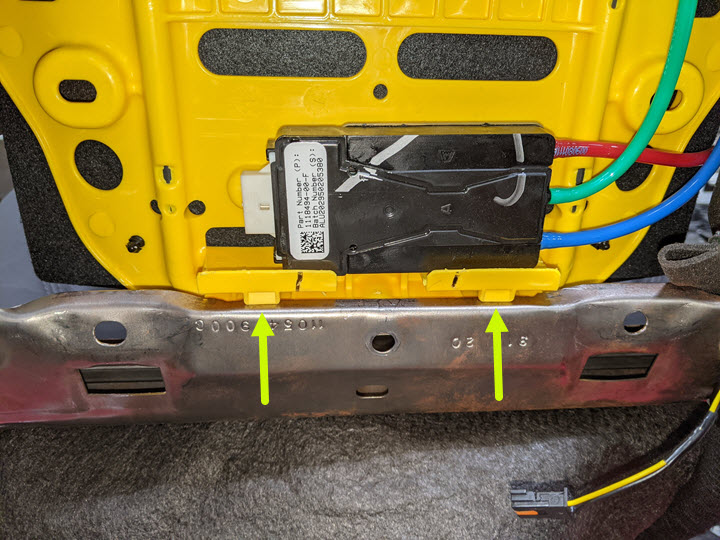

  9. 松开将腰托泵容器固定到座椅框架的卡子，然后使容器与座椅靠背分离。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    确保佩戴正确的个人防护装备 (PPE)，以免受伤。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

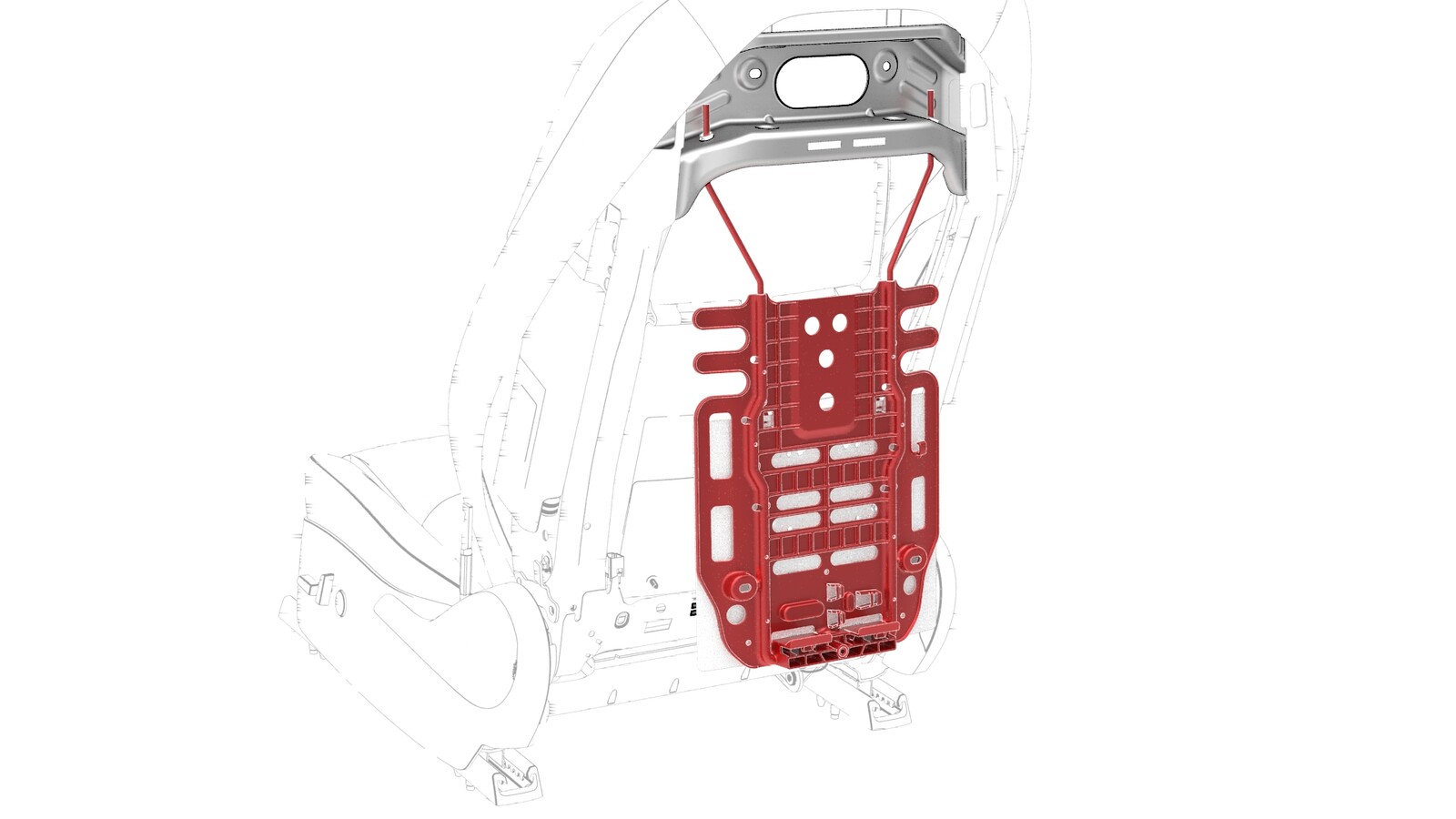

  10. 拆卸将腰部支撑总成固定到座椅框架的螺栓。
    5 Nm (3.7 lbs-ft)

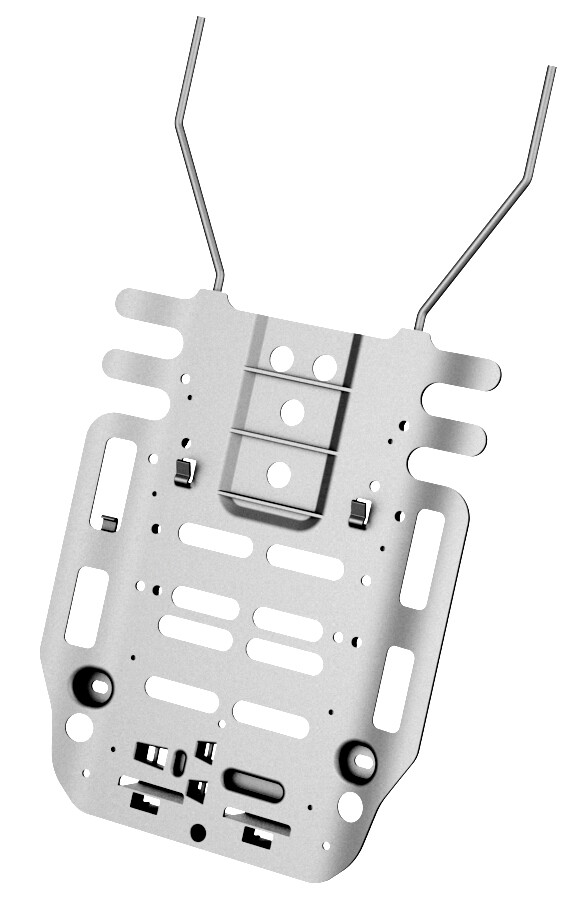

  11. 将腰部支撑总成向下滑动，然后将腰部支撑总成底部压入，同时，将腰部支撑总成向上滑动。将腰部支撑总成底部从框架中转出，然后将腰部支撑总成向下拉离框架。

安装

安装程序与拆卸程序相反。
