Compressor (Heat Pump) (Remove and Replace)

校正代码 18203912 0.96 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

  • 2023 年 5 月 2 日:添加了拆卸/安装 NVH 隔音盖的步骤。
  • 2023 年 6 月 20 日:添加了 Sanden 类型压缩机的压缩机重量(含机油)。
  • 2024 年 1 月 30 日:删除了空调冲洗相关步骤,将执行例行程序的方式从使用 Toolbox 更新为使用触摸屏。
  • 2024 年 3 月 4 日:更新了有关机油量计算步骤的描述。
Informational PurposesAn informational icon, calling your attention
如需深入了解上海超级工厂所生产车辆的压缩机更换信息,请参阅 Toolbox 文章 #5696900。
Warning IconA warning icon, calling your attention to a possibly risky situation
警告

Only technicians who have been trained in High Voltage Awareness and have completed all required certification courses (if applicable) are permitted to perform this procedure. Proper personal protective equipment (PPE) and insulating HV gloves with a minimum rating of class 0 (1000V) must be worn at all times a high voltage cable, busbar, or fitting is handled. Refer to Tech Note TN-15-92-003, High Voltage Awareness Care Points for additional safety information.

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
Model 3 thermal management components operate under very tight specifications and can malfunction if Service procedures are not carefully followed. DO NOT rely on past experience with other thermal management systems; read through the Service Manual and do not deviate from the instructions.
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
更换空调压缩机时,必须检查接收器干燥机中的干燥剂包,以确认因压缩机故障产生的碎屑是否已进入系统。请参阅Receiver Dryer and Desiccant (Non-Heat Pump) (Remove and Replace)。如果需要更换干燥剂包,请参阅A/C Refrigerant (Heat Pump) (Unknown Oil Quantity or System Flush)
Informational PurposesAn informational icon, calling your attention
This procedure requires the A/C Refrigerant (Recovery and Recharge) procedure to be performed. If not already automatically added to the Service Visit, add correction code 18200102 as a separate activity to the Service Visit.

扭矩规格

表 1. 扭矩规格Compressor (Heat Pump) (Remove and Replace)
描述 扭矩值 推荐工具 重复使用/更换 备注
将低压管固定到空调压缩机的螺母
22 Nm (16.2 lbs-ft)
  • 13 毫米深套筒
  • 回旋头棘轮/回旋头扭矩扳手
重复使用
将高压管固定到空调压缩机的螺母
22 Nm (16.2 lbs-ft)
  • 13 毫米深套筒
  • 回旋头棘轮/回旋头扭矩扳手
重复使用

拆卸

  1. 拆下前备箱储物单元。请参阅Underhood Storage Unit (Remove and Replace)
  2. 通过触摸屏,将车辆置于“维护模式”。请参阅Service Mode
  3. 解锁车辆网关。请参阅网关(解锁)
  4. 在触摸屏上,点击“维护模式”下的“扳手”(位于触摸屏 UI 界面底部),再点击Thermal > Refrigerant System > Start Thermal Fill Drain (Refrigerant only) > Run,然后等待例行程序完成。
  5. Perform Vehicle HV Disablement Procedure. See Vehicle HV Disablement Procedure.
  6. 回收空调制冷剂。请参阅A/C Refrigerant (Recovery and Recharge)
    Informational PurposesAn informational icon, calling your attention
    继续此程序,同时回收制冷剂。
  7. 拆下低压电池。请参阅12V/LV Battery (Remove and Replace)

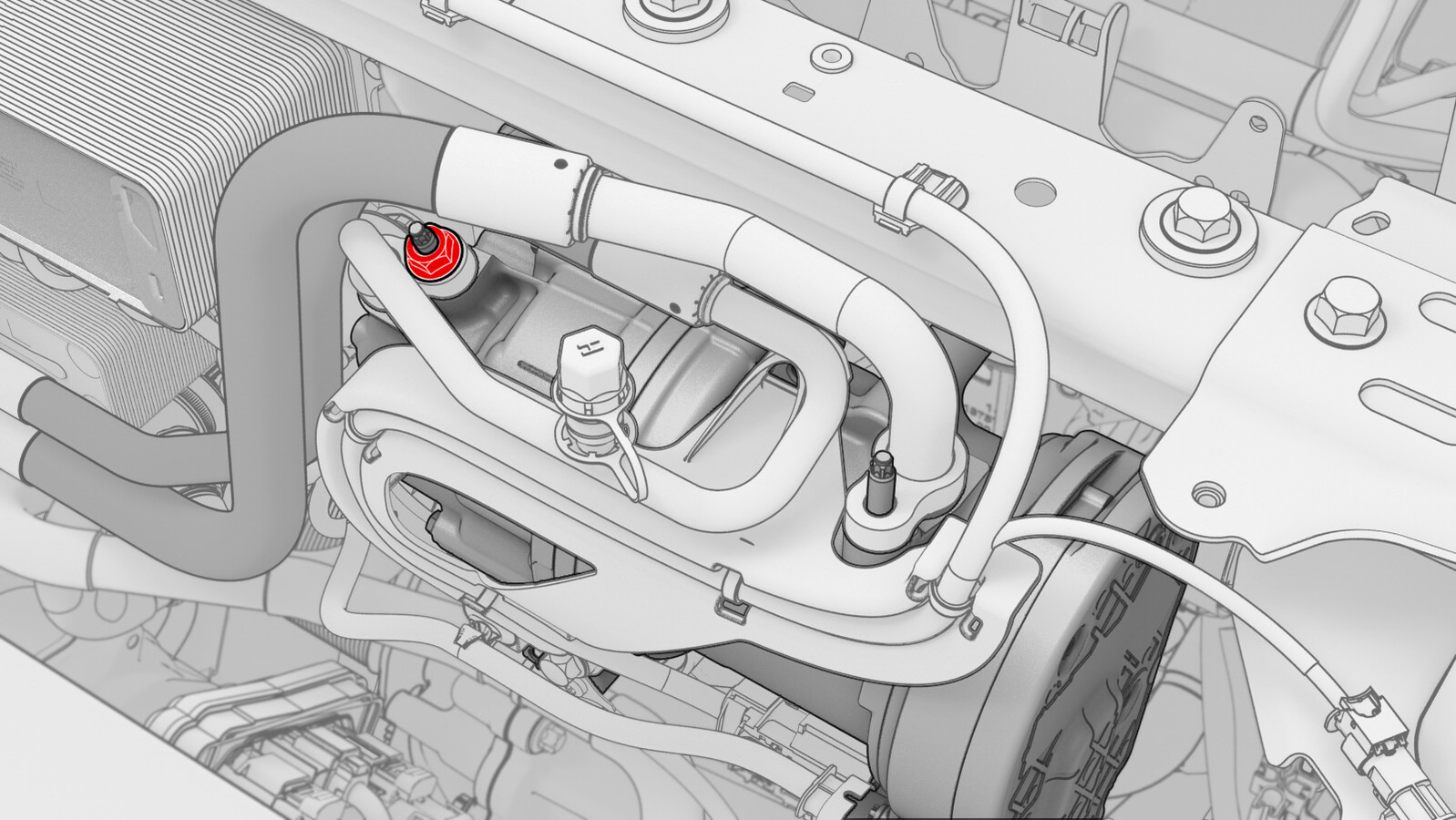

  8. 拆下将低压接头固定到空调压缩机的螺母。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 13 毫米深套筒
    • 回旋头棘轮/回旋头扭矩扳手
  9. 拆下将高压接头固定到空调压缩机的螺母,然后将软管总成置于一旁。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 13 毫米深套筒
    • 回旋头棘轮/回旋头扭矩扳手
  10. 拆下压缩机支架。请参阅Bracket - Compressor (Heat Pump) (Remove and Replace)
  11. 记录新旧空调压缩机的零件号和序列号。
  12. 使用遮蔽胶带保护压缩机上的低压和高压开放端口。
    Informational PurposesAn informational icon, calling your attention
    确保端口被完全覆盖。

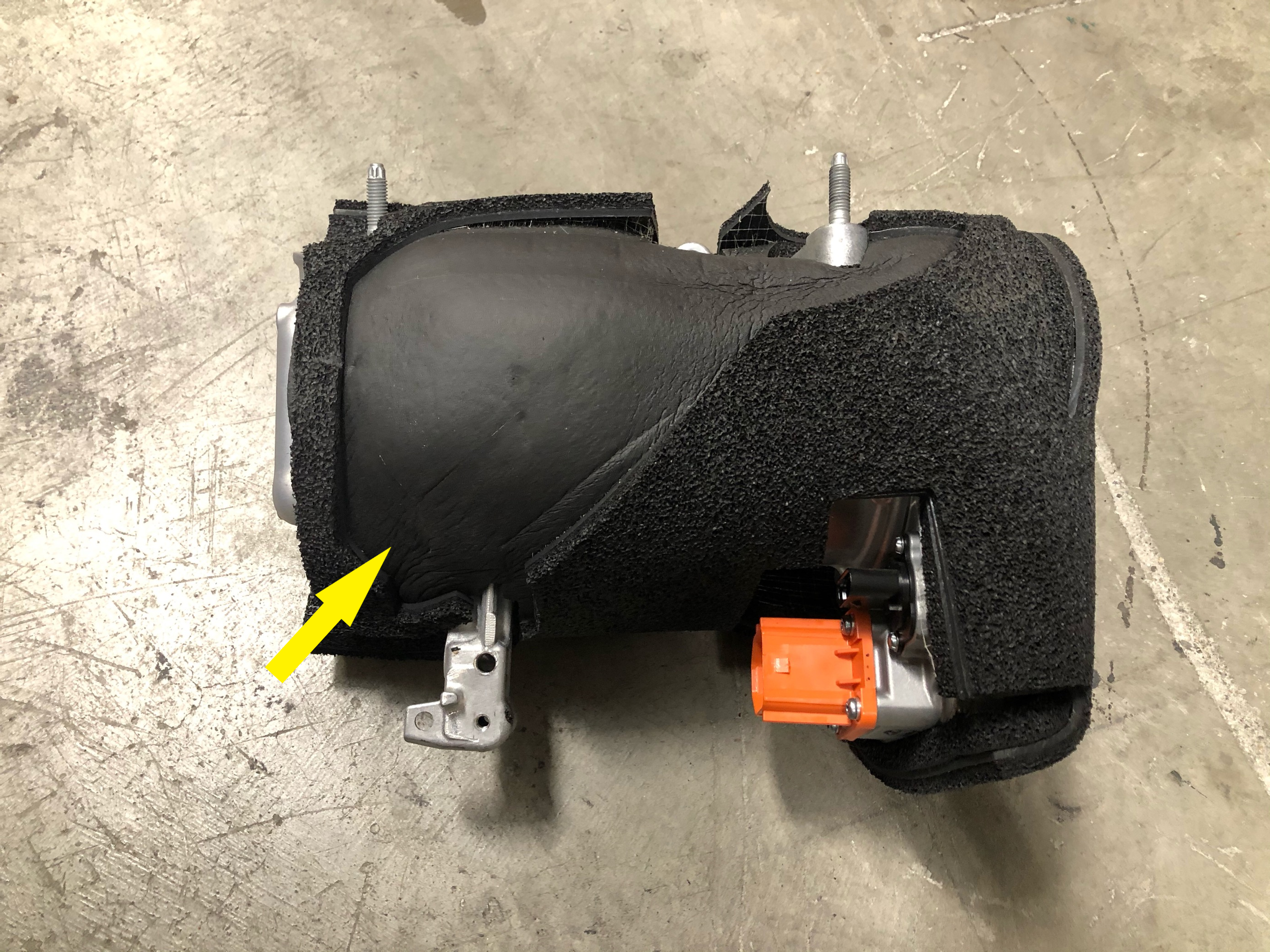

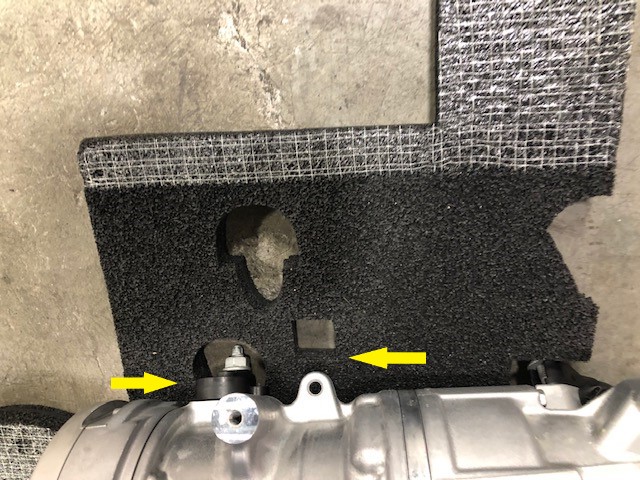

  13. 使用平刮刀将 NVH 隔音盖从压缩机上拆下。
  14. 使用钢丝刷尽可能清除压缩机上的 NVH 隔音盖材料。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    不清除这些材料将导致重量测量值不准确。
  15. 使用电子称称量已拆下压缩机的重量,并记录重量值。查看已拆卸压缩机标签上的干重,从总重中减去干重,就可以计算出剩余机油量。记录剩余机油量。
    Informational PurposesAn informational icon, calling your attention
    请勿排放已拆卸压缩机中的机油。
  16. 重复第13步和第14步以拆下新压缩机上的 NVH 隔音盖。

安装

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
新的空调压缩机已预加注了机油。请勿向新空调压缩机加注更多机油。
  1. 拆下新压缩机上的运输插塞。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 13 毫米套筒
  2. 查看新压缩机标签上的干重,将其与步骤15中计算得出的旧压缩机剩余机油量相加,所得即新压缩机的目标重量。
  3. 从新压缩机中排出部分机油,直至新压缩机总重等于步骤2中计算所得的目标重量。

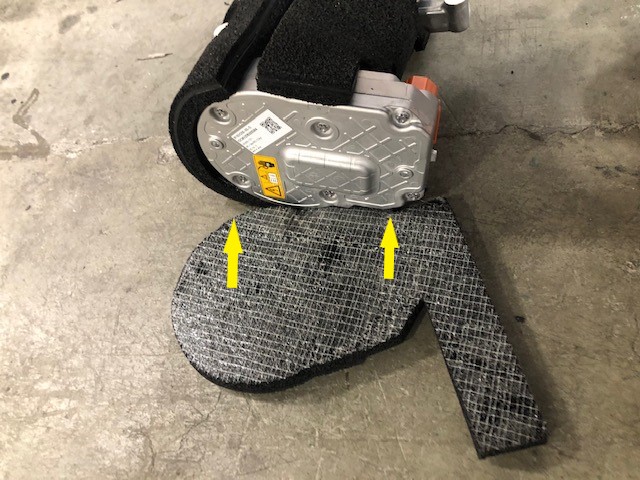

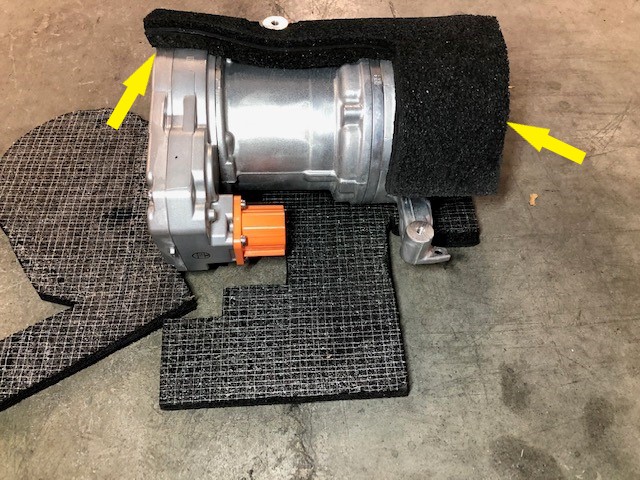

  4. 将 NVH 隔音盖安装在新的压缩机上。
  5. 安装压缩机支架。请参阅Bracket - Compressor (Heat Pump) (Remove and Replace)

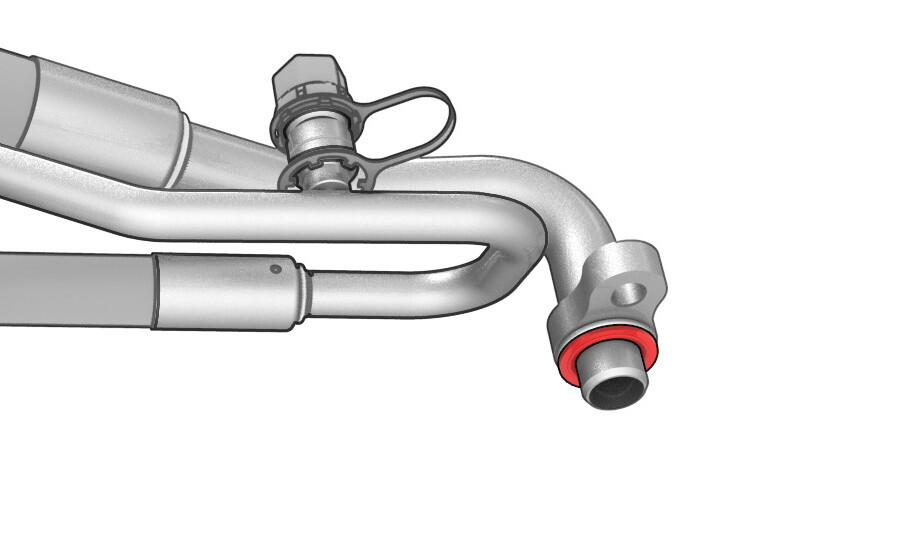

  6. 更换高压和低压超级歧管至空调压缩机软管接头上的 O 型环。

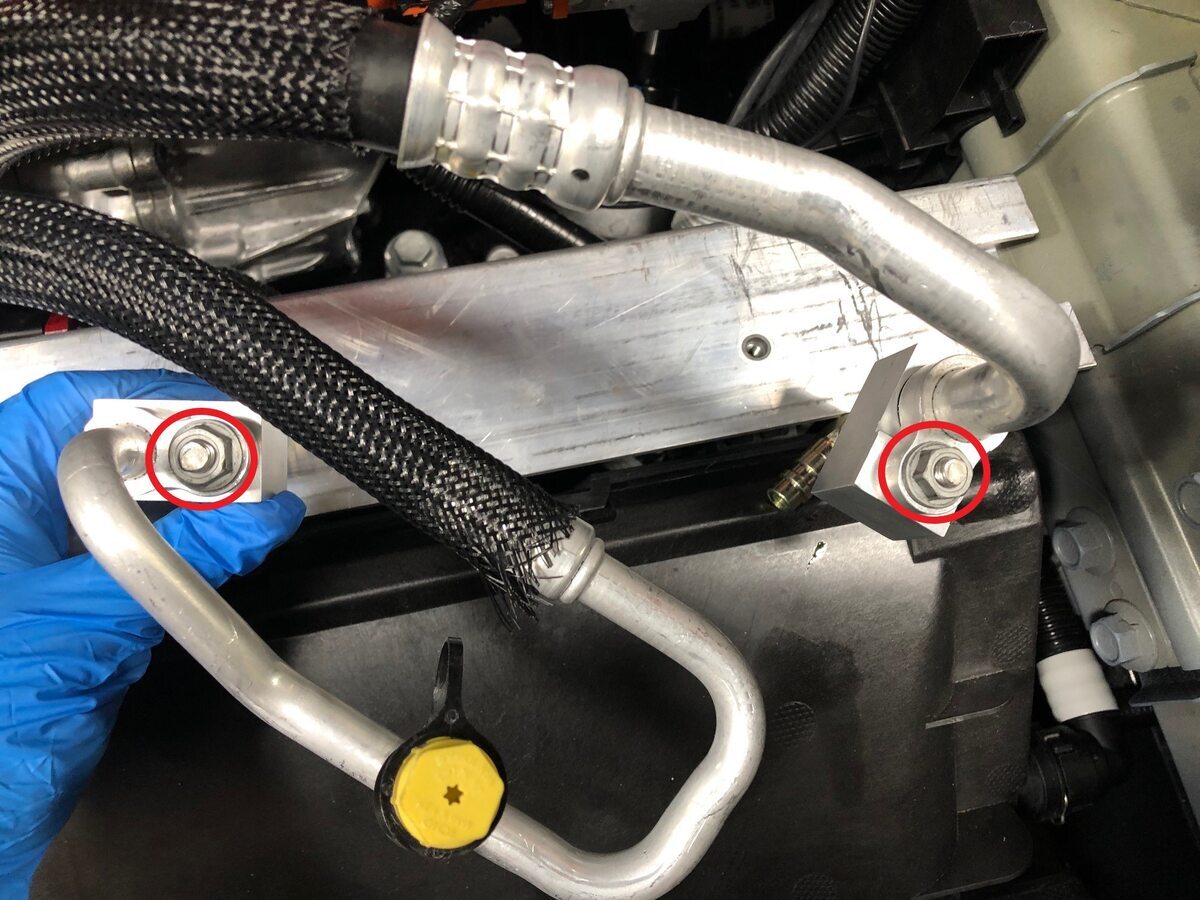

    图 1. 图示为低压接头;高压接头与之类似
  7. 将超级歧管至空调压缩机高压接头放置在空调压缩机上,然后安装将接头固定到空调压缩机的螺母。
    22 Nm (16.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 13 毫米深套筒
    • 回旋头棘轮/回旋头扭矩扳手
  8. 将超级歧管至空调压缩机低压接头放置在空调压缩机上,然后安装将接头固定到空调压缩机的螺母。
    22 Nm (16.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 13 毫米深套筒
    • 回旋头棘轮/回旋头扭矩扳手

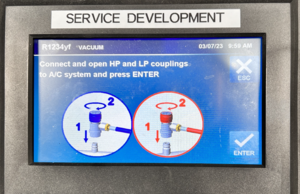

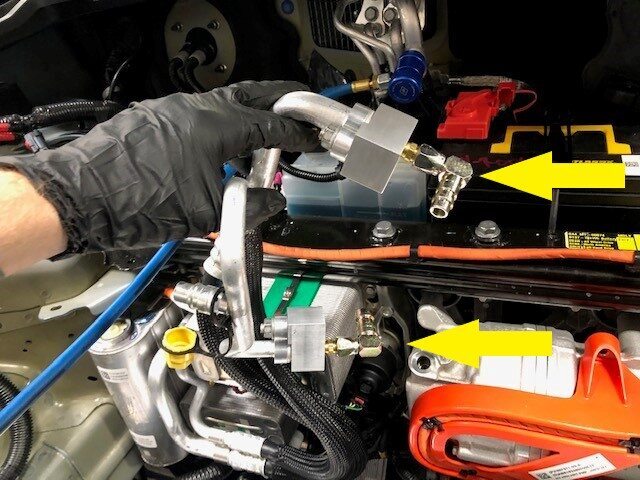

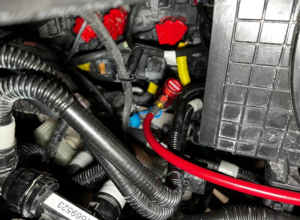

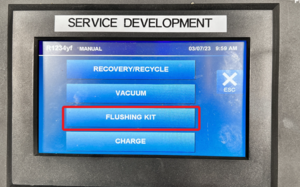

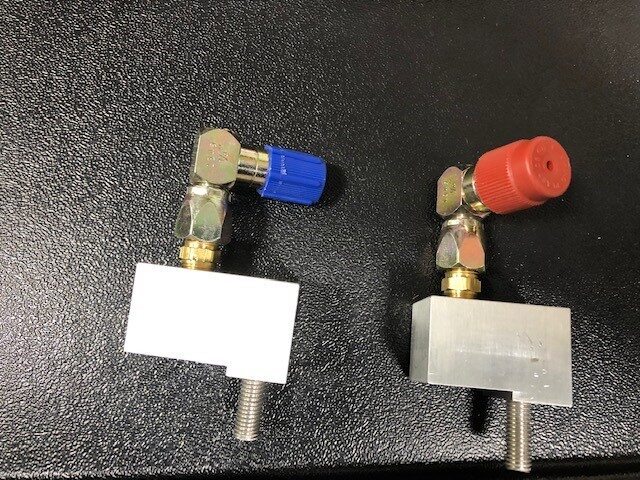

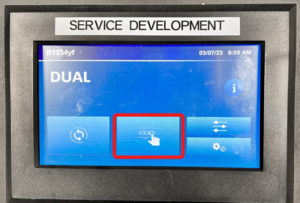

  9. 将空调机红色高压软管与车辆的高压端口相连,将蓝色低压软管与车辆的低压端口相连。

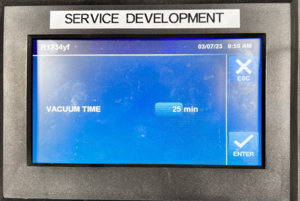

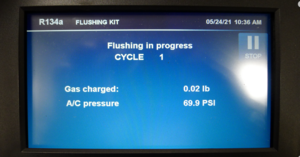

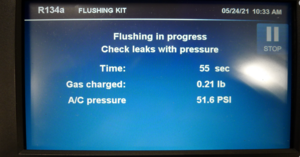

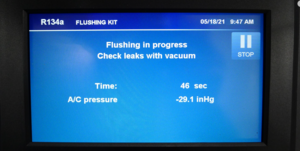

  10. 执行空调真空泄漏测试和机油加注程序。请参阅A/C Refrigerant (Recovery and Recharge)
  11. 将下部空调压力管安装到超级歧管至 HVAC 空调管路总成上。
  12. 执行空调重新加注程序。请参阅A/C Refrigerant (Recovery and Recharge)
  13. 安装低压电池。请参阅12V/LV Battery (Remove and Replace)
  14. 重新连接低压电源。请参阅12V/LV Power (Disconnect and Connect)
  15. 重新部署固件。请参阅
  16. 如果需要,更新压缩机配置:
    Informational PurposesAn informational icon, calling your attention
    参阅零件目录,确定是否需要更新配置。
    1. 将装有 Toolbox 3 的笔记本电脑连接到车辆(如果尚未连接)。
    2. 选择Dashboards,然后选择Infotainment Dashboard
    3. 选择Vehicle Configuration
      Informational PurposesAn informational icon, calling your attention
      配置值应会自动加载。如果未加载,请选择Read ConfigRun进行加载。
    4. 向下滚动至 “compressorType”,确认选择了正确压缩机类型。
    5. 选择Apply Changes,然后选择Run,以保存更新的配置。
      Informational PurposesAn informational icon, calling your attention
      车辆触摸屏将重启。Toolbox 连接将断开。完成后,点击右上角的 “X” 关闭窗口。
  17. 在触摸屏上,点击“维护模式”下的“扳手”(位于触摸屏 UI 界面底部),点击Thermal > Refrigerant System > Reset Compressor P-Metric > Run,例行程序完成后立即关闭页面。
  18. 点击Sensors and Valves > Run Heat Pump Commissioning > Run,例行程序完成后立即关闭页面。
  19. 点击Actions > Test Thermal Performance > Run,例行程序完成后立即关闭页面。
  20. 点击Actions > Test HVAC Performance > Run,例行程序完成后立即关闭页面。
  21. 退出“维护模式”。请参阅Service Mode
  22. 断开笔记本电脑与车辆的连接。
  23. 安装前备箱储物单元。请参阅Underhood Storage Unit (Remove and Replace)
  24. 安装前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)
  25. 安装第二排座椅下部座垫。请参阅Seat Cushion - Lower - 2nd Row (Remove and Replace)
