槽 - 新鲜空气进气(拆卸和更换)
校正代码
181085020.18
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下前备箱储物单元。请参阅前备箱储物单元(拆卸和更换)。
-

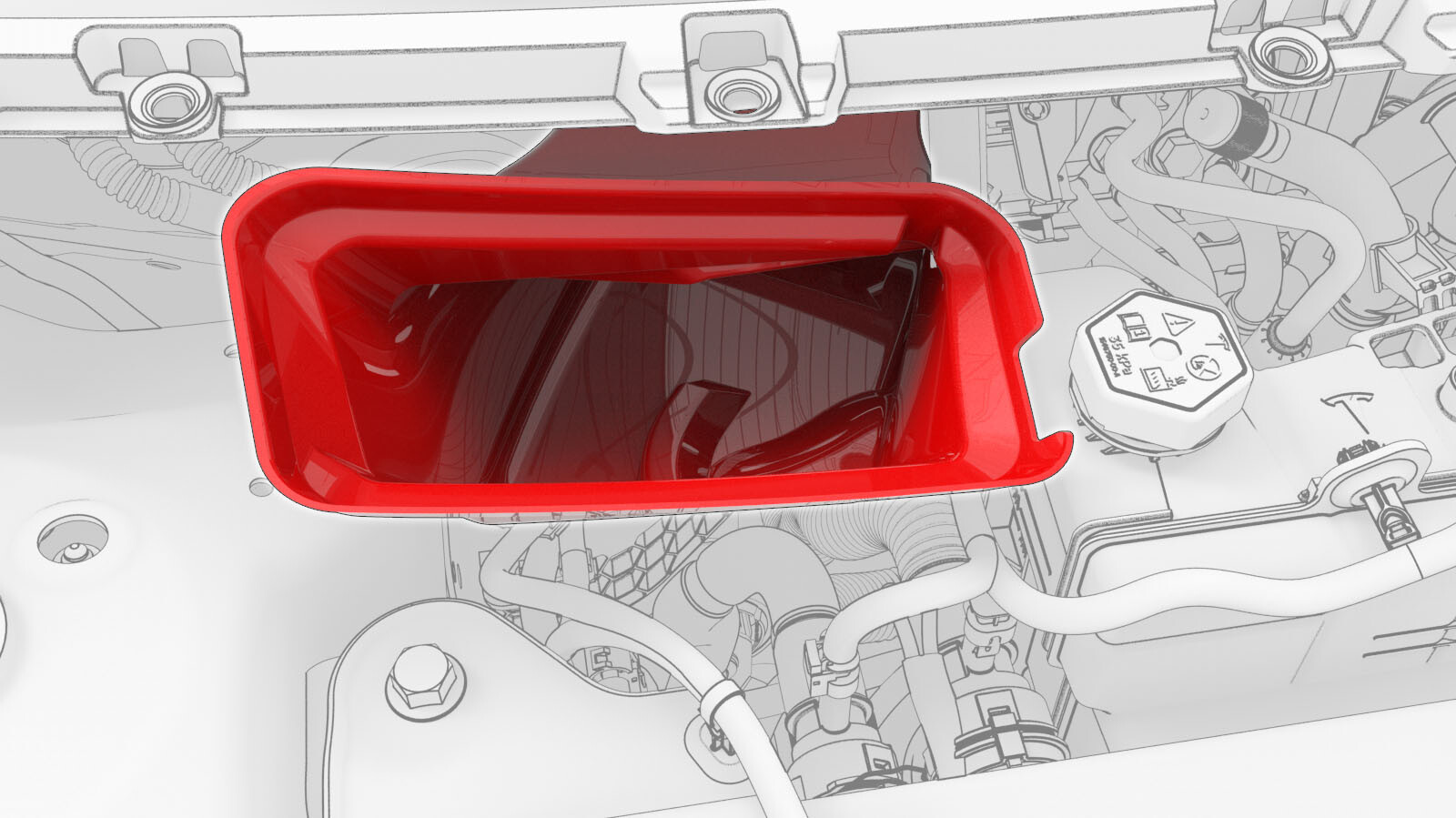

从隔板螺柱 (x2) 上松开新鲜空气进气槽,然后从车上拆下该槽。
安装
安装程序与拆卸程序相反。
