电机 - 座椅倾斜 - 驾驶位座椅（拆卸和更换）

校正代码 13011502 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

警告
Seat base edges are sharp and can cause personal injury. Wear cut resistant gloves when removing the seat from the vehicle, and while performing procedures that involve work on or near the seat base.
  • 2026-01-23: 更新了倾斜电机拆卸方法。
  • 2024-12-09: 添加了小型倾斜电机配置信息。
  • 2023 年 5 月 23 日：添加了适用于副驾位座椅的说明和附加步骤。
  • 2023 年 5 月 3 日：添加了副驾位座椅校准和乘员分类系统 (OCS) 校准的步骤。

拆卸

  1. 打开左侧车门，降下左侧车窗。
  2. 将驾驶位座椅前移。

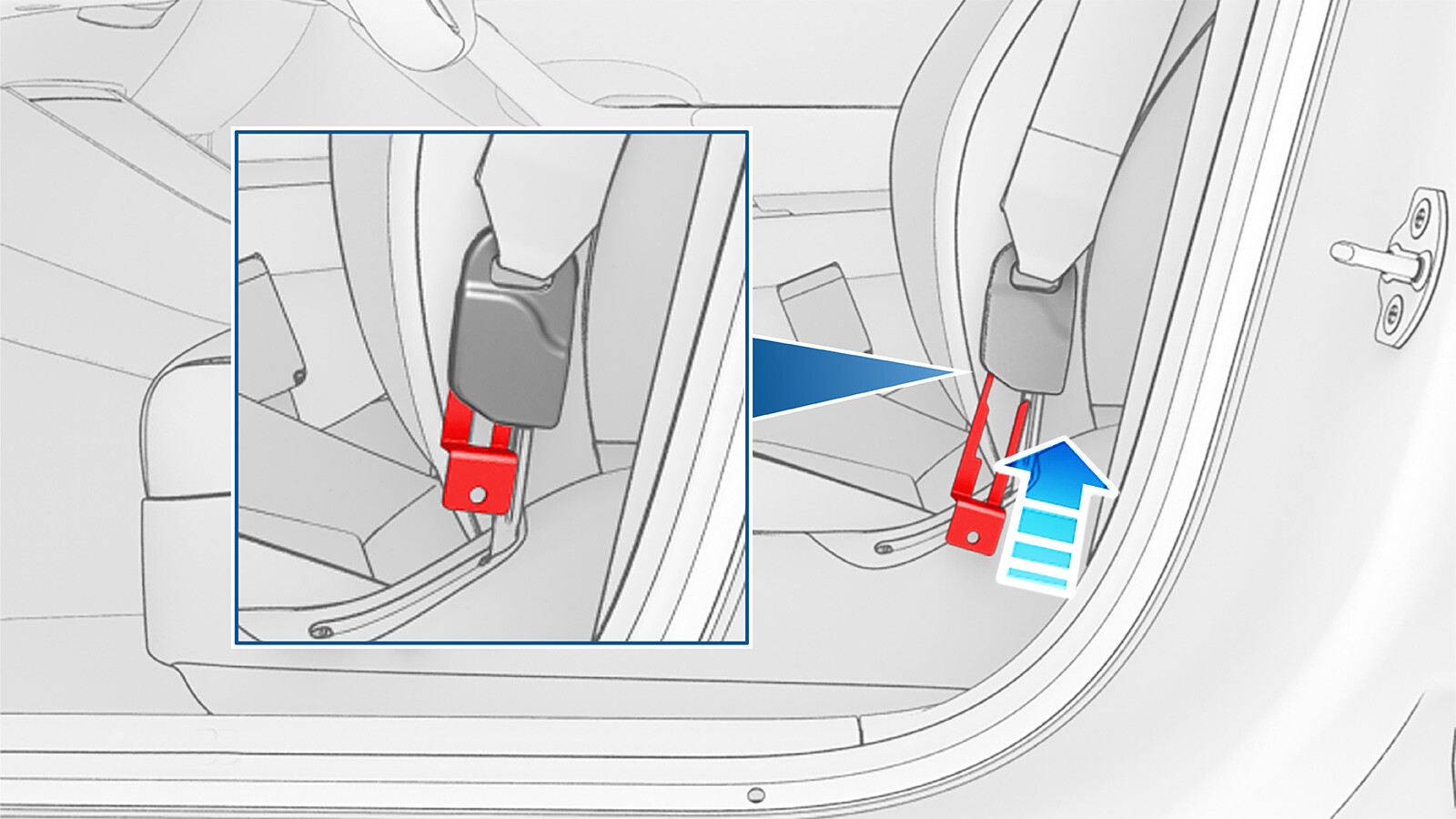

  3. 将安全带释放钥匙 (1133787-00-A) 插入到安全带预紧装置耦合的底部，以从预紧装置中松开安全带。
  4. 将驾驶位座椅高度调至最高位置。
    警告
    切勿使座椅头枕压住遮阳板，否则可能导致化妆镜破裂。
  5. 拆卸驾驶位座椅外侧护板。请参阅 侧护板 - 外侧 - 驾驶位座椅（拆卸和更换）。
    注
    拆卸过程中，执行部分步骤时需要格外小心。请观看动画以获取详细指导。

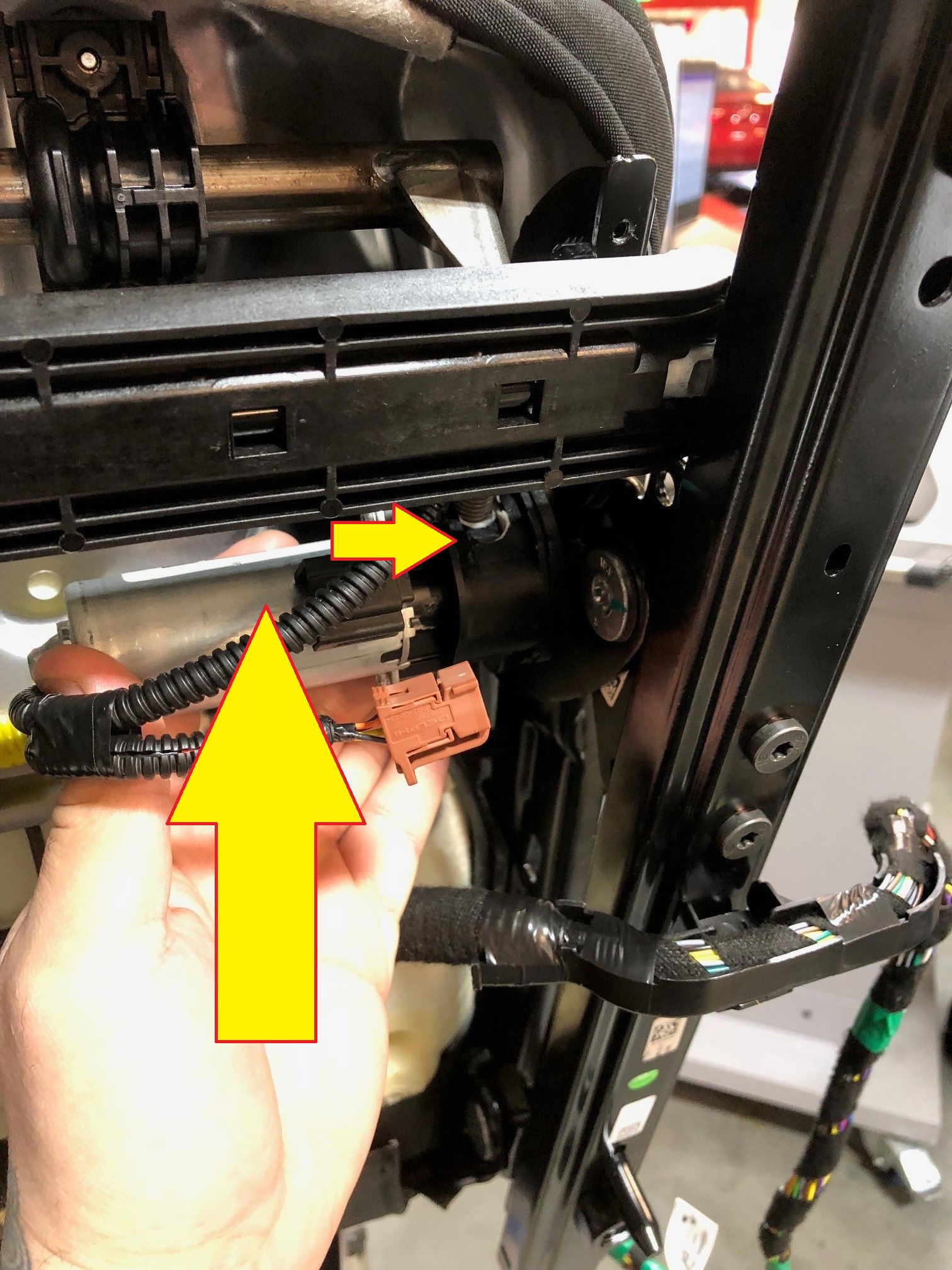

  6. 将电气线束从驾驶位座椅倾斜电机连接器上断开。

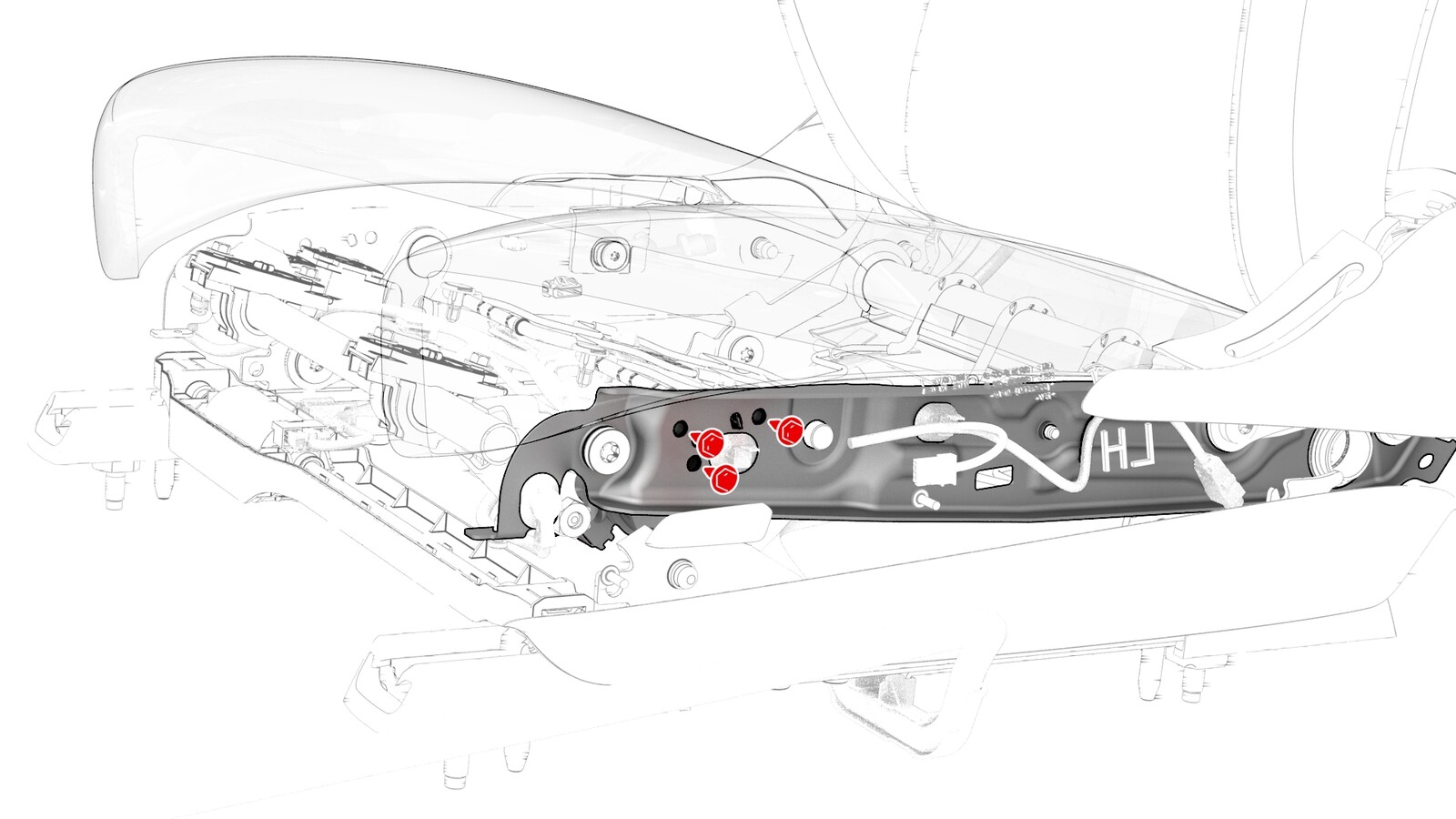

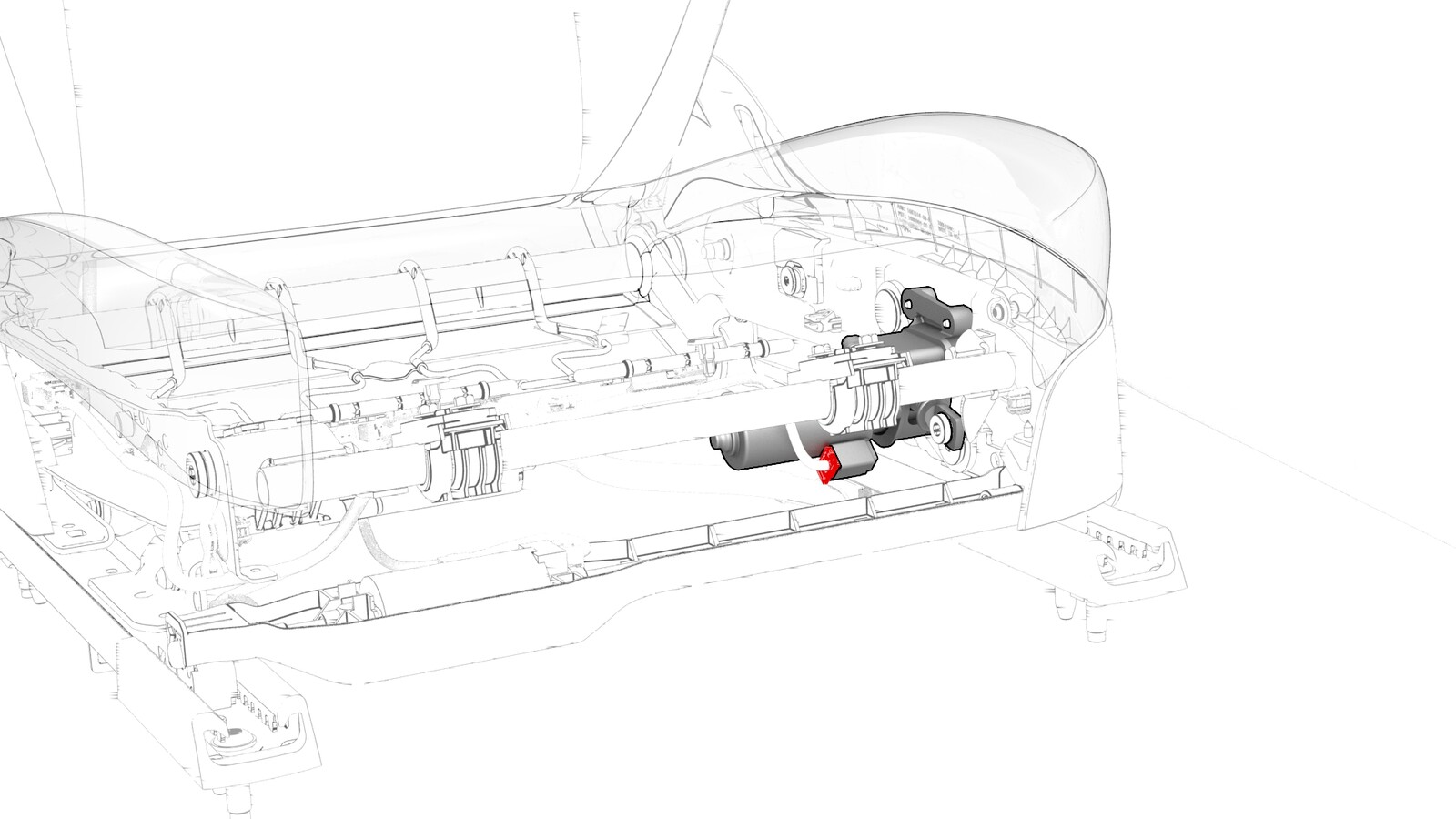

  7. 拆下将驾驶位座椅倾斜电机固定到座椅框架的螺栓。

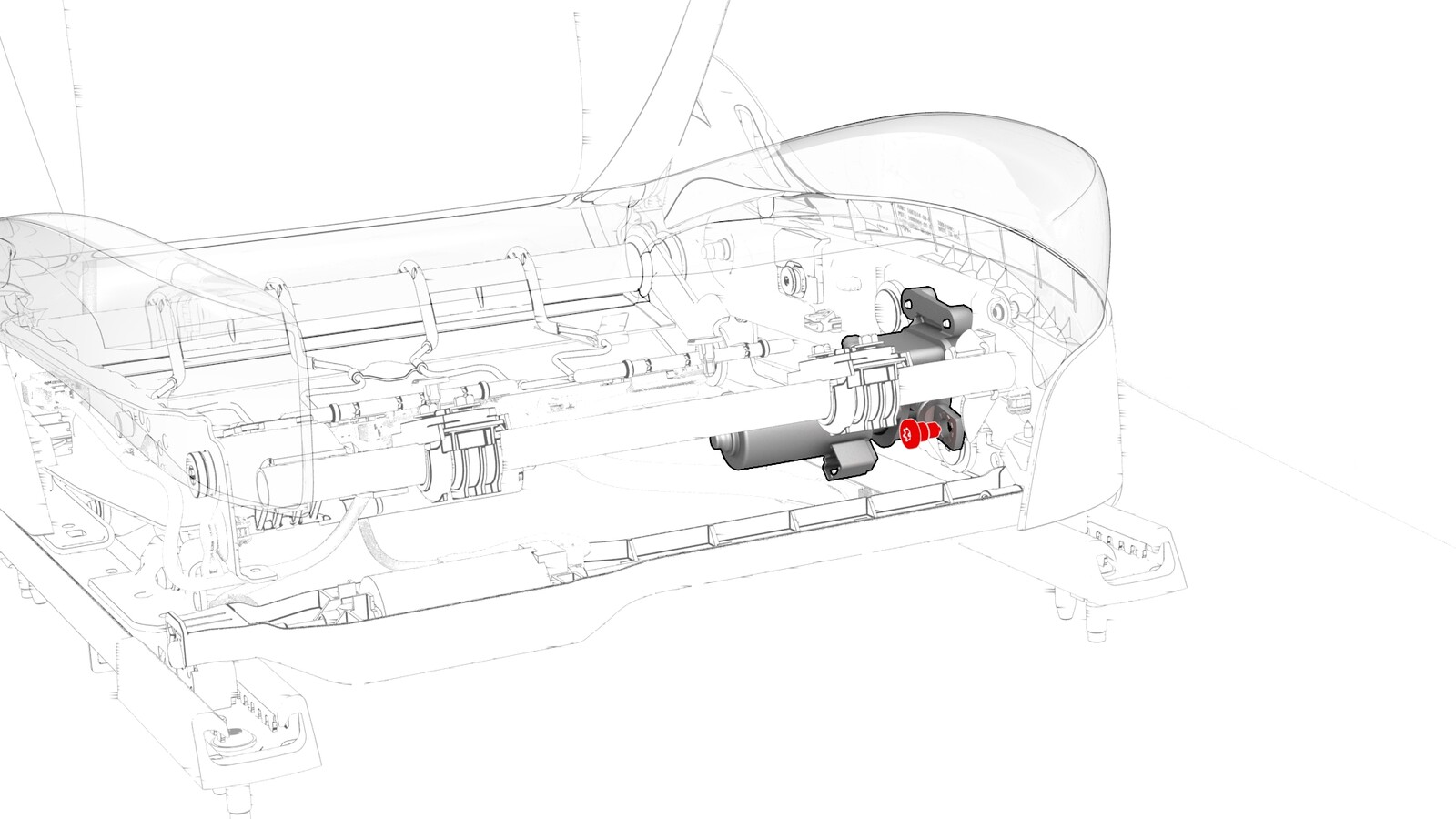

  8. 拆下并弃用将驾驶位座椅倾斜电机调节臂固定到座垫倾斜导管支架的螺栓，然后将驾驶位座椅倾斜电机从座椅框架上拆下。

安装

  1. 将驾驶位座椅倾斜电机安装到座椅框架上。
    注

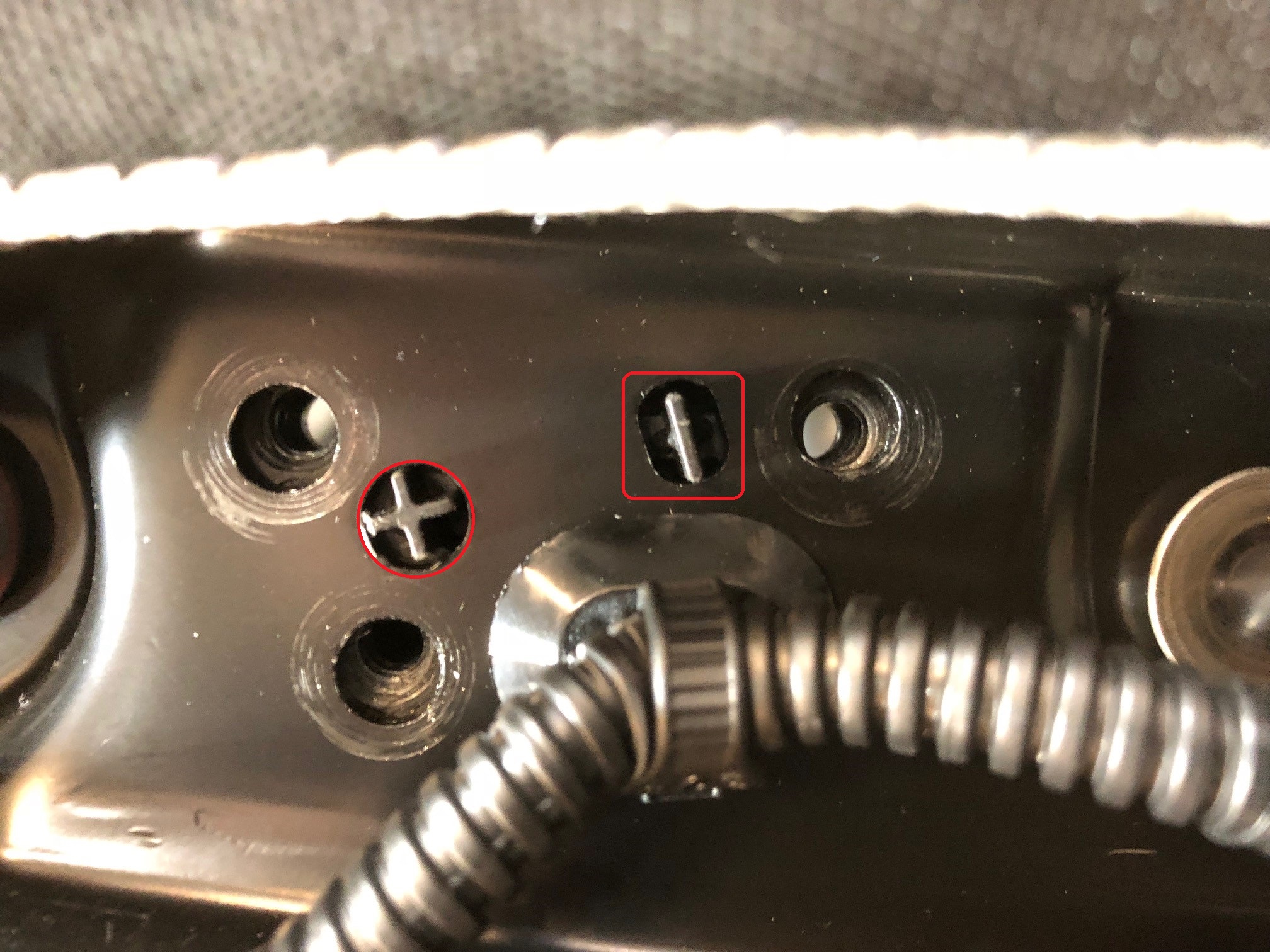

    抬起倾斜电机，靠在座椅框架上，确保电机定位销可见。
  2. 安装将驾驶位座椅倾斜电机固定到座椅骨架的螺栓 (x3)。
    7.5 Nm (5.5 lbs-ft)

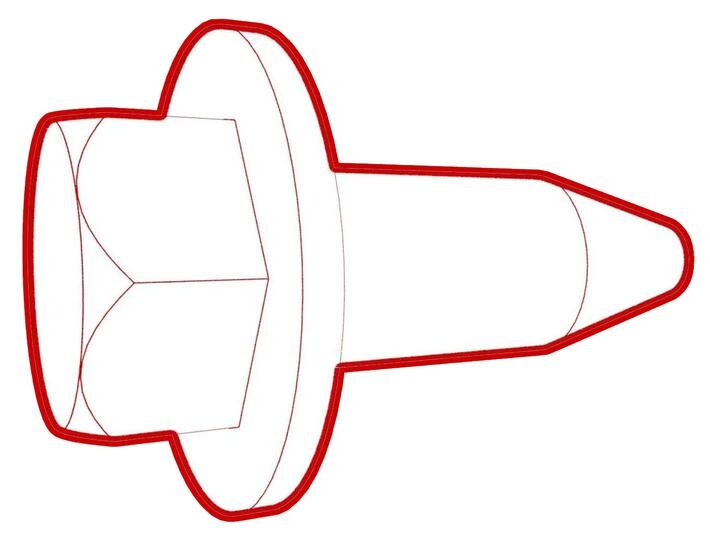

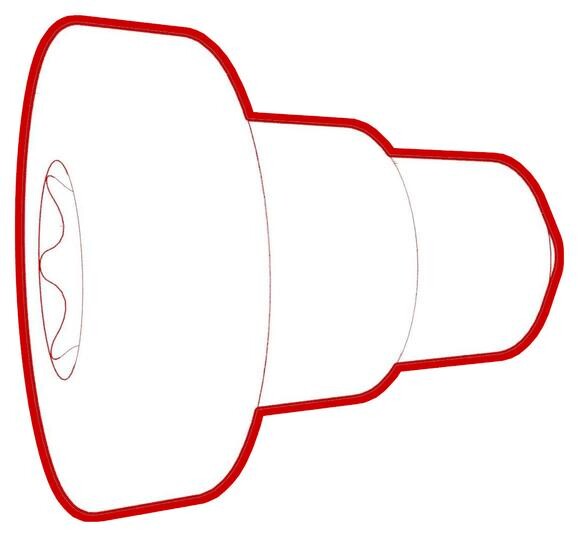

  3. 安装新的螺栓（零件号：1109741-00-E 或更新），将驾驶位座椅倾斜电机调节臂固定到座垫倾斜导管支架上。
    16 Nm (11.8 lbs-ft)
  4. 将电气线束与驾驶位座椅倾斜电机连接器相连。
  5. 安装驾驶位座椅外侧护板。请参阅 侧护板 - 外侧 - 驾驶位座椅（拆卸和更换）。

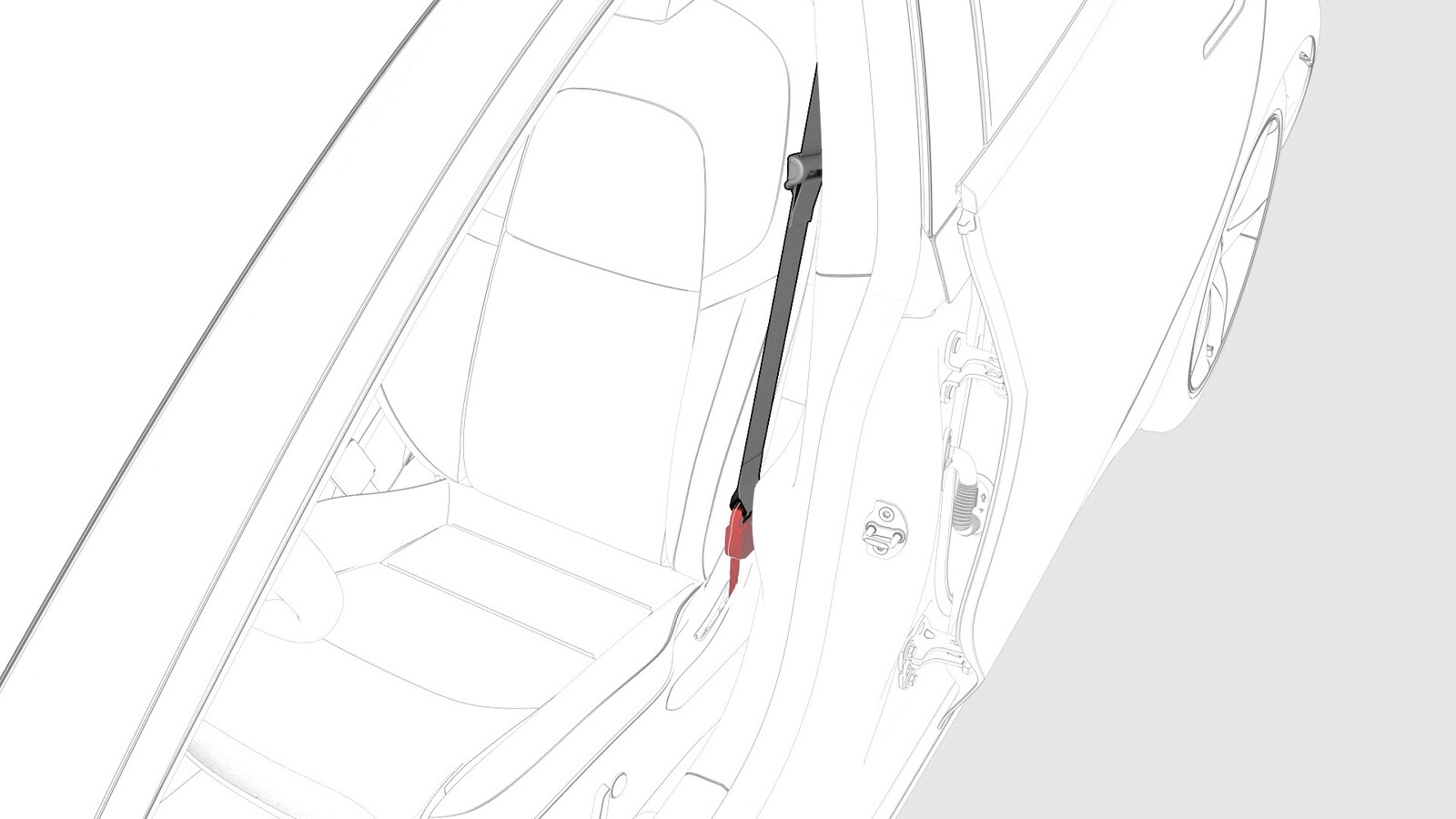

  6. 将第一排左侧座椅安全带卷收器安装到预紧装置上。
    注
    在将安全带预紧装置重新安装到安全带预紧装置耦合中后，执行拉力测试以确保安全带和预紧装置已牢牢接合

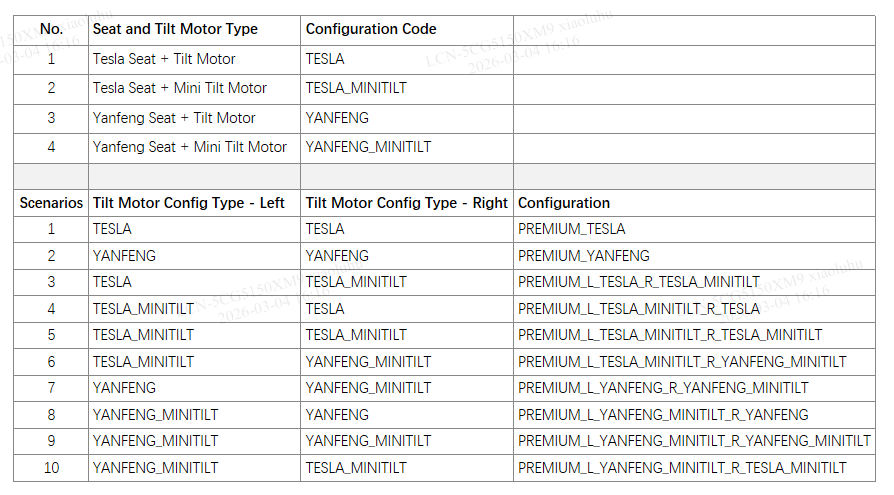

  7. Replacement front seat assemblies and seat cushion frame assemblies are equipped with a newly-designed "mini-tilt" motor, and replacing these parts (or the tilt motor itself) might require a configuration change. Review the configuration information in the table and perform the following substeps if a configuration update is needed.

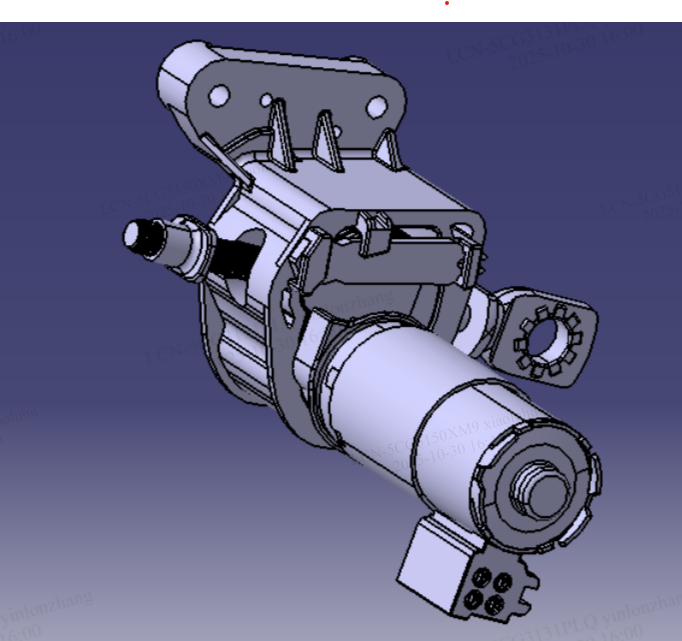

    图 1. Old Tilt Motor

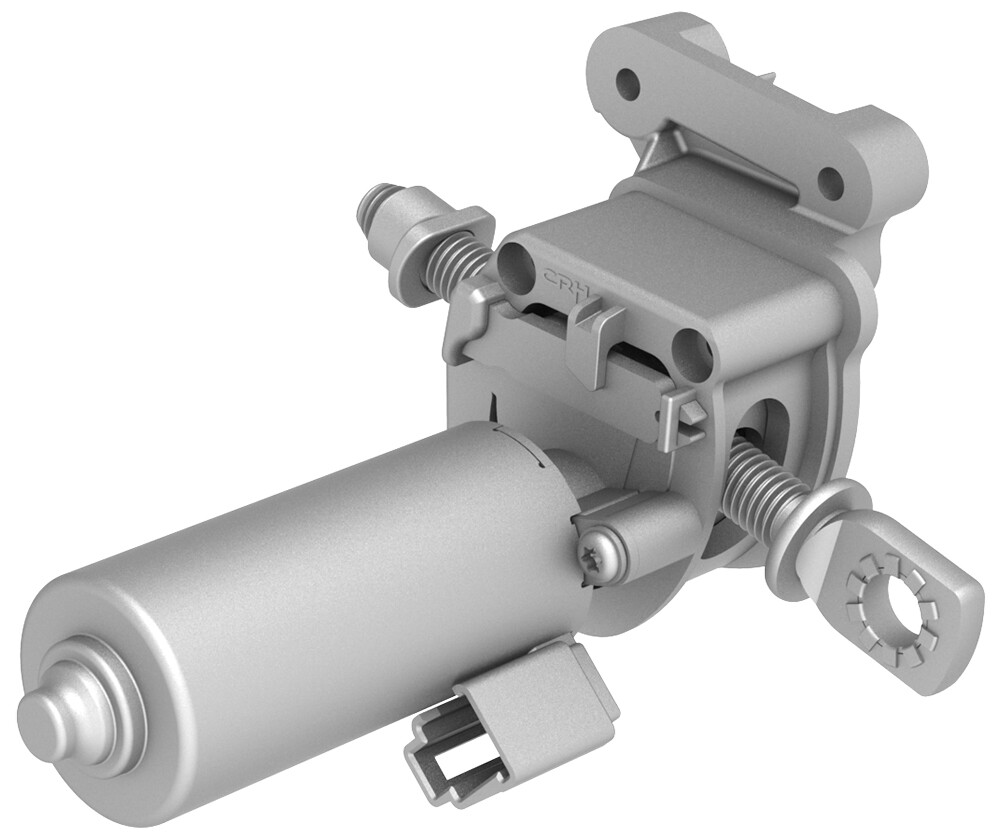

    图 2. New Mini Tilt Motor (P/N: 1868276-00-B or newer)
    1. Access the Vehicle Configuration section of the Infotainment Dashboard. See 网关配置（显示和变更）.
    2. Update cfg_frontSeattype according to the combination of tilt motors described in the table.
  8. Calibrate the driver seat:
    1. Connect a laptop with Toolbox 3 to the vehicle. See Toolbox（连接和断开）.
    2. In Toolbox, click on the Actions/Autodiag tab, and then search for "Calibration".
    3. Click Left Seat Calibration, click Run, and allow the routine to complete.
      警告
      Make sure that nothing is on the seat during the calibration routine.
    4. Disconnect Toolbox and remove the laptop from the vehicle.
