Steering Rack (RWD) (RHD) (Remove and Replace)

校正代码 32010112 1.86 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

拆卸

  1. Remove the front subframe. See Subframe Assembly - Front (RWD) (Remove and Install).

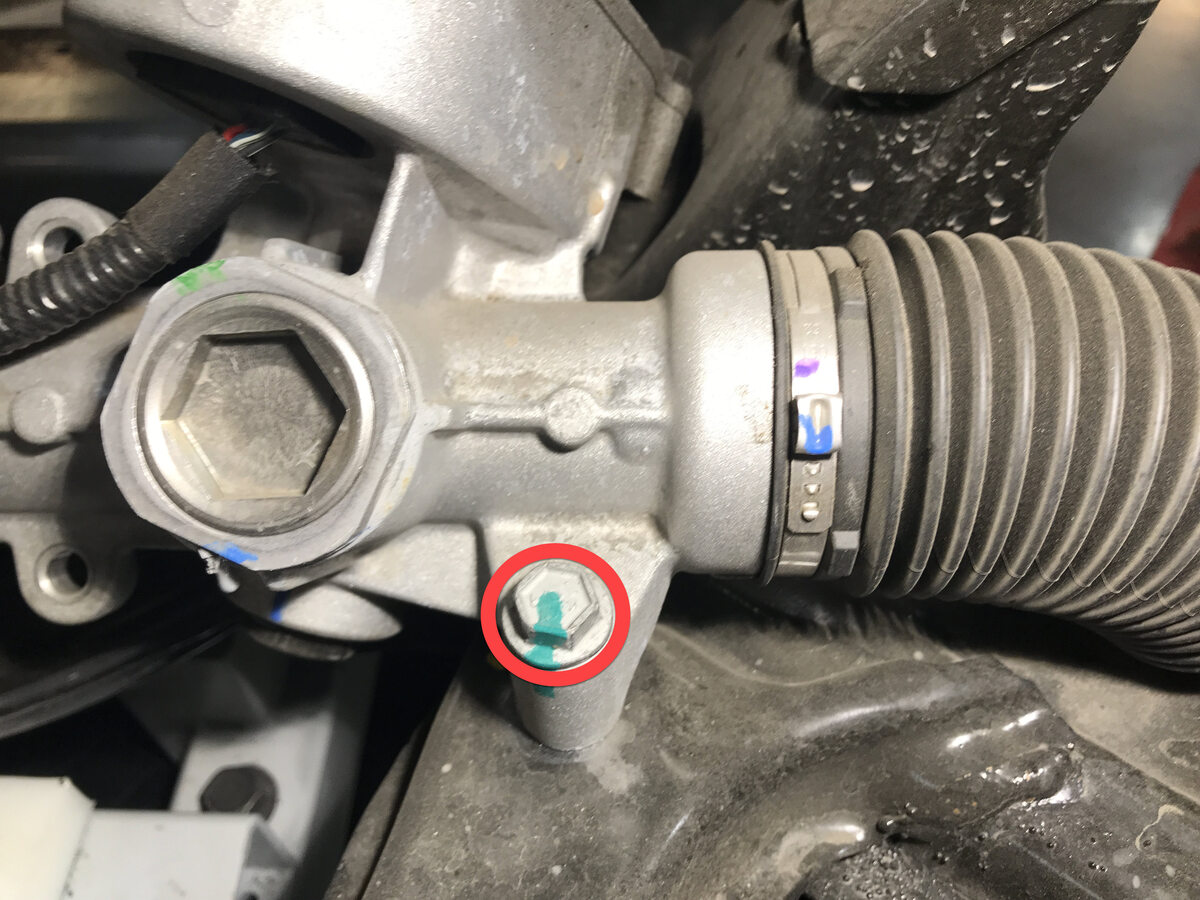

  2. Remove the outer bolts that attach the steering gear assembly to the front subframe.

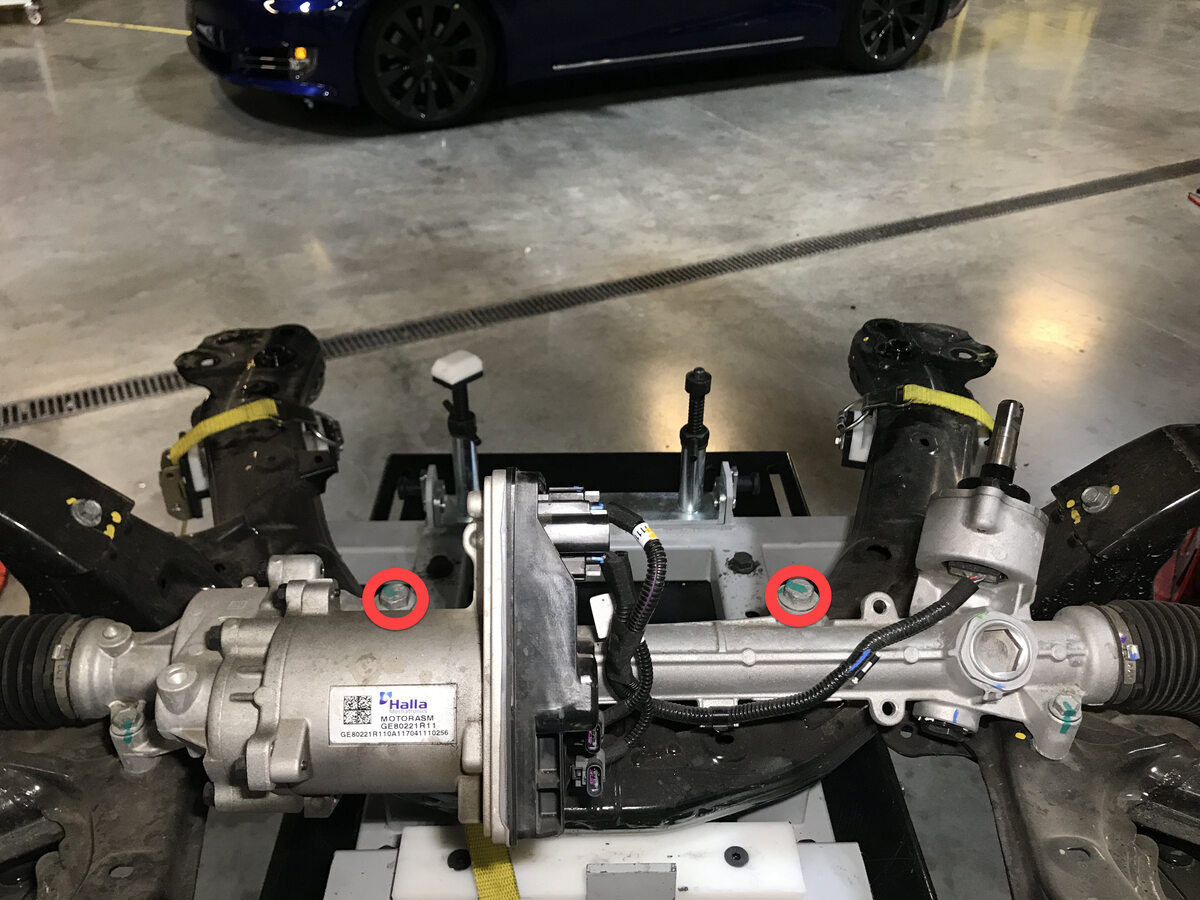

  3. Remove the inner bolts that attach the steering gear assembly to the front subframe.
  4. Remove the steering gear assembly from the front subframe.

安装

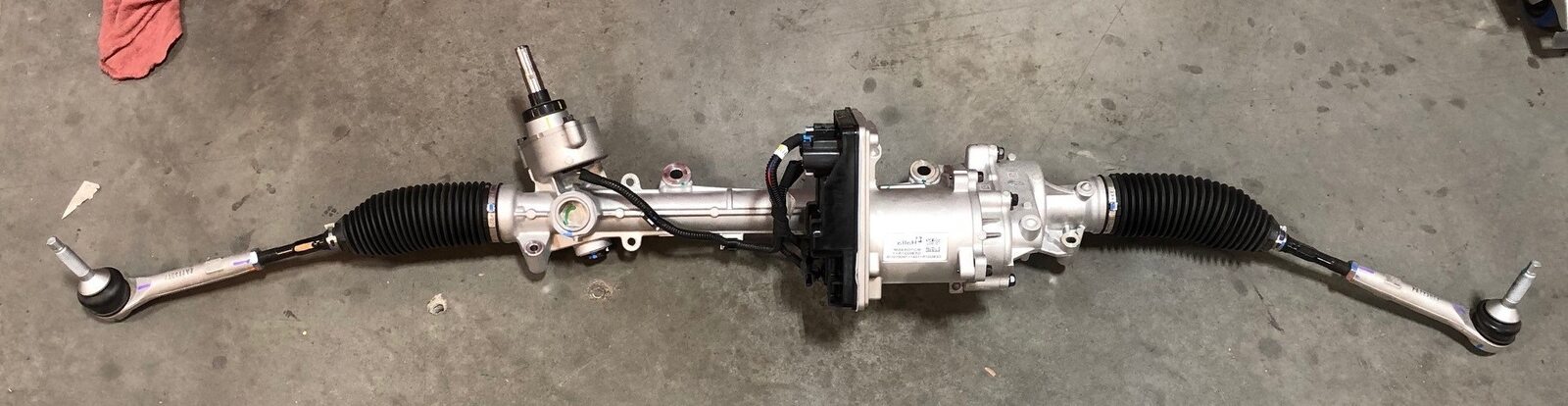

  1. Position the new steering gear assembly onto the front subframe for installation.

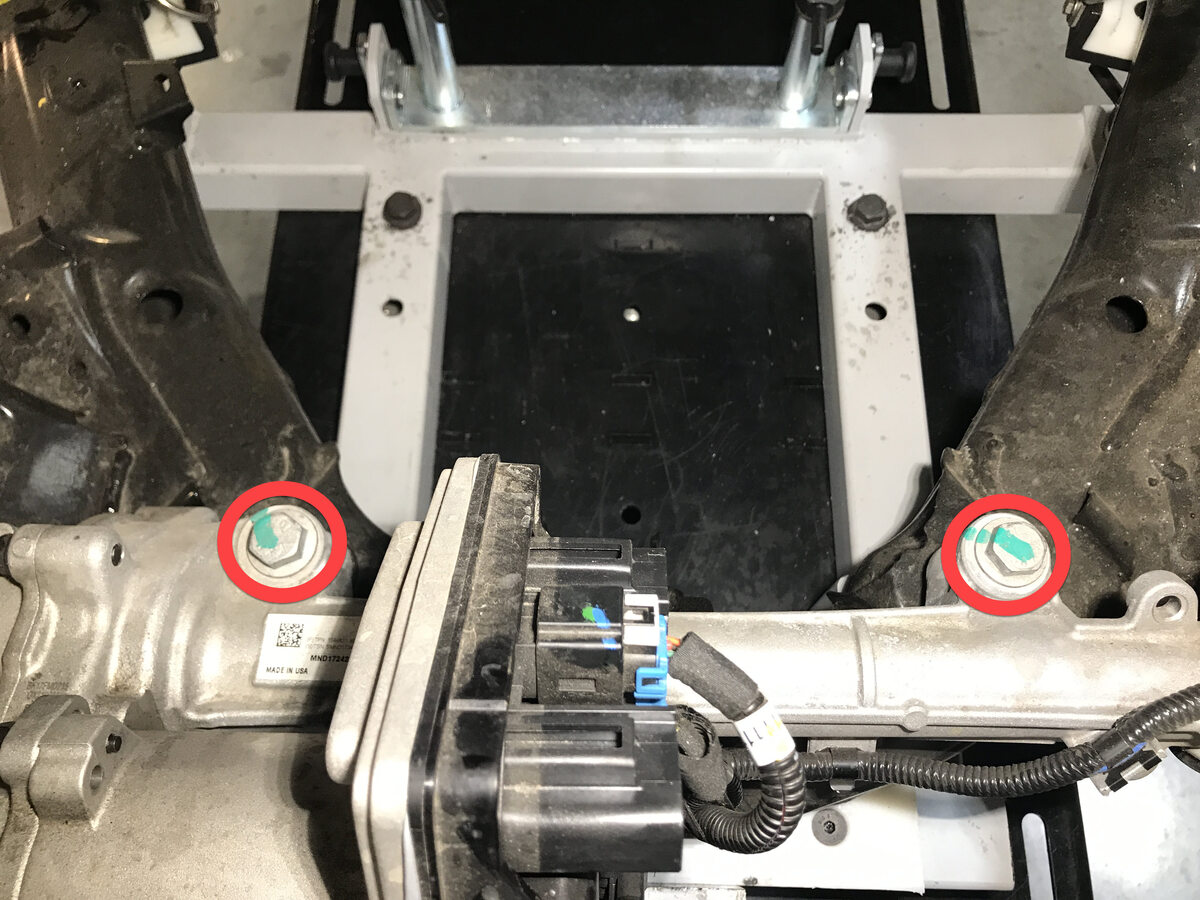

  2. Loosely install the inner bolts that attach the steering gear assembly to front subframe.
    Informational PurposesAn informational icon, calling your attention
    注
    2x bolts, 18mm, 75 Nm. Torque at a later step.
  3. Install the outer bolts that attach the steering gear assembly to the front subframe. For older M3 vehicles with 13 mm bolts:
    27 Nm (19.9 lbs-ft)
    For newer M3 vehicles with 15 mm bolts:
    47 Nm (34.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 13 毫米套筒
    • 回旋头棘轮/回旋头扭矩扳手
    • 11 英寸加长件
    or:
    • 15 毫米套筒
    • 回旋头棘轮/回旋头扭矩扳手
    • 11 英寸加长件
  4. 75 Nm (55.3 lbs-ft)
    Torque the inner bolts that attach the steering gear assembly to the front subframe.拧紧将转向机构总成固定到前副框架的内侧螺栓。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 18 毫米套筒
    • 6 英寸加长件
  5. Install the front subframe and other components removed during subframe removal. See the Install section in Subframe Assembly - Front (RWD) (Remove and Install).
  6. Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust correction code as a separate activity to the SV. See Alignment Requirement - Suspension.
