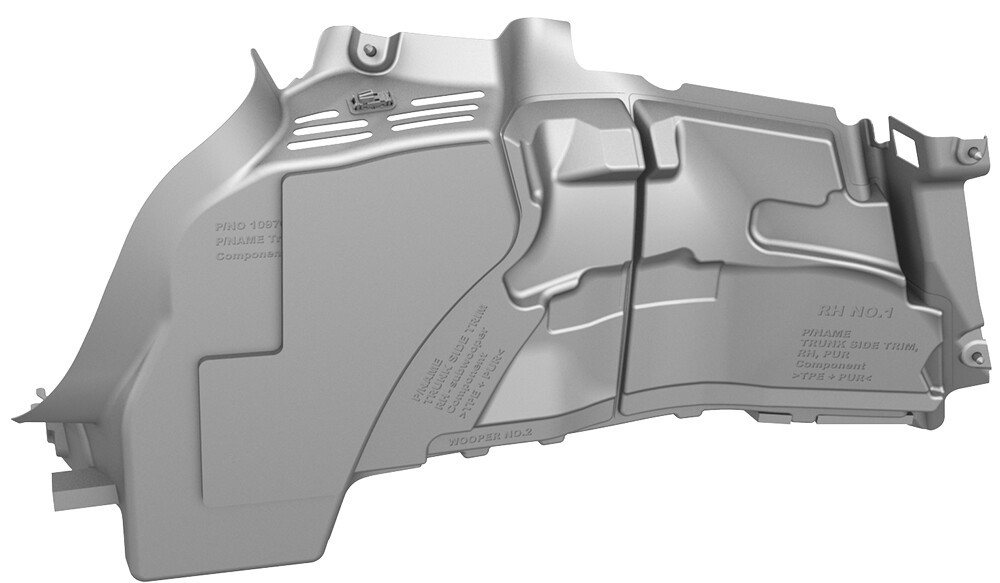

饰板 - 侧 - 后备箱 - 右侧(拆卸和更换)

校正代码 15245102 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 拆下第二排座椅 RH 靠背。请参阅座椅靠背 - 第二排 - RH(拆卸和更换)。

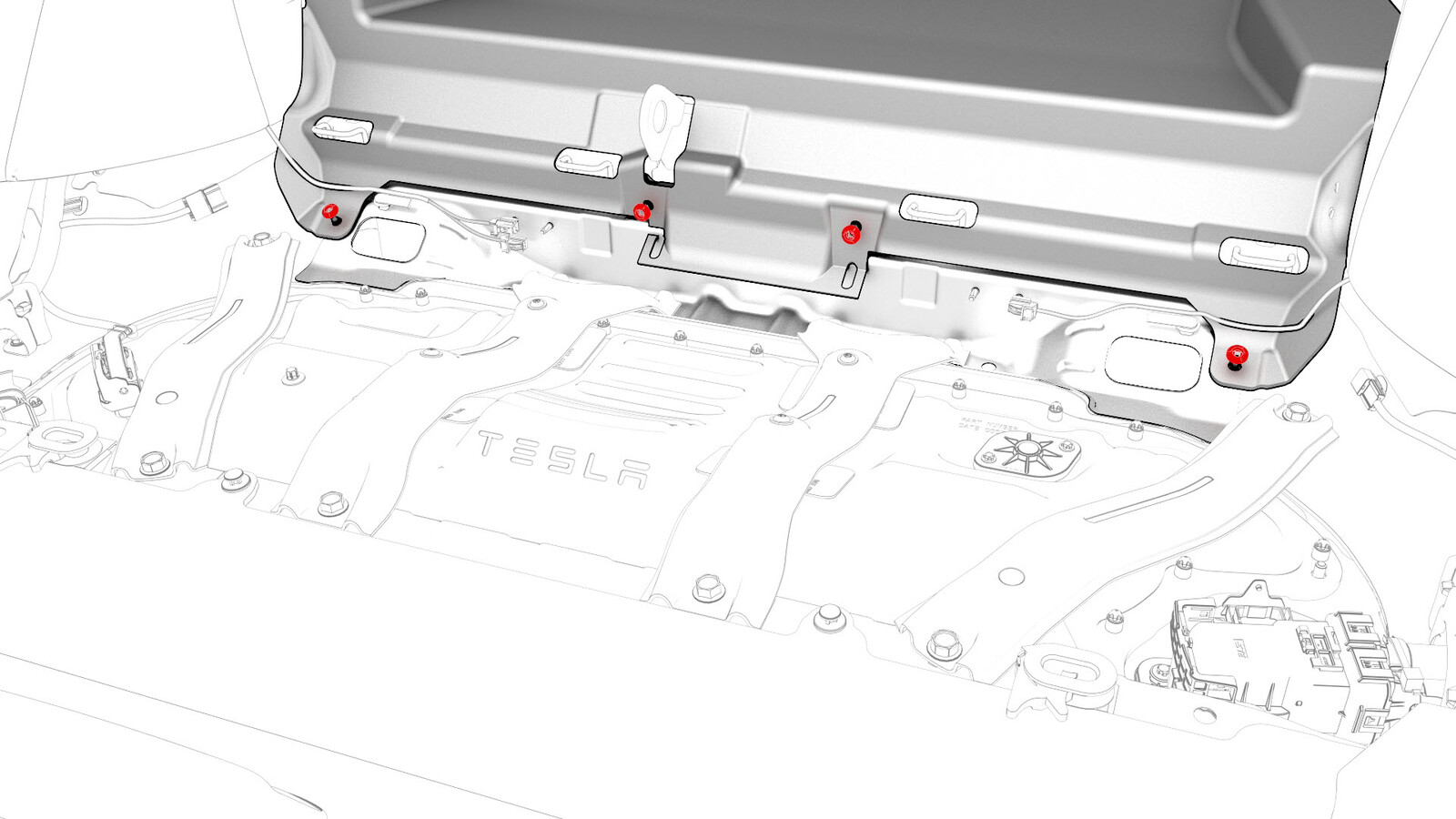

  2. 在第二排座垫下方,从车身柱上拆下行李箱 RH 毡毯夹 (x2)。
  3. 将行李箱毡毯抬过 RH 侧的 ISOFIX 横梁。
  4. 拆下行李箱门槛饰板。请参阅饰板 - 门槛板 - 后备箱(拆卸和更换)。
  5. 拆下行李箱饰板。请参阅饰板 - 后备箱(拆卸和更换)。
  6. 松开将地面照明灯固定到行李箱 RH 侧饰板的夹子,打开电气线束与地面照明灯电气连接器之间的连接,然后从车上拆下地面照明灯。

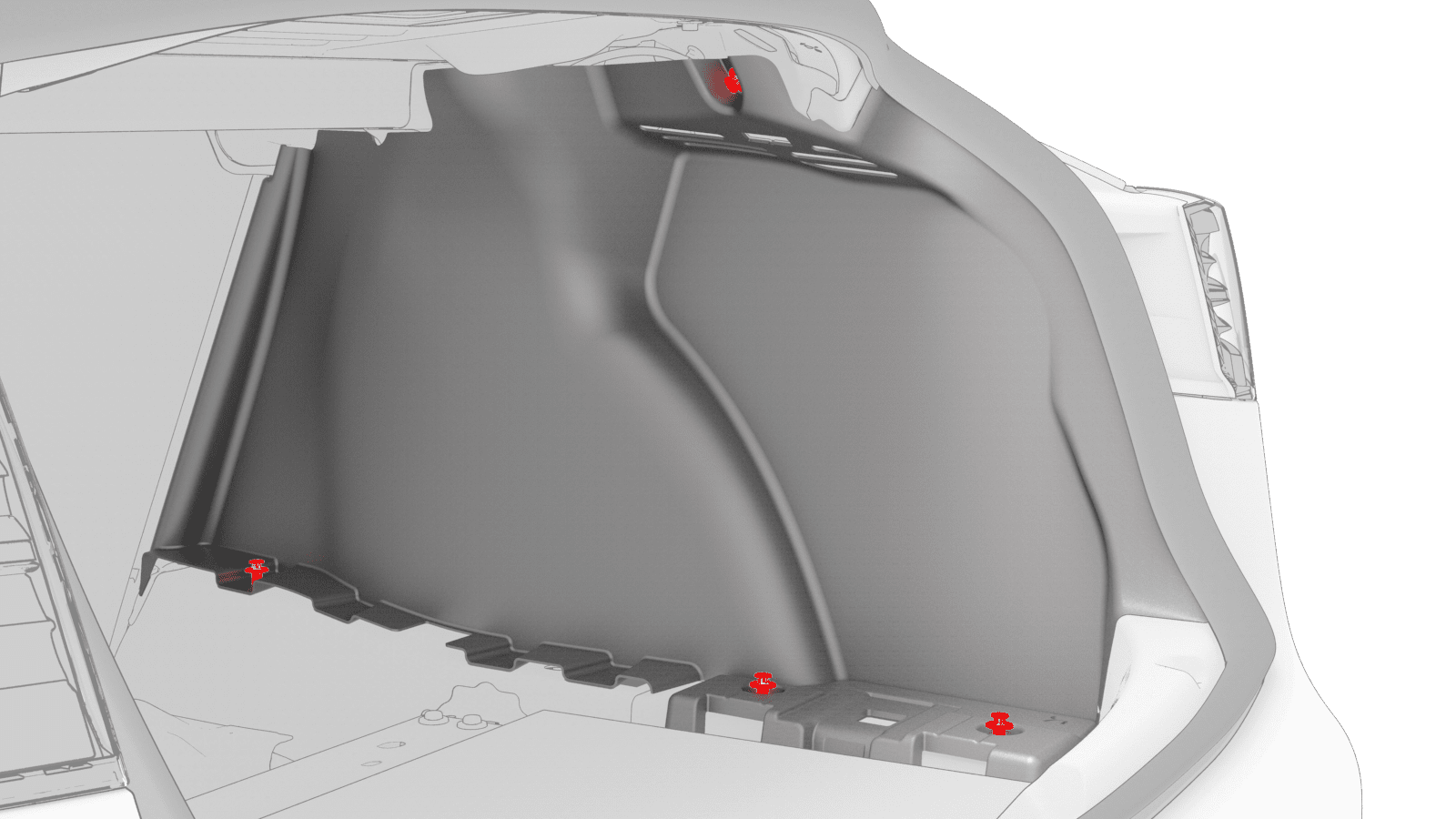

  7. 拆下将行李箱 RH 侧饰板固定到车身的卡扣,然后从车上拆下侧饰板。

安装

安装程序与拆卸程序相反。
