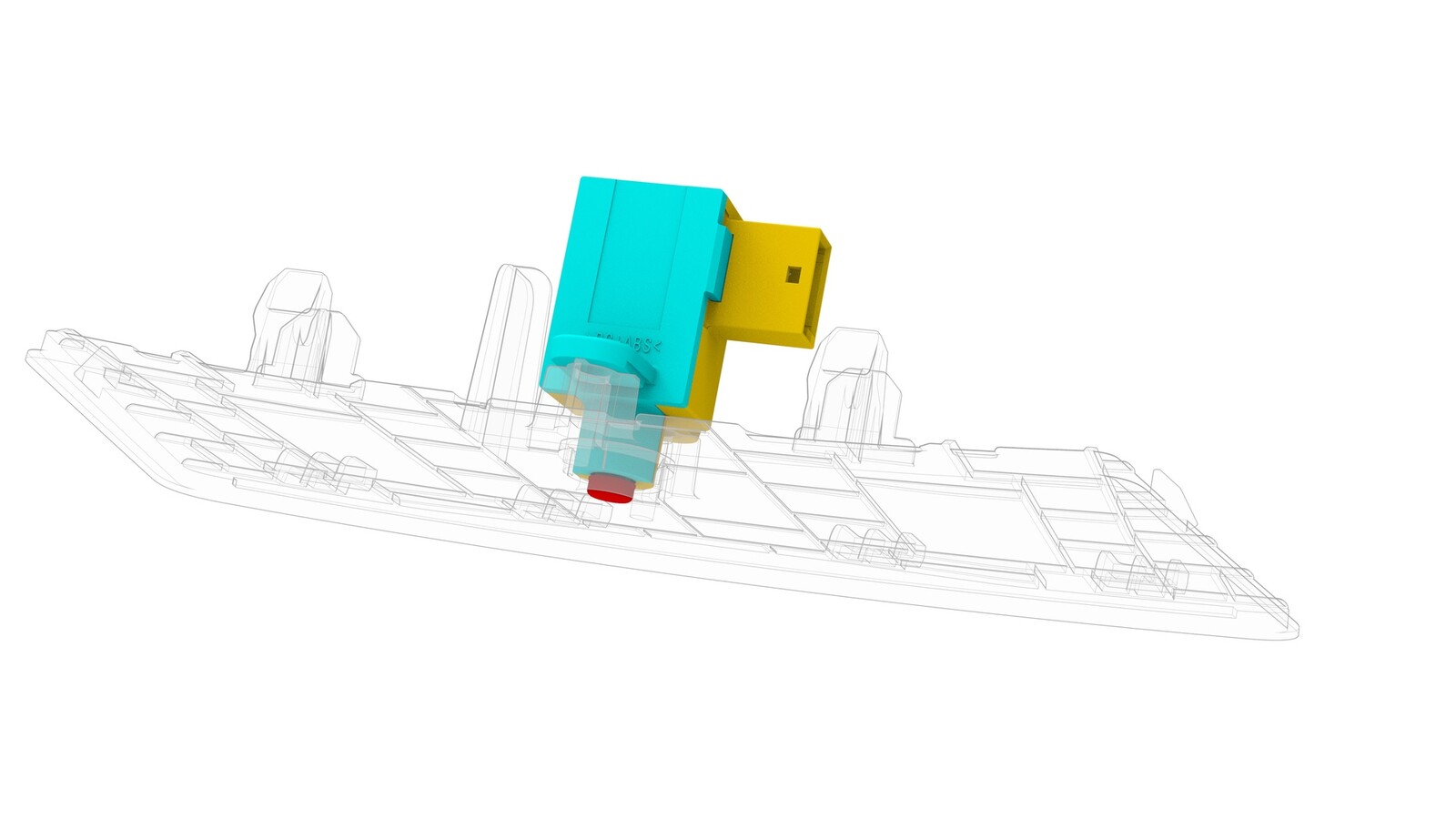

传感器 - 驾驶室温度系统(拆卸和更换)

校正代码 18107502 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 打开 LH 前车门。
  2. 降下 LH 前车窗。

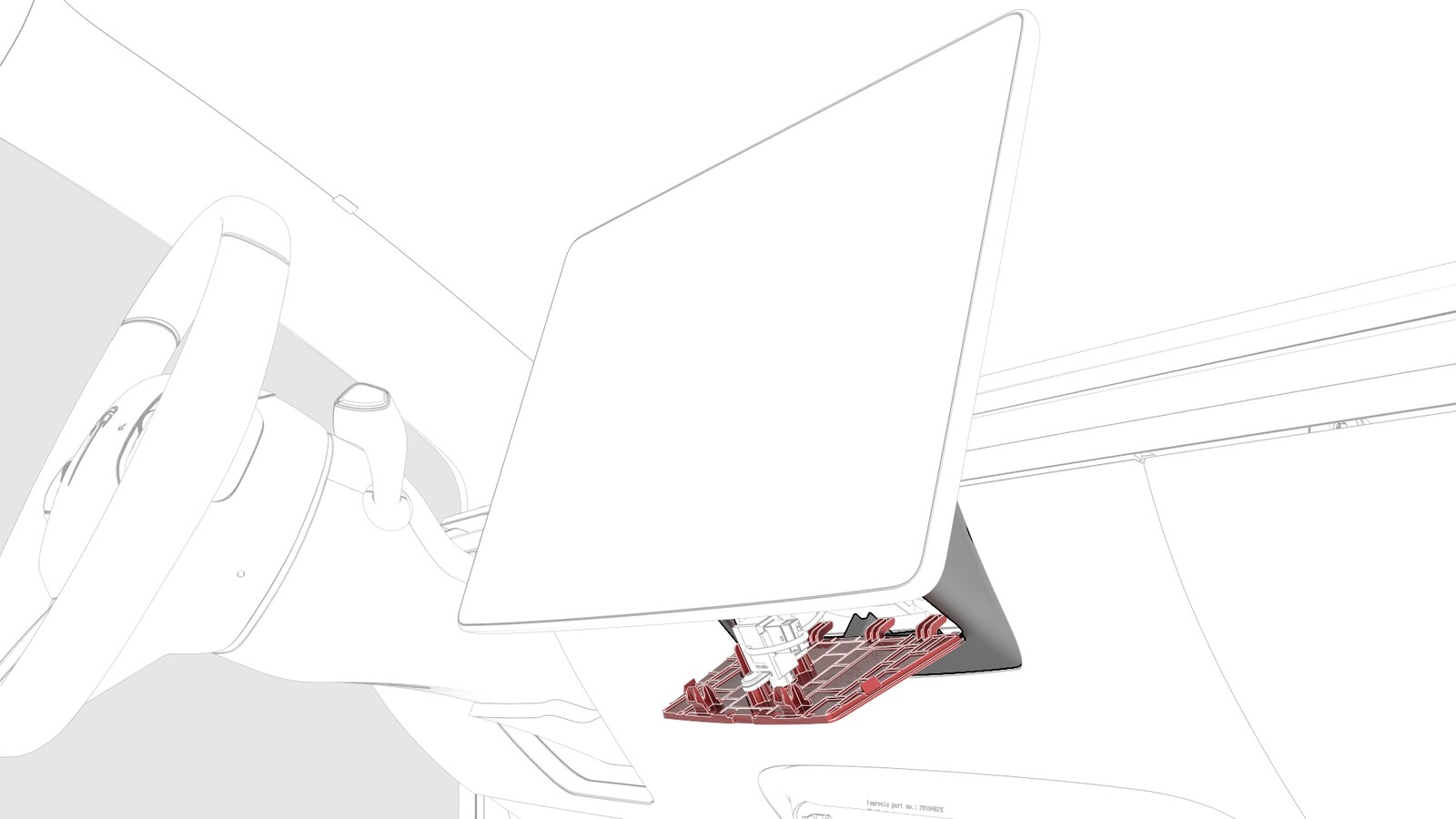

  3. 向维修面板的顶部中央槽中插入塑料饰板工具,然后松开将维修面板固定到仪表板的夹子和锁片。
    警告
    维修面板上仍连有电气线束。请勿将维修面板拉离仪表板过远。

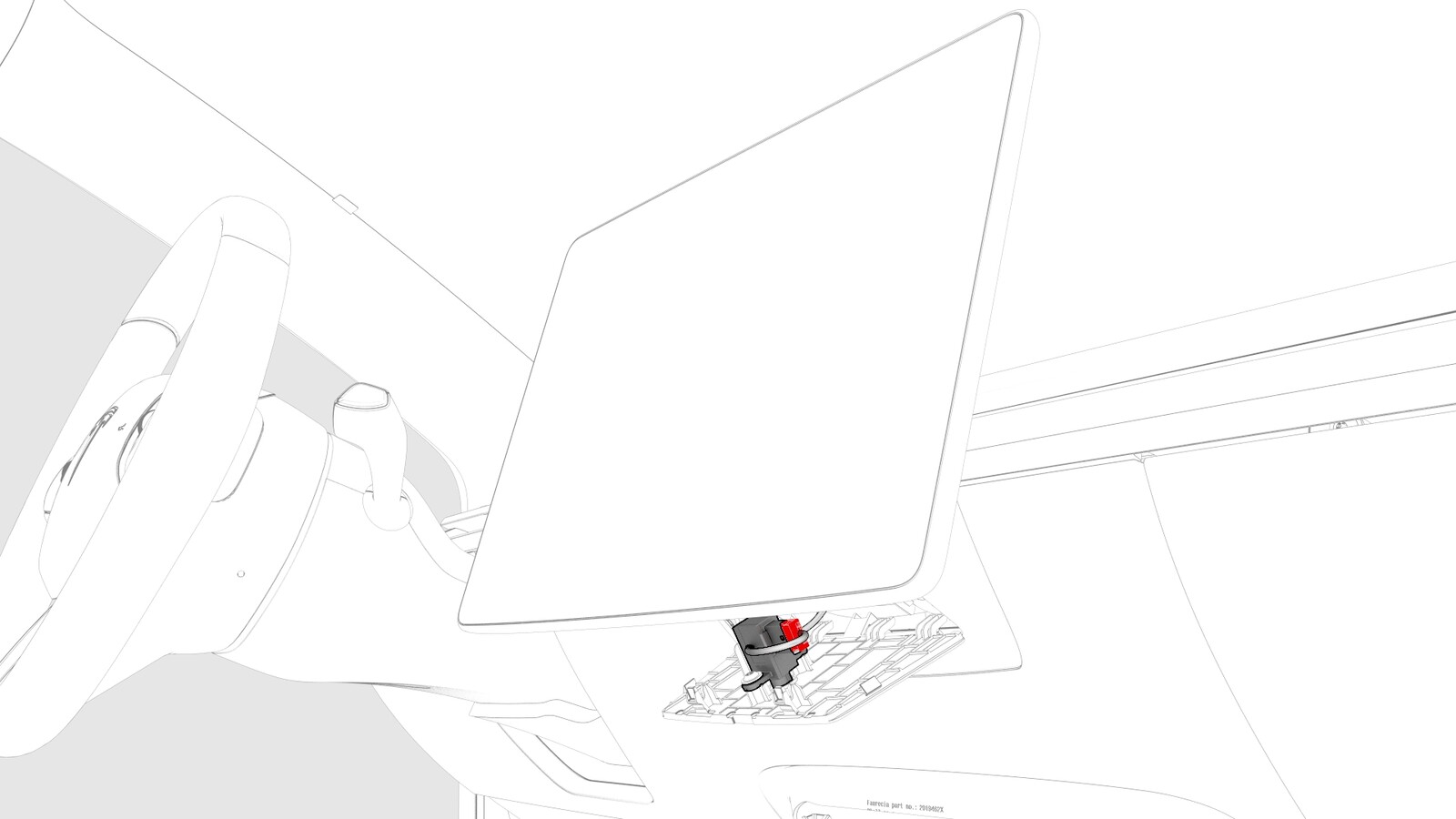

  4. 断开驾驶室温度传感器的电气线束连接。
  5. 从触摸屏上拆下维修面板。

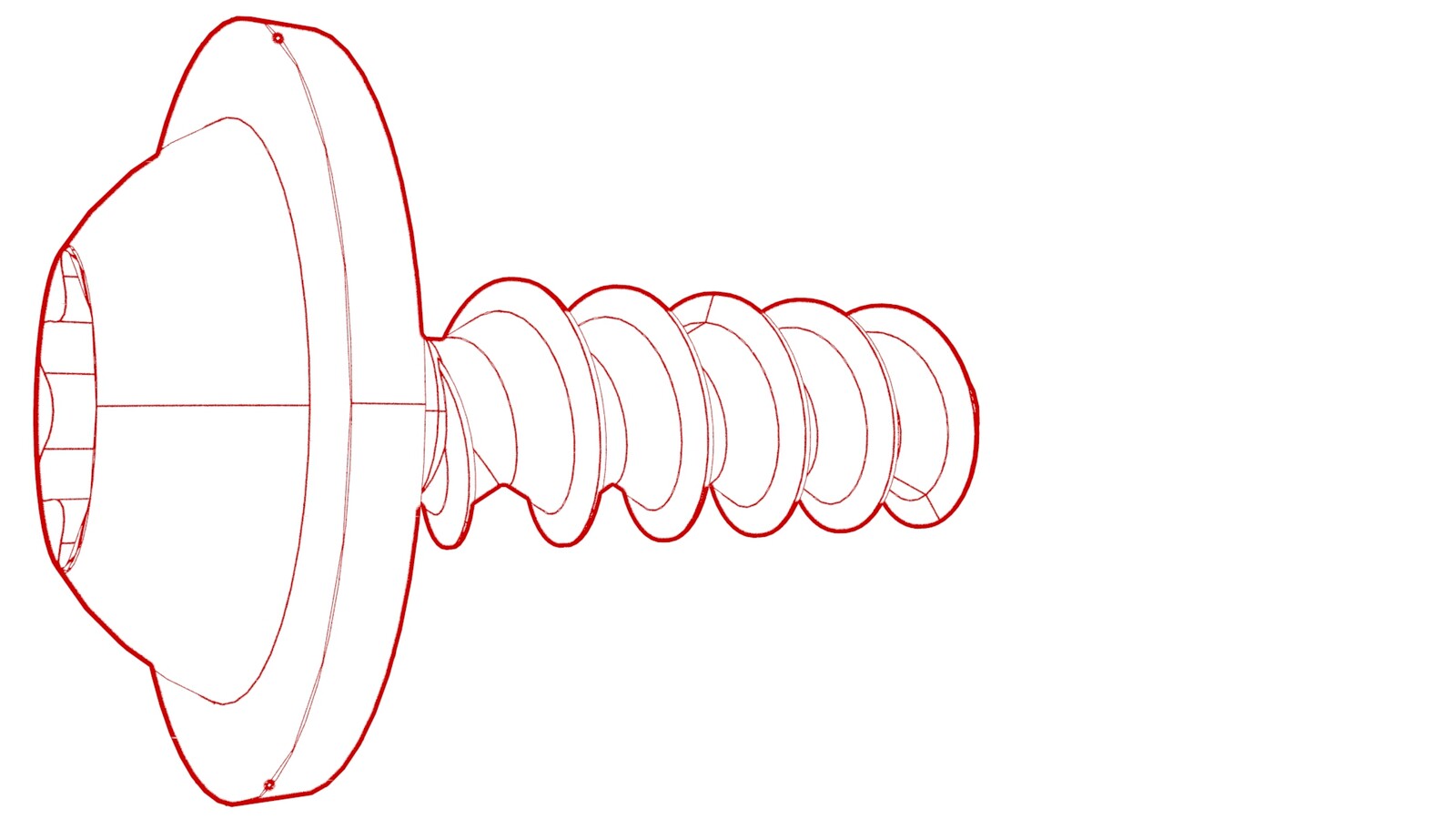

  6. 拆下将驾驶室温度传感器固定到触摸屏的螺栓,然后拆下传感器。
    0.7 Nm (6 lbs-in)

安装

安装程序与拆卸程序相反。
