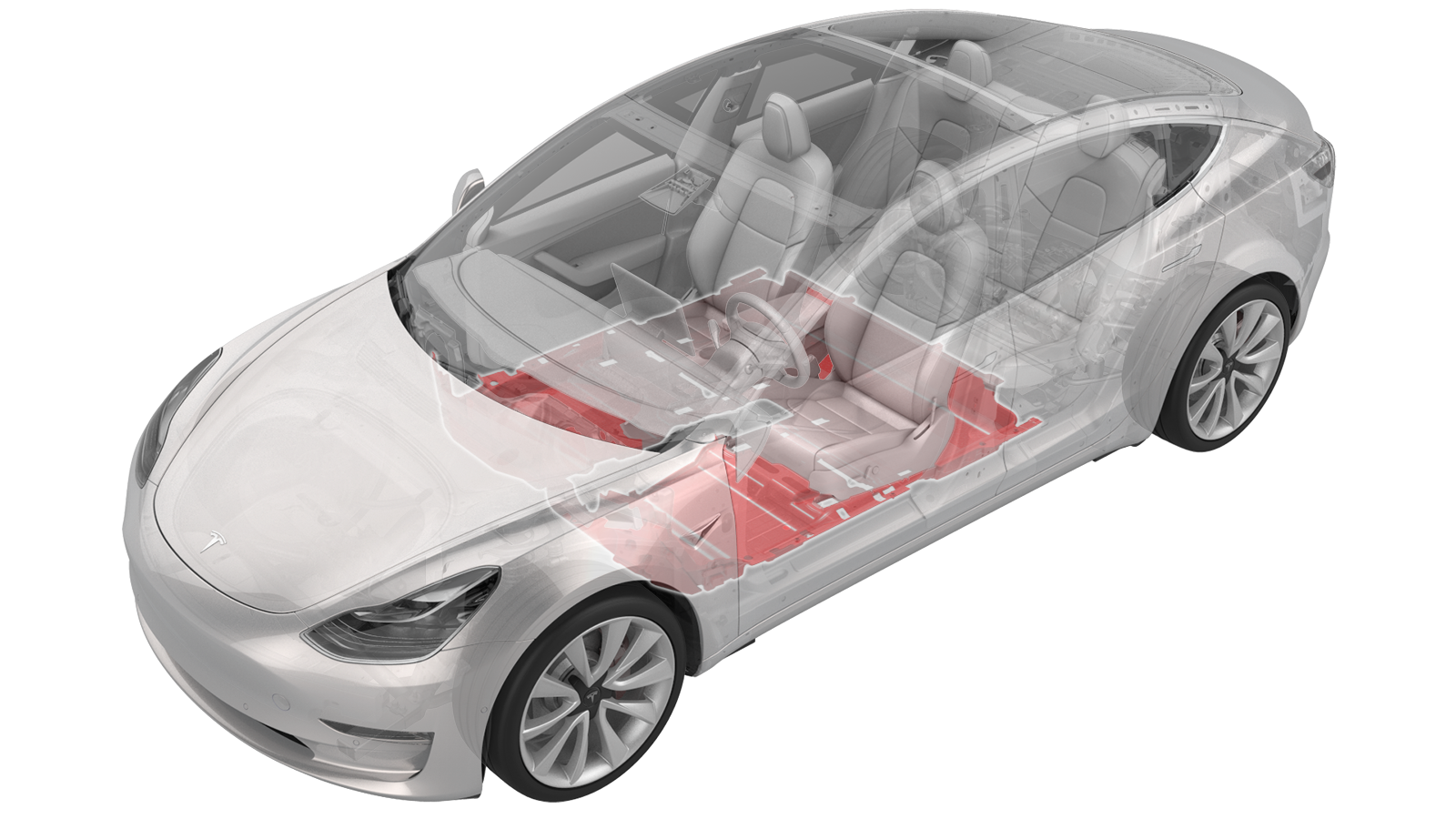

地毯 - 全套内饰（拆卸和更换）
校正代码
15302102 1.08
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- Remove the front passenger seat. See 座椅总成 - 第一排 - 左侧（拆卸和更换）.
- Remove the front LH carpet. See 地毯 - 前 - 左侧（拆卸和更换）.
- Remove the front RH carpet. See 地毯 - 前 - RH（拆卸和更换）.
-

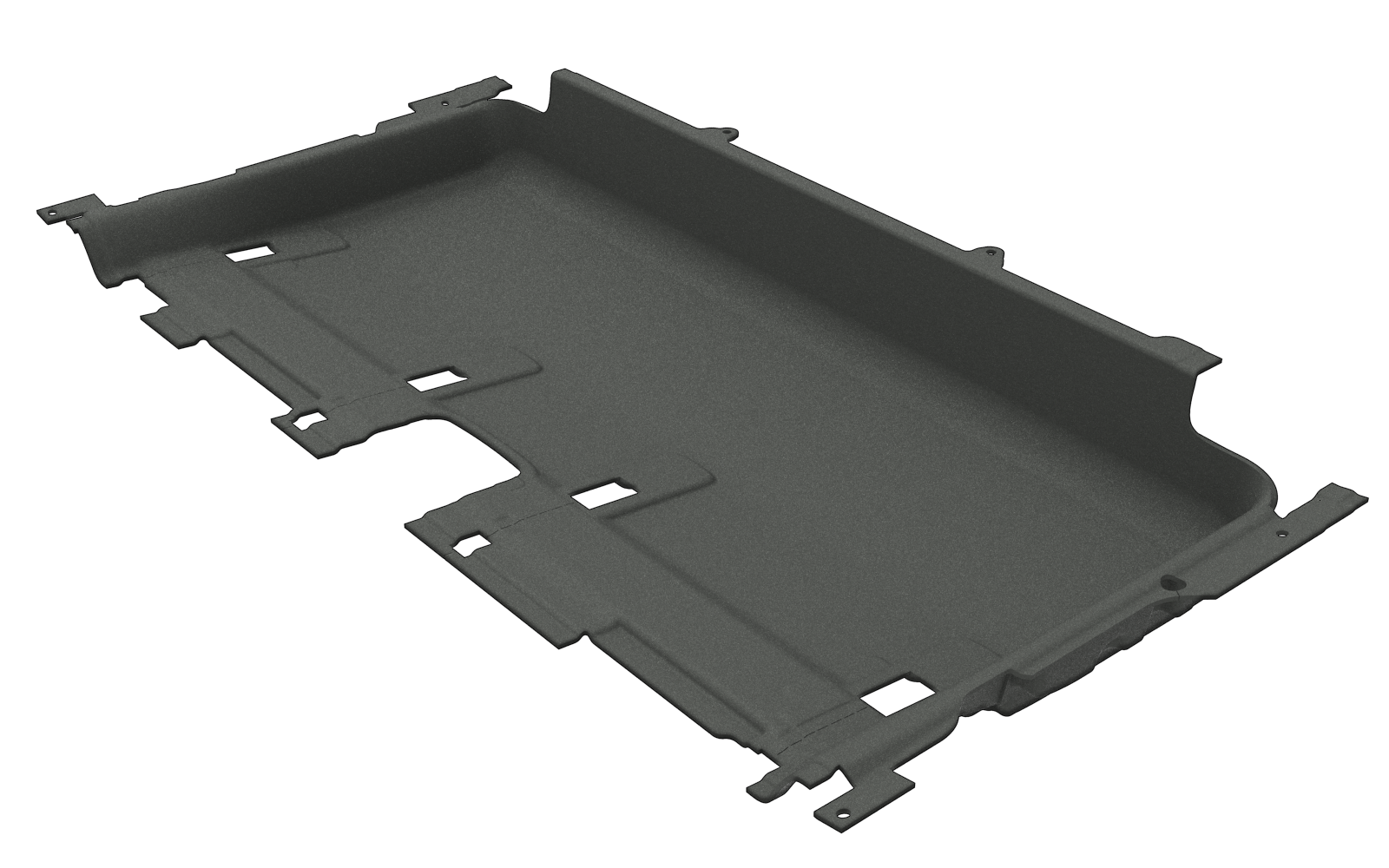

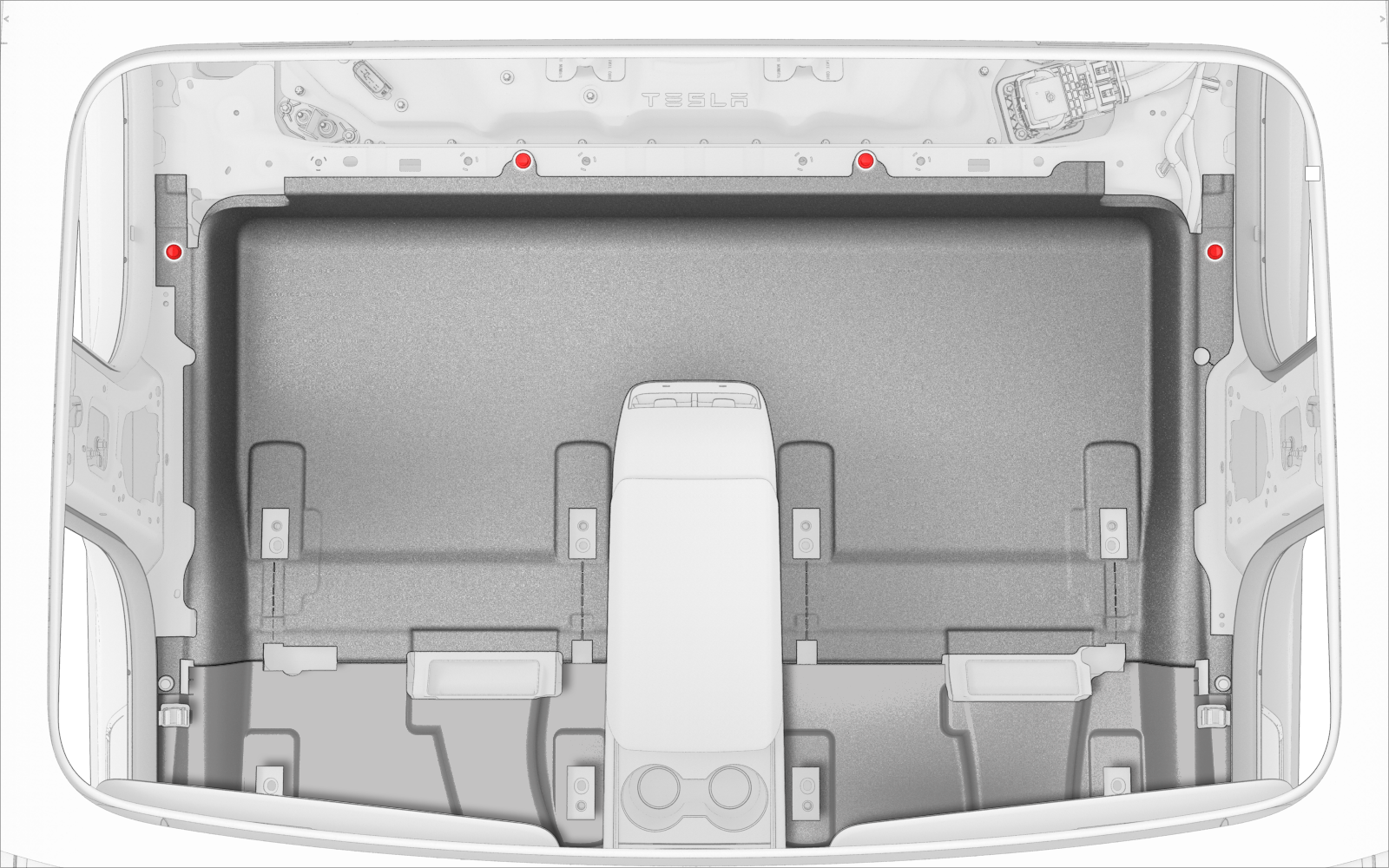

Remove clips (X4) and release Velcro that secure the rear main cabin carpet to
vehicle boddy, then remove the rear main cabin carpet from vehicle.
安装
-
Install the clips (X4) and Velcro that secure the rear main cabin carpet to vehicle
boddy.
- Install the front RH carpet. See 地毯 - 前 - RH（拆卸和更换）.
- Install the front LH carpet. See 地毯 - 前 - 左侧（拆卸和更换）.
- Install the front passenger seat. See 座椅总成 - 第一排 - 左侧（拆卸和更换）.
