连接器 - 行人警示扬声器（中国）（拆卸和更换）

校正代码 171007520.24 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. Remove the RH front wheel. See 轮毂（拆卸和安装）.
  2. Remove the clips (x9) that attach the RH front wheel liner to the fascia, and move the wheel liner aside for access.
  3. Remove the clip that attaches the harness to the pedestrian warning speaker assembly.

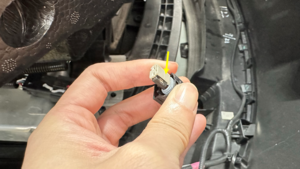

  4. Release the locking tab by sliding the red tab away from the connector, then depress the locking tab to release the pedestrian warning speaker connector.
    Note
    接触连接器的方式可能会因安装在车辆上的超级喇叭音频扬声器版本不同而不同。可能需要使用袖珍螺丝刀或小型尖凿松开具有防篡改功能的红色锁片。

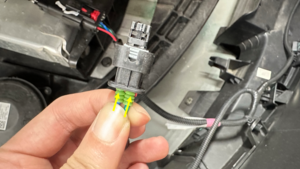

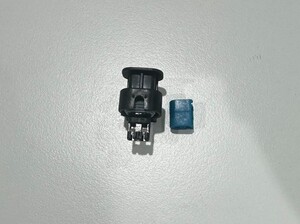

  5. Remove the connector locking cover, and then press down on the pins (x2) while pulling the harness downwards to remove the connector from the vehicle.

安装

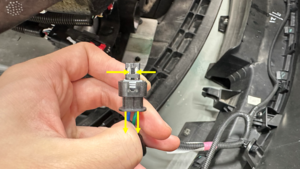

  1. Insert the pins (x2) into the connector, and then install the connector locking cover.
    Note
    Perform a pull-push-pull test to verify the pins are fully seated.
  2. Connect the pedestrian warning speaker connector.
  3. Install the clip that attaches the harness to the pedestrian warning speaker assembly.
  4. Install the clips (x9) that attach the RH front wheel liner to fascia.
  5. Install the RH front wheel. See 轮毂（拆卸和安装）.
