Rear Lettering (Retrofit)

校正代码 12050606 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

  • 1475764-00-A 徽标固定装置,双电机/高性能版,M3
  • 1049517-00-A 5 英寸硅酮叠缝滚压机

程序

  1. 使用异丙醇 (IPA) 湿巾清洁即将安装“Dual Motor”徽标的行李箱区域。

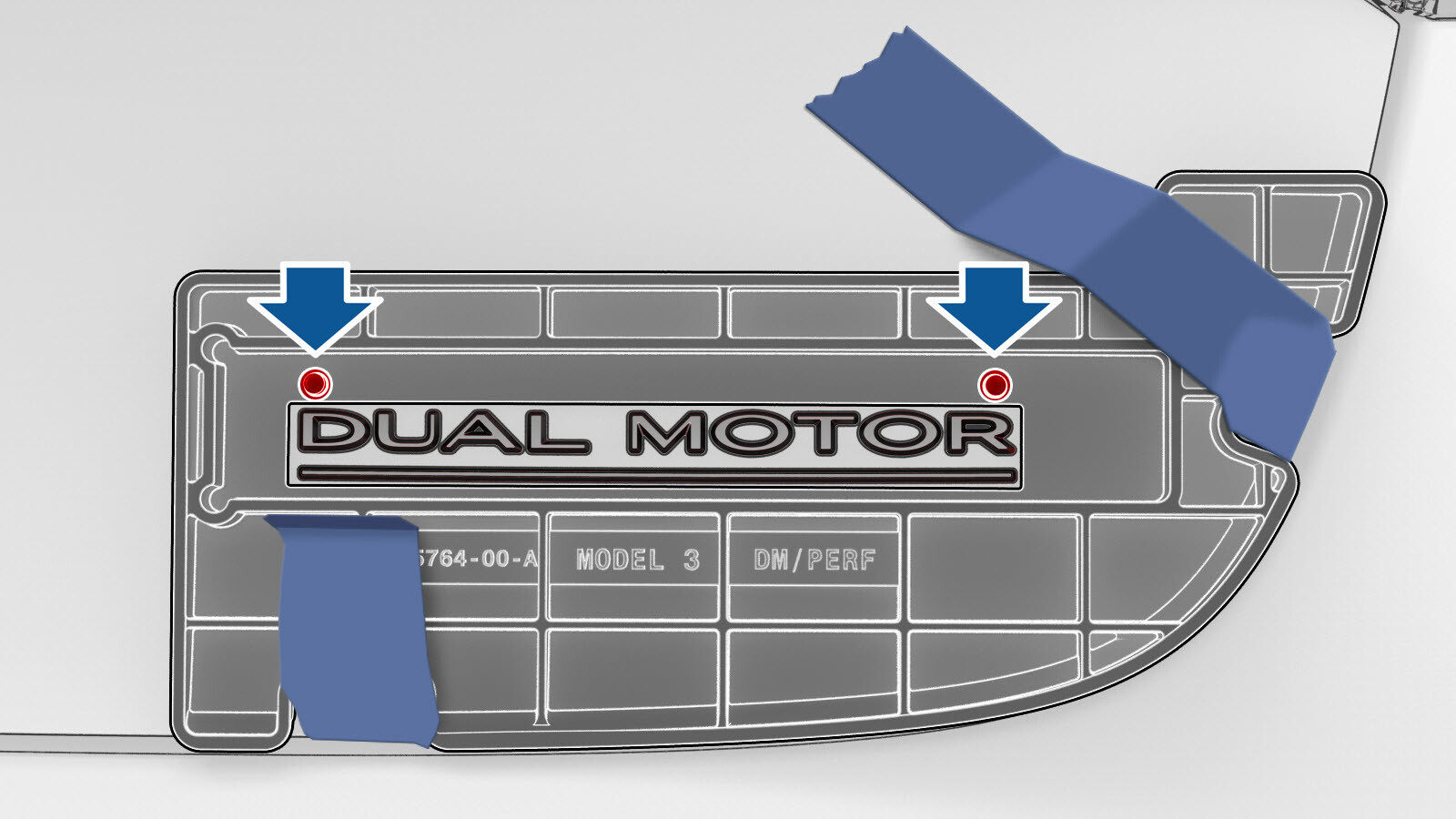

  2. 将徽标固定工具放置在行李备箱的相应位置,然后使用遮蔽胶带将其固定。
    Informational PurposesAn informational icon, calling your attention
    确保徽标和粘合表面的温度为 60-120 华氏度(15.556-43.333 摄氏度)。寒冷天气条件下,使用热风枪将安装表面提升到最佳温度。
  3. 拆下粘性一侧的徽标内衬,然后借助基准孔将徽标放置在徽标固定装置上。
  4. 透过徽标固定装置窗口进行按压,将徽标粘贴在行李箱上。
  5. 拆下徽标的前侧透明内衬。此时切勿丢弃内衬。
  6. 拆下行李箱上的徽标固定装置和遮蔽胶带。
  7. 将前侧透明内衬再次粘贴到徽标上,以便保护表面。

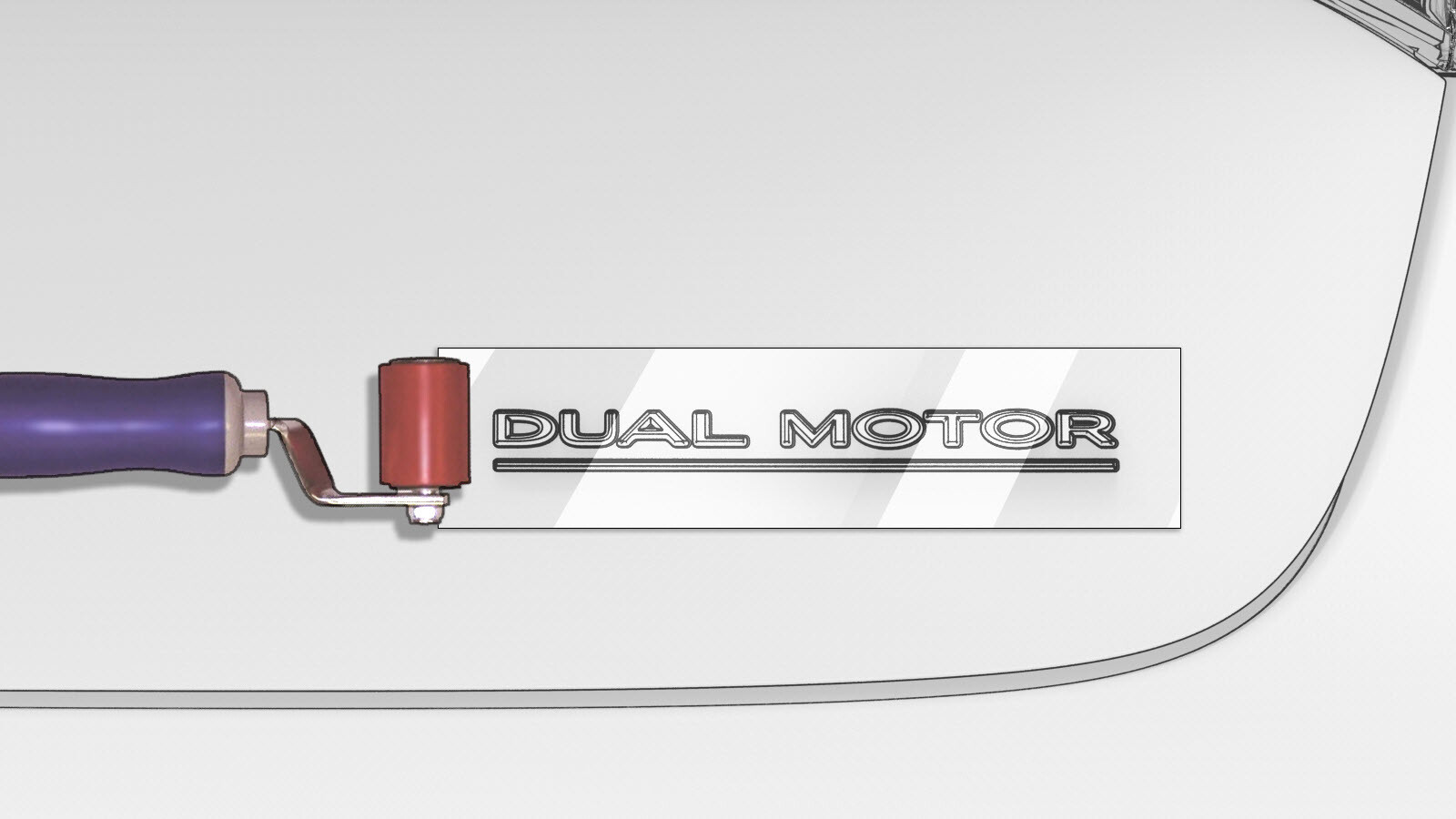

  8. 使用硅胶叠缝滚压机彻底粘合徽标。
  9. 拆下徽标的前侧透明内衬。
