座椅靠背 - 第二排 - RH(拆卸和更换)

校正代码 13054102 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 拆下第二排座椅下部座垫。请参阅 座椅座垫 - 下部 - 第二排(拆卸和更换)。
  2. 拆下第二排座椅右侧侧部承梁。请参阅 承梁 - 侧 - 座椅 - 第二排 - 左侧(拆卸和更换)。
  3. 松开用于固定承梁支架的卡子,然后将支架从车上拆下。

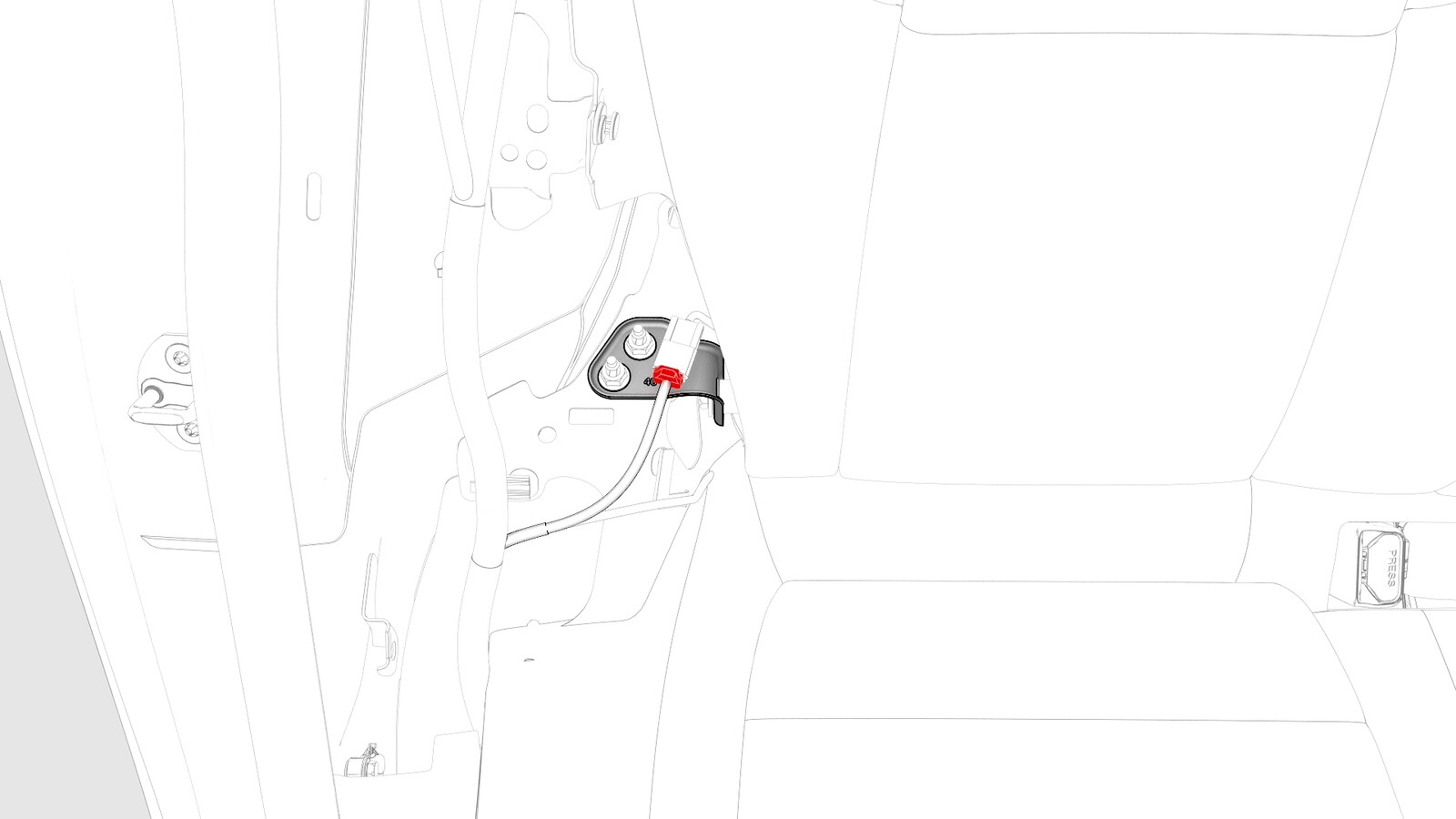

  4. 如已装配,请断开电气线束与第二排 RH 座椅靠背的加热座椅连接器之间的连接。

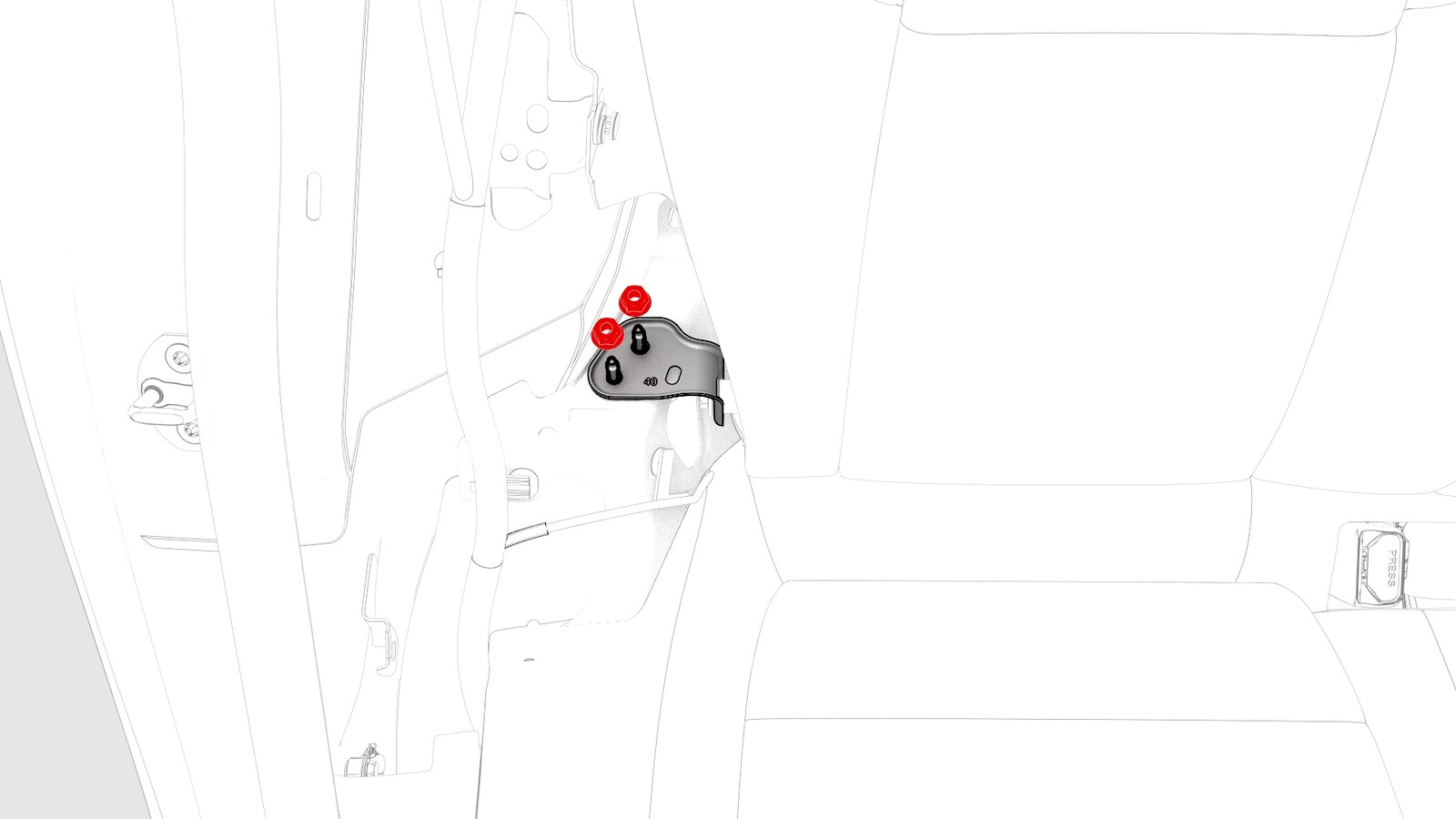

  5. 拆下将右侧座椅靠背铰链支架固定到车身的螺母。
    18 Nm (13.3 lbs-ft)
    注
    推荐使用以下工具
    • 13 mm 套筒
  6. 抬高 RH 座椅靠背总成的右侧,向前移动,然后向右,将内枢轴拉出 LH 座椅靠背总成。

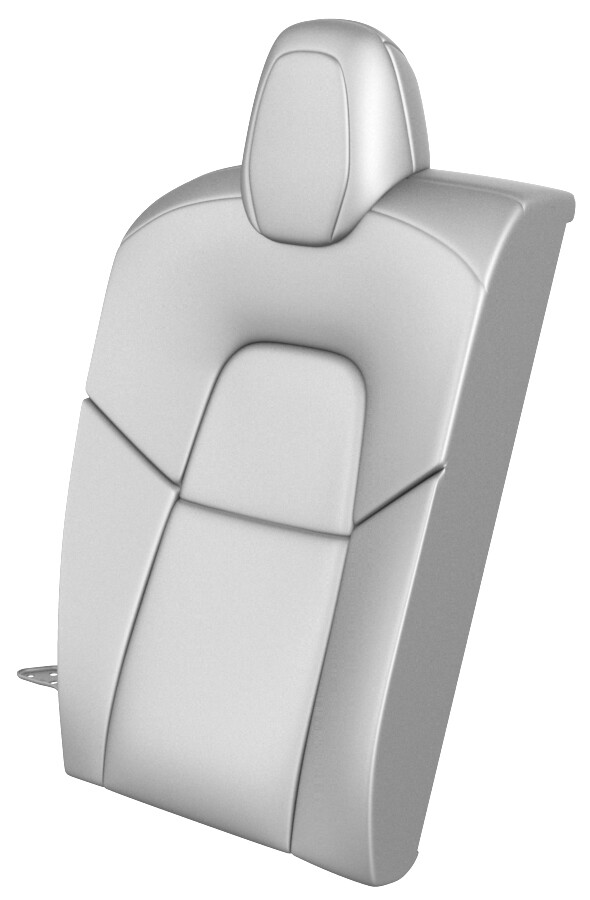

  7. 从车上拆下第二排 RH 座椅靠背。

安装

安装程序与拆卸程序相反。
