护板 - 车身控制器 - 前(带加热泵款)(拆卸和更换)

校正代码 17152122 0.18 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。 注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com 注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
尽管此程序已经过验证,但仍是一个草案。可能没有警告和注意事项。请遵守安全要求,处理或靠近高压系统和部件时,请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com

拆卸

  1. Open LH front door
  2. Lower LH front window
  3. Open hood
    Informational PurposesAn informational icon, calling your attention
    Press "Open" button on touchscreen to release latch, Lift lid manually
  4. Remove rear apron
    Informational PurposesAn informational icon, calling your attention
    12x clips, Only store rear apron visible face upwards
  5. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box
  6. Disconnect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    1x nut, 10mm, 6 Nm, Ensure vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V
  7. Disconnect first responder loop
    Informational PurposesAn informational icon, calling your attention
    1x connector, Release locking tab
  8. Remove vent tube hose from LH side of 12V battery
    Informational PurposesAn informational icon, calling your attention
    1x tube adapter
  9. Release terminal cover and remove positive terminal
    Informational PurposesAn informational icon, calling your attention
    2x clips, 1x nut, 10mm, 6 Nm, Do not fully remove positive terminal nut
  10. Remove 12V battery upper tie down strap to AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 10mm, 5 Nm, Lift battery tie down strap up and remove it from rear tie down hook strap
  11. Remove battery upper tie down strap
    Informational PurposesAn informational icon, calling your attention
    Lift battery tie down strap up and remove it from the rear tie down hook strap
  12. Remove 12V battery from vehicle
  13. Remove rear battery tie down strap
    Informational PurposesAn informational icon, calling your attention
    Rotate forward to disengage
  14. Disconnect thermal sub-harness from front controller
    Informational PurposesAn informational icon, calling your attention
    1x connector, Depress locking tab and rotate to release
  15. Remove bolts securing front controller shield assembly and remove from vehicle
    Informational PurposesAn informational icon, calling your attention
    2x bolts, 10mm, 8.5 Nm

安装

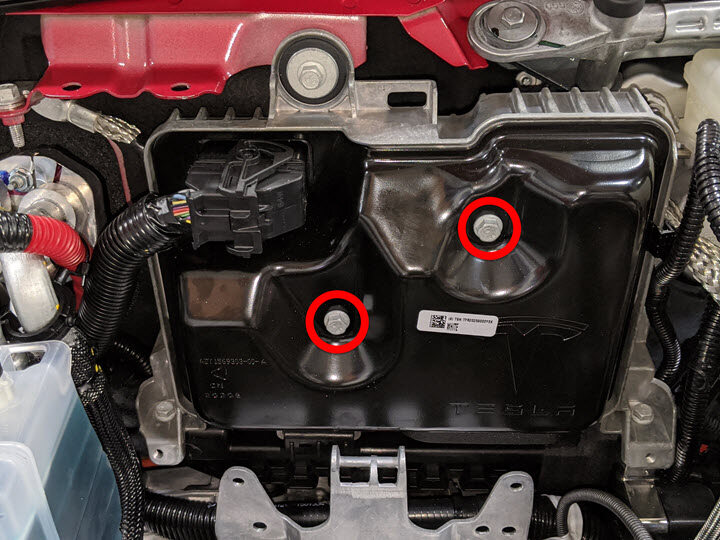

  1. Install front controller shield to the front controller
    Informational PurposesAn informational icon, calling your attention
    2x bolts, 10mm, 8.5 Nm

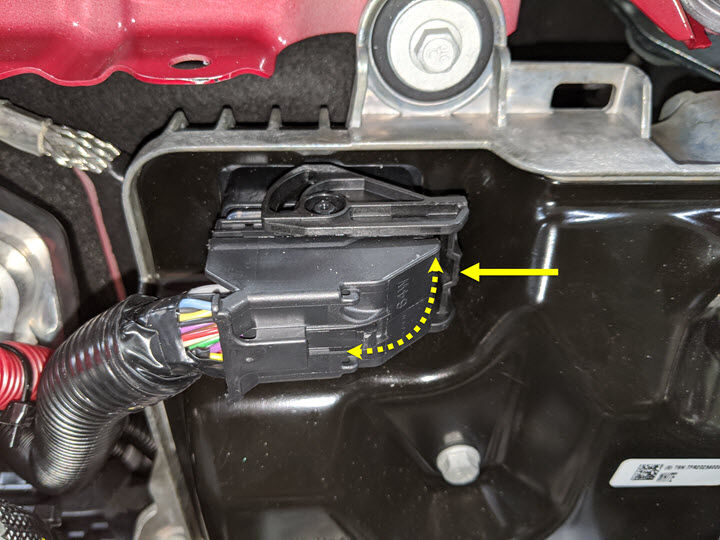

  2. Connect thermal sub-harness to front controller
    Informational PurposesAn informational icon, calling your attention
    1x connector, Rotate fully to secure locking tab

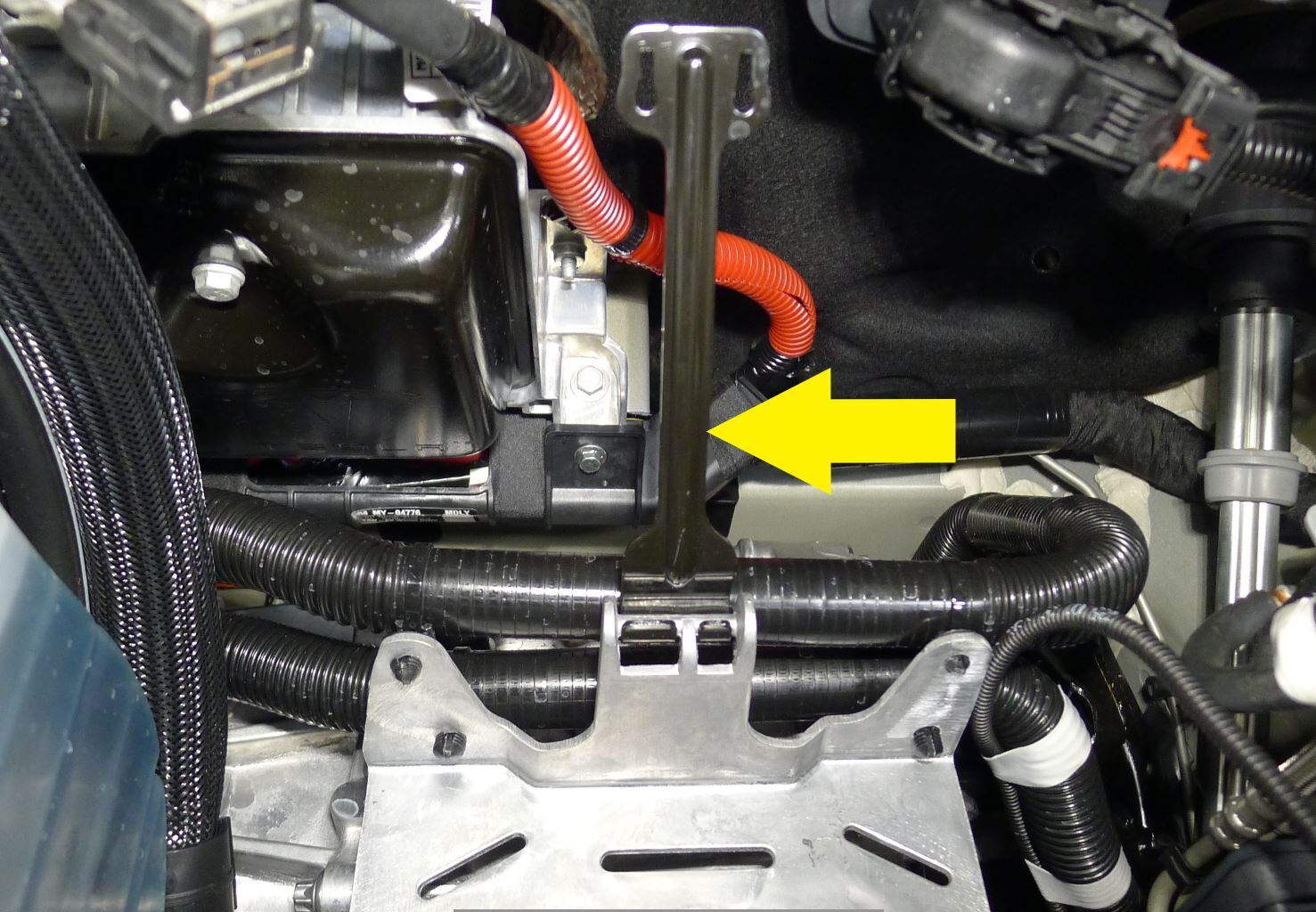

  3. Install rear battery tie down strap
    Informational PurposesAn informational icon, calling your attention
    Insert assembly into bracket and rotate to 90 degrees
  4. Install 12V battery into vehicle
  5. Position battery tie down strap onto battery
    Informational PurposesAn informational icon, calling your attention
    Hook upper tie down strap into rear tie down hook strap and position for installation

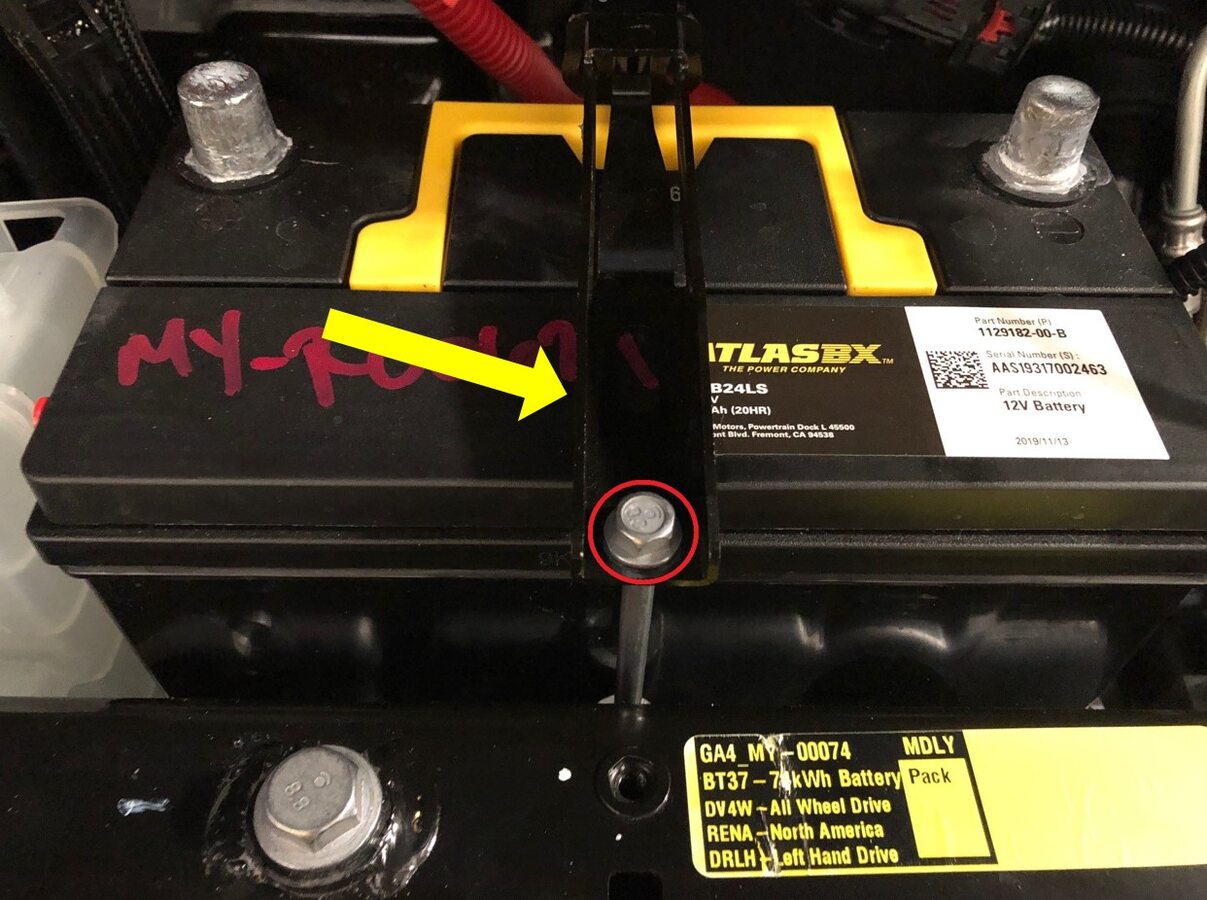

  6. Install bolt securing upper tie down strap to AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 10mm, 5 Nm
  7. Install vent tube hose in 12V battery
  8. Install positive terminal and terminal cover
    Informational PurposesAn informational icon, calling your attention
    1x nut, 10mm, 6 Nm, 2x clips
  9. Connect first responder loop
    Informational PurposesAn informational icon, calling your attention
    1x connector, Engage locking tab, Connect FRL before connecting 12V to avoid damage to car computer
  10. Connect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    1x nut, 10mm, 6 Nm
  11. Install rear apron
    Informational PurposesAn informational icon, calling your attention
    12x clips

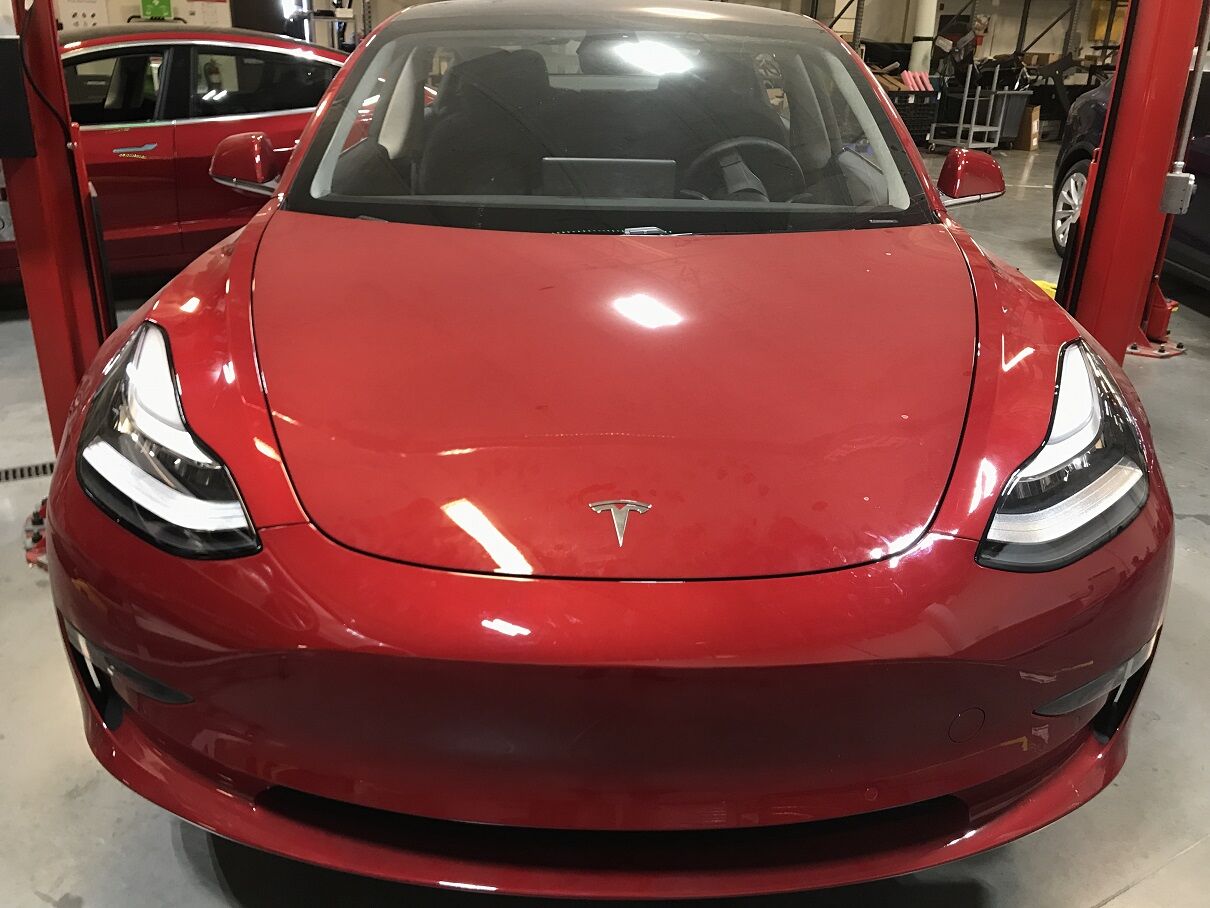

  12. Close hood

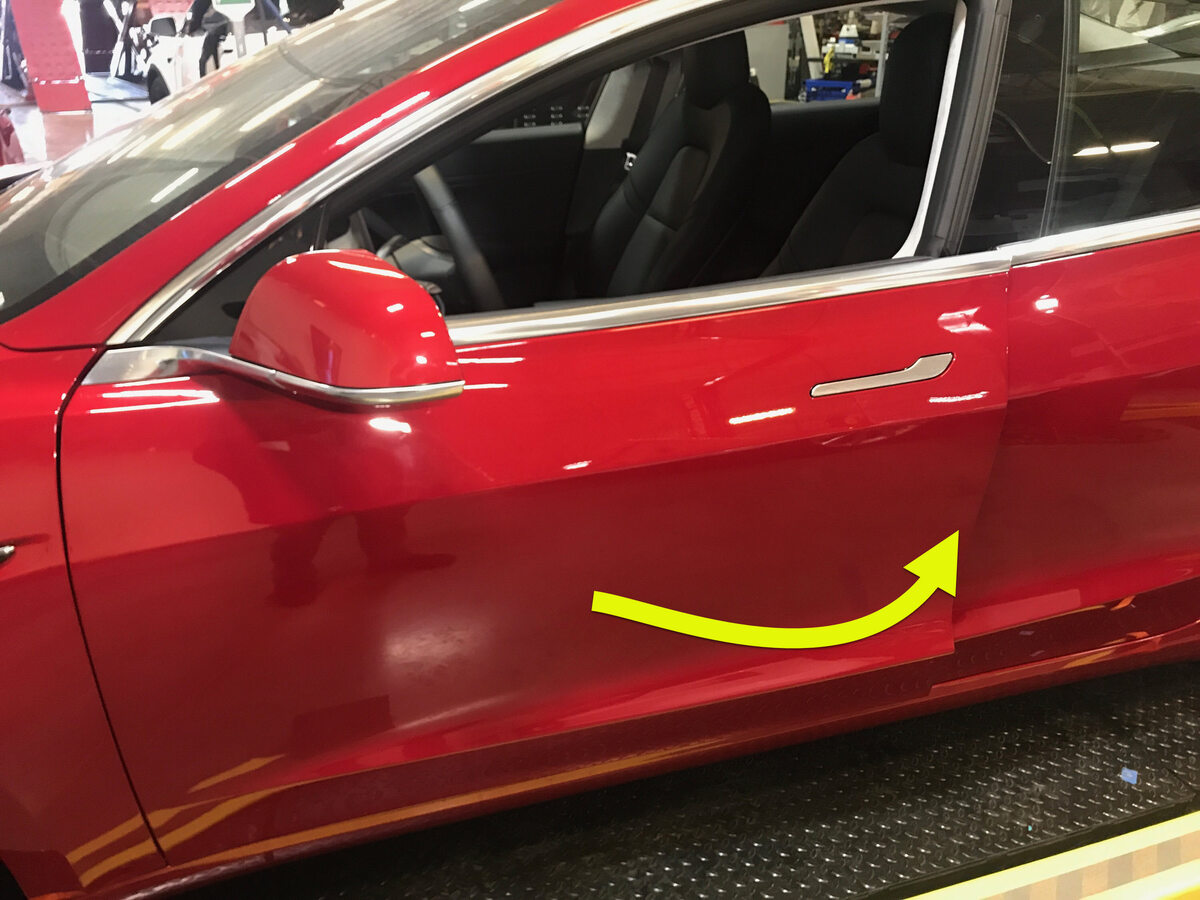

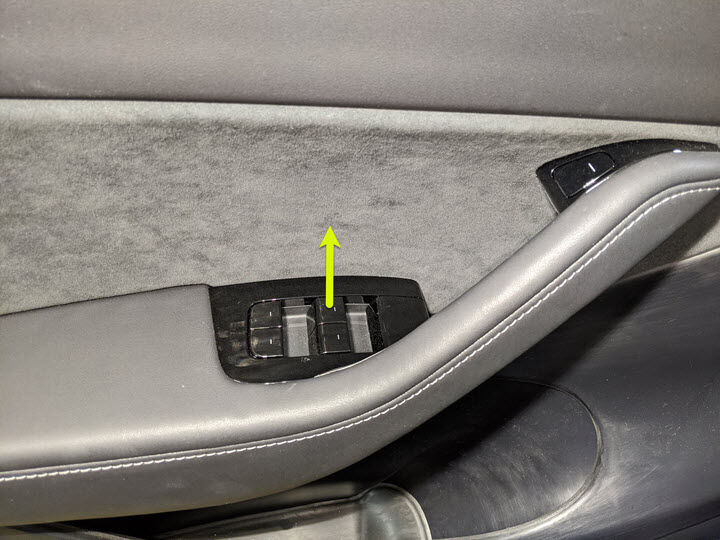

  13. Raise LH front window

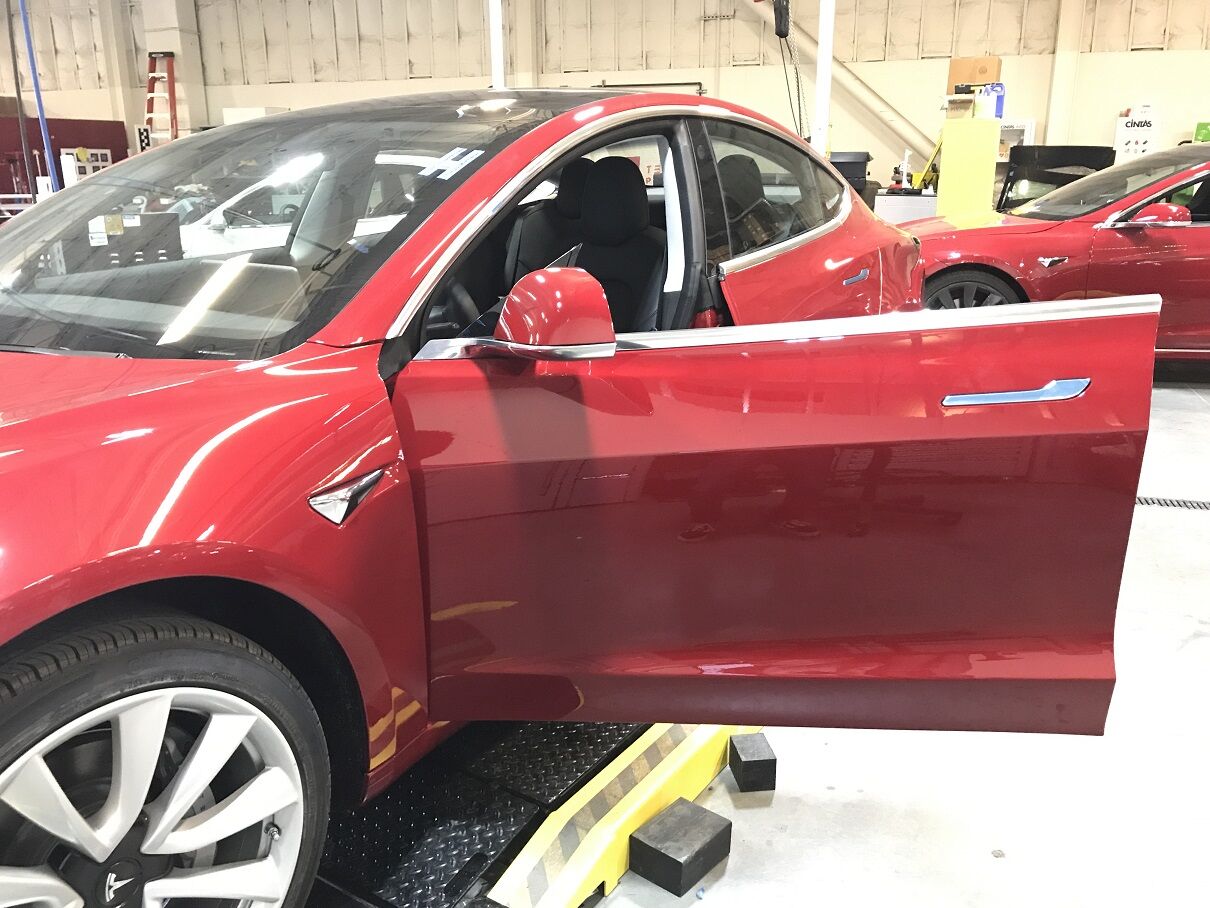

  14. Close LH front door
