盖板 - 闩锁 - 电动后备箱(拆卸和更换)
校正代码
15110102 0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下电动行李箱盖饰板。请参阅饰板 - 盖 - 电动后备箱(拆卸和更换)。
-

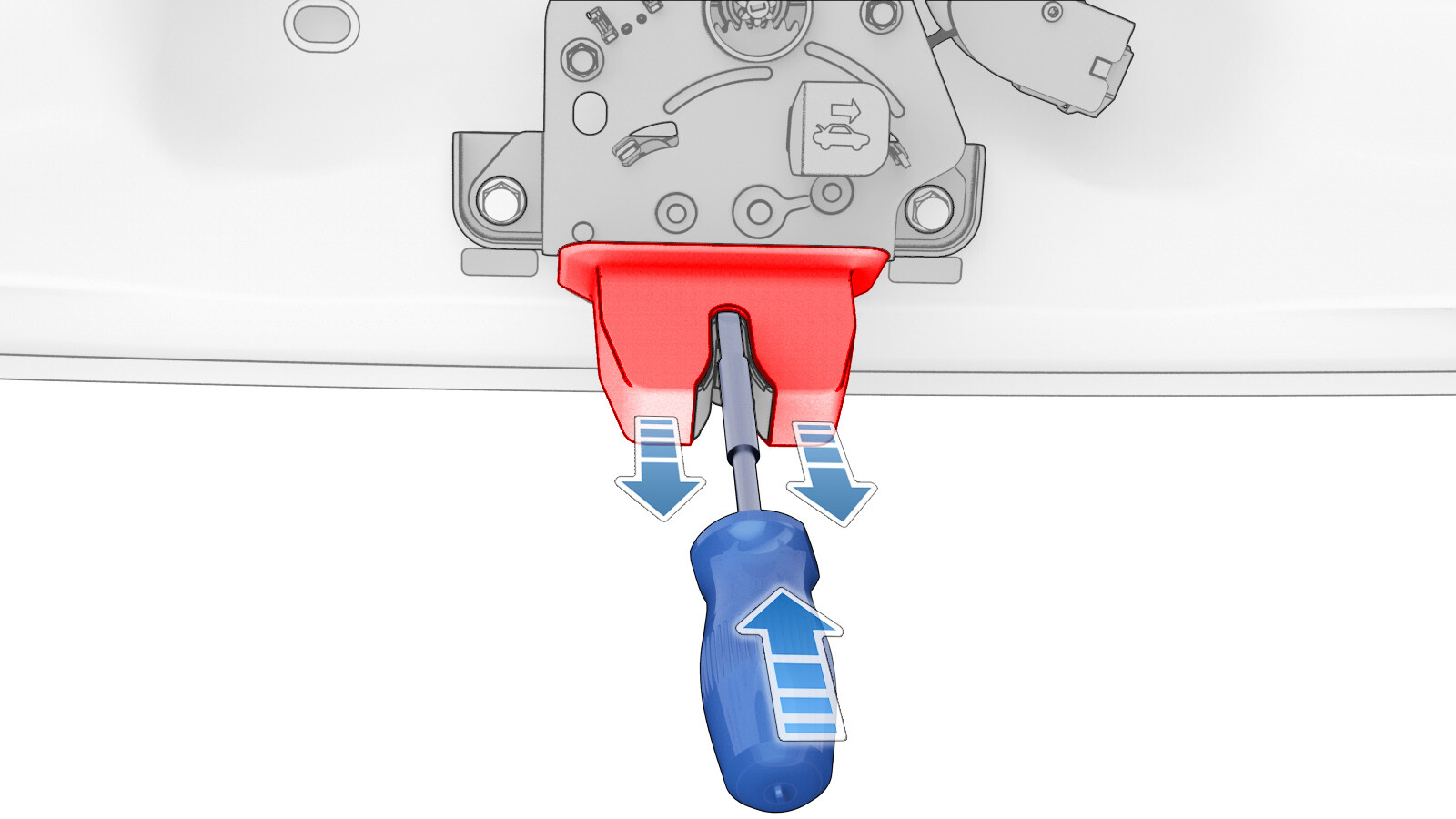

用小号一字螺丝刀插入闩锁与锁盖之间,如图所示,然后从闩锁上轻轻撬开锁盖。
安装
安装程序与拆卸程序相反。
