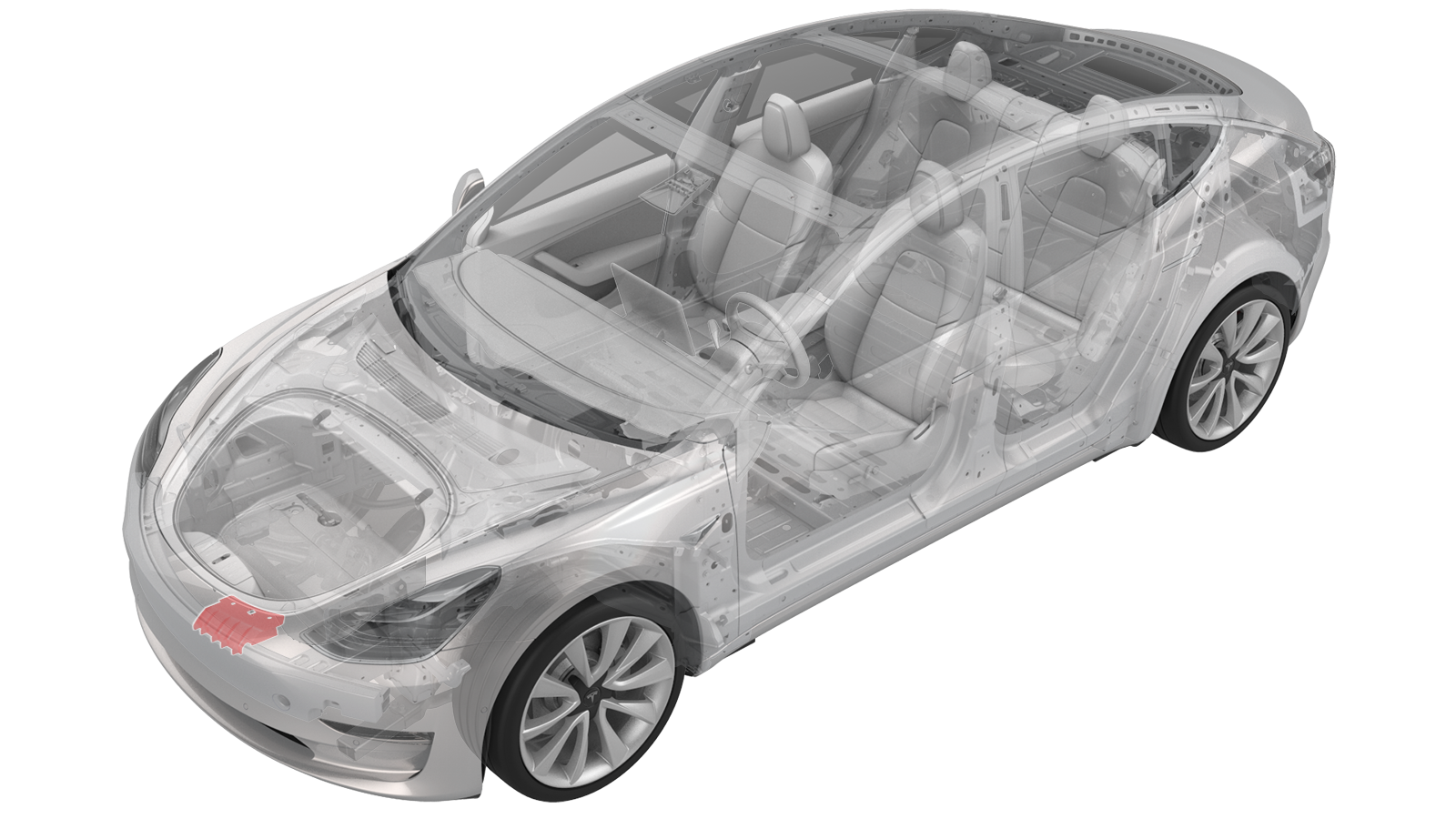

加固件 - 前饰板 - 左侧(拆卸和更换)
校正代码
10015102 0.30
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下前保险杠饰板请参阅 饰板 - 前(拆卸和更换)。
-

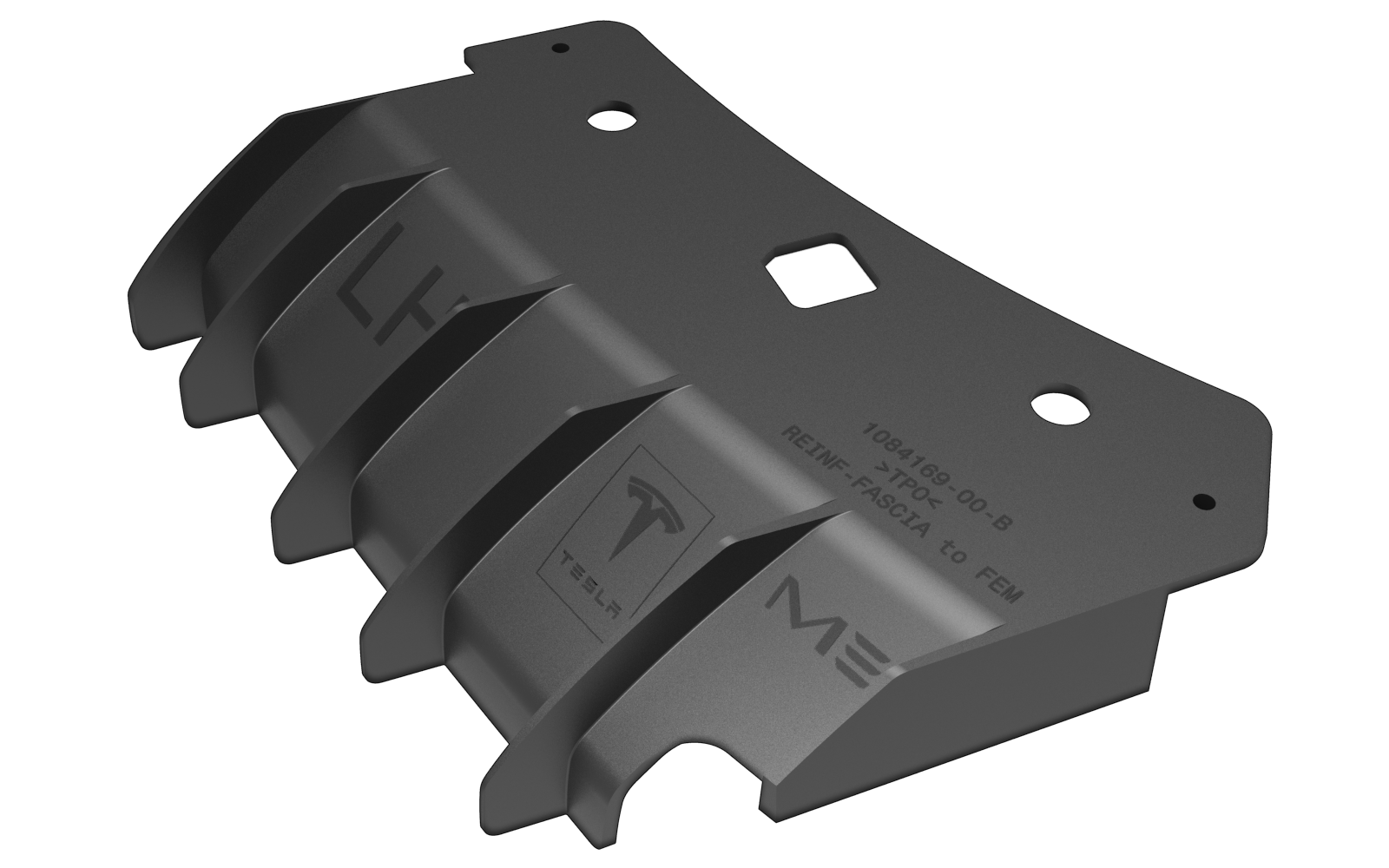

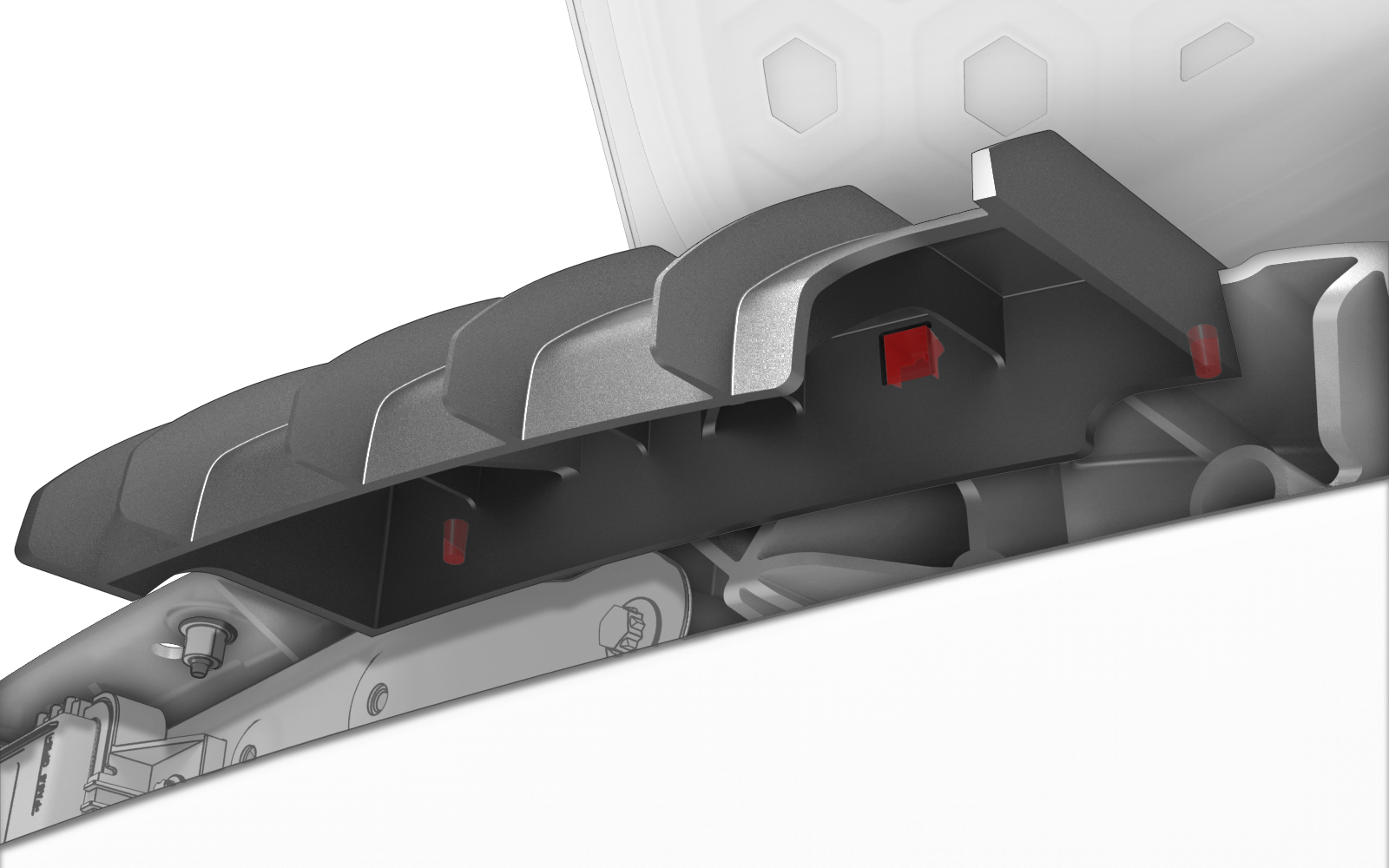

松开将饰板加固件锁定到支架前端的锁片 (x1),然后拉动以拆下饰板加固件。
安装
-

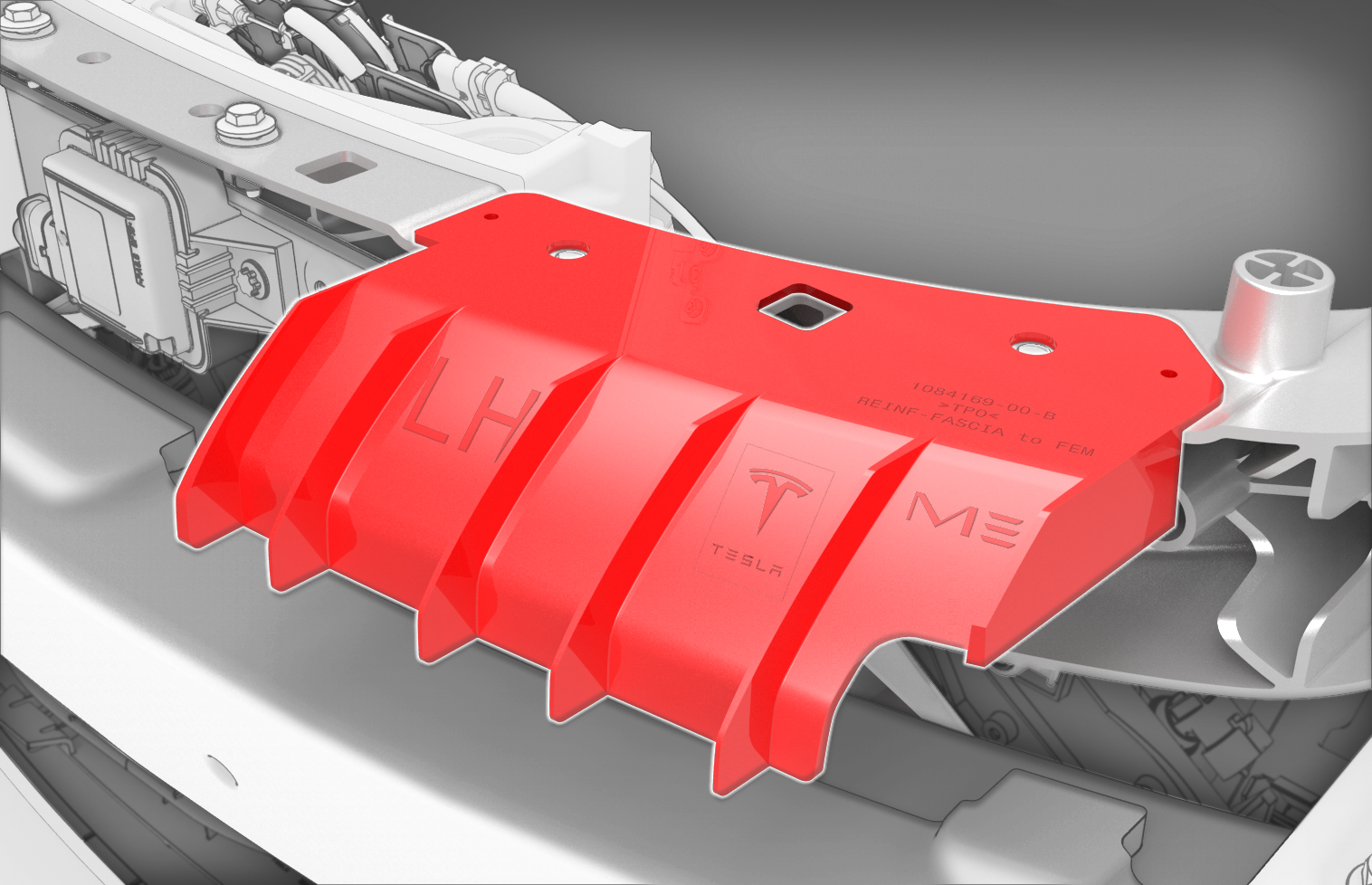

锁定锁片 (x1),将饰板加固件安装到支架前端。
- 安装前饰板请参阅 饰板 - 前(拆卸和更换)。
