顶篷（不带加热泵款）（拆卸和更换）

校正代码 152031020.66 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2023 年 5 月 19 日：添加了安装顺序和顶篷运输袋安装技巧。

拆卸

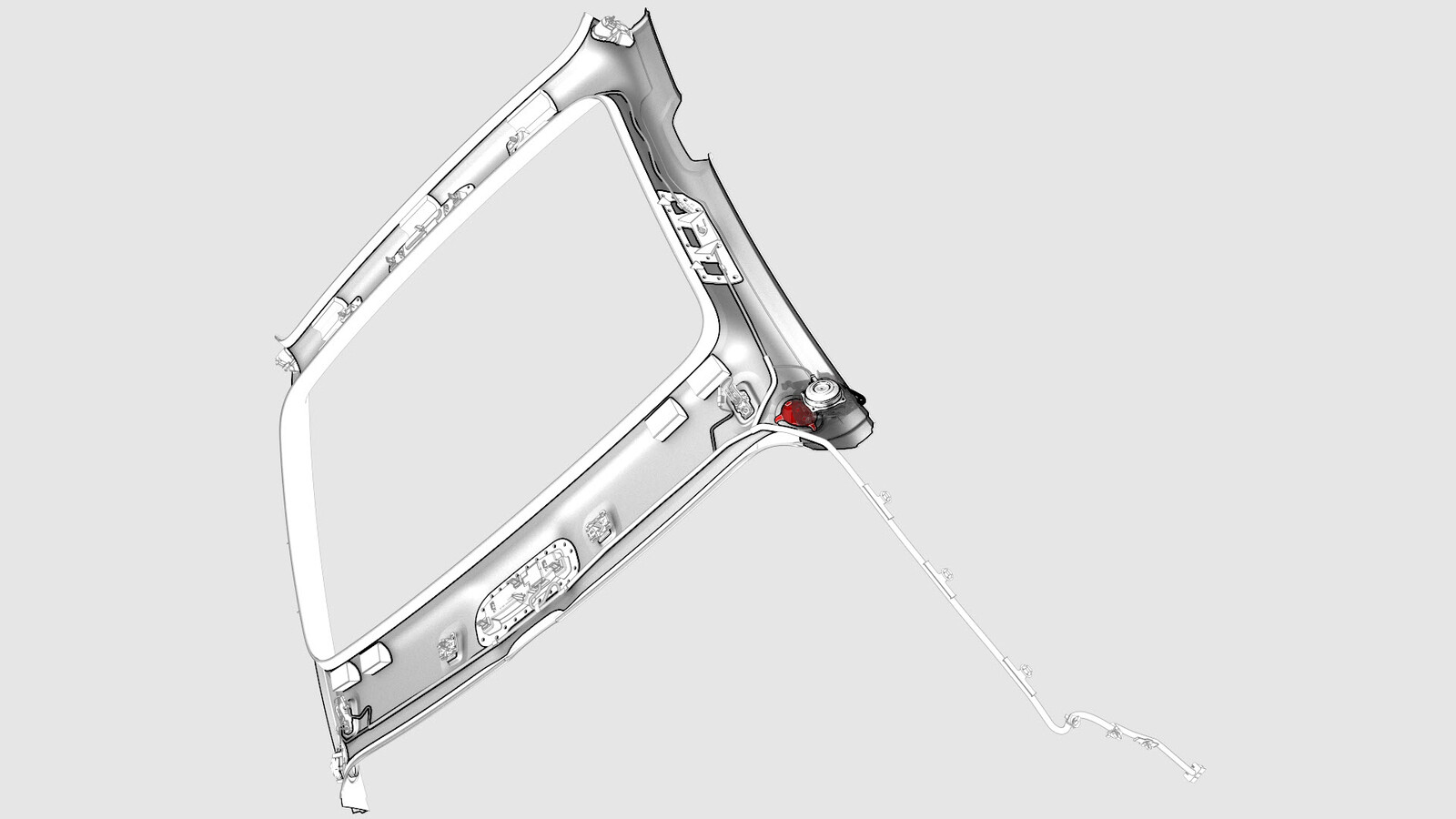

  1. 拆下顶篷。请参阅 顶篷（不带加热泵款）（拆卸和安装）。
  2. 松开将顶蓬 LH 和 RH 高频扬声器盖板固定到顶蓬的夹子，然后从顶蓬拆下高频扬声器盖板。
  3. 断开电气线束与车顶前部控制台连接器之间的连接。

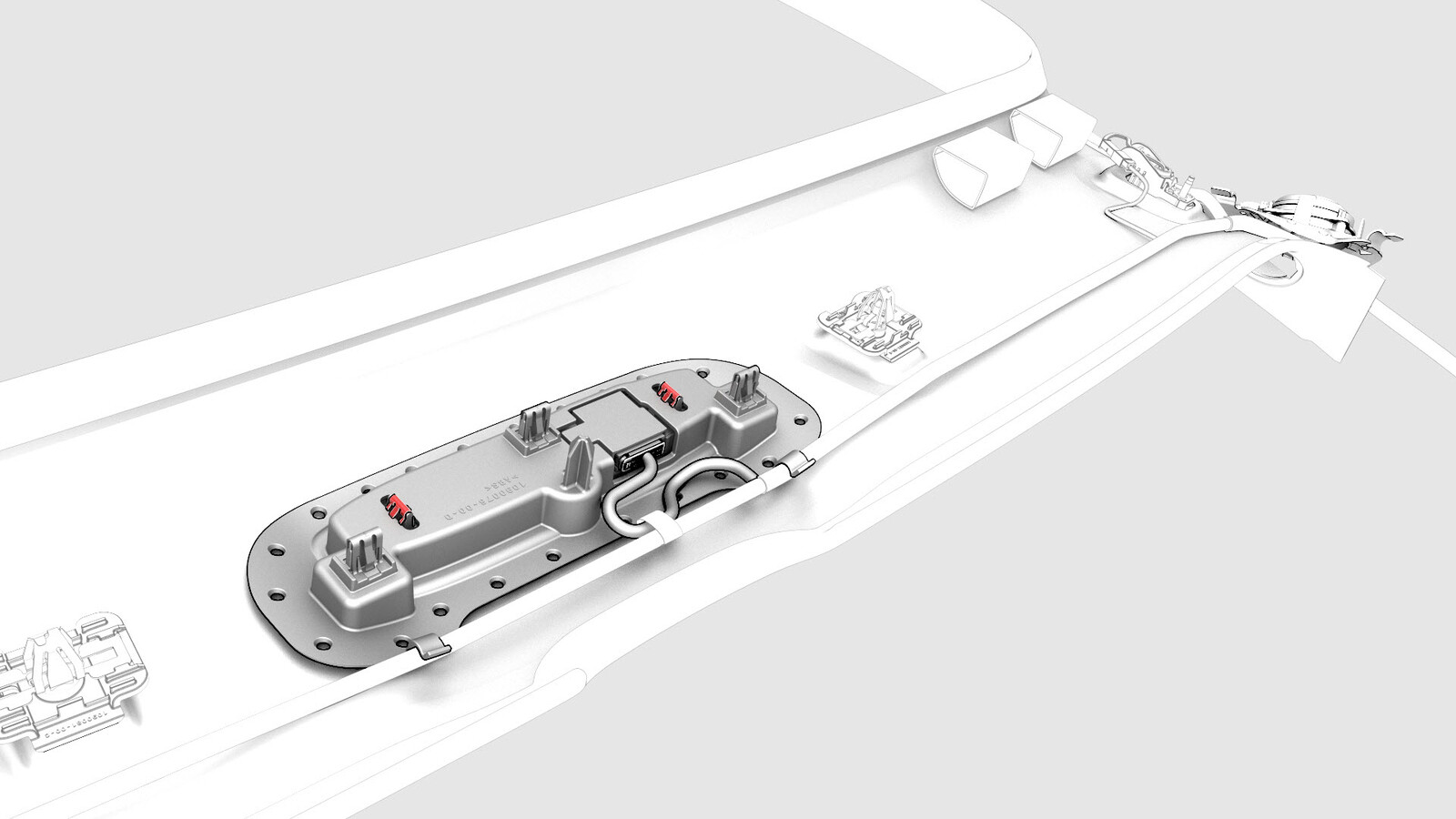

  4. 松开将车顶前部控制台固定到顶蓬的夹子，然后从顶蓬上拆下控制台。
  5. 断开电气线束与车顶后部控制台连接器之间的连接。
  6. 松开将车顶后部控制台固定到顶蓬的夹子，然后从顶蓬上拆下控制台。
  7. 松开将 LH 衣挂固定到 LH 衣挂总成的夹子，然后从顶蓬上拆下 LH 衣挂总成。
  8. 松开将 RH 衣挂固定到 RH 衣挂总成的夹子，然后从顶蓬上拆下 RH 衣挂总成。

安装

  1. 将 LH 衣挂安装到 LH 衣挂总成上，然后紧固将衣挂固定到衣挂总成的夹子。
  2. 将 RH 衣挂安装到 RH 衣挂总成上，然后紧固将衣挂固定到衣挂总成的夹子。
  3. 将车顶后部控制台安装到顶篷上，然后紧固将车顶控制台固定到顶篷的夹子。
  4. 将电气线束连接到车顶后部控制台连接器。
  5. 将车顶前部控制台安装到顶篷上，然后紧固将车顶控制台固定到顶篷的夹子。
  6. 将电气线束连接到车顶前部控制台连接器。
  7. 将 LH 和 RH 顶篷高频扬声器盖板固定到顶篷，然后紧固将高频扬声器盖板固定到顶篷的夹子。
  8. 安装顶篷。请参阅顶篷（不带加热泵款）（拆卸和安装）。
    提示
    The headliner shipping bag might be useful as a "third hand" for installation.
    1. Lay the shipping bag flat with the opening toward you.
    2. Use scissors to cut both the top and bottom sides of the bag up the middle, until there is about 12 in (30 cm) left. The bag will look like a pair of pants.
    3. Open the vehicle front/rear (as appropriate) doors, set the bag on the vehicle roof, and then bring the "legs" of the bag through each doorway into the cabin.
    4. Tie the very ends of the legs together to make a very loose loop out of the cabin, over the roof, and back into the cabin. If the loop is too tight, cut a little more up the middle.
    5. Use the loop to support the headliner during installation. If the loop is too loose, tie an additional knot to reduce slack.
