支架 - 车牌 - 后（EMEA）（拆卸和更换）

校正代码 12072302 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 如果车牌已安装，则拆下将后车牌固定到后车牌架的螺钉 (x4)。否则，请跳至下一步。

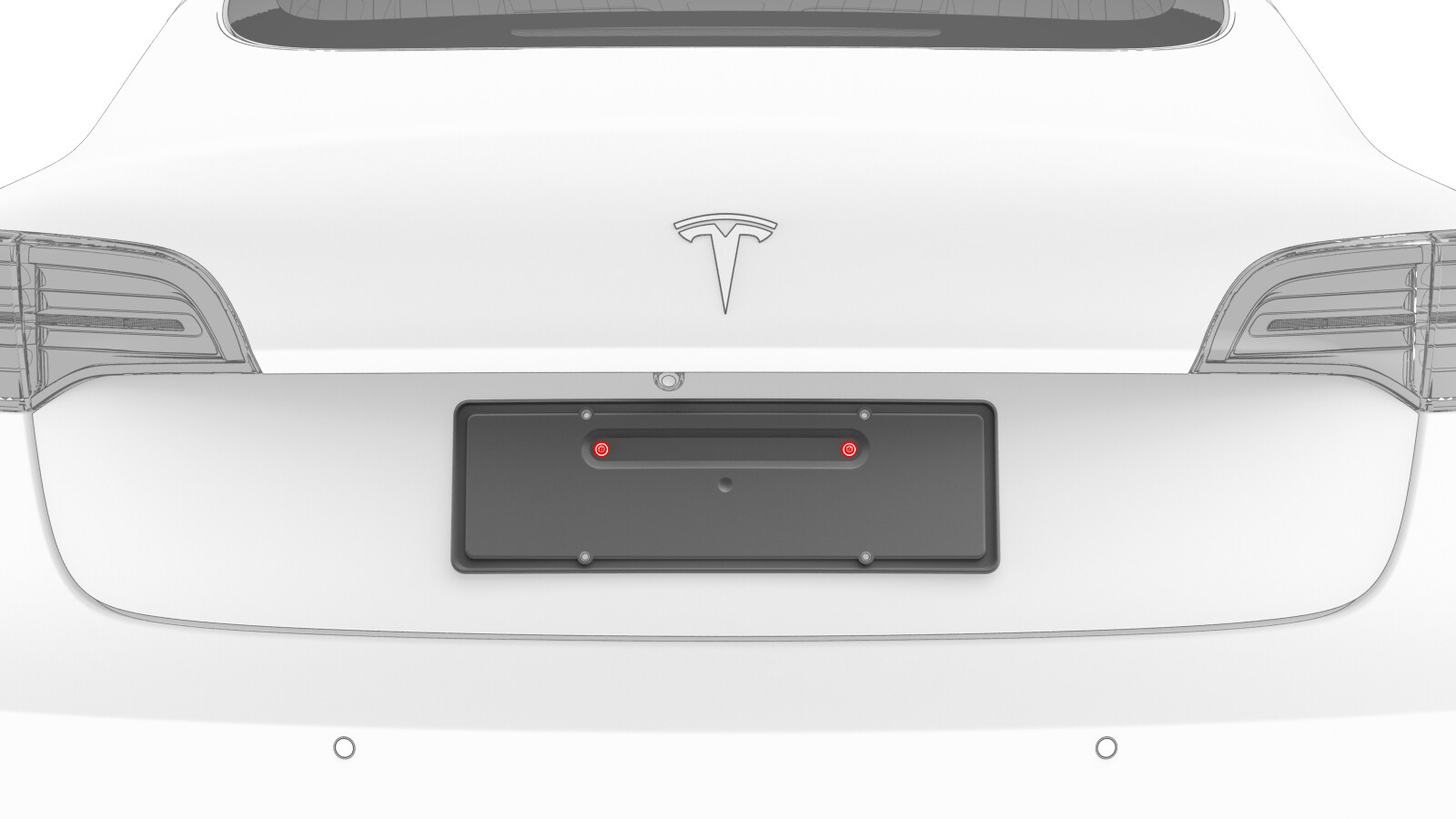

  2. 拆下将后车牌架固定到车辆的螺钉 (x2)，然后从车上拆下支架。

安装

  1. 确认螺纹嵌件在拆卸螺钉的过程中没有损坏。
  2. 用异丙醇 (IPA) 湿巾清洁行李箱表面，待风干后再继续下一步操作。
  3. 安装将后车牌架固定到车辆的螺钉 (x2)。
    1.2 Nm (.9 lbs-ft)
  4. 酌情安装将后车牌固定到后车牌架的螺钉 (x4)。
    1.2 Nm (.9 lbs-ft)
