Seat Track Assembly - 1st Row - RH (Remove and Replace)

校正代码 13010202 0.72 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

拆卸

  1. Remove front passenger seat from the vehicle. See Seat Assembly - 1st Row - LH (Remove and Replace).
  2. Remove the front passenger seat outboard side shield. See Side Shield - Outboard - Driver Seat (Remove and Replace).
  3. Release the connector lock, and then disconnect the electrical connector from the pretensioner.
    图 1. LH seat shown; RH seat similar
  4. Remove the front passenger seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove and Replace).

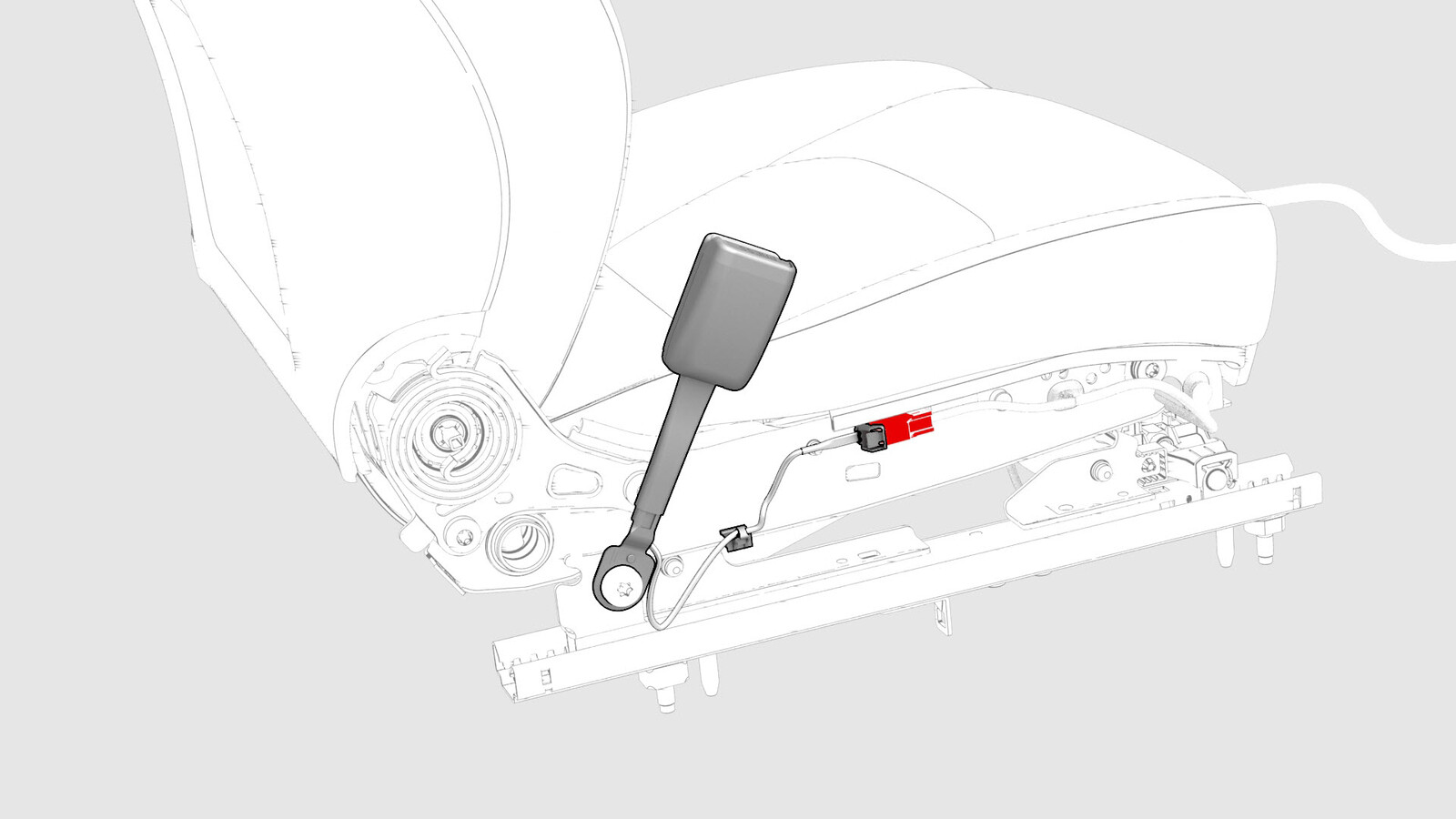

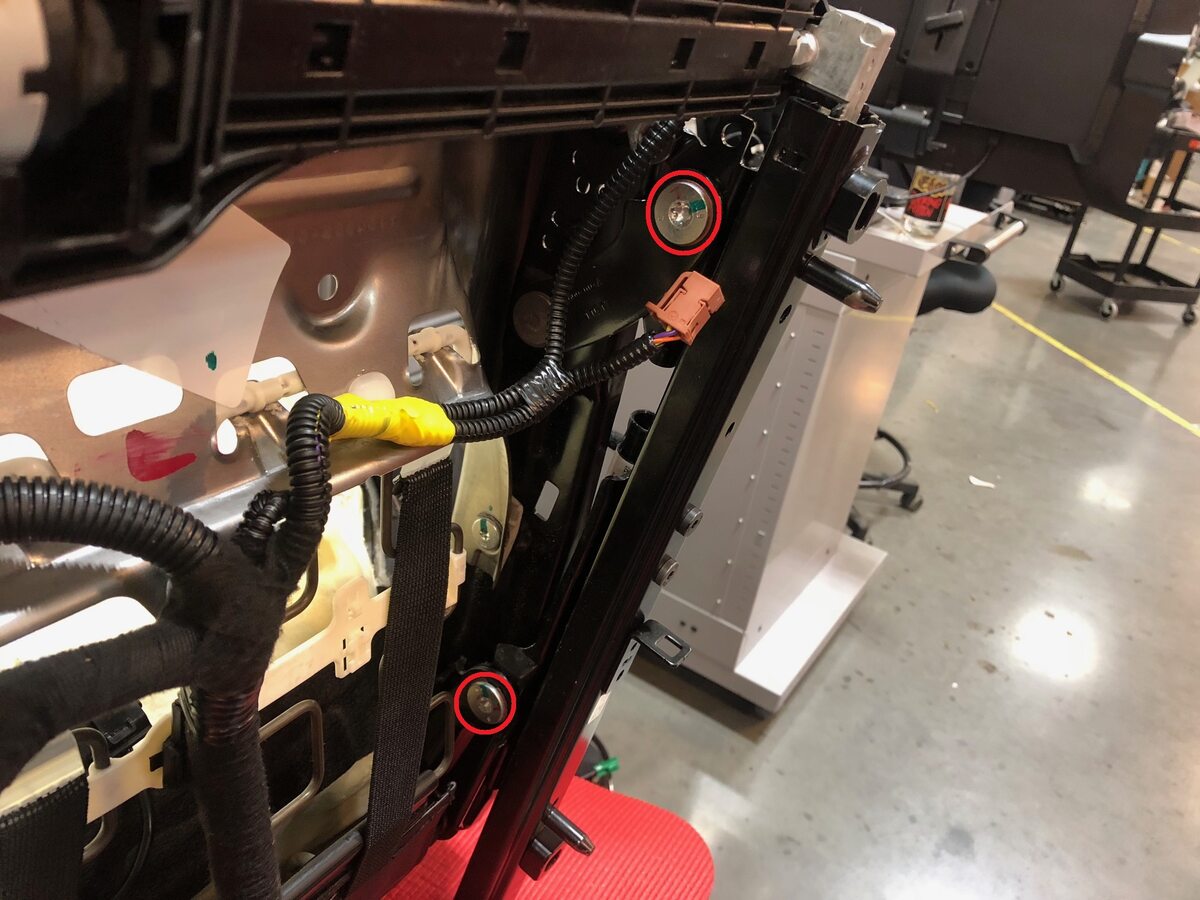

  5. Disconnect the electrical connector from the 1st row buckle.
    图 2. LH seat shown; RH seat similar
  6. Position the seat to access the underside of the seat.
    Informational PurposesAn informational icon, calling your attention
    注
    Protect the seat cushion from damage as necessary.

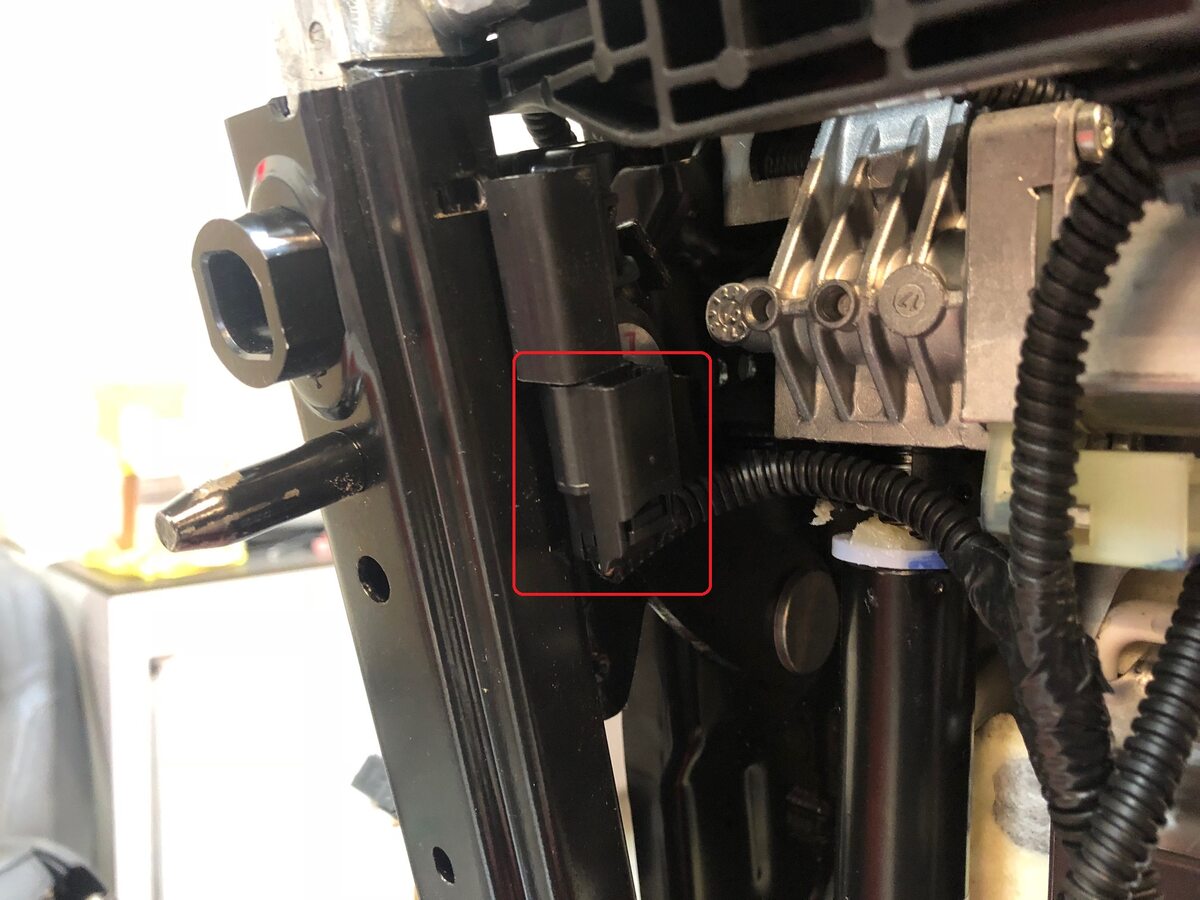

  7. Disconnect the seat track position sensor connector.

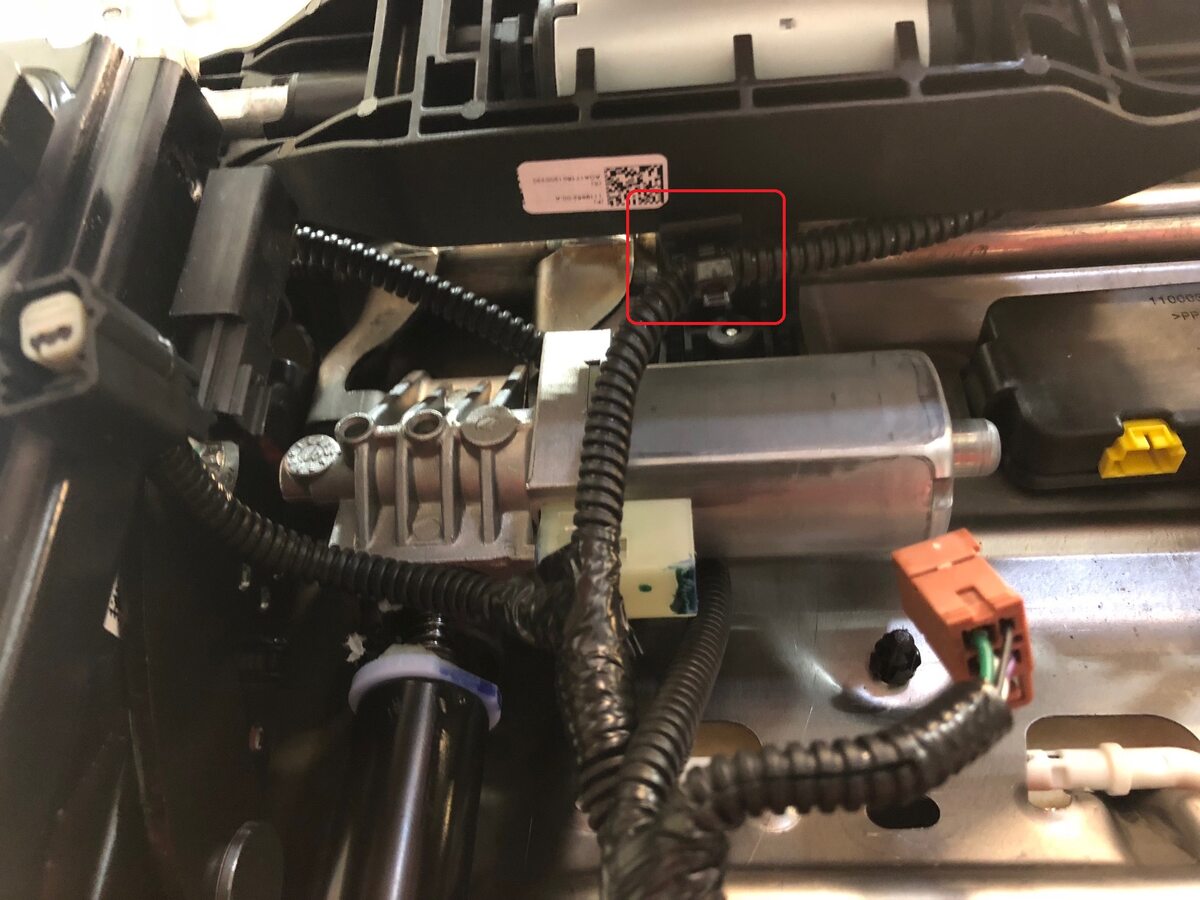

  8. Release the clip that attaches the track motor harness to the track motor housing.

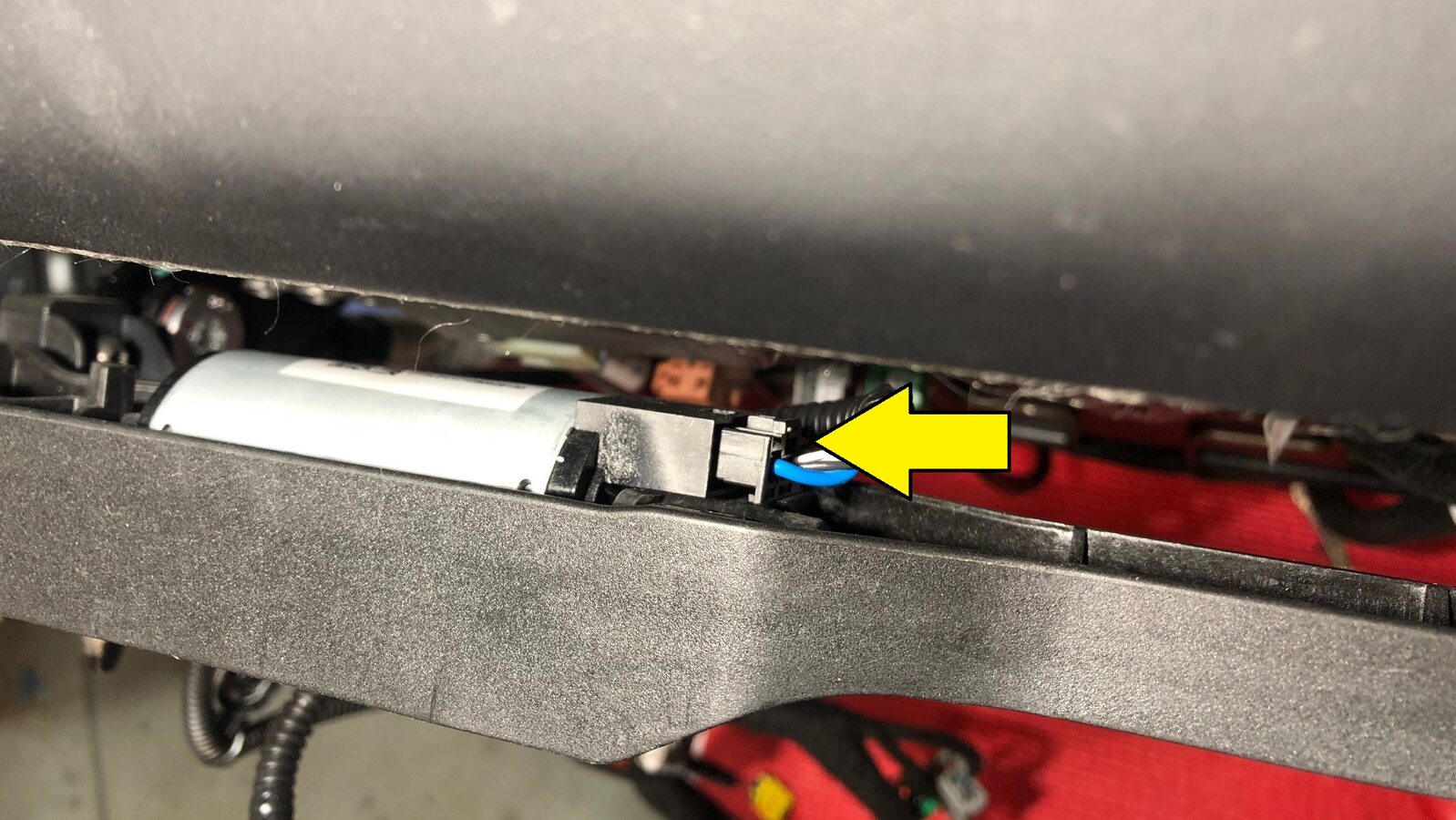

  9. Disconnect the LH front seat track motor connector.
  10. Remove and discard the inboard bolts (x2) that attach the seat track to the seat cushion frame.
    23 Nm (17.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 梅花 T50 套筒

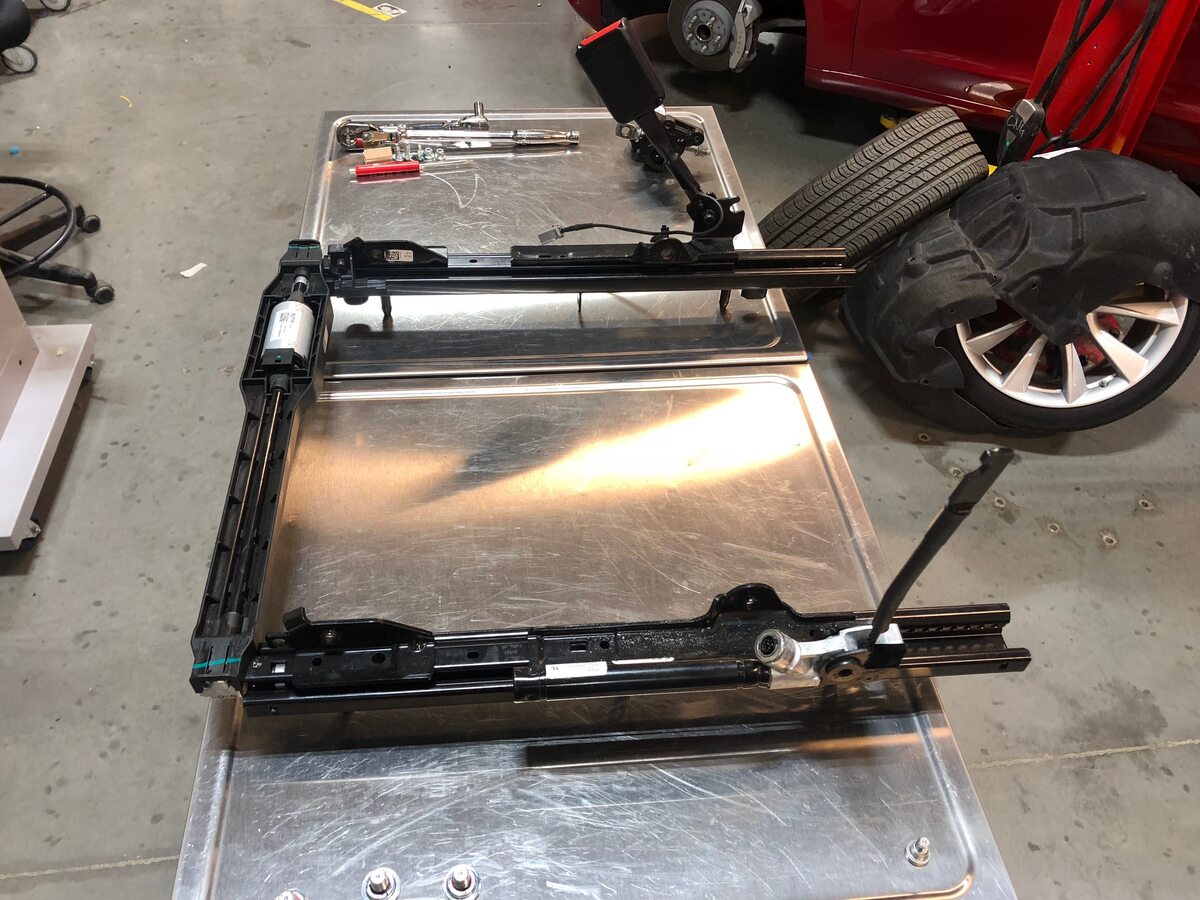

  11. Remove the outboard bolts (x2) that attach the seat track to the seat cushion frame, and then set the seat track assembly on a flat surface.
    23 Nm (17.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 梅花 T50 套筒

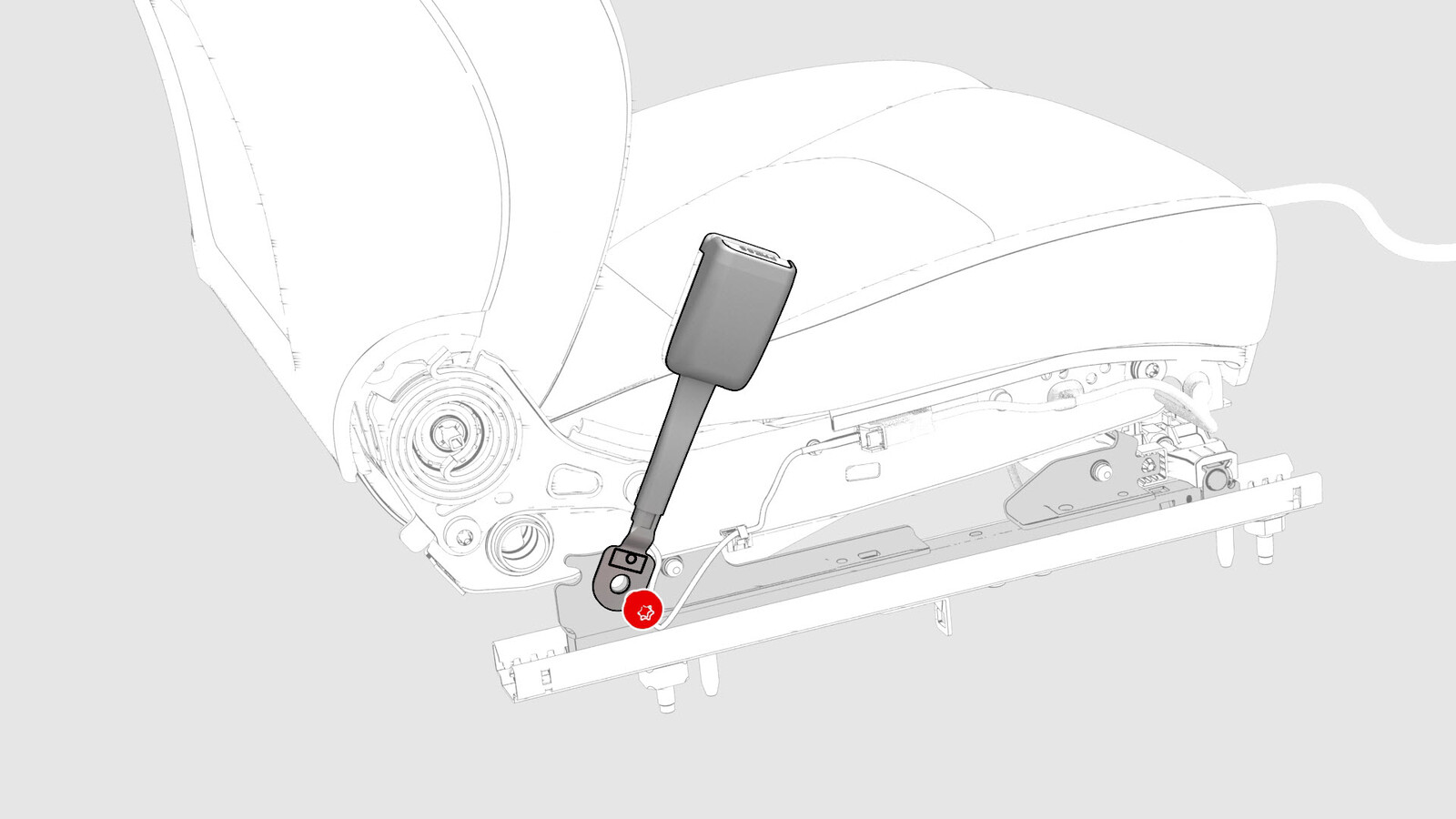

  12. Remove and discard the patchbolt that attaches the buckle to the seat track, and then remove the buckle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 梅花 T50 套筒
    • 3/8 英寸标准棘轮
    • 3/8 英寸扭矩扳手（仅适用于安装程序）
    • 3 英寸加长件
    图 3. LH seat shown; RH seat similar
  13. 40 Nm (29.5 lbs-ft)
    拆下并弃用将预紧装置固定到座椅滑轨的螺栓，然后将预紧装置从总成上拆下。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 梅花 T50 套筒
    • 3/8 英寸标准棘轮
    • 3/8 英寸扭矩扳手（仅适用于安装程序）
    • 3 英寸加长件
    图 4. LH seat shown; RH seat similar

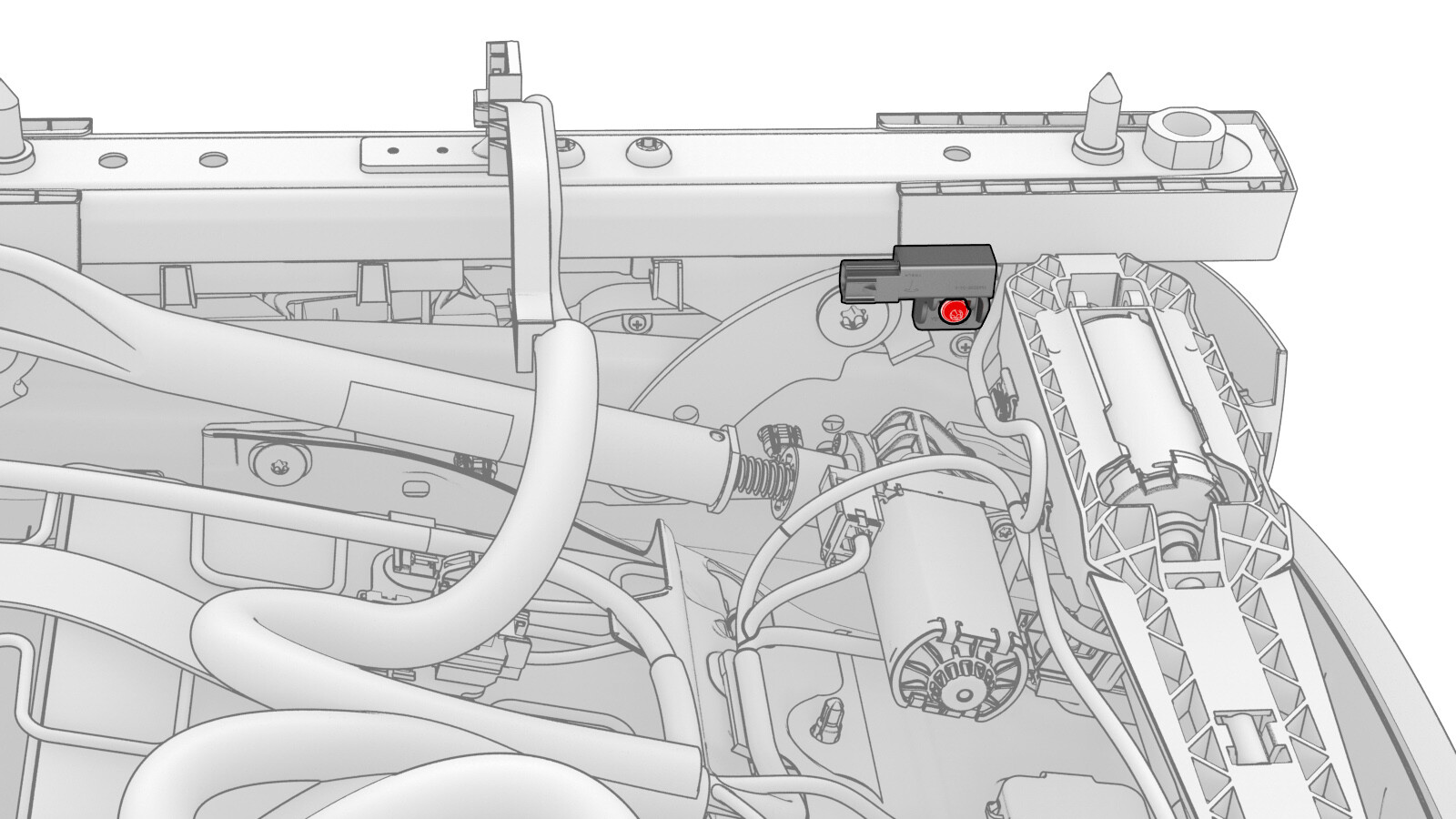

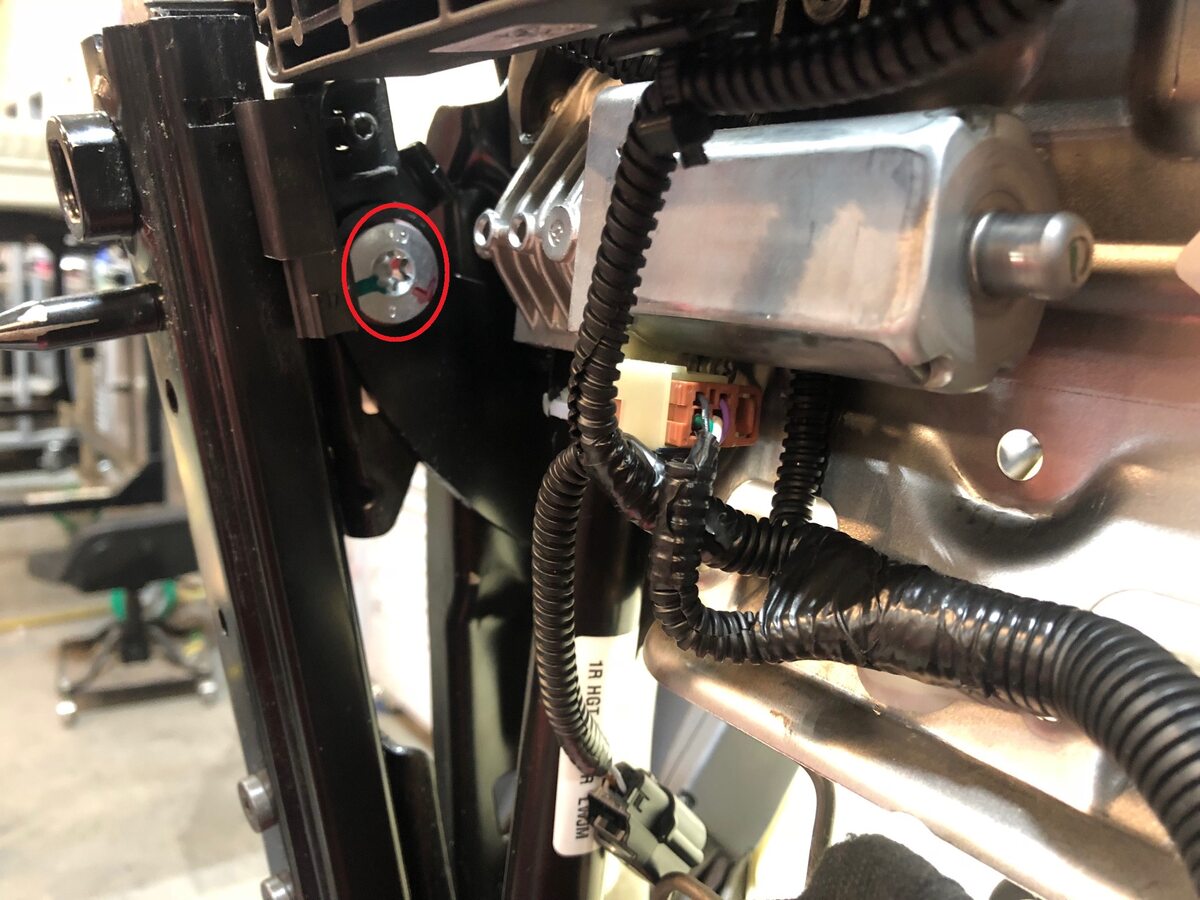

  14. 拆下将座椅滑轨位置传感器固定到座椅滑轨总成的螺钉，然后将传感器从总成上拆下。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    图 5. LH seat shown; RH seat similar

安装

  1. 将座椅滑轨位置传感器放置在座椅滑轨总成上，然后安装将传感器固定到总成的新螺钉。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    图 6. LH seat shown; RH seat similar
  2. 40 Nm (29.5 lbs-ft)
    将预紧装置放置在座椅滑轨上，然后安装将预紧装置固定到座椅滑轨的新螺栓。
    Informational PurposesAn informational icon, calling your attention
    注
    Align the pretensioner guide pin to the seat track.
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 梅花 T50 套筒
    • 3/8 英寸标准棘轮
    • 3/8 英寸扭矩扳手（仅适用于安装程序）
    • 3 英寸加长件
    图 7. LH seat shown; RH seat similar
  3. 40 Nm (29.5 lbs-ft)
    将锁扣放置在座椅滑轨总成上，然后安装新座椅安全带锁扣附带的耐落螺栓，以将锁扣固定到座椅滑轨。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 梅花 T50 套筒
    • 3/8 英寸标准棘轮
    • 3/8 英寸扭矩扳手（仅适用于安装程序）
    • 3 英寸加长件
    图 8. LH seat shown; RH seat similar
  4. Position the new seat track assembly to the seat cushion frame.
  5. Install the outboard bolts (x2) that attach the seat track to the seat cushion frame.
    23 Nm (17.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 梅花 T50 套筒
  6. Install new inboard bolts (x2) that attach the seat track to the seat cushion frame.
    23 Nm (17.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 梅花 T50 套筒
  7. Connect the LH front seat track motor connector.
  8. Install the clip that attaches the seat track harness connector to the seat track motor.
  9. Connect the seat track position sensor connector.
  10. Return the seat back to the upright position.
  11. Connect the buckle connector.
    图 9. LH seat shown; RH seat similar
  12. Install the front passenger seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove and Replace).
  13. Connect the pretensioner electrical connector.
    图 10. LH seat shown; RH seat similar
  14. Install the front passenger seat outboard side shield. See Side Shield - Outboard - Driver Seat (Remove and Replace).
  15. Install the front passenger seat. See Seat Assembly - 1st Row - LH (Remove and Replace).
