止动块 - 掀背车门 - 左(拆卸和更换) ((拆卸和更换))
校正代码
11330902 0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
- 2025 年 9 月 10 日:将标题从“掀背尾门止动块”更新为“后备箱止动块”。
设备:
- 1588903-00-A 车身间隙和齐平度工具
拆卸
-

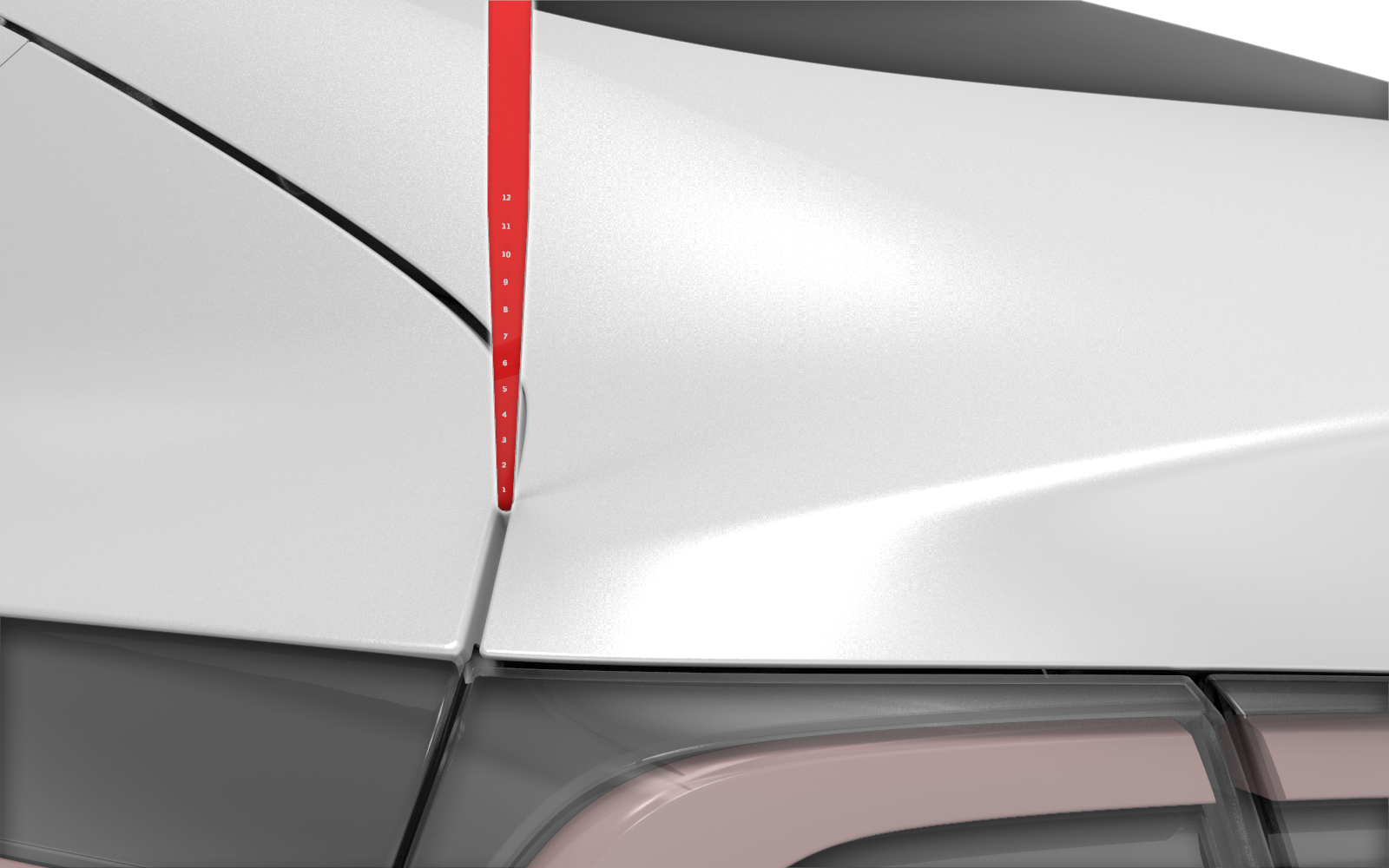

使用车身间隙和齐平度工具测量掀背车门的间隙并记录该值。
- 通过外部开关打开后备箱。
-

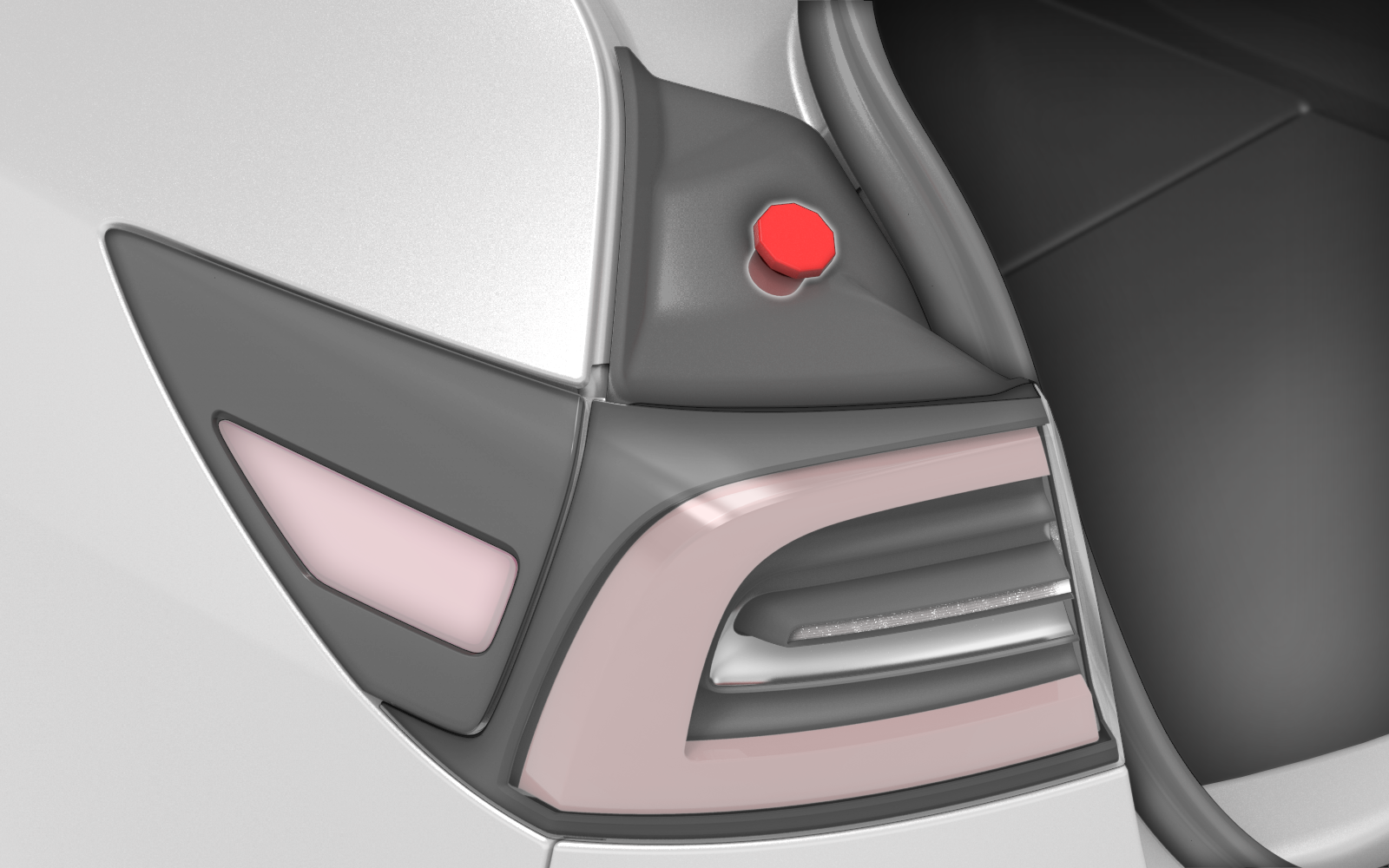

拆下掀背车门 LH 止动件。
安装
-
安装掀背车门 LH 止动件。
- 通过外部开关关闭后备箱。
- 验证掀背车门的间隙/齐平度,并根据需要进行调节。
