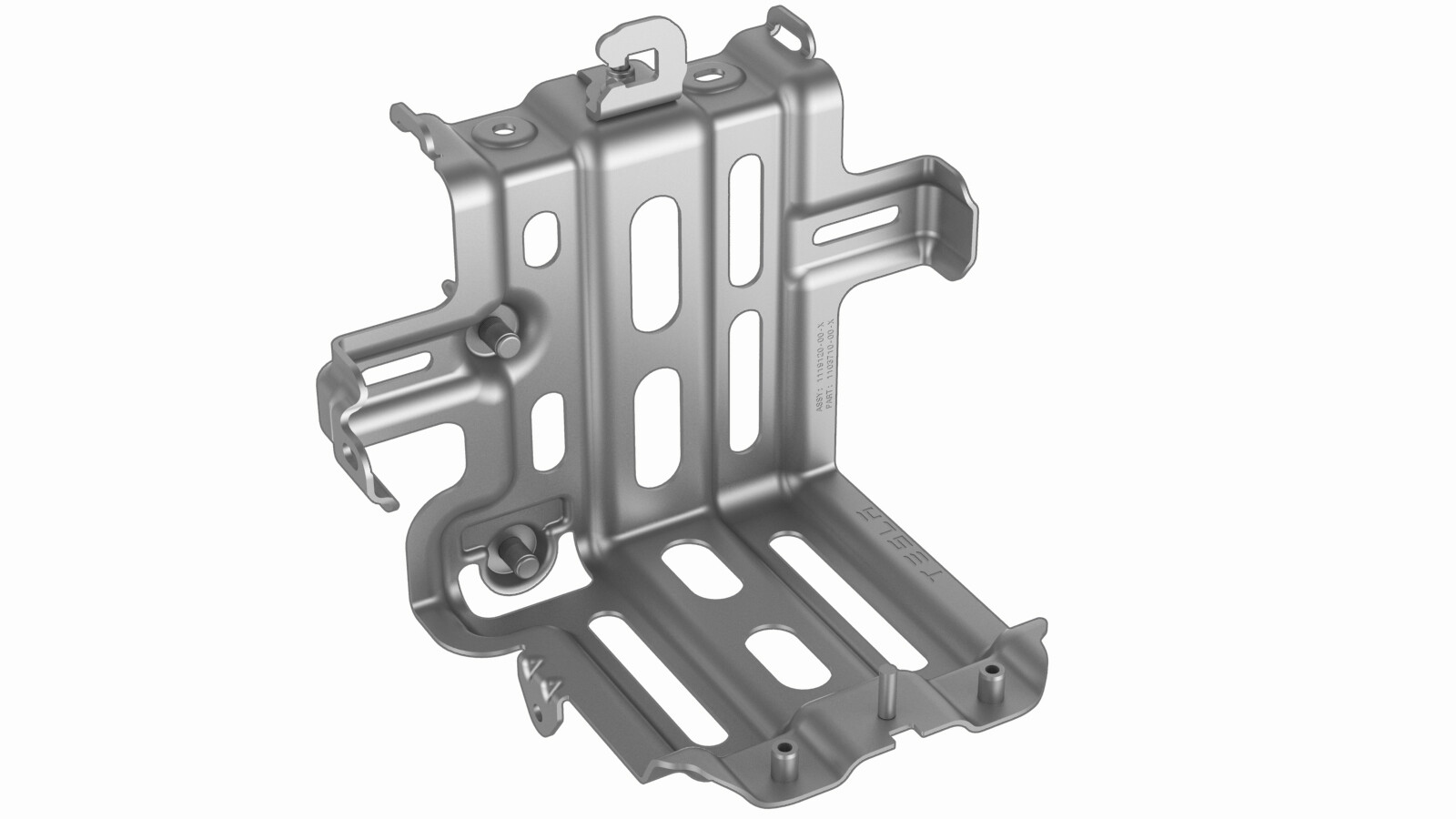

Bracket - 12V Battery (Dual Motor) (Remove and Replace)

校正代码 170140121.56 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

拆卸

  1. 拆下第二排下部座垫。请参阅Seat Cushion - Lower - 2nd Row (Remove and Replace)。
  2. 拆下前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)。
  3. 拆下座舱进气槽。请参阅Duct - Cabin Intake (Remove and Replace)。
  4. 拆下前备箱储物单元。请参阅Underhood Storage Unit (Remove and Replace)。
  5. 拆下 LH 和 RH 雨刮器臂。请参阅Wiper Arms (Remove and Replace)。
  6. 拆下 LH 和 RH 减震塔盖。请参阅Cover - Shock Tower - LH (Remove and Replace)。
  7. 拆下前围篦板。请参阅Panel - Cowl Screen (Remove and Replace)。
  8. 断开 12V 电源。请参阅12V/LV Power (Disconnect and Connect)。
  9. 拆下 12V 辅助电池。请参阅12V/LV Battery (Remove and Replace)。
  10. 拆下车身前部控制器模块。请参阅Module - Body Controller - Front (Dual Motor) (Non-Heat Pump) (Remove and Replace)。

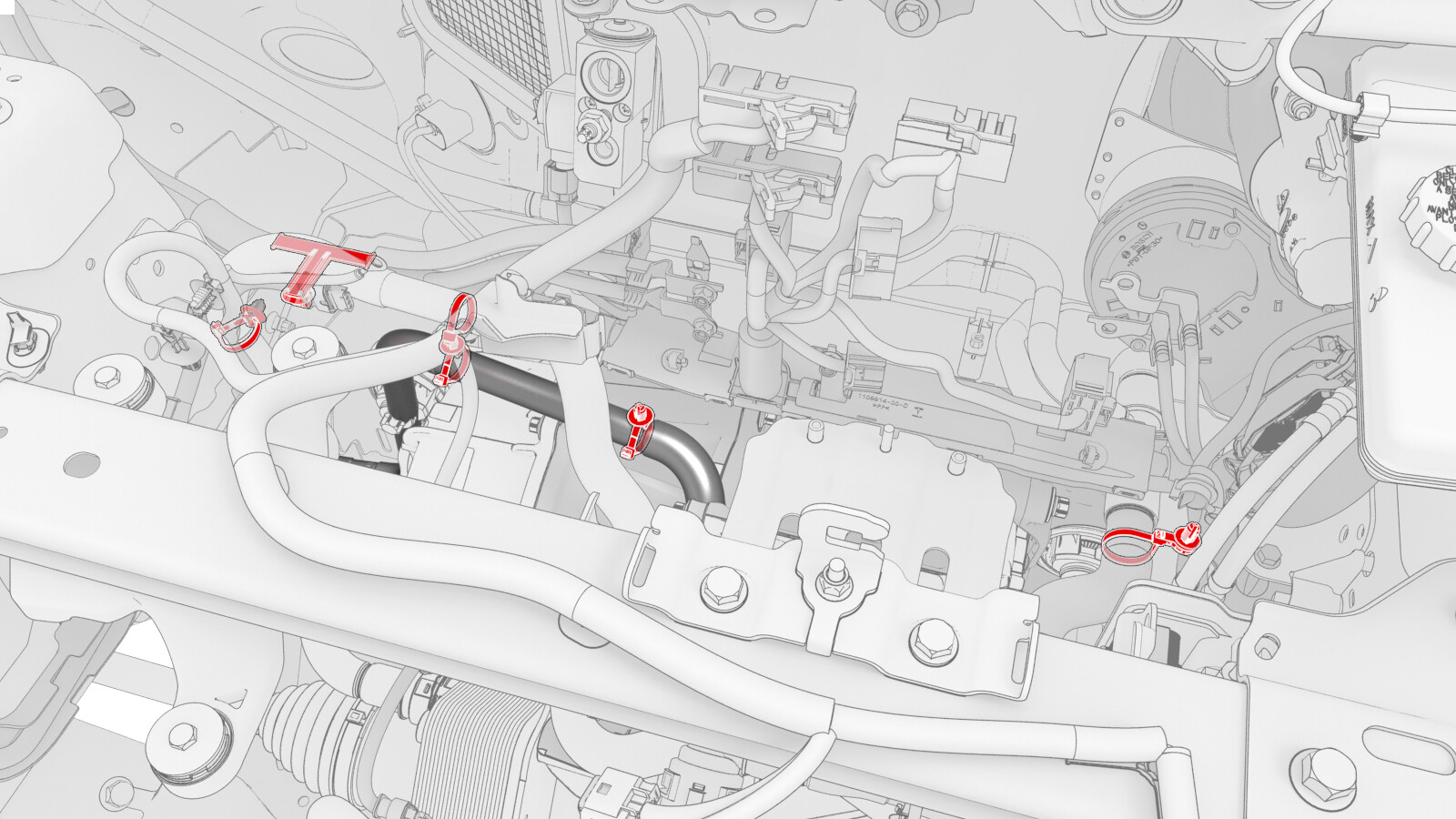

  11. 松开将冷却液软管和电气线束固定到 12V 电池支架横梁的夹子。
  12. 拆下将 12V 电池支架横梁固定到车辆的螺栓。
    9 Nm (6.6 lbs-ft)
  13. 从车上拆下 12V 电池支架和 12V 电池支架横梁。
    Informational PurposesAn informational icon, calling your attention
    注
    小心地将支架横梁滑向车辆 RH 侧，然后抬起支架横梁 LH 侧，以便拆下总成。
  14. 拆下将 12V 电池支架横梁固定到 12V 电池支架的螺栓，然后将支架横梁放置一旁。
    9 Nm (6.6 lbs-ft)

安装

安装程序与拆卸程序相反，以下各项除外：

  • Replace all nyloc nuts.
  • Replace all patchbolts.
