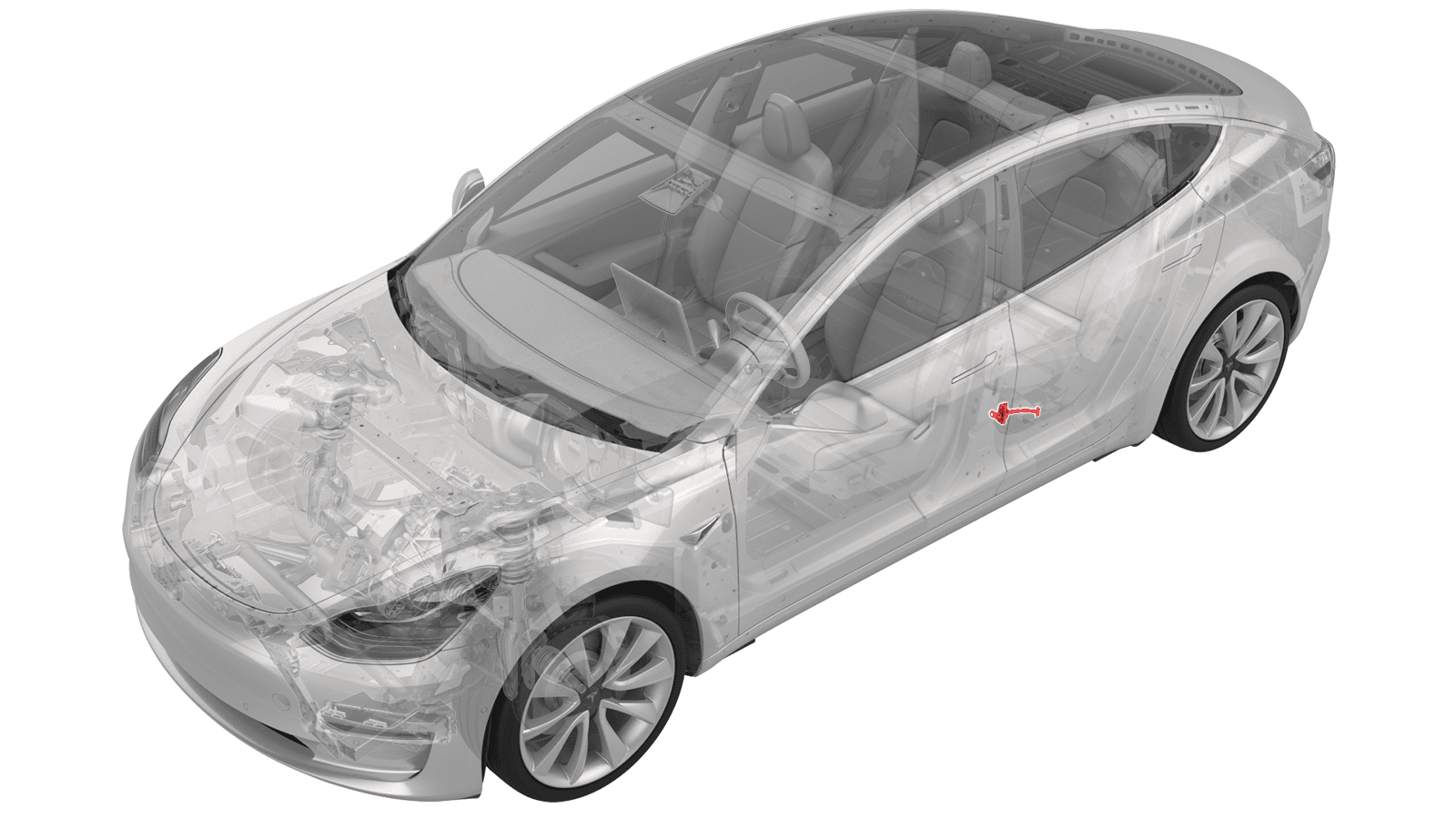

Check Strap - Door - Rear - LH (Remove and Replace)

校正代码 10106552 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

  • 1454796-00-A TOOLKIT, WINDOW SWITCH

拆卸

  1. 拆下后车窗电机/调节器总成。请参阅Window Motor / Regulator Assembly - Rear - LH (Remove and Replace)。

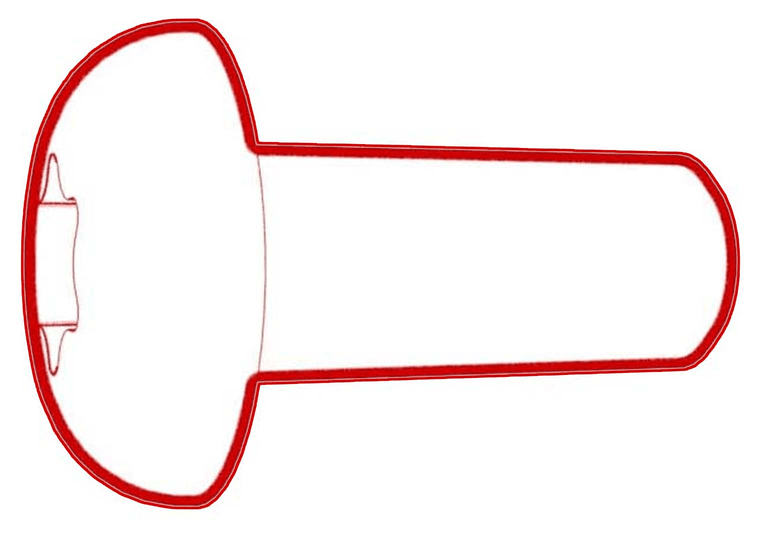

  2. 使用 T40 钻头拆下将 LH 后车门限位器固定到 A 柱主体的螺栓。
    24 Nm (17.7 lbs-ft)
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    拧松车门限位器的螺栓，让车门能在开启极限范围以外自由摇动。

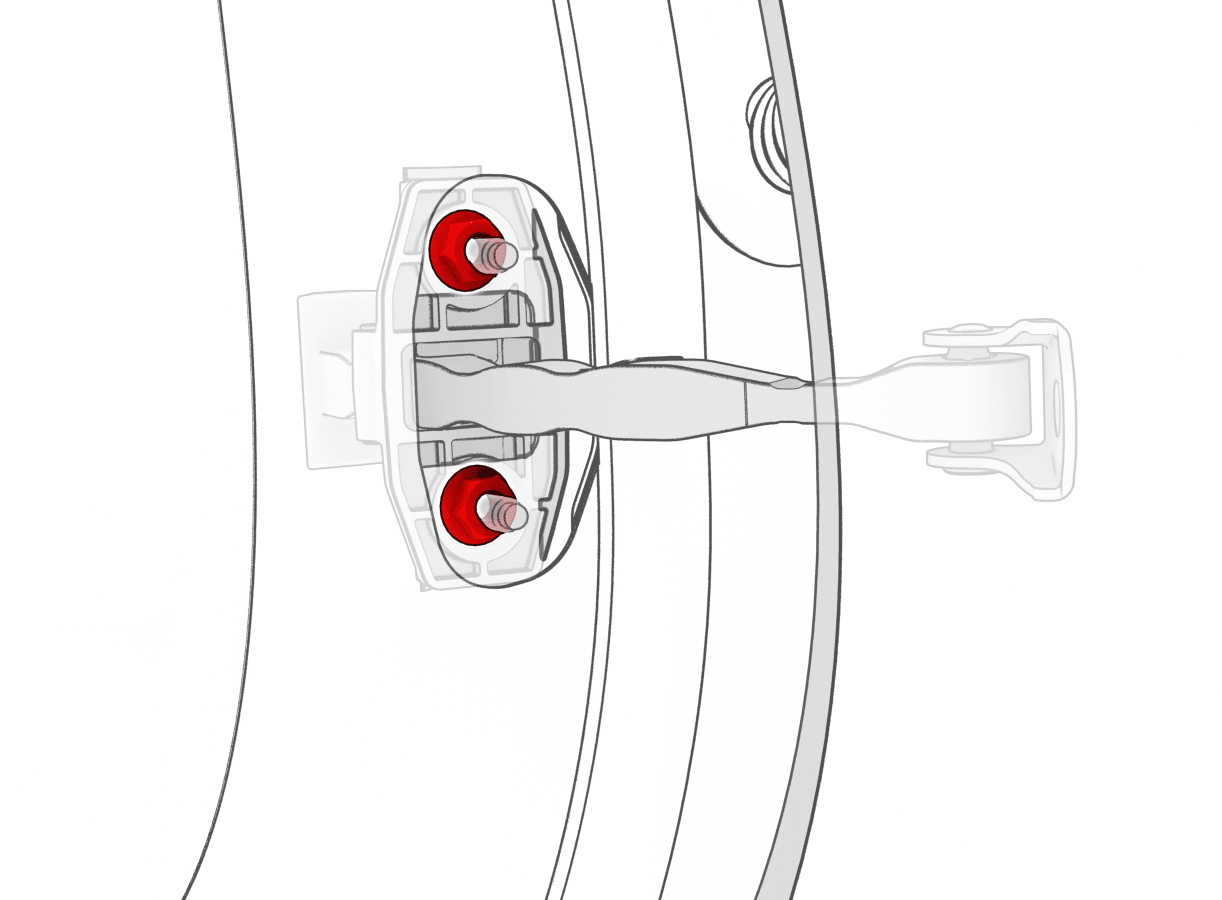

  3. 使用 10 毫米深套筒拆下将限位器固定到车门的螺母 (x2)。
    10 Nm (7.4 lbs-ft)

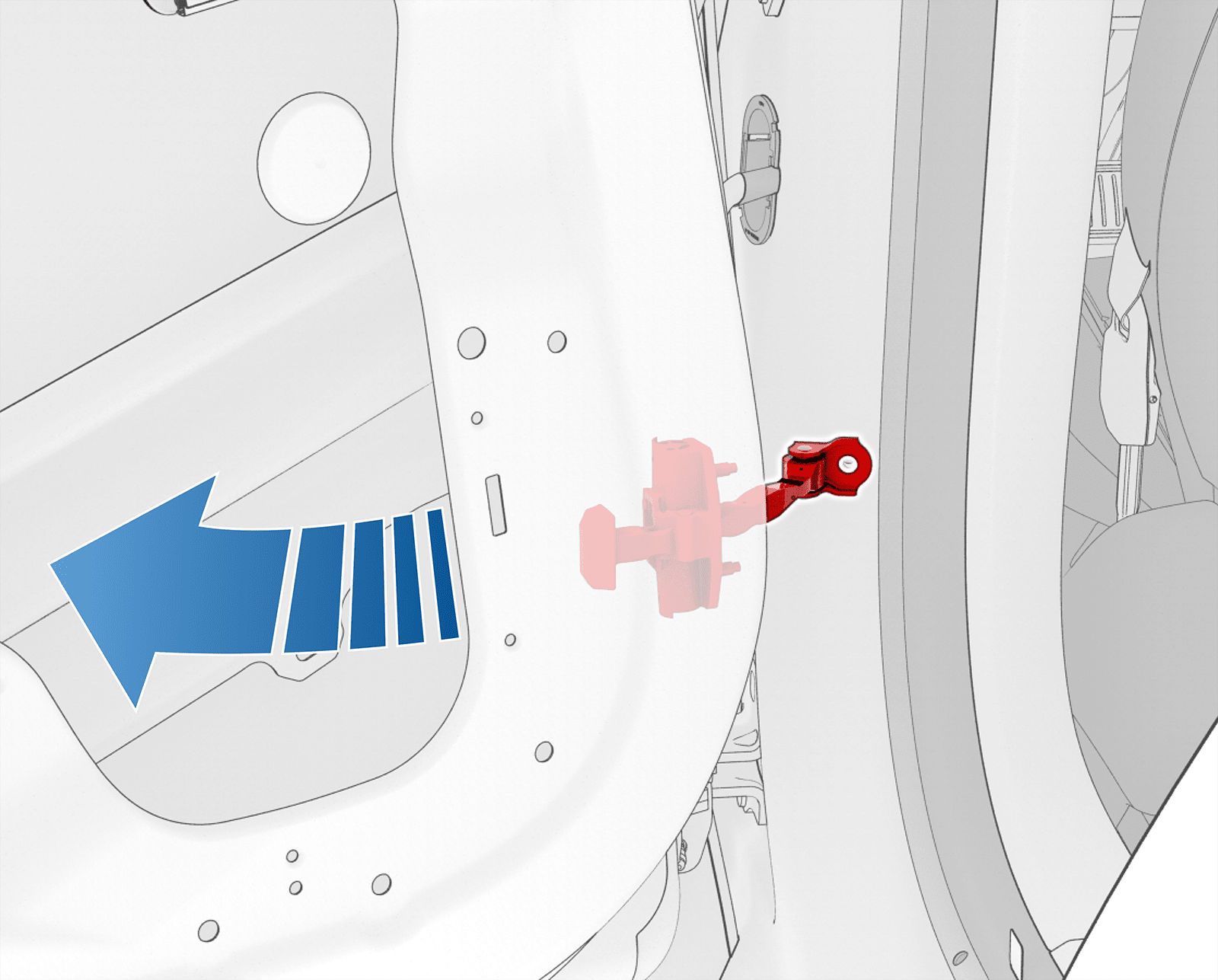

  4. 手伸进车门开口中，从车上拆下限位器。

安装

安装程序与拆卸程序相反，以下各项除外：

  • 务必调节并校准车窗。
