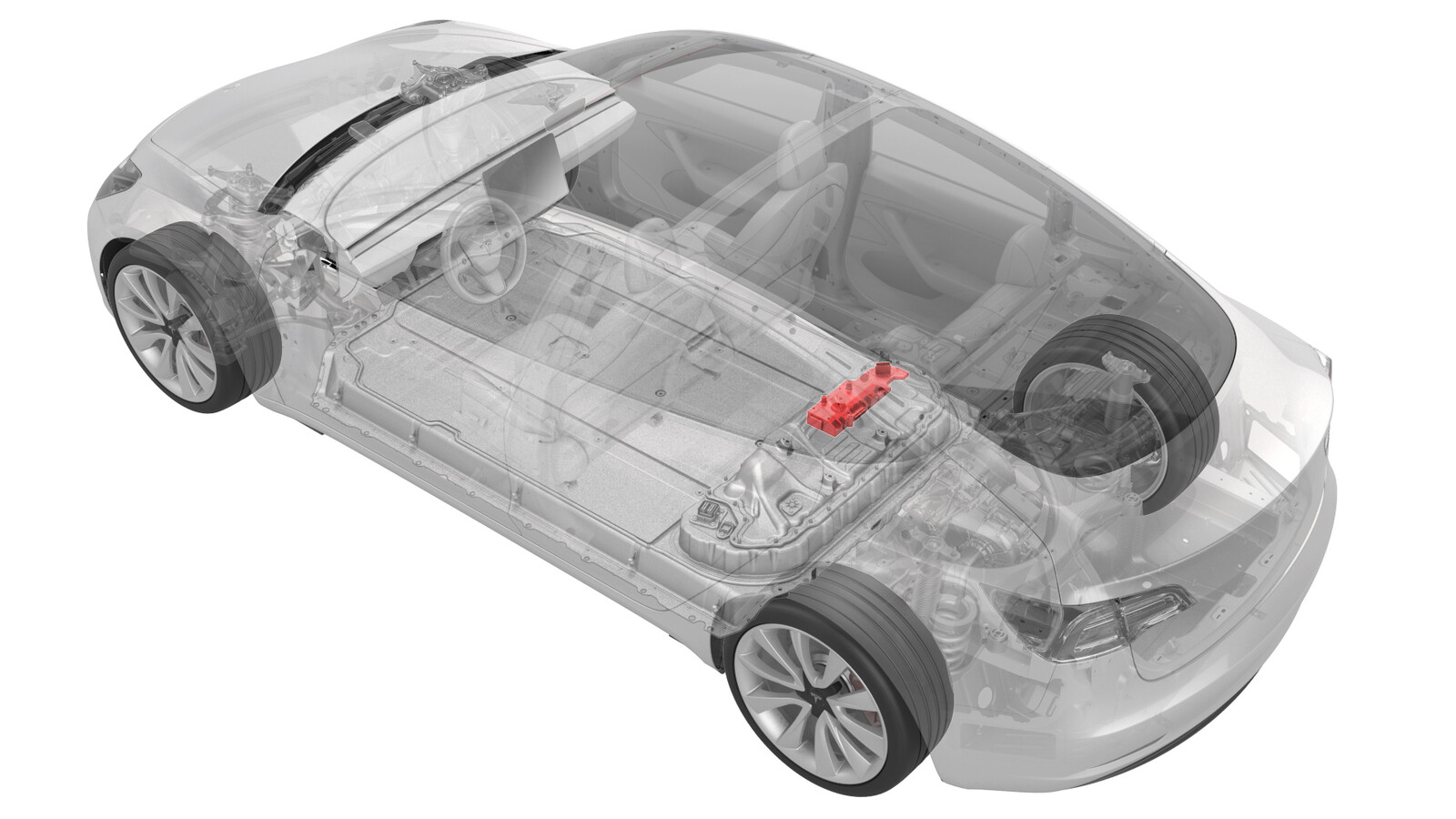

控制器 - 高压（改装）（电池置于操作台上）

校正代码 16300207 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

注
This procedure is to be performed if the HV battery has been removed and components must be reworked or swapped between old and new HV batteries. Add this correction code as a separate activity.
警告
Remove all jewelry (watches, bracelets, rings, necklaces, earrings, ID tags, piercings, etc.) from your person, and all objects (keys, coins, pens, pencils, tools, fasteners, etc.) from your pockets before performing any procedure that exposes you to high voltage.
警告
If corrective eyewear is necessary to safely perform any procedure, make sure that the eyewear is securely restrained to the head and cannot fall off.
警告

Only technicians who have completed all required certification courses are permitted to perform this procedure. Tesla recommends third party service provider technicians undergo equivalent training before performing this procedure. For more information on Tesla Technician requirements, or descriptions of the subject matter for third parties, see HV Certification Requirements. Proper personal protective equipment (PPE) and insulating HV gloves with a minimum rating of class 0 (1000V) must be worn at all times a high voltage cable, busbar, or fitting is handled. Refer to Tech Note TN-15-92-003, High Voltage Awareness Care Points for additional safety information.

程序

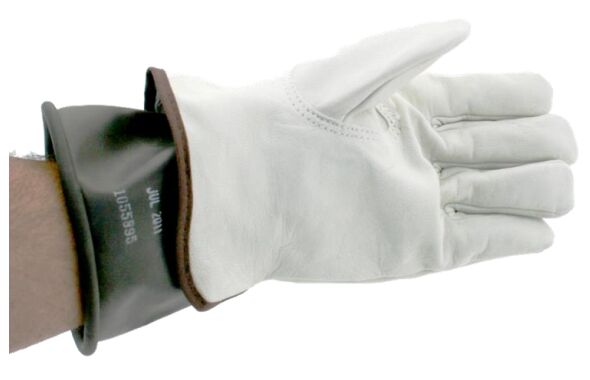

  1. 佩戴高压绝缘手套和皮质外手套。
    警告
    请继续佩戴手套，操作说明允许摘掉时方可脱下。
  2. 请按照以下子步骤改装高压控制器。

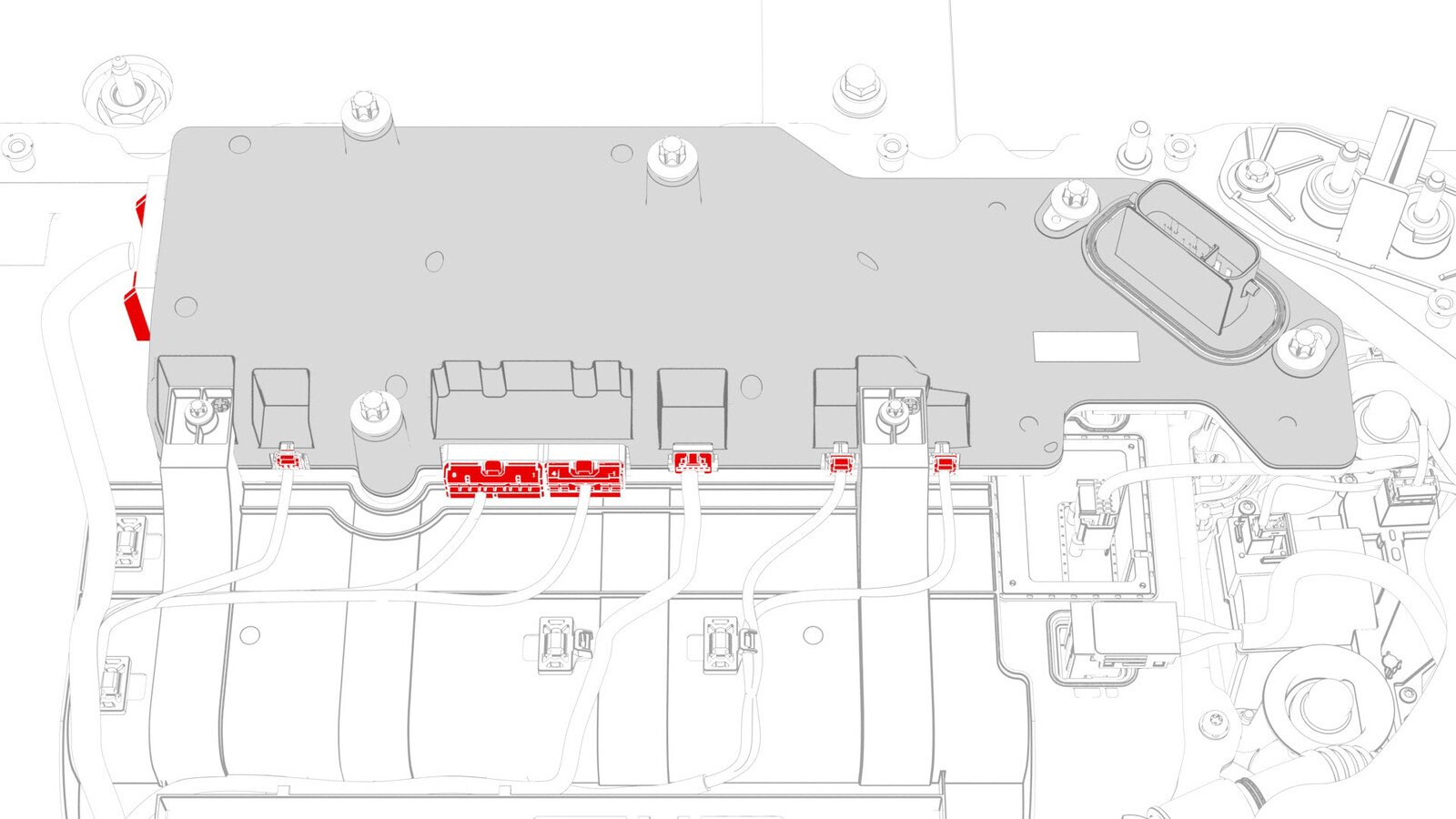

    1. Disconnect the ancillary bay harness from the HVC connectors.

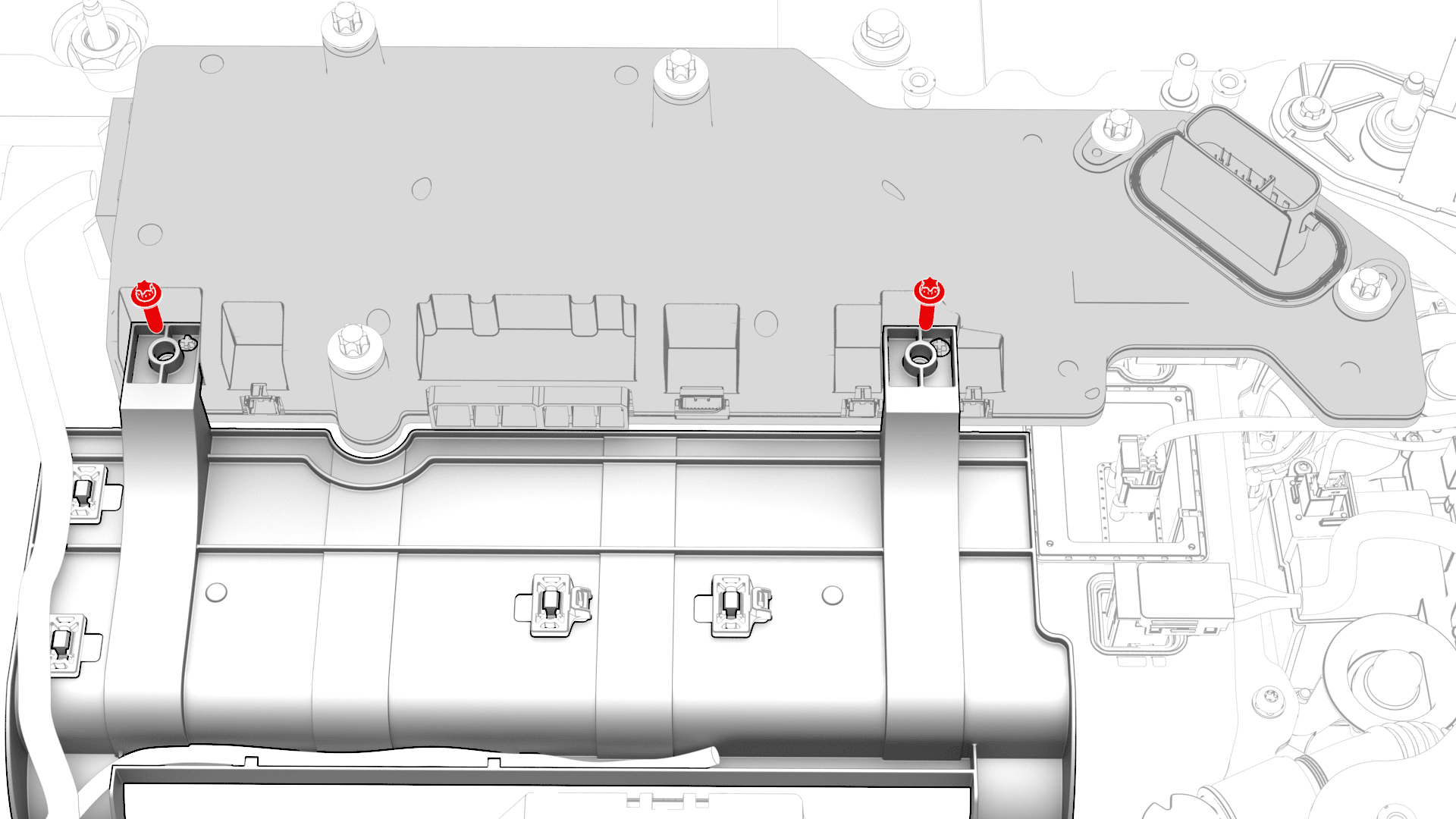

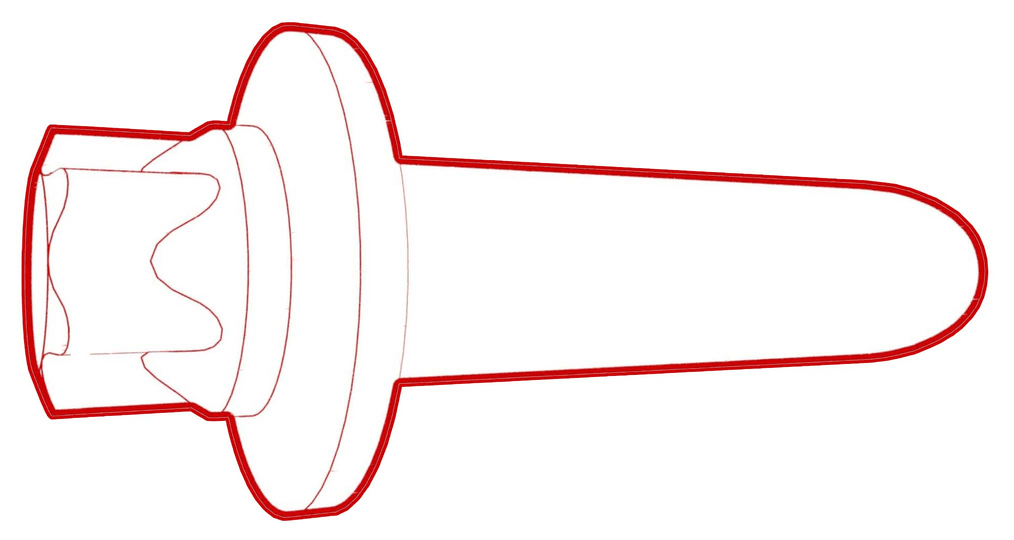

    2. Remove the bolts that attach the HVC to the hinge tray, and then remove the controller from the vehicle.
      2 Nm (1.5 lbs-ft)

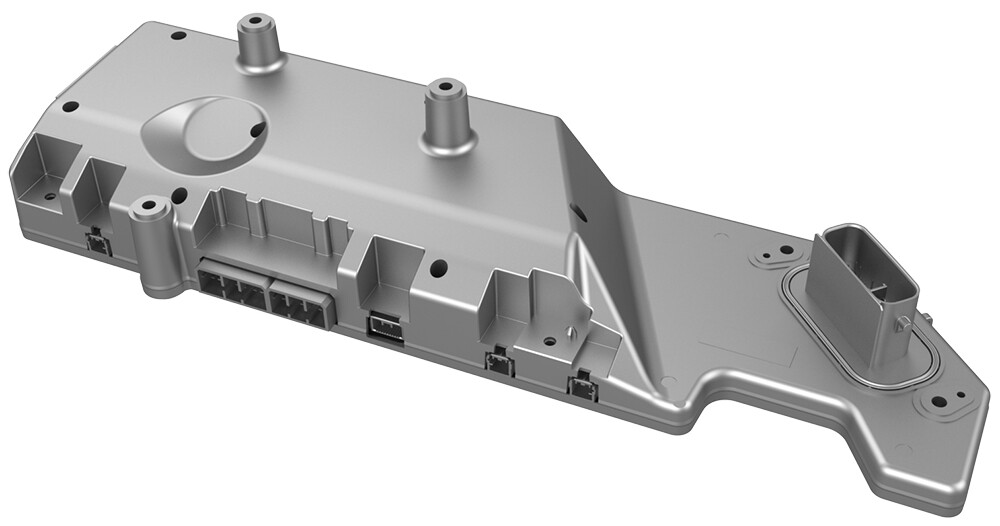

      图 1. 5-Bolt HVC

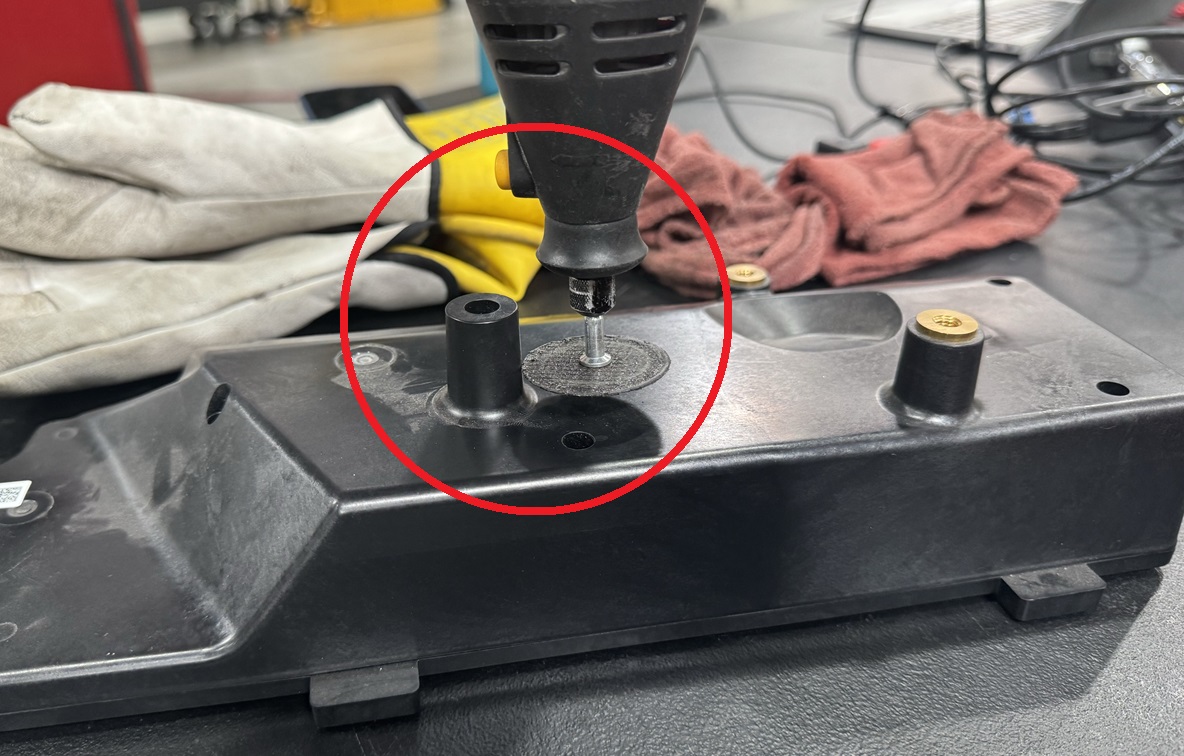

    3. Use a Dremel cut off wheel to remove the HVC standoff. Discard the standoff.
      警告
      Wear appropriate personal protective equipment (PPE) including cut-resistant gloves and safety glasses when performing this procedure.
      警告
      Do not damage the HVC upper surface or surrounding standoffs.
      注
      Cut as close towards the base of the standoff as possible.
      提示
      推荐使用以下工具
      • Dremel Accessory Kit, 110 Piece
    4. Apply electrical tape over the HVC standoff hole.
      提示
      推荐使用以下工具
      • Electrical Tape
    5. Install the HVC into the ancillary bay, and then install the bolts that attach the HVC to the hinge tray.
      2 Nm (1.5 lbs-ft)
    6. Connect the ancillary bay harness to the HVC connectors.
