Bumper Beam - Rear (Remove and Replace)

校正代码 10013102 1.08 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

扭矩规格

表 1. 扭矩规格: Bumper Beam - Rear (Remove and Replace)
描述 扭矩值 推荐工具 重复使用/更换 备注

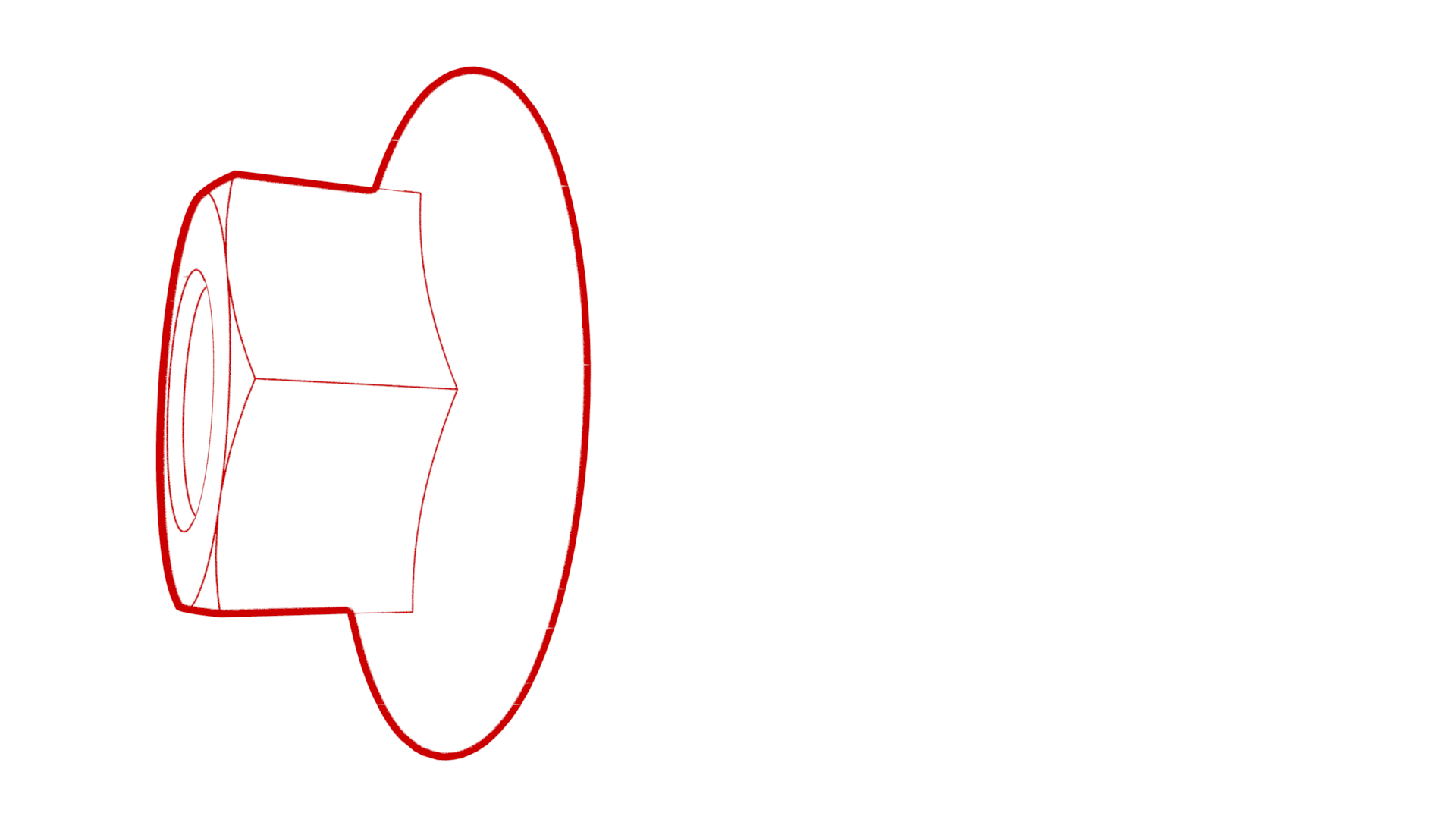

Nuts that attach the rear bumper beam to the body
60 Nm (44.2 lbs-ft)
  • 15 mm deep socket
  • 6 in extension
 Reuse

拆卸

  1. 拆卸后部中央支架。请参阅Bracket - Rear - Center (Remove and Replace)。

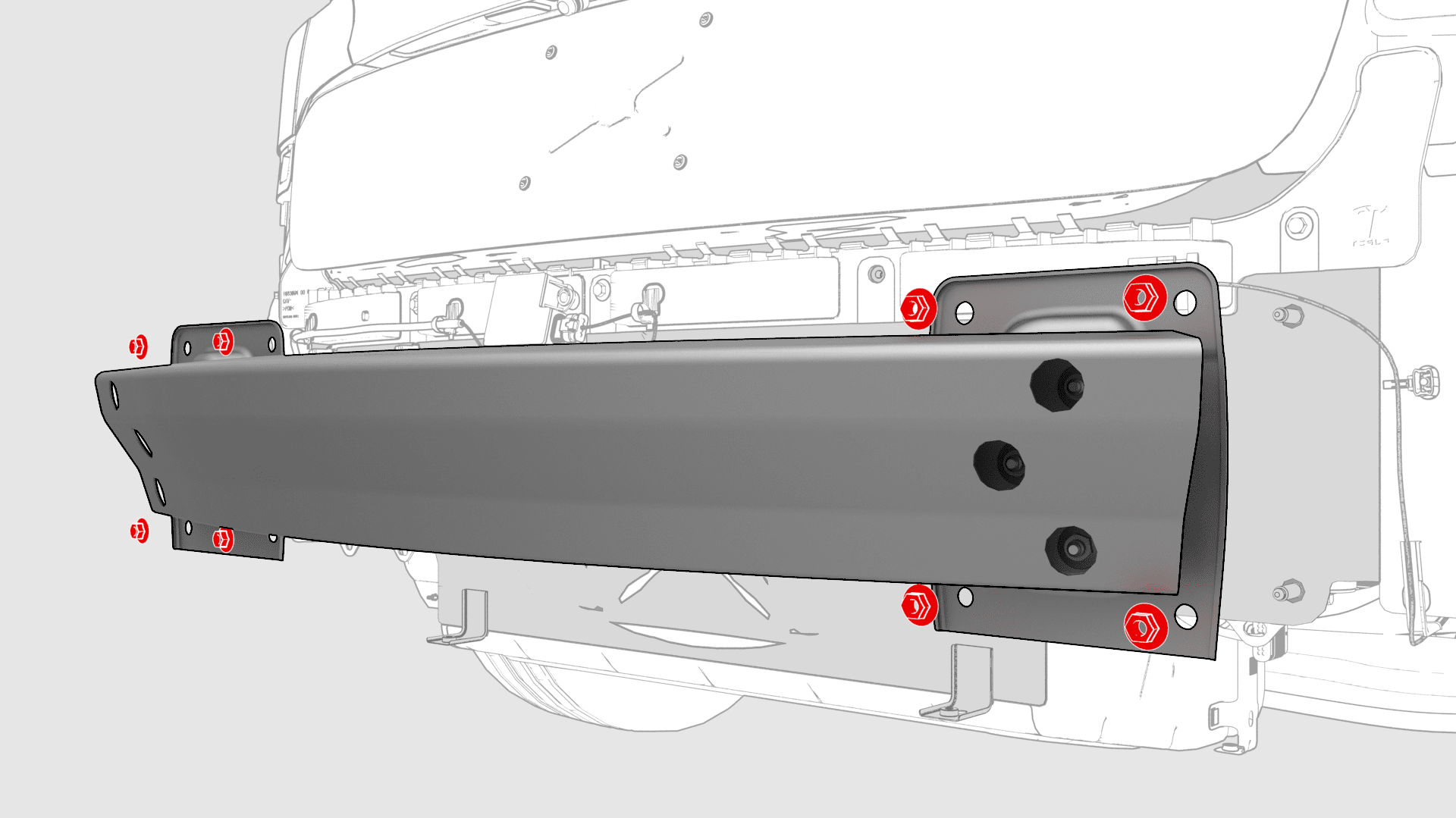

  2. 拆下将后保险杠梁固定到车身的螺母，然后从车上拆下后保险杠梁。
    Informational PurposesAn informational icon, calling your attention
    TIp
    建议在执行此步骤时请助手帮忙。
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 15 毫米深套筒
    • 6 英寸加长件

安装

  1. 将后保险杠梁就位，然后安装将后保险杠梁固定到车身的螺母。
    60 Nm (44.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    建议在执行此步骤时请助手帮忙。
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 15 毫米深套筒
    • 6 英寸加长件
  2. 安装后部中央支架。请参阅Bracket - Rear - Center (Remove and Replace)。
