扬声器 - 前车门 - 左侧(拆卸和更换)
校正代码
21210102 0.24
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
扭矩规格
| 描述 | 扭矩值 | 推荐工具 | 重复使用/更换 | 备注 |
|---|---|---|---|---|
| 将前车门扬声器固定到车门的螺钉 |
![]() 4 Nm (2.9 lbs-ft) |
|
重复使用 |
拆卸
- 拆下 LH 前门饰板。请参阅板件 - 车门饰板 - 前部 - 左侧(拆卸和更换)。
-
断开电气连接器与前车门扬声器的连接。
-

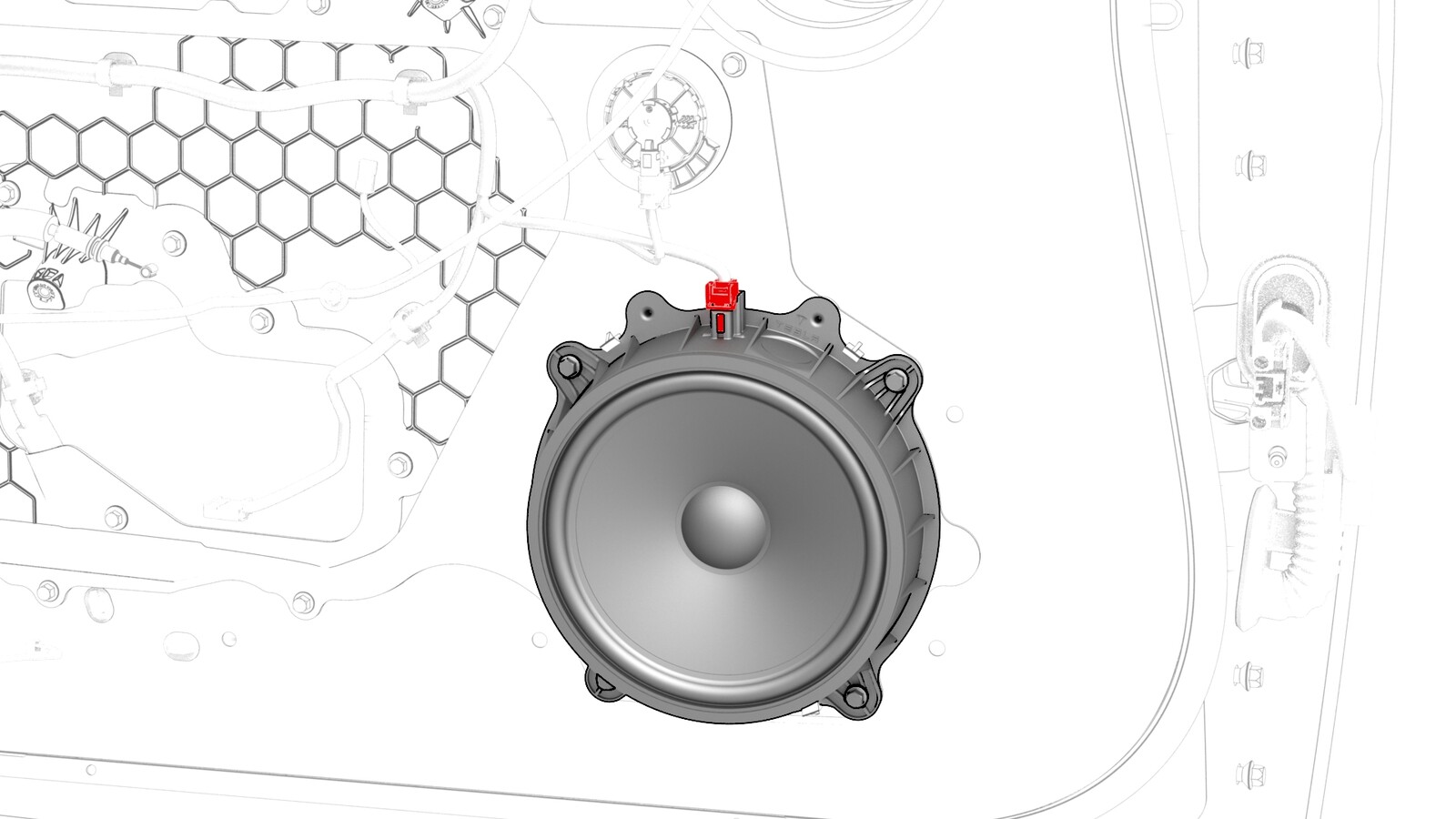

拆下将前车门扬声器固定到车门的螺钉,然后拆下扬声器。
4 Nm (2.9 lbs-ft)提示推荐使用以下工具- 8 mm 套筒扳手
安装
安装程序与拆卸程序相反。
