软管 - 超级瓶至动力总成冷却液供给（拆卸和更换）

校正代码 18300172 1.02 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
尽管此程序已经过验证，但仍是一个草案。可能没有警告和注意事项。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com。

拆卸

  1. Move the vehicle to a 2 post lift. See 举升车辆 - 双柱举升机.
  2. Remove the 2nd row lower seat cushion. See 座椅座垫 - 下部 - 第二排（拆卸和更换）.
  3. Remove the underhood storage unit. See 前备箱储物单元（拆卸和更换）.
  4. Disconnect 12V power. See 12V/低压电源（断开和连接）.
  5. Remove the 12V battery. See 12V/低压电池（拆卸和更换）.
  6. Remove the outer HVAC plenum duct. See 风管 - 暖通空调 (HVAC) 集气室 - 外（拆卸和更换）.
  7. Remove the front aero shield panel. See 面板 - 流线型护板 - 前（拆卸和更换）.
  8. Release the clips along the bottom edge of the RH wheel arch liner.

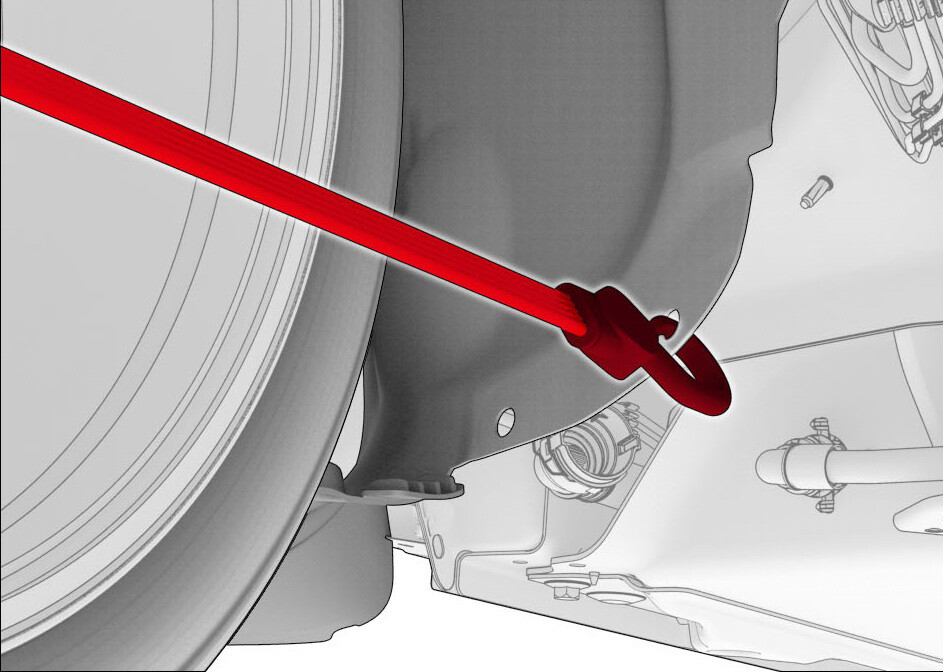

  9. Install a bungee strap to pull the RH front wheel arch liner away from the HV battery and expose the coolant hoses.
  10. Position a coolant drain under the front RH corner of the HV battery.
  11. Release the clip and disconnect the Superbottle to powertrain coolant supply hose from the rear powertrain supply hose at the RH side of the vehicle, and then immediately plug the male and female fittings.

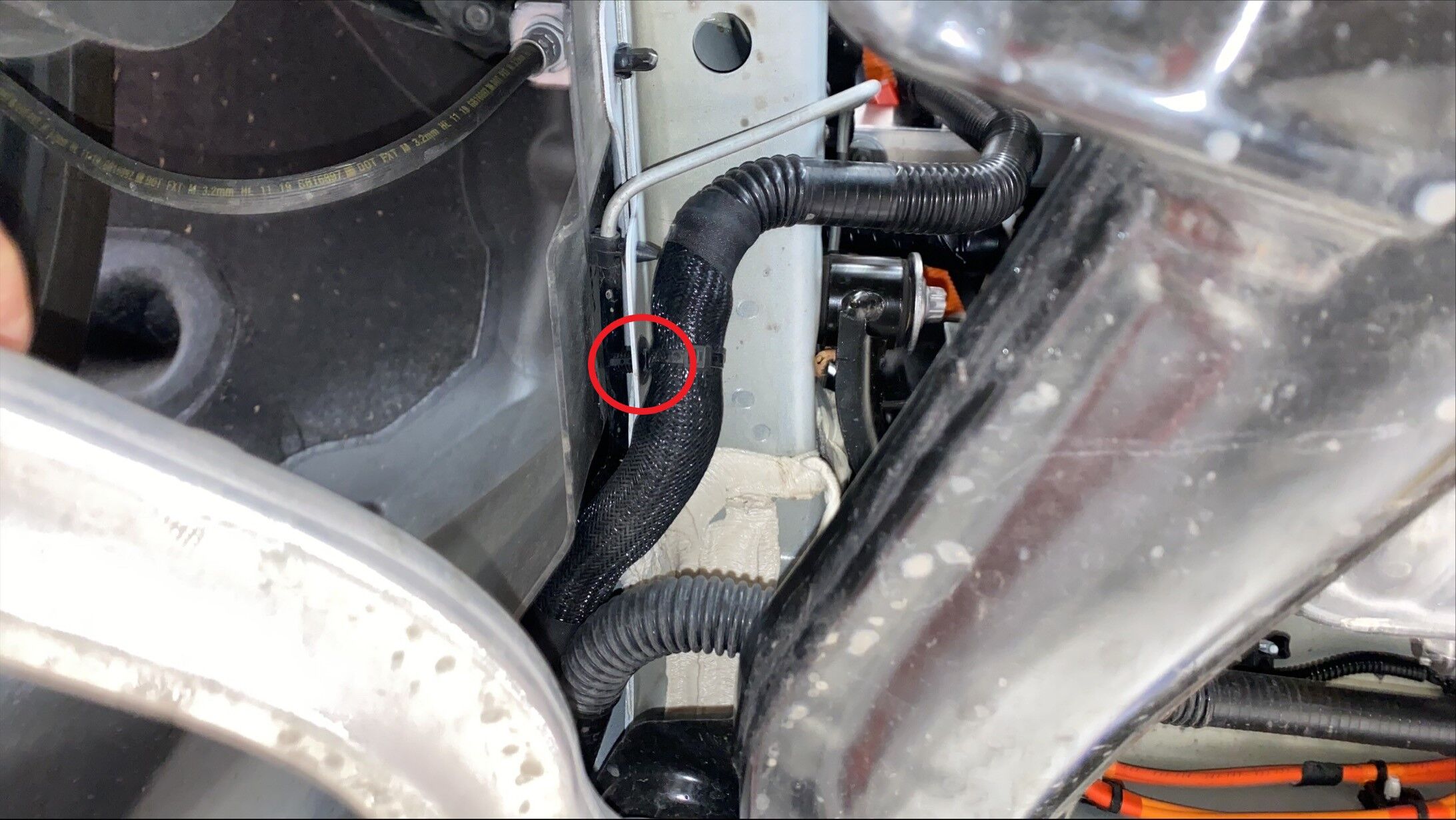

  12. Release the clips (x2) that attach the Superbottle to powertrain coolant supply hose to the body.
  13. Remove coolant drain container out from under the vehicle, lower the vehicle, and move a coolant catcher to under the front of the vehicle.
  14. Release the clips (x2) that attach the Superbottle to powertrain coolant supply hose to the battery beam.

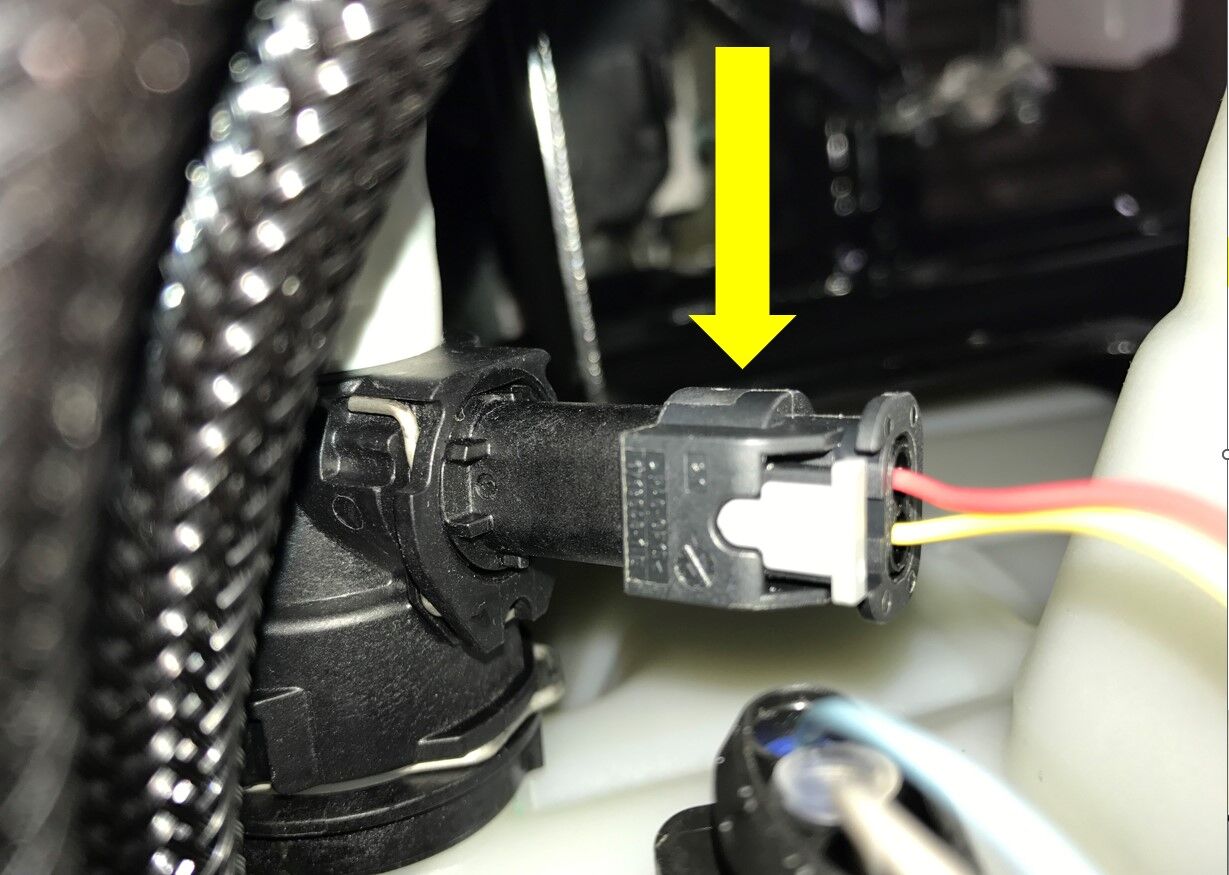

  15. Disconnect the electrical harness from the Superbottle to powertrain coolant supply hose temperature sensor connector.
  16. Release the clip, disconnect the Superbottle to powertrain coolant supply hose from the Superbottle, and remove the hose from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    注
    The clip is on the top of the fitting.

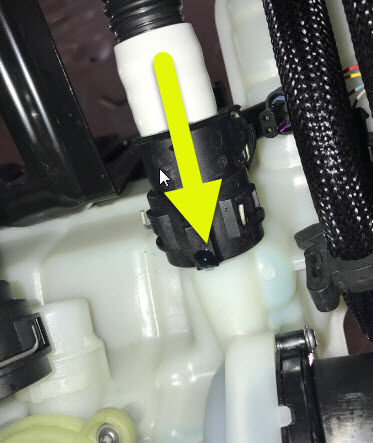

    图 1. View is looking up under the Superbottle

安装

  1. Connect the Superbottle to powertrain coolant supply hose to the Superbottle, fasten the clip, and perform a Push-Pull-Push test of the connection.
    图 2. View is looking up under the Superbottle
  2. Connect the electrical harness to the Superbottle to powertrain coolant supply hose temperature sensor connector.
  3. Fasten the clips (x2) that attach the Superbottle to powertrain coolant supply hose to the battery beam.
  4. Remove the coolant catcher from under the vehicle, raise the vehicle, and move the coolant drain collector to under the RH front of the HV battery.
  5. Fasten the clips (x2) that attach the Superbottle to powertrain coolant supply hose to the body.
  6. Remove the plugs from both fittings, immediately connect the Superbottle to powertrain coolant supply hose to the rear powertrain supply hose, fasten the clip, and perform a Push-Pull-Push test of the connection.
  7. Move the coolant drain collector out from under the vehicle.
  8. Remove the bungee cord from the vehicle, and then move the RH front wheel arch liner back into position.
  9. Fasten the clips along the bottom edge of the RH wheel arch liner.
  10. Install the front aero shield panel. See 面板 - 流线型护板 - 前（拆卸和更换）.
  11. Install the 12V battery. See 12V/低压电池（拆卸和更换）.
  12. Connect 12V power. See 12V/低压电源（断开和连接）.
  13. Perform a cooling system vacuum refill. See 冷却系统（真空重新加注）.
  14. Install the outer HVAC plenum duct. See 风管 - 暖通空调 (HVAC) 集气室 - 外（拆卸和更换）.
  15. Install the underhood storage unit. See 前备箱储物单元（拆卸和更换）.
  16. Install the 2nd row lower seat cushion. See 座椅座垫 - 下部 - 第二排（拆卸和更换）.
  17. Remove the vehicle from the 2 post lift. See 举升车辆 - 双柱举升机.
