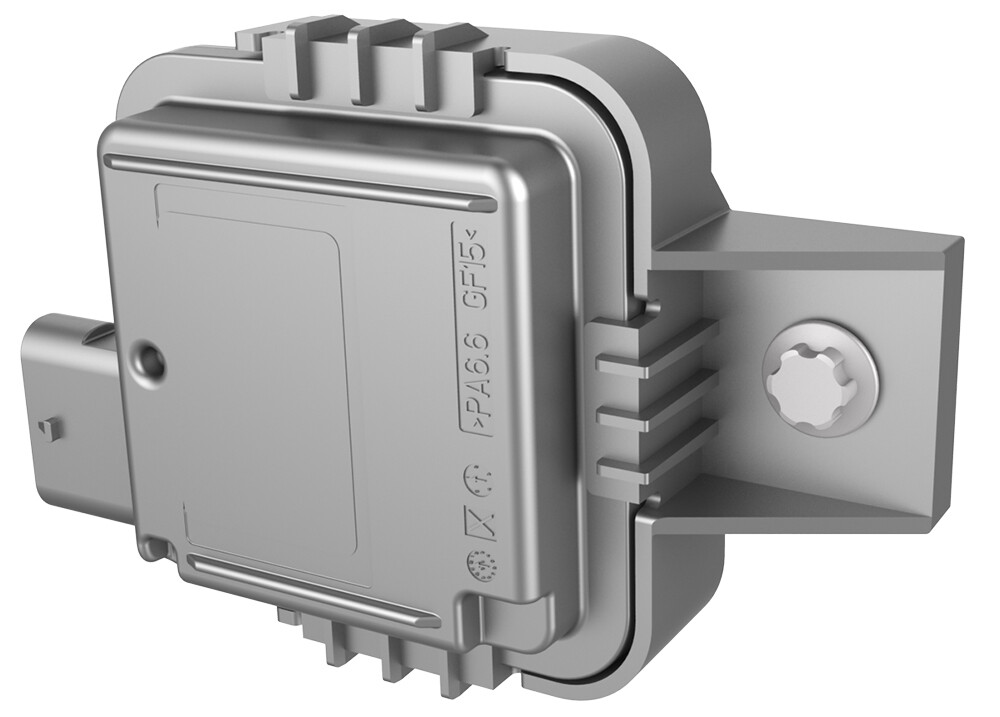

模块 - HomeLink 发射器(拆卸和更换)
校正代码
17154202 0.48
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
- 2025-07-14: 更新了更换后例行程序操作说明。
拆卸
-
断开 12V 电源。请参阅 12V/低压电源(断开和连接)。
警告严格按要求执行 12V 断开程序,避免 Homelink 发射器和触摸屏图标出现意外功能。
- 拆下前保险杠饰板请参阅 饰板 - 前(拆卸和安装)。
-

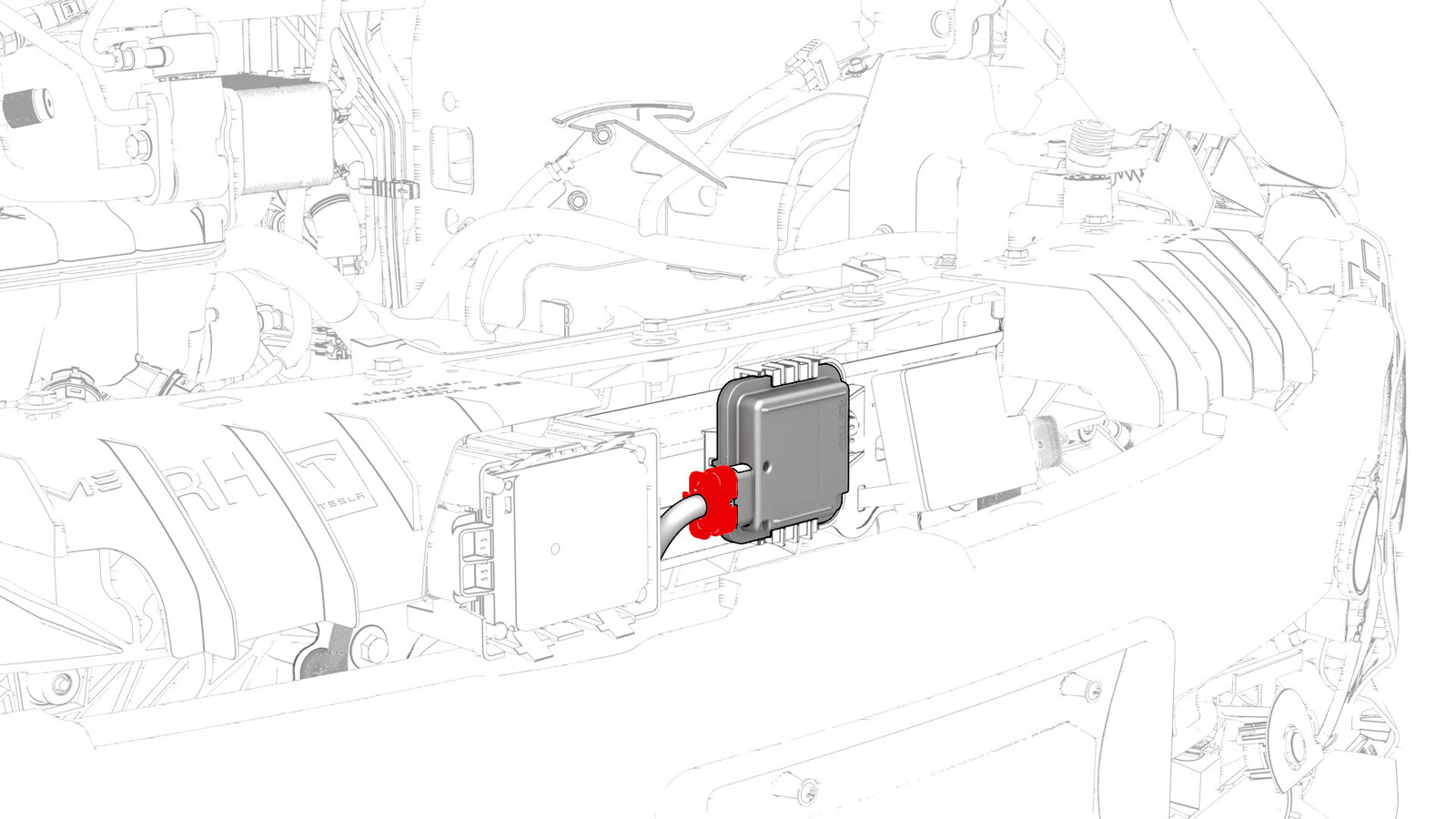

断开电气连接器与 HomeLink 发射机模块的连接。
-

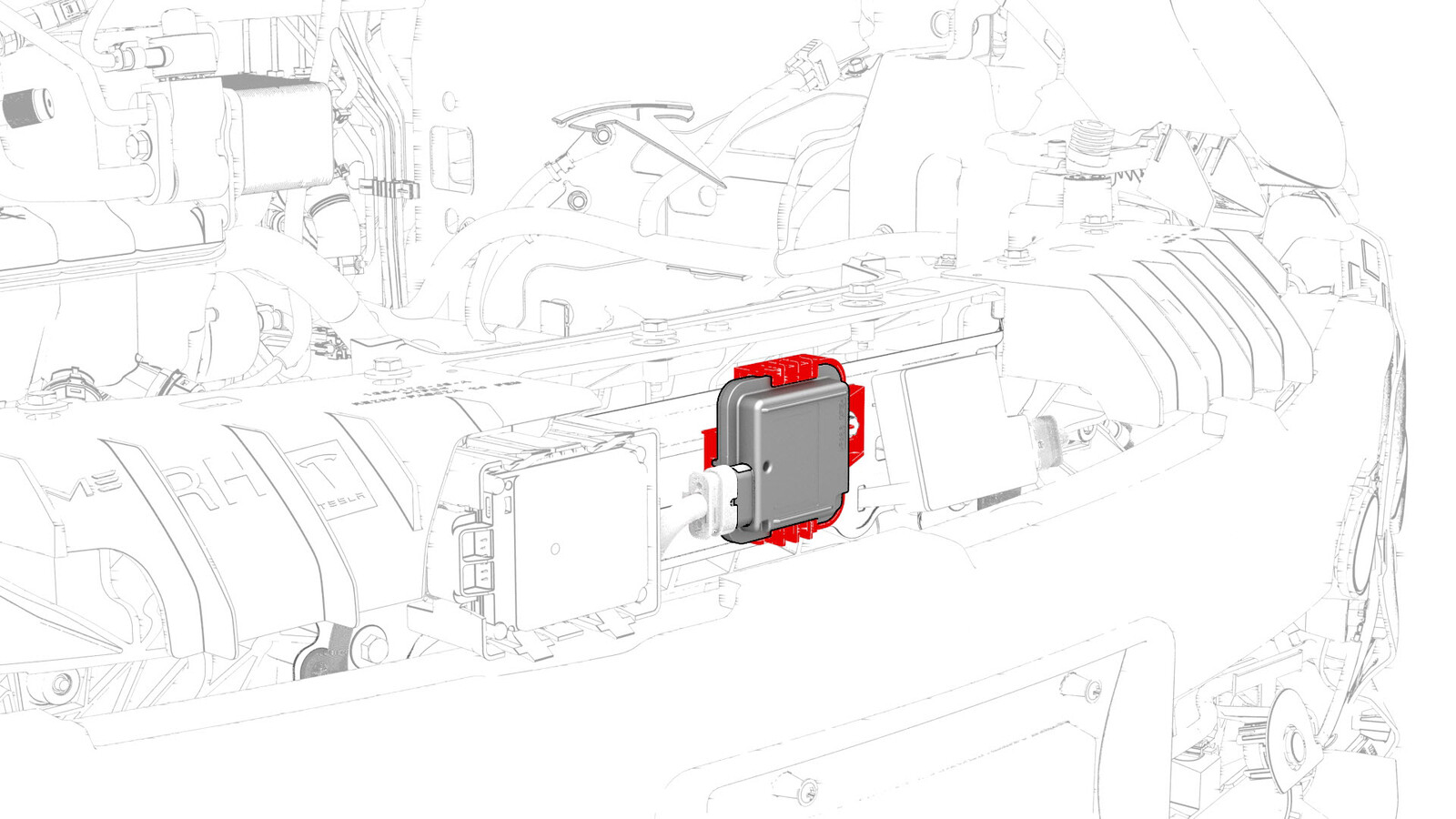

松开锁片,然后向右滑动 HomeLink 发射器模块,以便将其从车辆上拆下。
安装
-
将 HomeLink 发射器模块安装到支架上。
-
将电气连接器连接到 HomeLink 发射器模块。
- 安装前饰板请参阅 饰板 - 前(拆卸和安装)。
- 重新连接 12V 电源。请参阅 12V/低压电源(断开和连接)。
- 通过“维护模式”或 Toolbox 执行以下例行程序(请参阅0005 - 维护模式): TEST-SELF_VCFRONT_X_HOMELINKvia Service Mode:Low Voltage ➜ Accessories ➜ Test HomeLinkvia Toolbox:(link)
