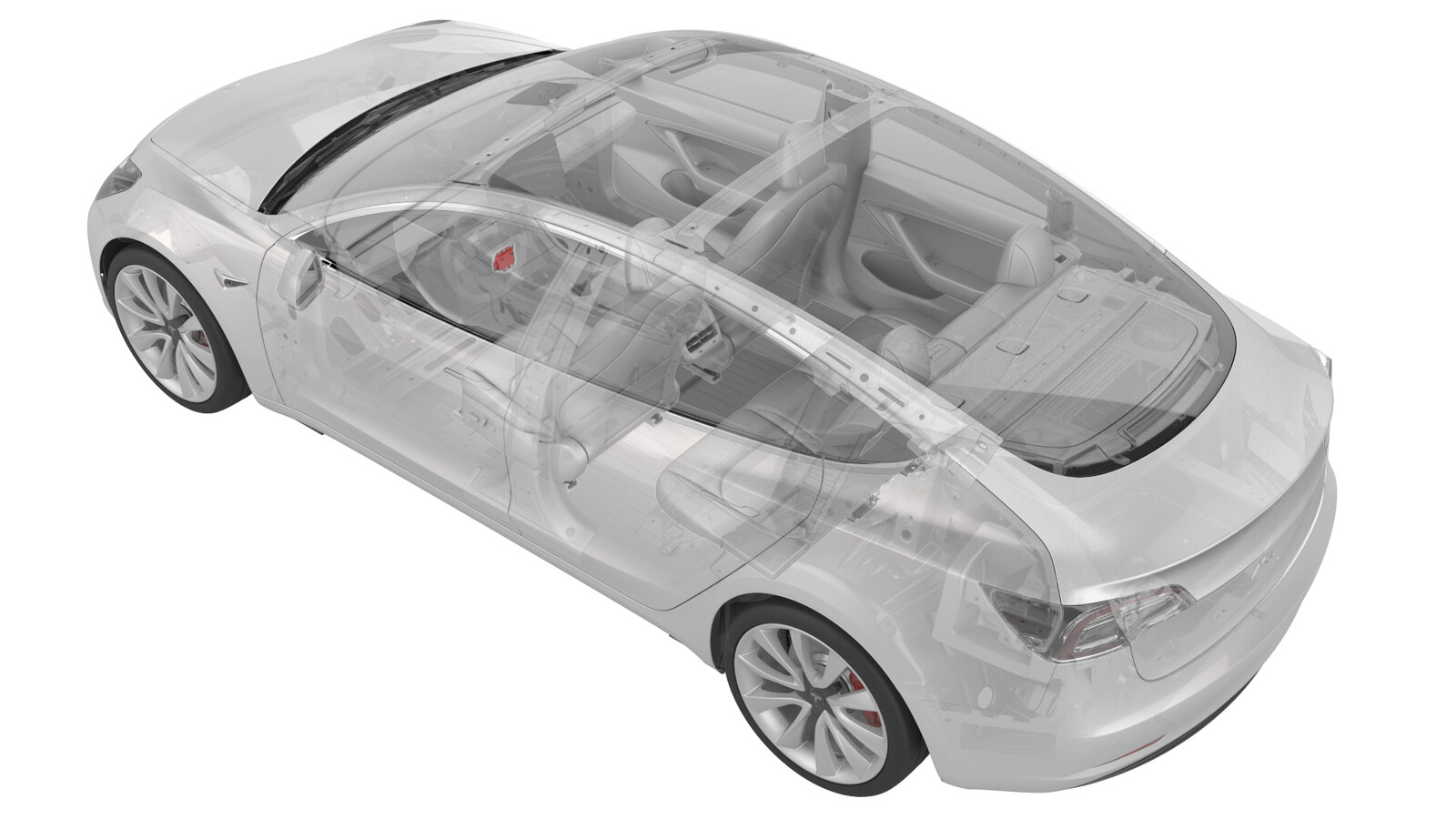

USB Hub - Center Console - Front (Remove and Replace)

校正代码 21260402 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

拆卸

  1. Remove the center console. See Center Console (Remove and Install).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove the center console assembly from the vehicle; maneuver the assembly away from the instrument panel to access the USB hub.

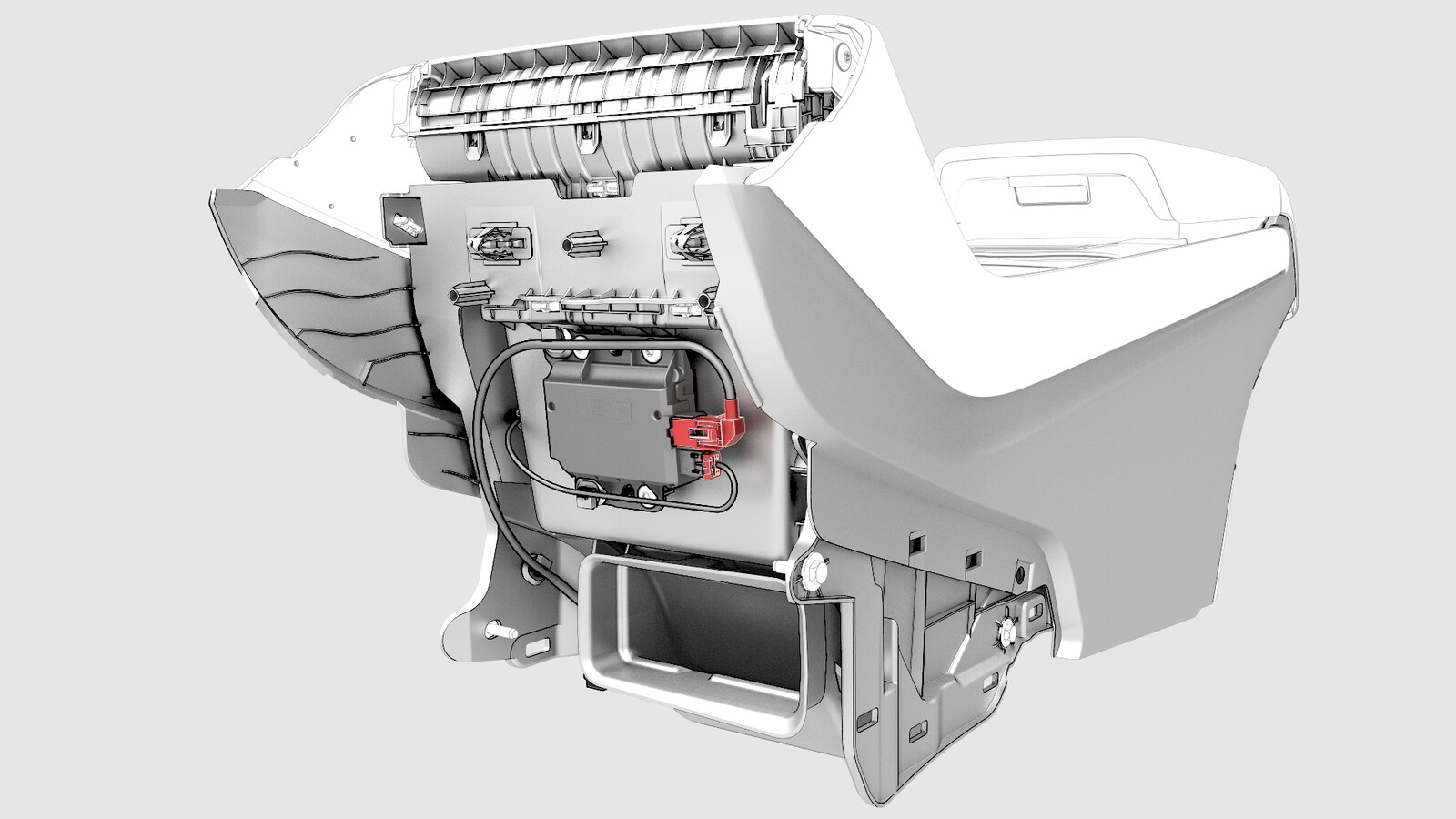

  2. Disconnect the electrical wiring harness connector from the USB hub.
  3. Release the clips that attach the electrical harness to the USB hub.

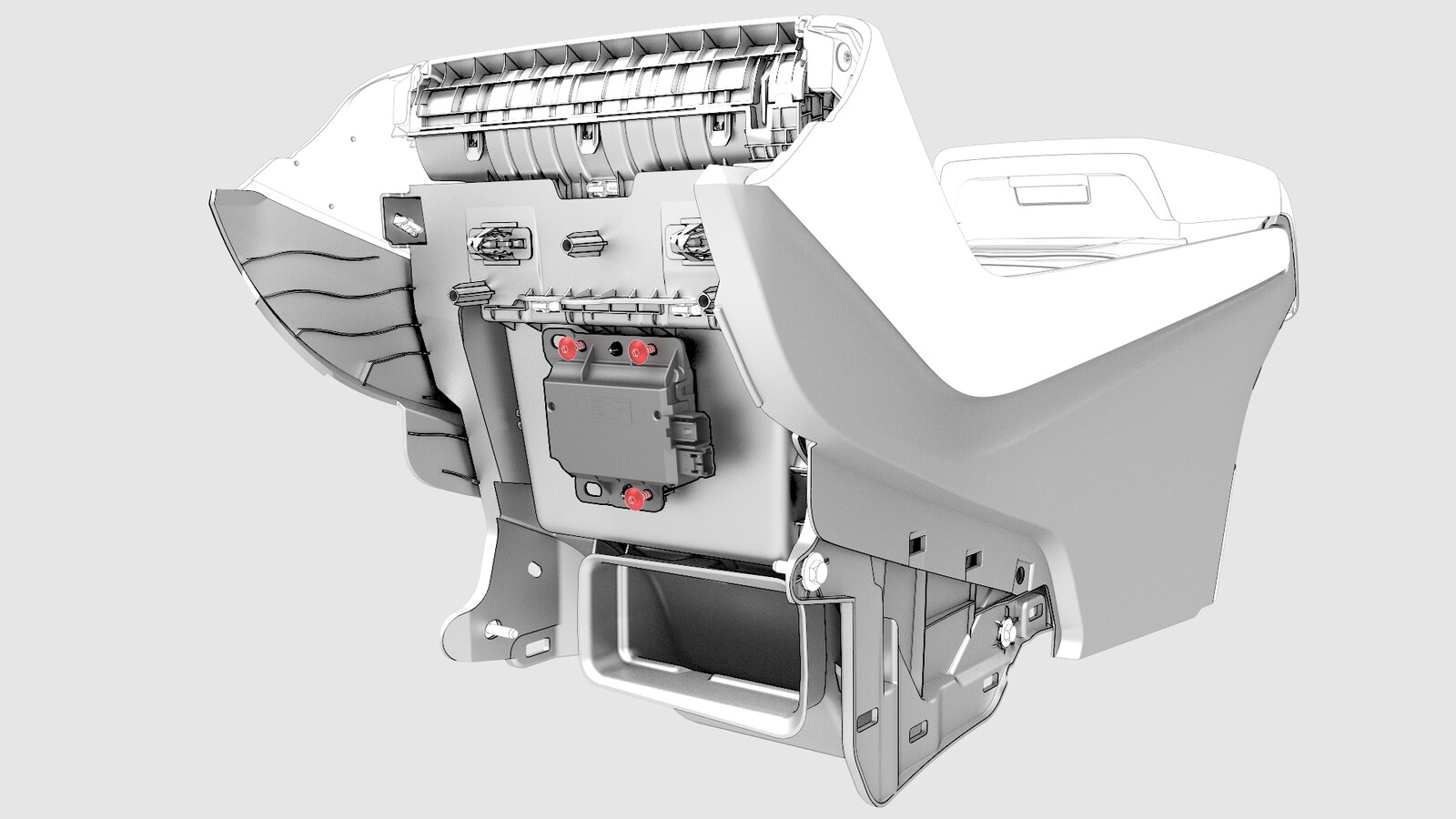

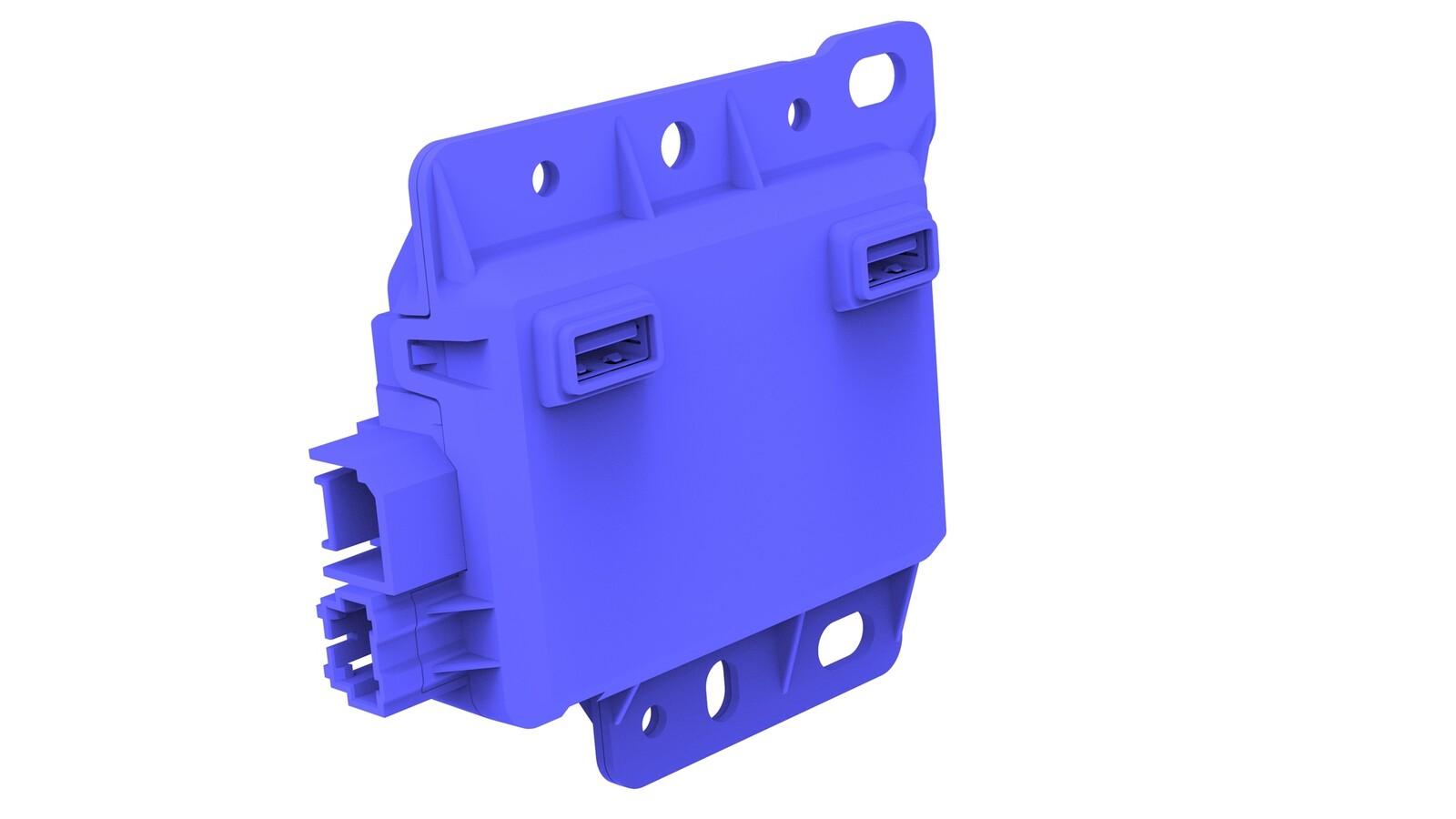

  4. Remove the bolts that attach the USB hub to the center console, and then remove the USB hub from the center console.
    1.1 Nm (.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 梅花 T20 套筒

安装

安装程序与拆卸程序相反。
