Sensor - Level - Windshield Washer (Remove and Replace)

校正代码 17501902 0.66 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

表 1. 扭矩规格: Sensor - Level - Windshield Washer (Remove and Replace)
描述 扭矩值 推荐工具 重复使用/更换 备注
Lower bolt that attaches the windshield washer reservoir to the body
3 Nm (2.2 lbs-ft)
  • 回旋头棘轮/回旋头扭矩扳手
  • 10mm Flex Head combination wrench
  • 10 毫米套筒
  • Flashlight LED
  • 棘轮/扭矩扳手
  • 2 英寸加长件
重复使用
Upper bolt that attaches the windshield washer reservoir to the body
3 Nm (2.2 lbs-ft)
  • 棘轮/扭矩扳手
  • 2 英寸加长件
  • 10 毫米套筒
重复使用

拆卸

  1. 打开左前车门,降下左前车窗。
  2. 将方向盘向左打尽。
  3. 拆卸前备箱储物单元。请参阅Underhood Storage Unit (Remove and Replace)
  4. 拆下左右雨刮器臂。请参阅Wiper Arms (Remove and Replace)
  5. 拆下前围篦板。请参阅Panel - Cowl Screen (Remove and Replace)
  6. 拆卸雨刮器电机。请参阅Wiper Module (Remove and Replace)

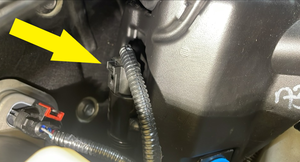

  7. 松开将电气线束固定到挡风玻璃清洗器储液罐的夹子。

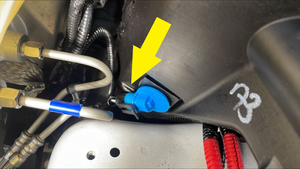

  8. 将左前车轮内衬向后旋转,然后拆下将挡风玻璃清洗器储液罐固定到车身的下部螺栓。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 回旋头棘轮/回旋头扭矩扳手
    • 10mm Flex Head combination wrench
    • 10 毫米套筒
    • Flashlight LED
    • 棘轮/扭矩扳手
    • 2 英寸加长件
  9. 拆卸将挡风玻璃清洗器储液罐固定到车身的上部螺栓。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 棘轮/扭矩扳手
    • 2 英寸加长件
    • 10 毫米套筒
  10. 松开挡风玻璃清洗器液位传感器连接器。
  11. 松开清洗器泵连接器。
  12. 将挡风玻璃清洗器储液罐从车辆上拆下,然后回注临时排出的清洗液。

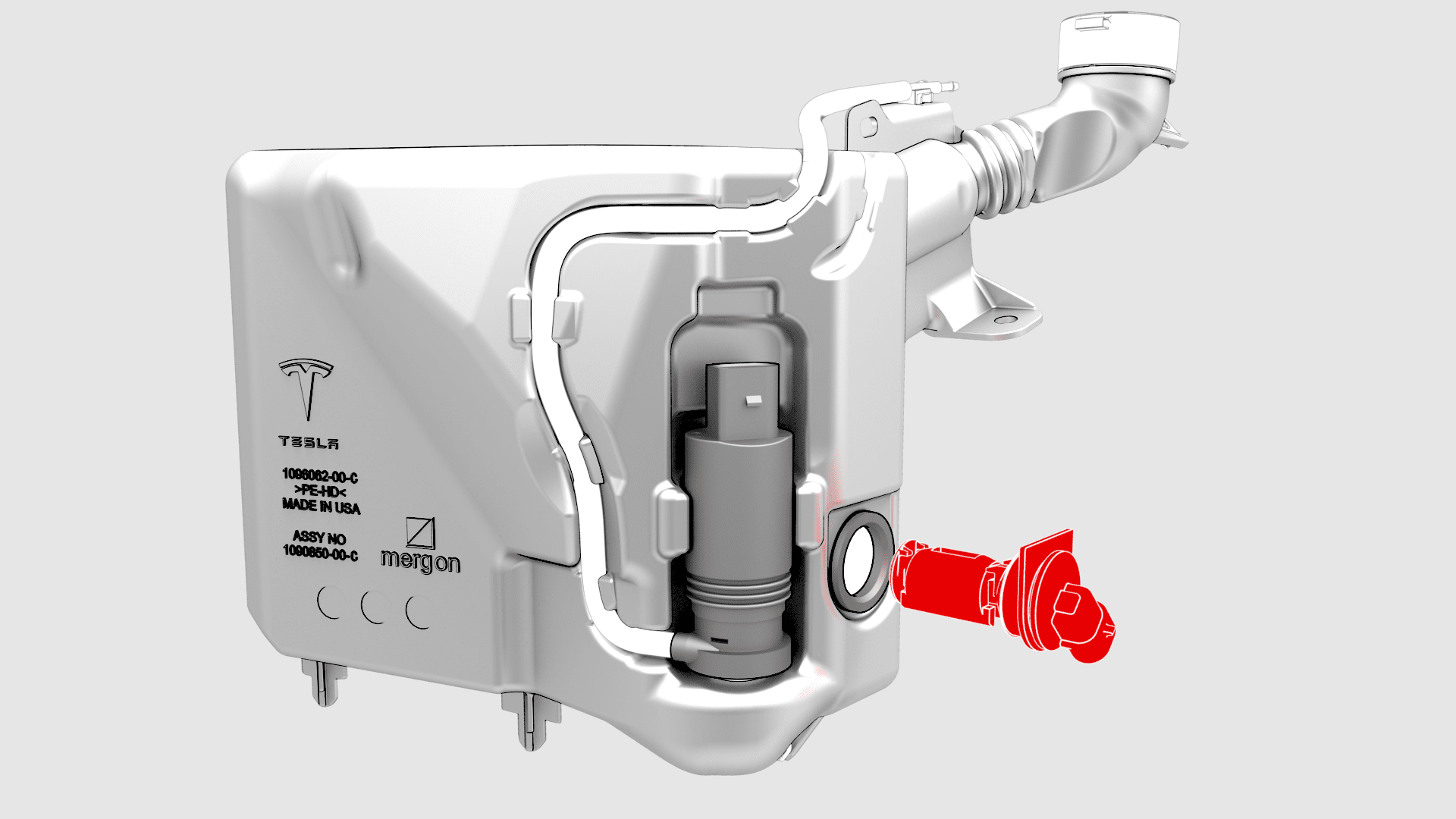

  13. 使用塑料饰板工具拆下储液罐侧面索环上的液位传感器。

安装

  1. 将液位传感器安装到储液罐侧面的索环上。
    Informational PurposesAn informational icon, calling your attention
    先将索环紧固到储液罐上,然后安装液位传感器。确保传感器平整边缘立起,并与储液罐齐平。必要时,可使用 P-80 乳液密封润滑剂。确认传感器完全且正确就位。如果索环已损坏,使用新的将其更换。
  2. 连接清洗器液位传感器连接器。
  3. 连接清洗器泵连接器。
  4. 安装将挡风玻璃清洗器储液罐固定到车身的上部螺栓。
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 棘轮/扭矩扳手
    • 2 英寸加长件
    • 10 毫米套筒
  5. 将左前车轮内衬向后旋转,然后安装将挡风玻璃清洗器储液罐固定到车身的下部螺栓。
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 回旋头棘轮/回旋头扭矩扳手
    • 10mm Flex Head combination wrench
    • 10 毫米套筒
    • Flashlight LED
    • 棘轮/扭矩扳手
    • 2 英寸加长件
  6. 向挡风玻璃清洗器储液罐中加注清洗液。
  7. 紧固将电气线束固定到挡风玻璃清洗器储液罐的夹子。
  8. 安装雨刮器电机。请参阅Wiper Module (Remove and Replace)
  9. 安装前围篦板。请参阅Panel - Cowl Screen (Remove and Replace)
  10. 安装左右雨刮器臂。请参阅Wiper Arms (Remove and Replace)
  11. 安装前备箱储物单元。请参阅Underhood Storage Unit (Remove and Replace)
  12. 将方向盘回正。
  13. 升起左前车窗,关闭左前车门。
