跳线线束 - 挡风玻璃(改装)

校正代码 17105316 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

设备:
  • 1782284-00-A ASY, HARN, GCL WINDSHIELD, JUMPER, M3

改装

  1. 如果尚未执行其他维修操作,请断开挡风玻璃加热器连接器。

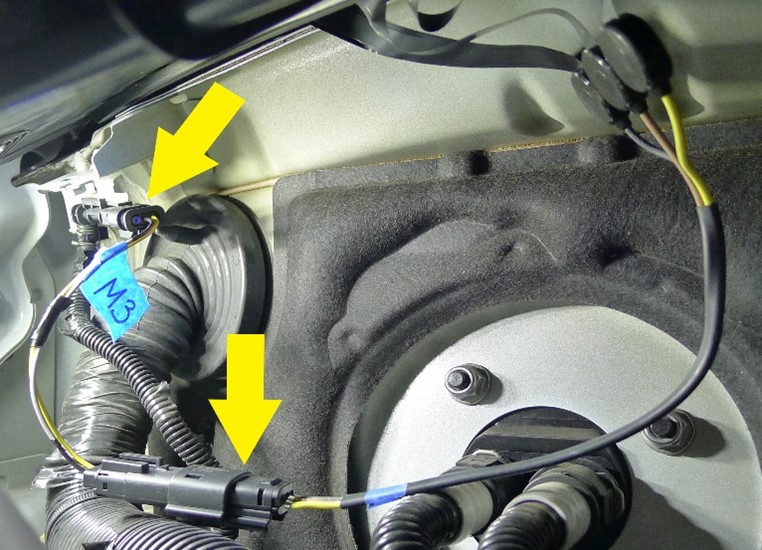

  2. 将挡风玻璃跳线线束连接到挡风玻璃加热器连接器和前部主线束连接器。

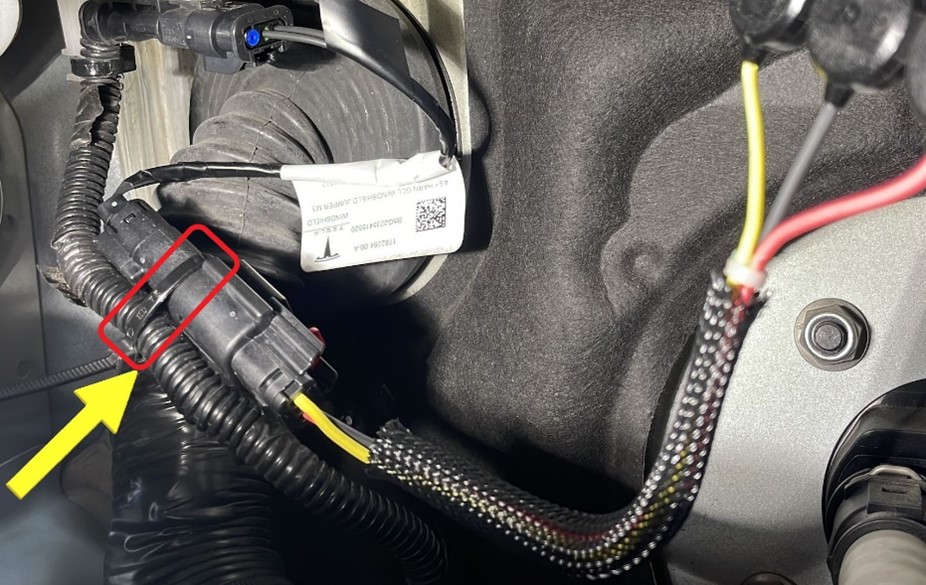

  3. 使用电缆扎带将挡风玻璃跳线线束连接器和挡风玻璃加热器连接器固定到前部主线束。切掉多余的电缆扎带。
  4. 如有必要,请返回执行此改装之前正在进行的维修程序。
