Rim - Steering Wheel (Remove and Replace)

校正代码 32051102 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2026-11-03: Updated the specification of the bolts (x4) that attach the bright surround to the steering wheel.
  • 2025-07-03: Removed the firmware reinstall step.

扭矩规格

Table 1. 扭矩规格: Rim - Steering Wheel (Remove and Replace)
描述 扭矩值 推荐工具 重复使用/更换 备注
Bolts (x4) that attach the bright surround to the steering wheel
2.5 Nm (1.8 lbs-ft)
  • Torx T25 bit
重复使用
Bolt that attaches the steering wheel to the steering column
80 Nm (59.0 lbs-ft)
  • 10 毫米套筒扳手
更换 1036655-00-A

拆卸

  1. Disconnect LV power. See 12V/低压电源（断开和连接）.
  2. Remove the driver airbag. See 气囊 - 驾驶位（拆卸和更换）.

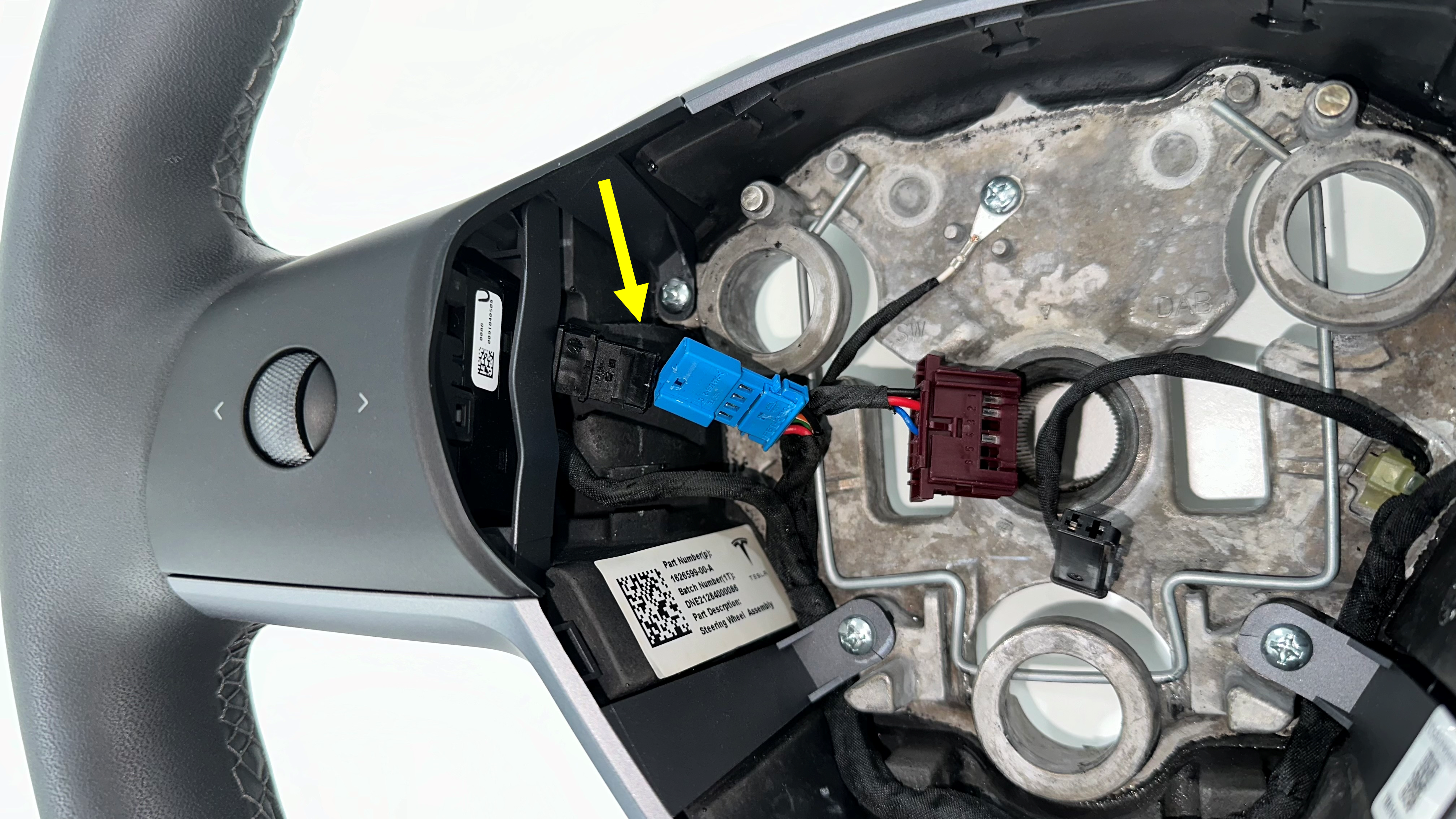

  3. Disconnect the steering wheel electrical wiring harness connector.

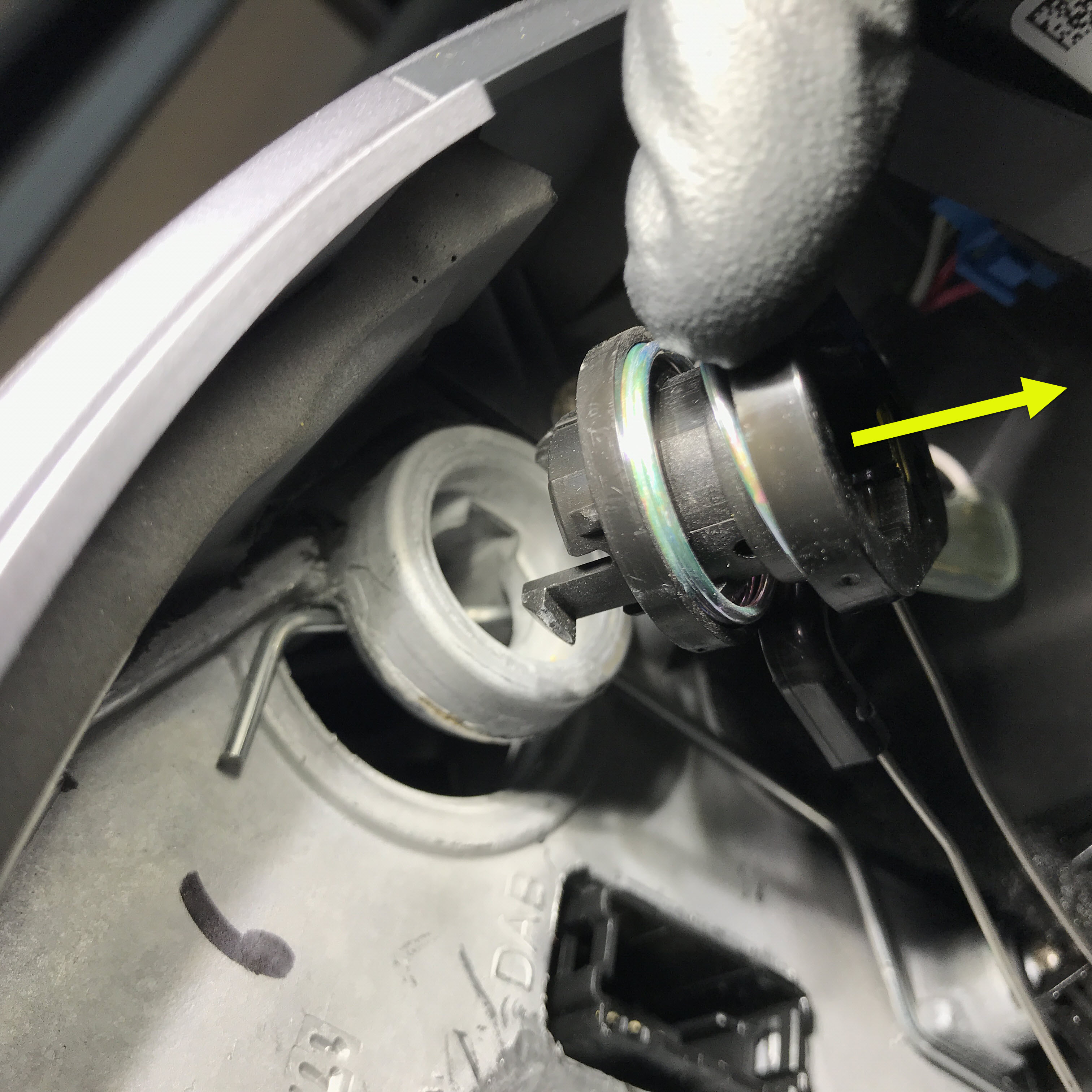

  4. Release the horn assembly to gain access to the lower connector.
    Note
    Pull the horn assembly straight out to release the clips (x3).

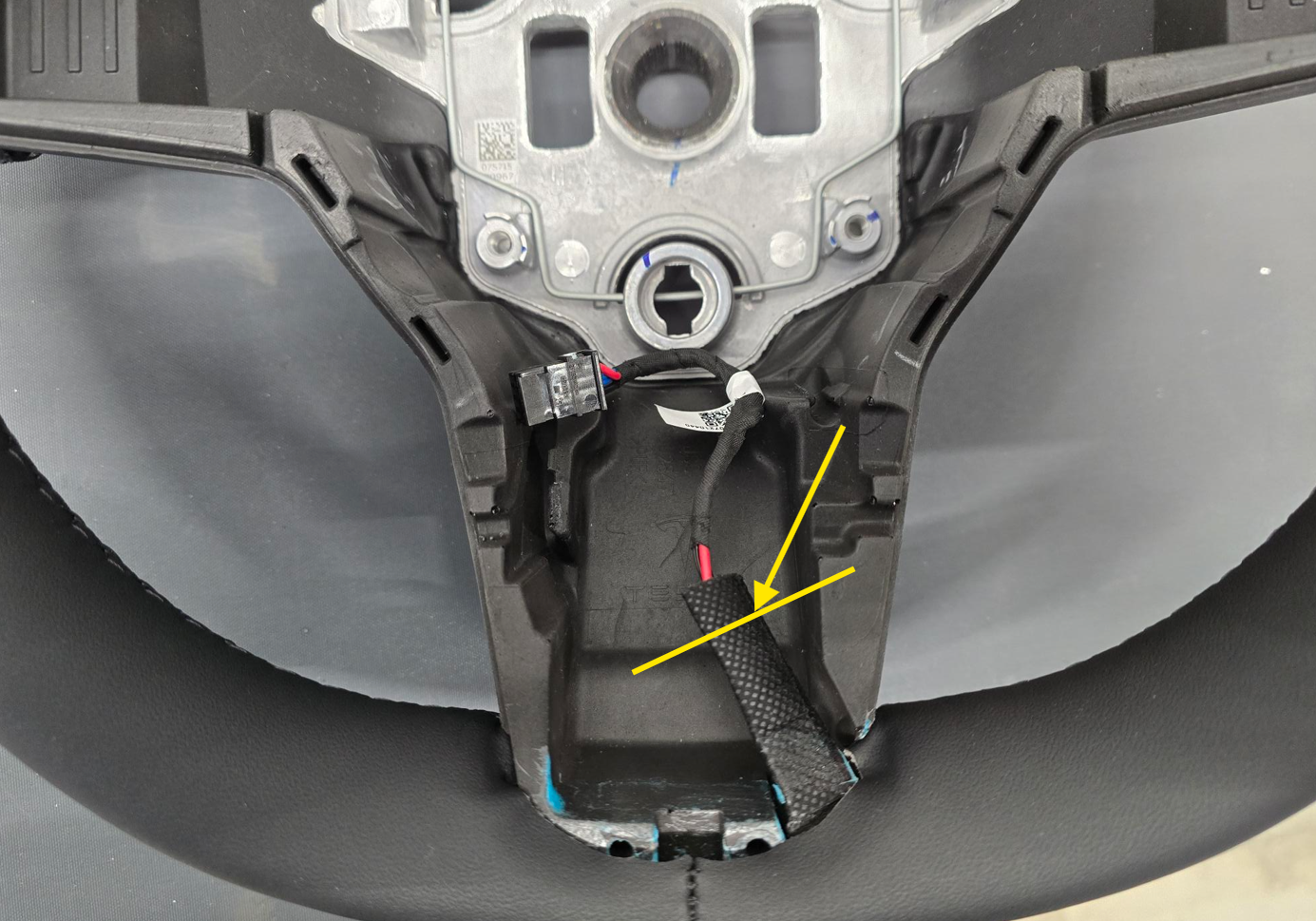

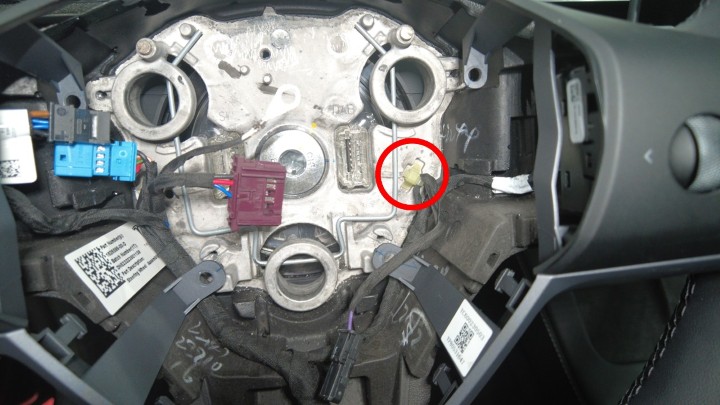

  5. Disconnect the steering wheel heating element connector.

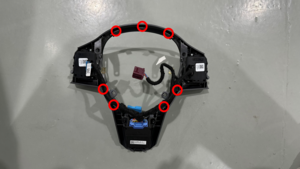

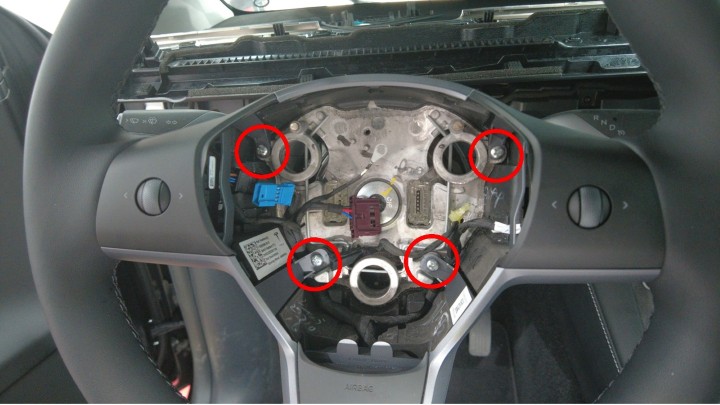

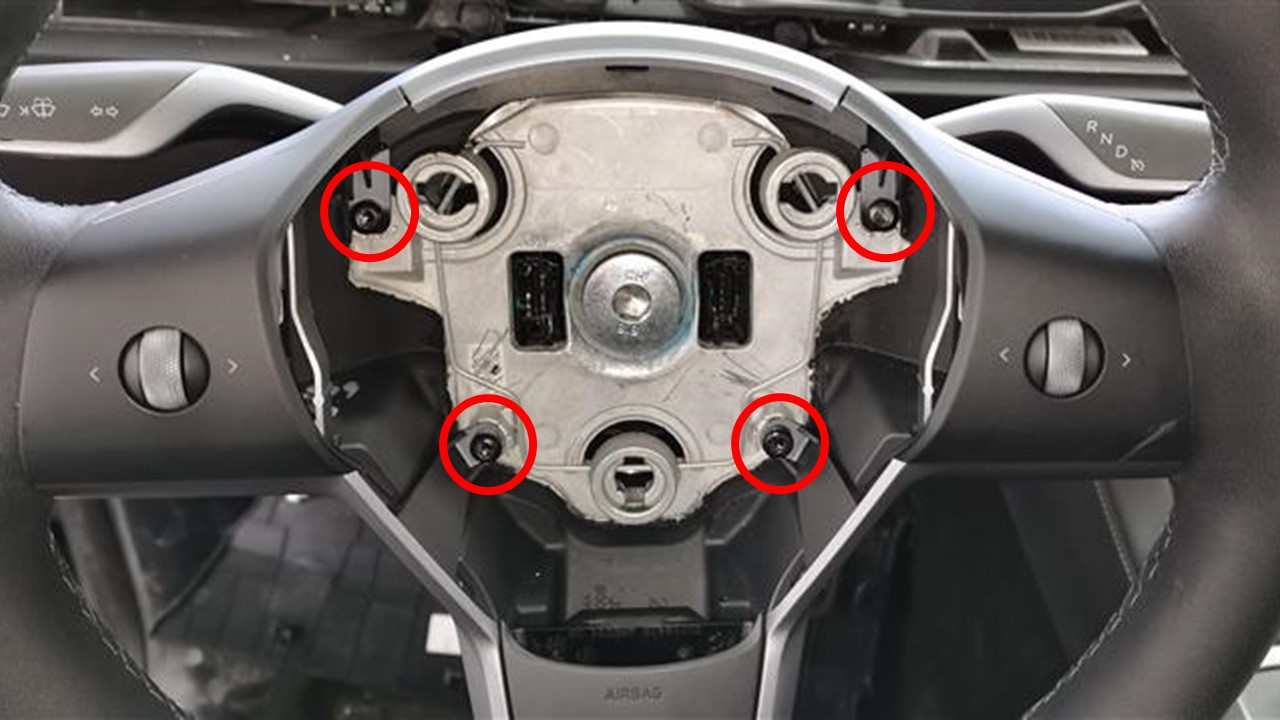

  6. Remove the bolts (x4) that attach the bright surround to the steering wheel, and then release the bright surround and switches assembly from the steering wheel.
    Note
    Pry the lower portion of the bright surround assembly away from the steering wheel, and then work your way around.
    Tip
    Use of the following tool(s) is recommended:
    • Torx T25 bit

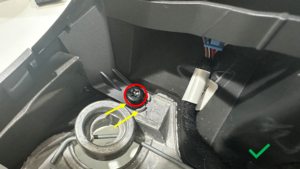

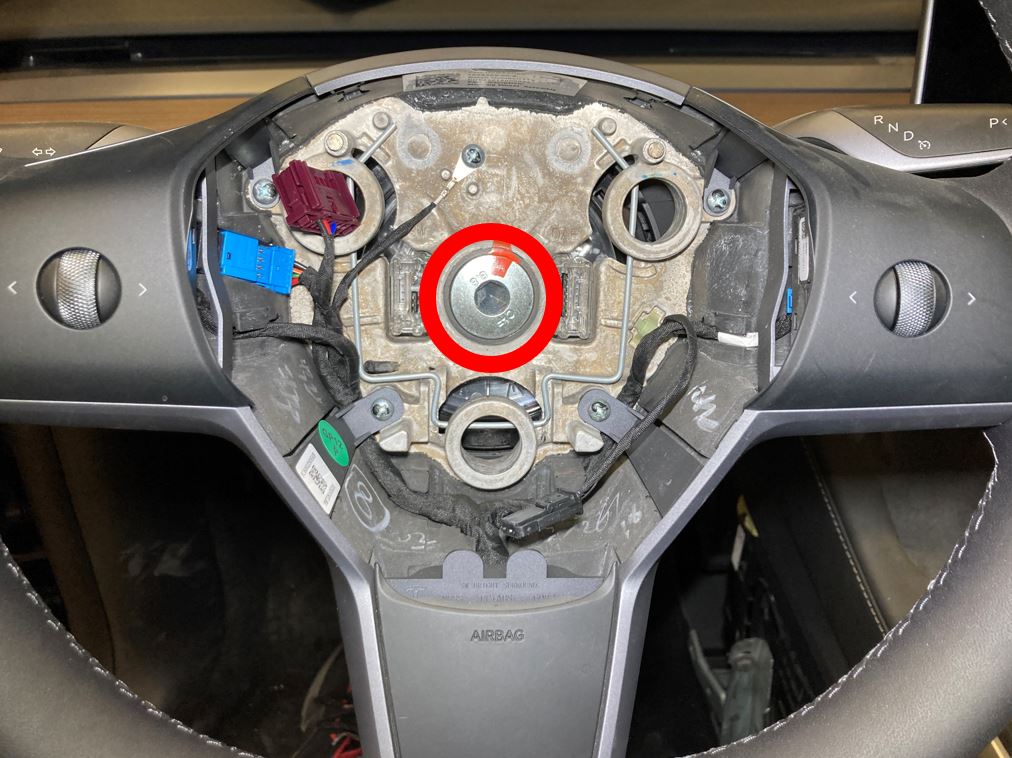

  7. Remove and discard the bolt that attaches the steering wheel to the steering column.
    Tip
    推荐使用以下工具
    • 10 毫米套筒扳手

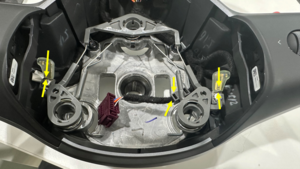

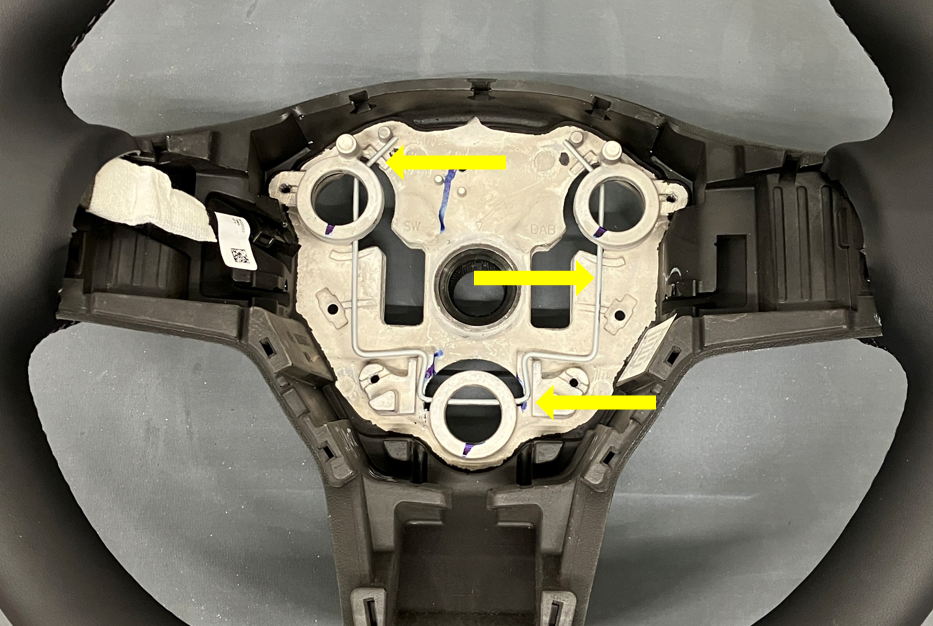

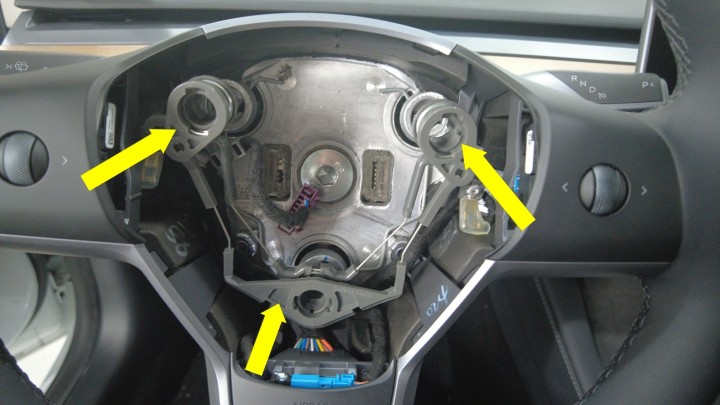

  8. If the new steering wheel rim comes without an airbag retention wire: Squeeze the wire towards the middle and remove the airbag retention wire upwards for reuse.

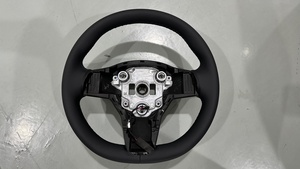

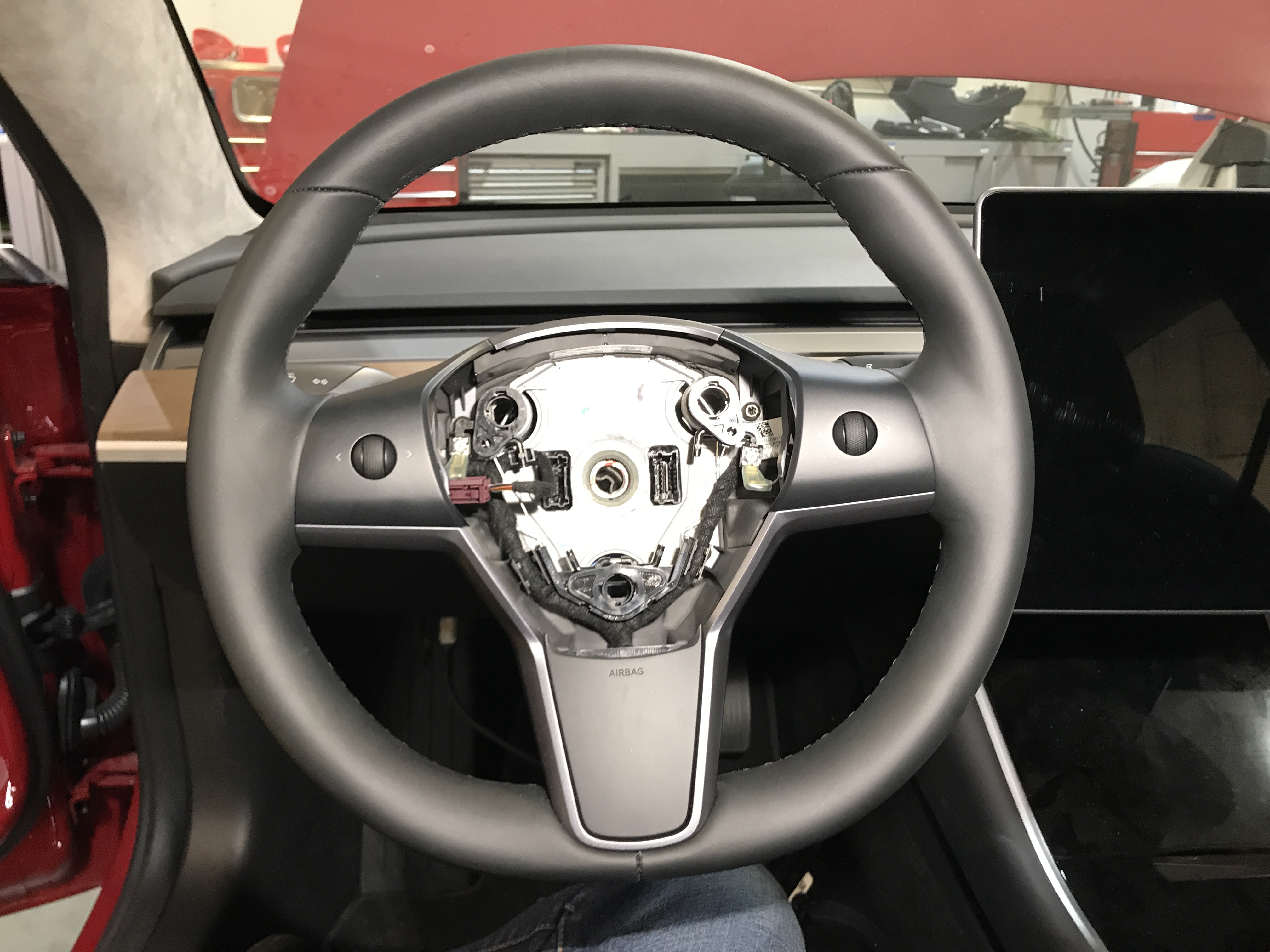

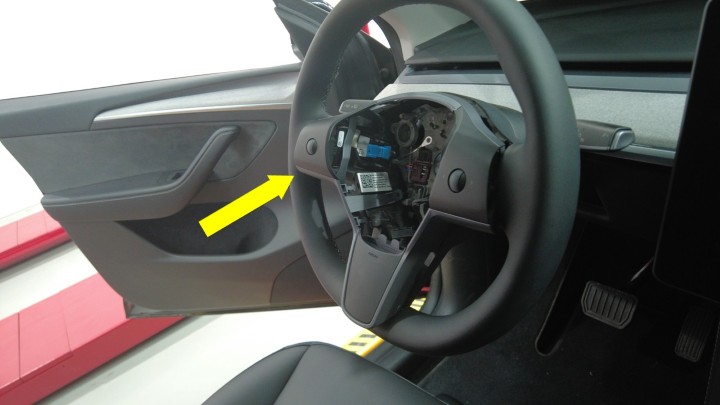

  9. Remove the steering wheel from the steering column.

安装

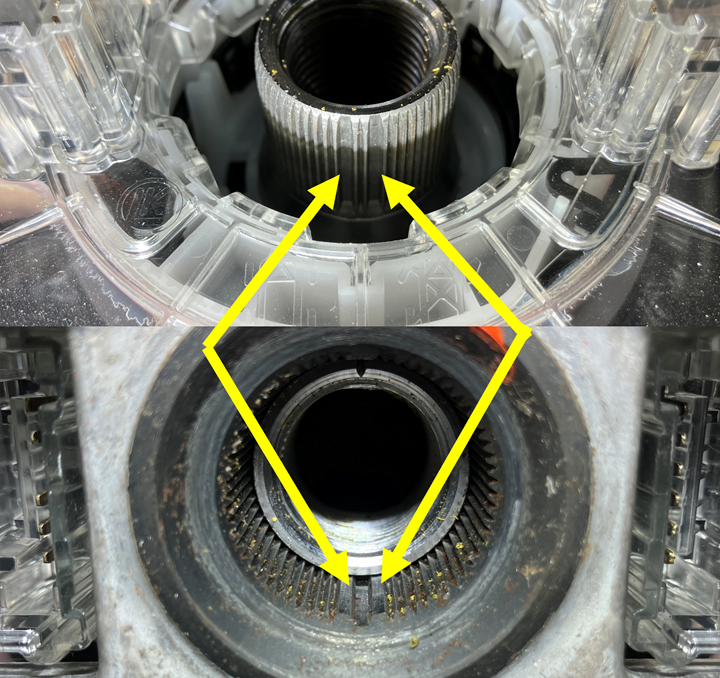

  1. Align the keyed parts of steering wheel and column.
  2. Install a new bolt that attaches the steering wheel to the steering column.
    80 Nm (59.0 lbs-ft)
    Tip
    推荐使用以下工具
    • 10 毫米套筒扳手
  3. If the new steering wheel rim comes without an airbag retention wire, install the wire removed from the old rim to the new rim.
  4. Install the bolts (x4) that attach the bright surround to the steering wheel.
    2.5 Nm (1.8 lbs-ft)
    Tip
    推荐使用以下工具
    • Torx T25 bit
  5. Connect the steering wheel heating element connector.

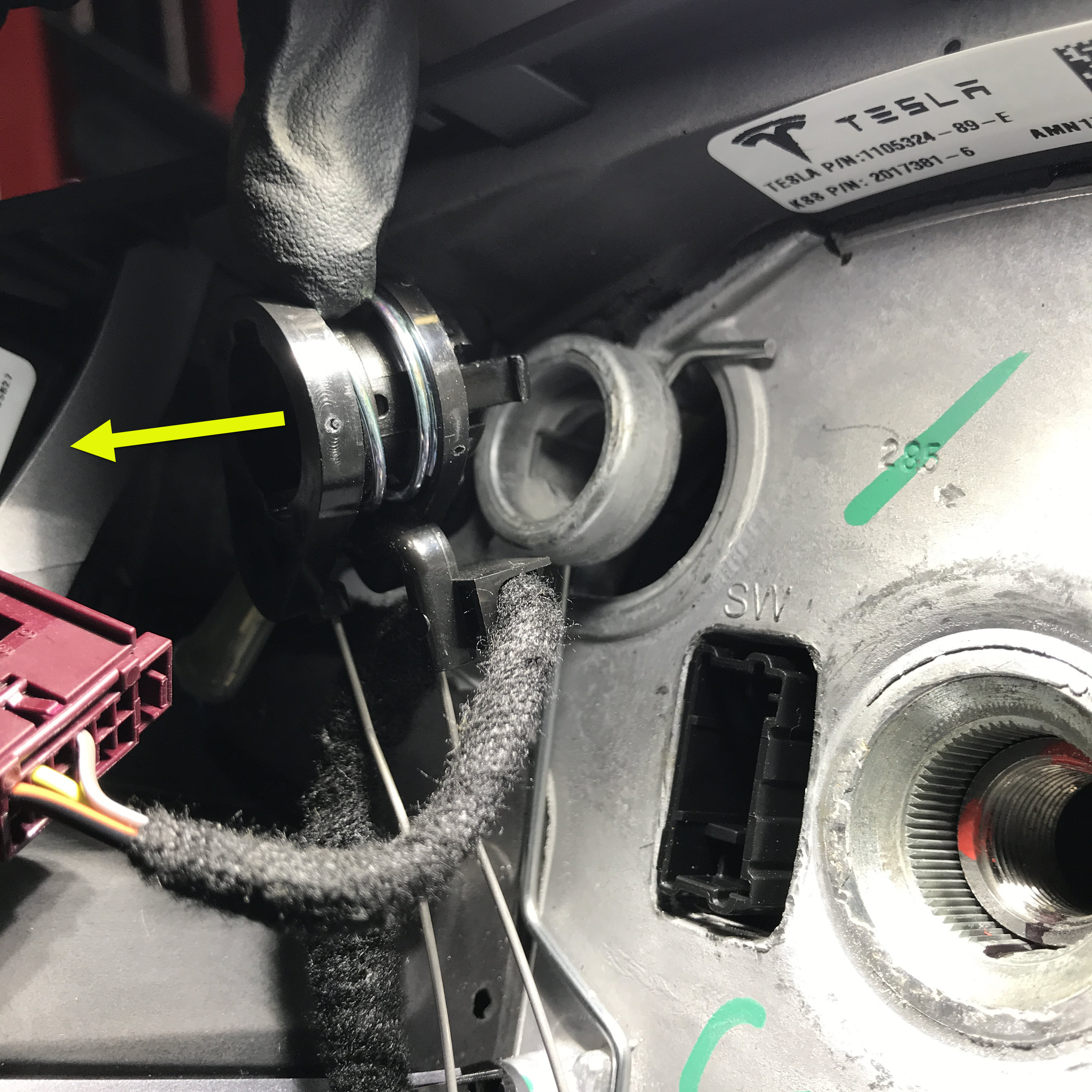

  6. Install the horn assembly.
  7. Connect the steering wheel electrical wiring harness connector.
  8. Install the driver airbag. See 气囊 - 驾驶位（拆卸和更换）.
  9. Connect LV power. See 12V/低压电源（断开和连接）.
