连杆 - 平衡杆 - 前 - 左侧(拆卸和更换)
校正代码
31012002 0.18
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下左侧前轮毂。请参阅轮毂(拆卸和安装)。
-

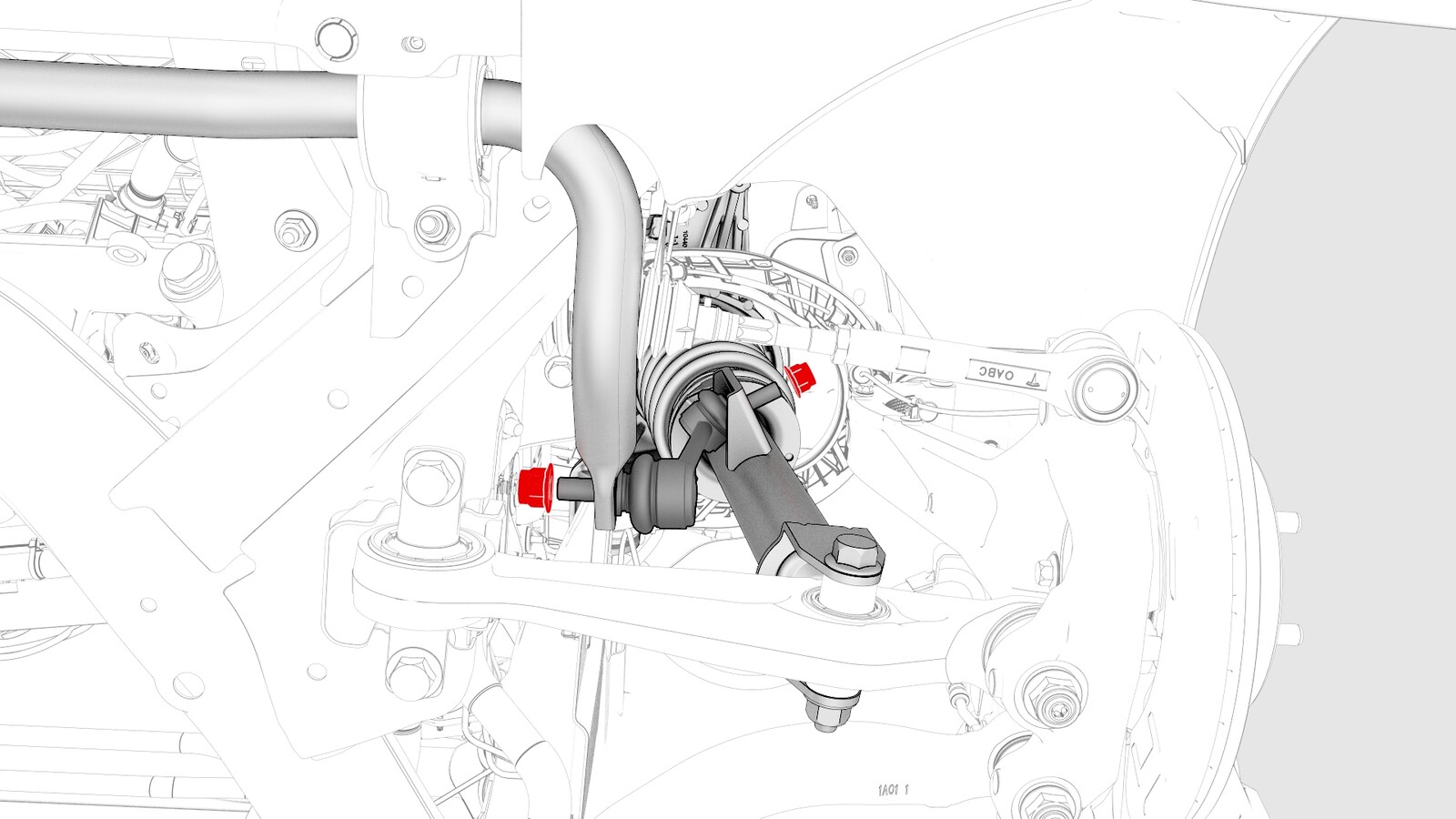

拆下并弃用将左侧前平衡杆连杆固定到平衡杆和减震器的螺母,然后从车上拆下连杆。
98 Nm (72.3 lbs-ft)
安装
安装程序与拆卸程序相反,以下各项除外:

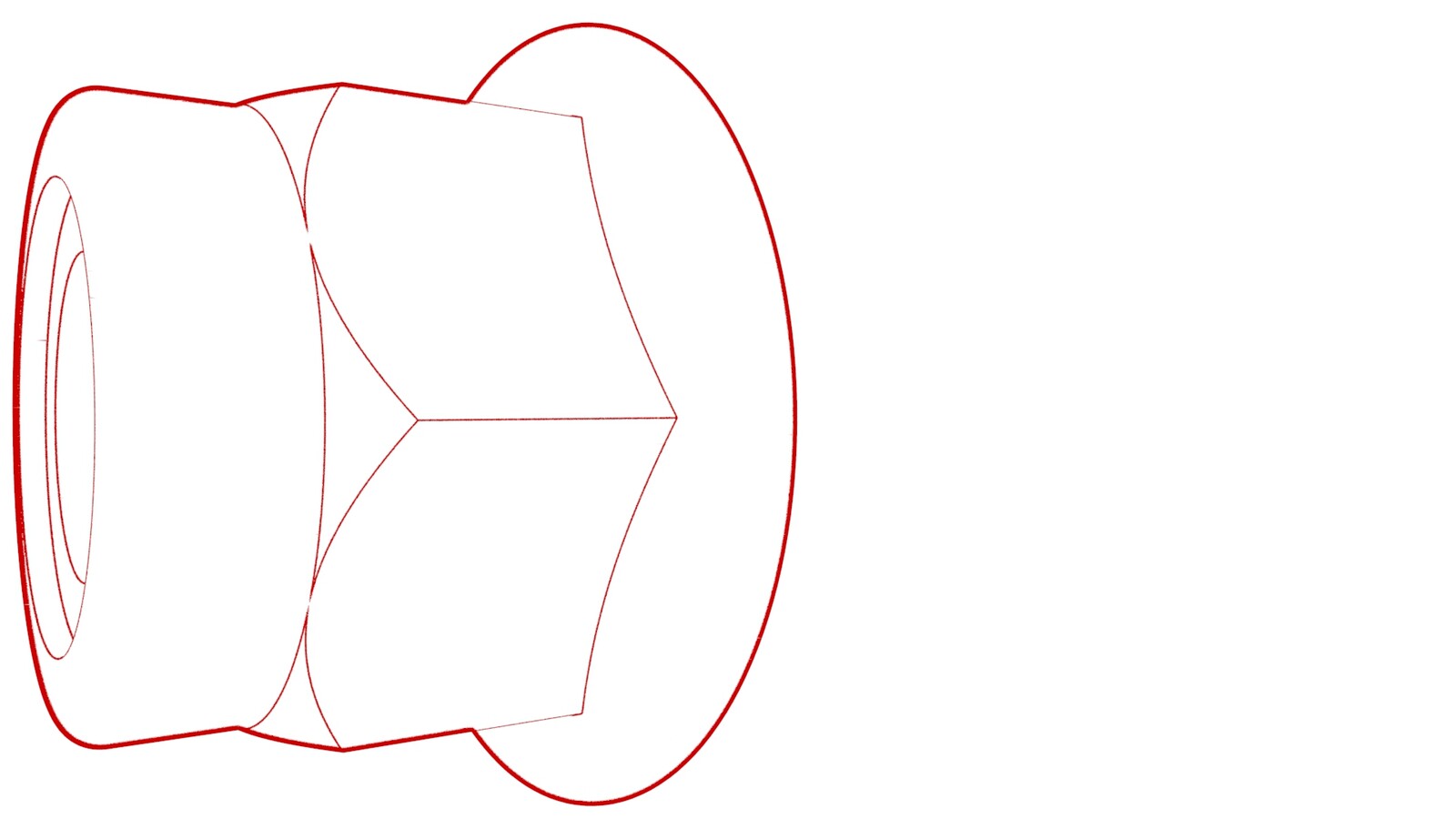

Replace all nyloc nuts.
