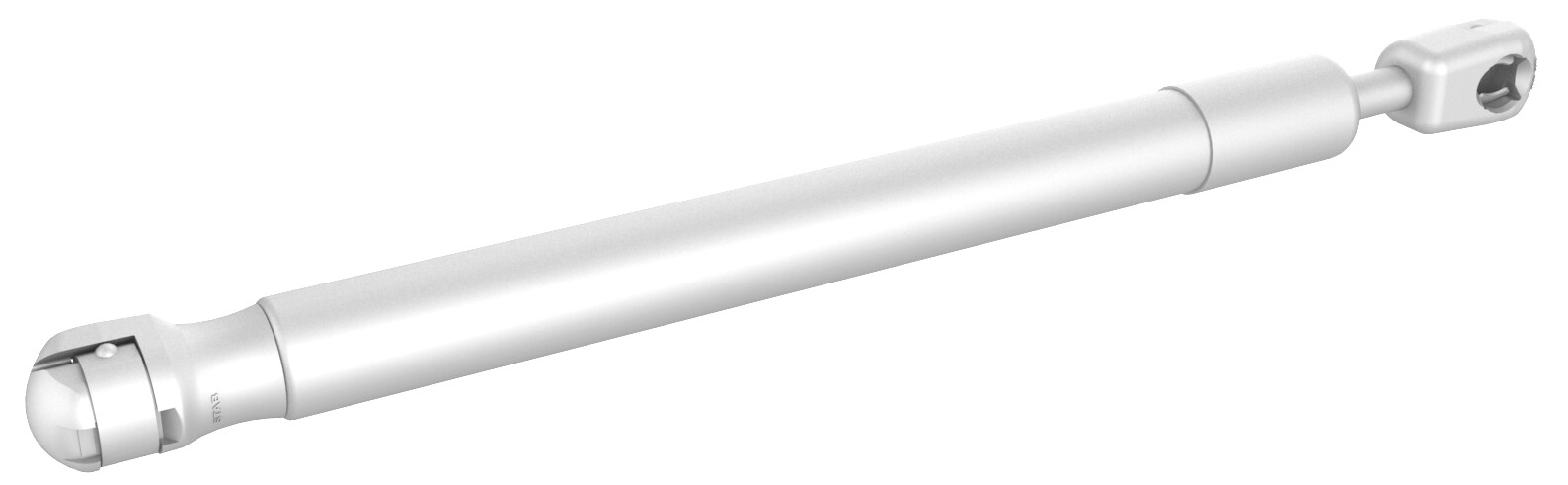

气动支撑杆 - 后备箱 - 左侧(拆卸和更换)
校正代码
11334002 0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 打开行李箱并用撑杆对其进行支撑。
-
松开将后备箱 LH 气压支撑杆的下端固定到车辆铰链的夹子。
-
松开将行李箱 LH 气压支撑杆固定到后备箱顶盖铰链的夹子,然后从车上拆下气压支撑杆。
安装
安装程序与拆卸程序相反,以下各项除外:
- 润滑行李箱 LH 气压支撑杆的两处枢轴点。
