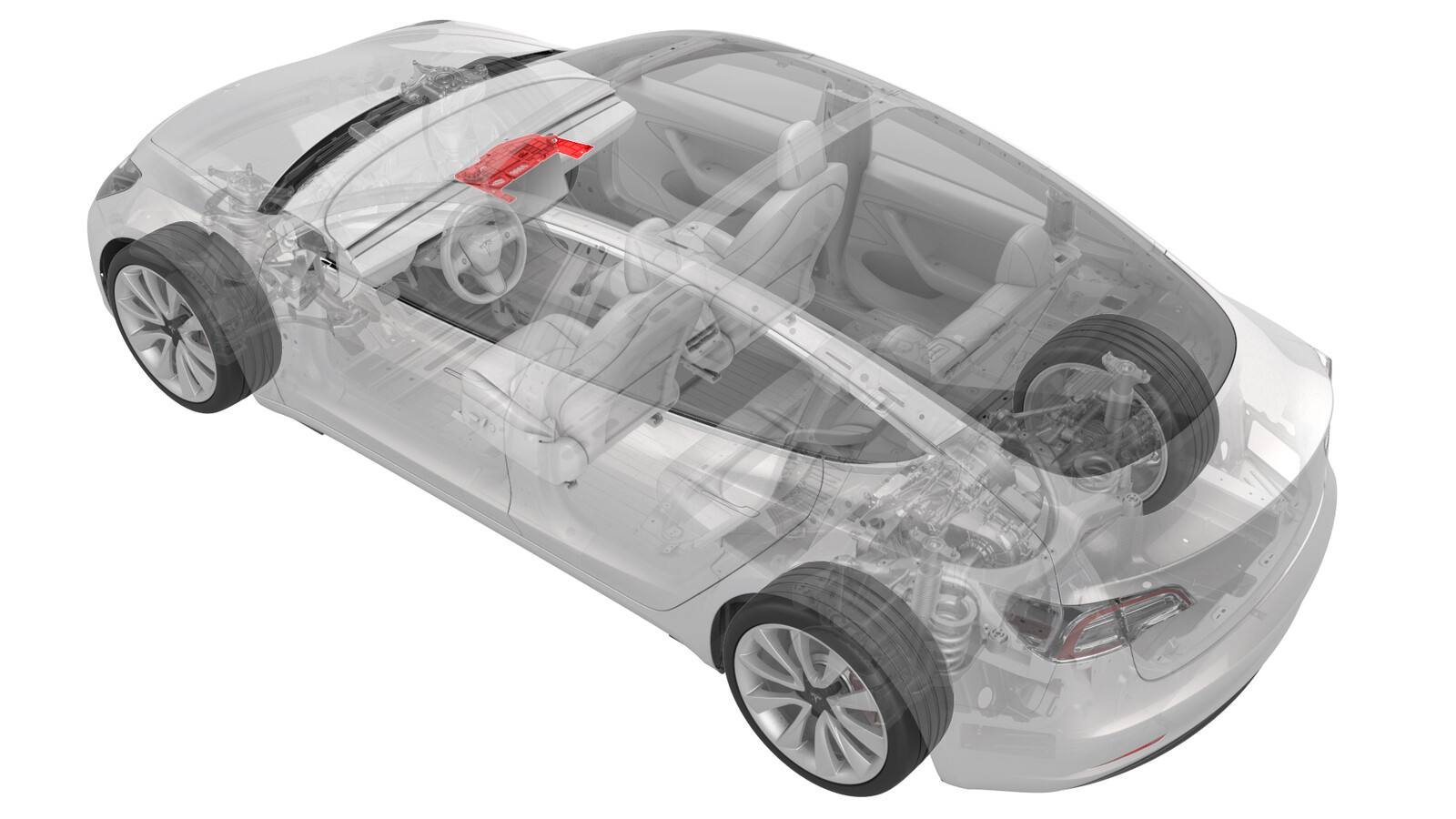

罩 - 脚部空间 - 副驾位 (LHD)(拆卸和更换)

校正代码 14055402 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2024 年 1 月 3 日:添加了关于断开电气线束连接器的说明。
警告
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

拆卸

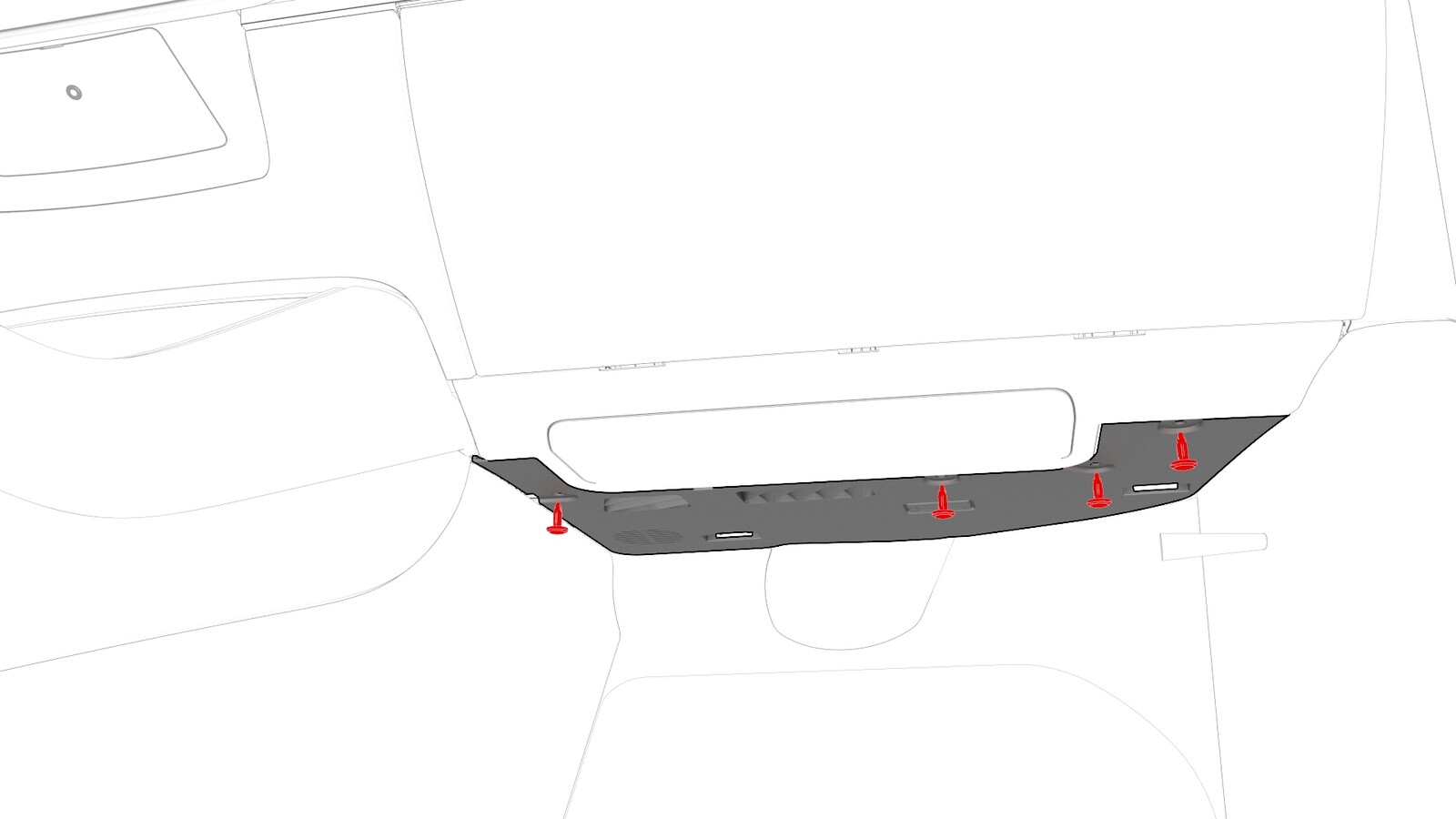

  1. 松开将副驾位脚部空间盖板固定到车辆的卡子。

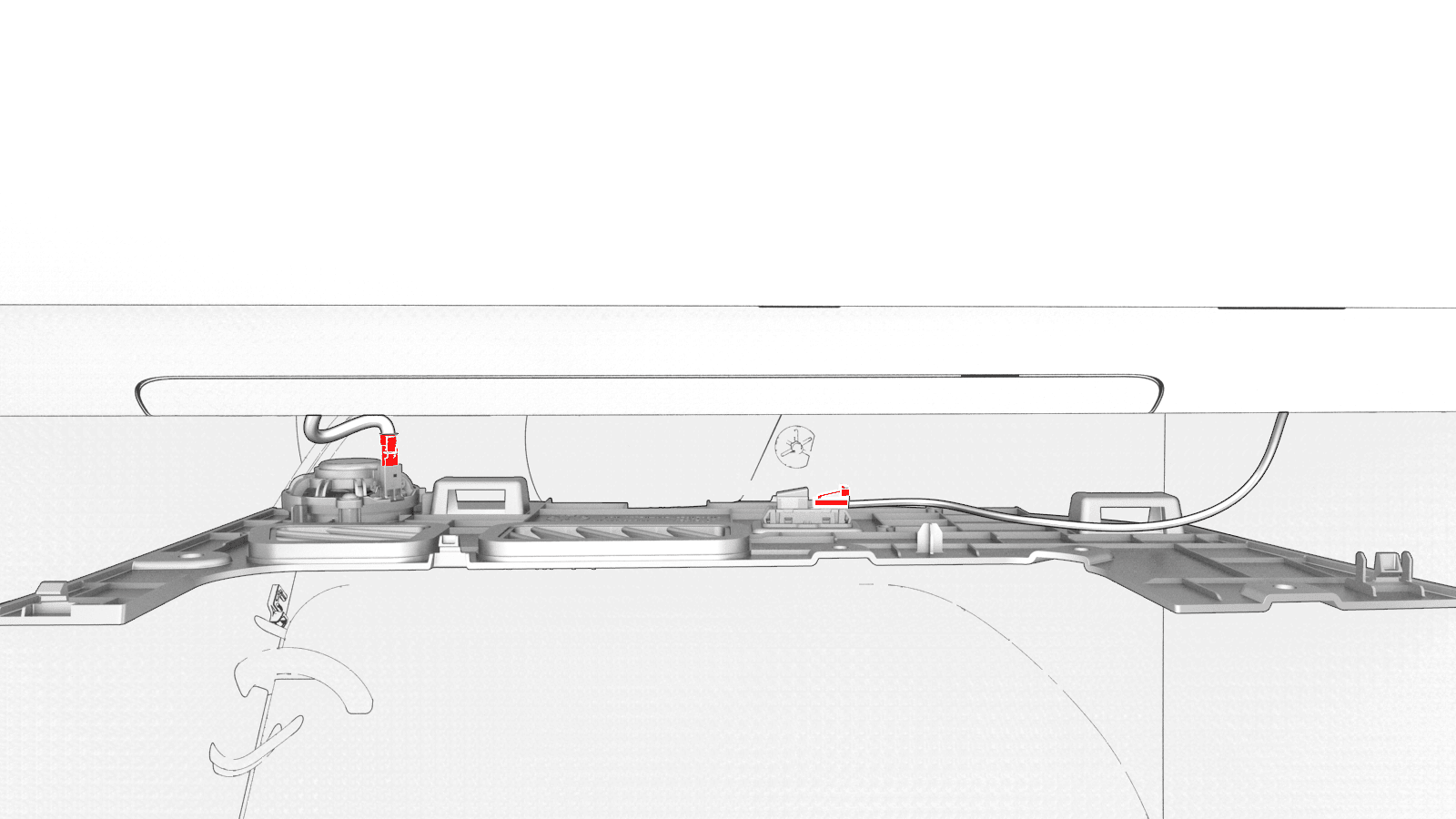

  2. 断开路面照明灯和应急扬声器上的电气线束连接器。
    警告
    断开连接器时请勿拉扯线束。
    注
    如有必要,可使用袖珍螺丝刀进行辅助。

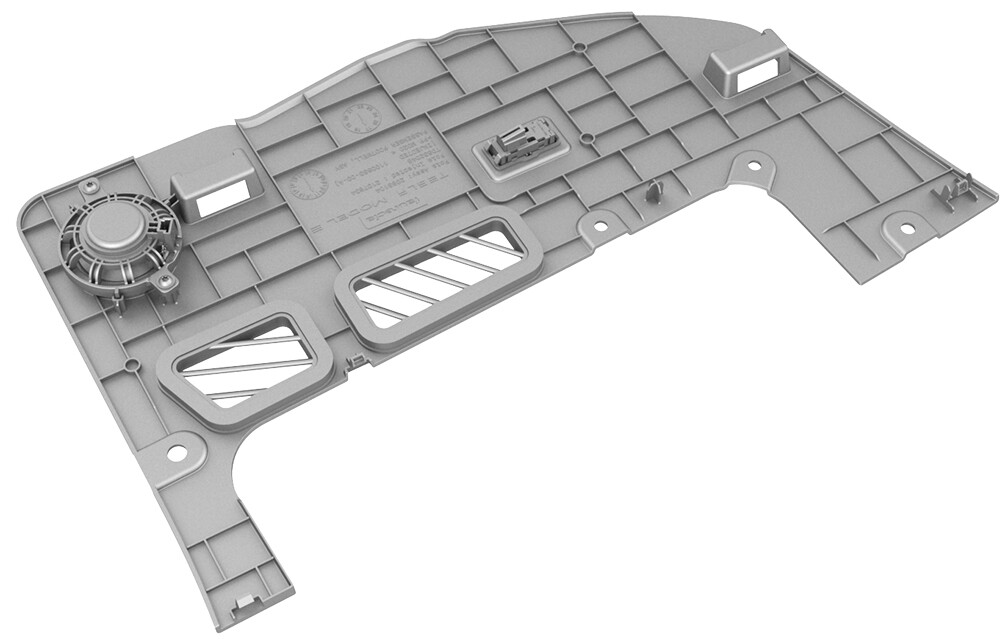

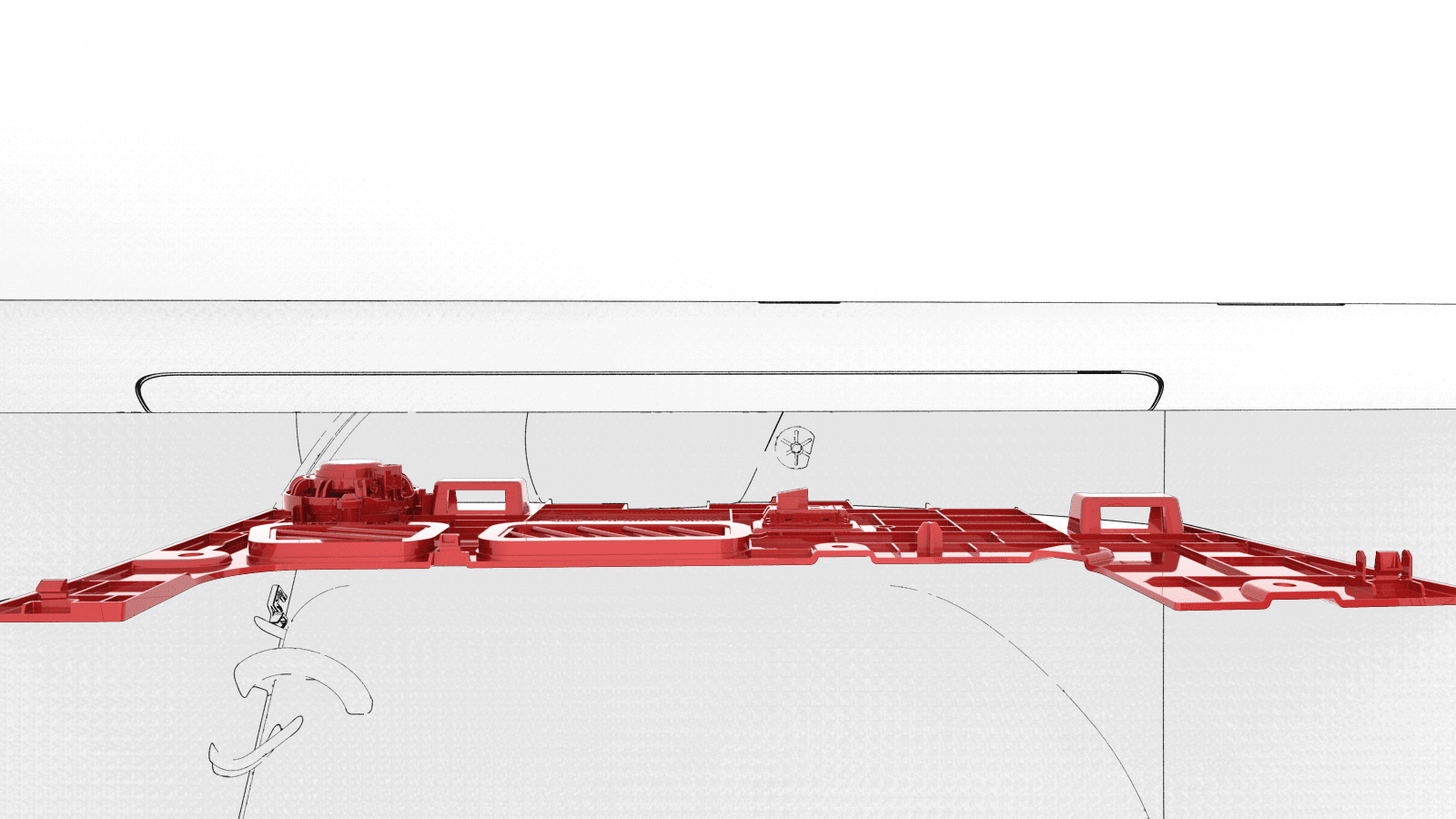

  3. 将脚部空间盖板从车辆上拆下。

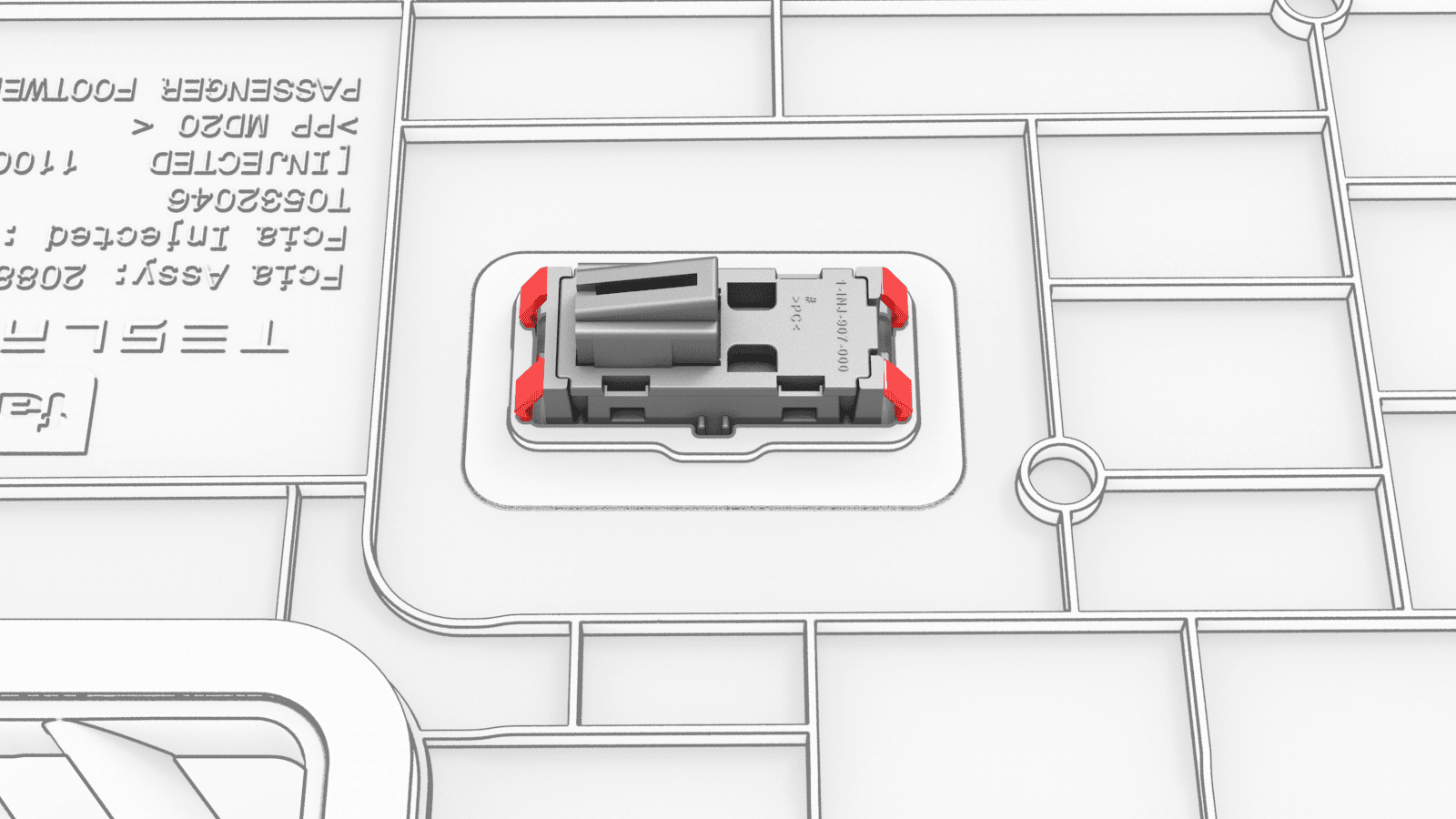

  4. 松开将路面照明灯固定到副驾位脚部空间盖板的卡子,然后将路面照明灯从脚部空间盖板上拆下。

安装

安装程序与拆卸程序相反。
