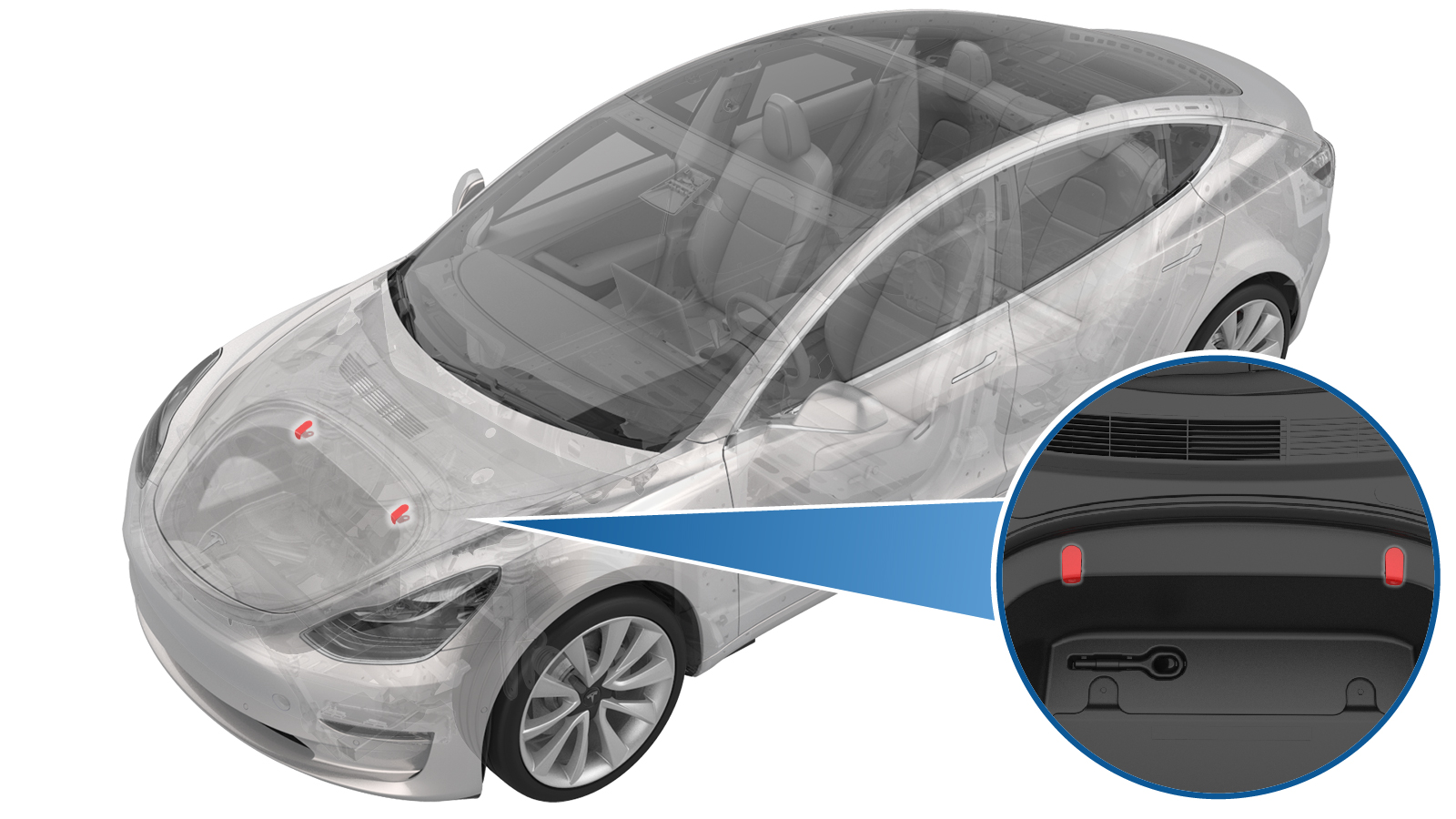

Bag Holder Hook - Underhood Storage Unit - LH (Remove and Replace)

校正代码 15241112 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

拆卸

  1. 打开左前车门，降下左前车窗。
  2. 打开前备箱盖。

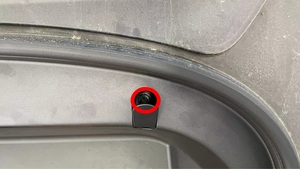

  3. 拆卸将左侧袋固定钩固定到前备箱总成的螺栓。
    Informational PurposesAn informational icon, calling your attention
    TIp
    按压左侧袋固定钩下部，以便接触螺栓。
    Informational PurposesAn informational icon, calling your attention
    注
    新款车可能未配备前备箱储物单元袋固定钩盖板。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 10 毫米套筒
    • 4 英寸加长件
    • 棘轮/扭矩扳手
  4. 将左侧袋固定钩从前备箱总成上拆下。

安装

  1. 安装将左侧袋固定钩固定到前备箱总成的螺栓。
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    注
    新款车可能未配备前备箱储物单元袋固定钩盖板。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具：
    • 10 毫米套筒
    • 4 英寸加长件
    • 棘轮/扭矩扳手
  2. 关闭前备箱盖。
  3. 升起左前车窗，关闭左前车门。
