2026-08-09

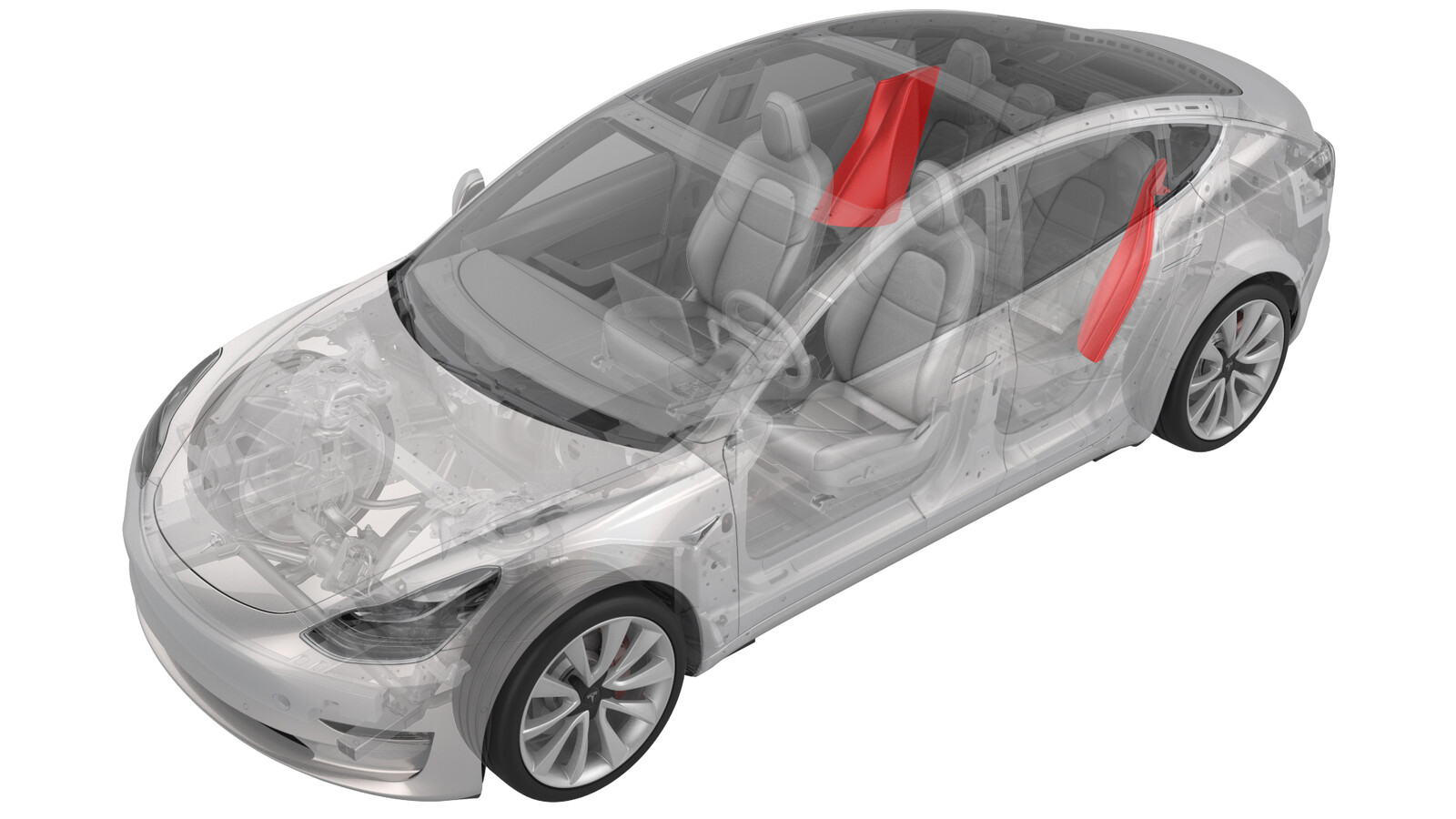

承梁 - 侧 - 座椅 - 第二排 - 左侧(拆卸和更换)
校正代码
13055102 0.12
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 折叠第二排 LH 座椅。
-

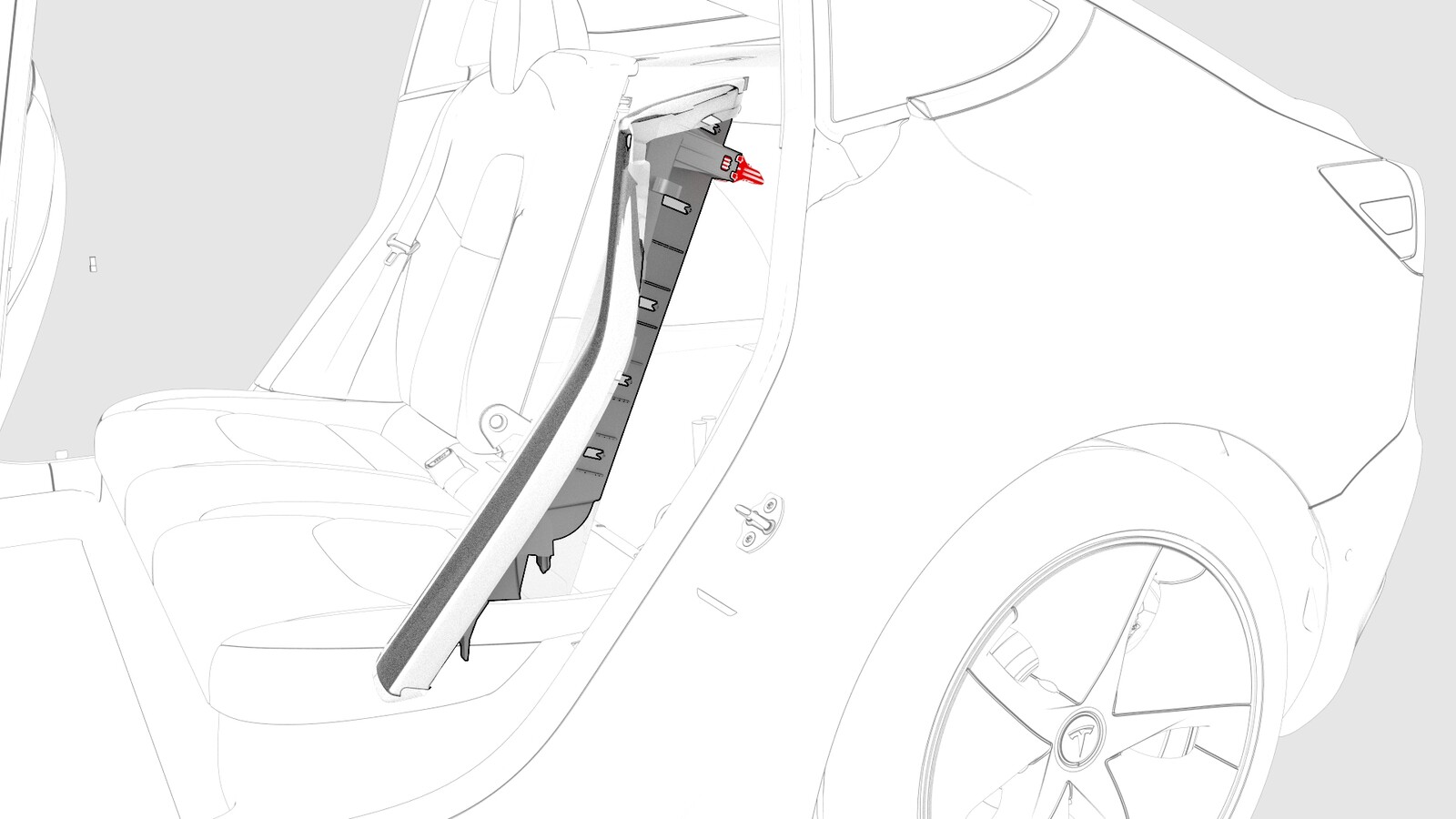

向内拉动第二排侧部承梁,然后向上移动承梁,将其从车上拆下。
警告执行本程序时,固定夹可能会脱落。请佩戴护目镜,以免造成人身伤害。
-
从车上拆下并弃用承梁塑料支架。
注支架可能会连同承梁一起拆下。
安装
-
将新承梁塑料支架安装到第二排座椅侧部承梁。
注支架为一次性用品。
- 对齐底部锁片,然后向内推,以便安装承梁。
