Seal - Outer Belt - Rear Door - LH (Adjust)

校正代码 11700004 Adjustable FRT NOTE: This procedure uses an adjustable correction code. Use the correction code listed above and manually enter the actual amount of time spent performing this procedure. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

  • 2023 年 12 月 11 日：将原不可调整校正代码更新为新的可调整校正代码。

拆卸

  1. 打开左后车门，降下车窗。
  2. 撬起后车门的外侧密封条，然后从后车门上拆下密封条。
  3. 将塑料饰板工具插入密封槽中，并向内扭转工具以打开槽，拆下塑料 X 型固定销。

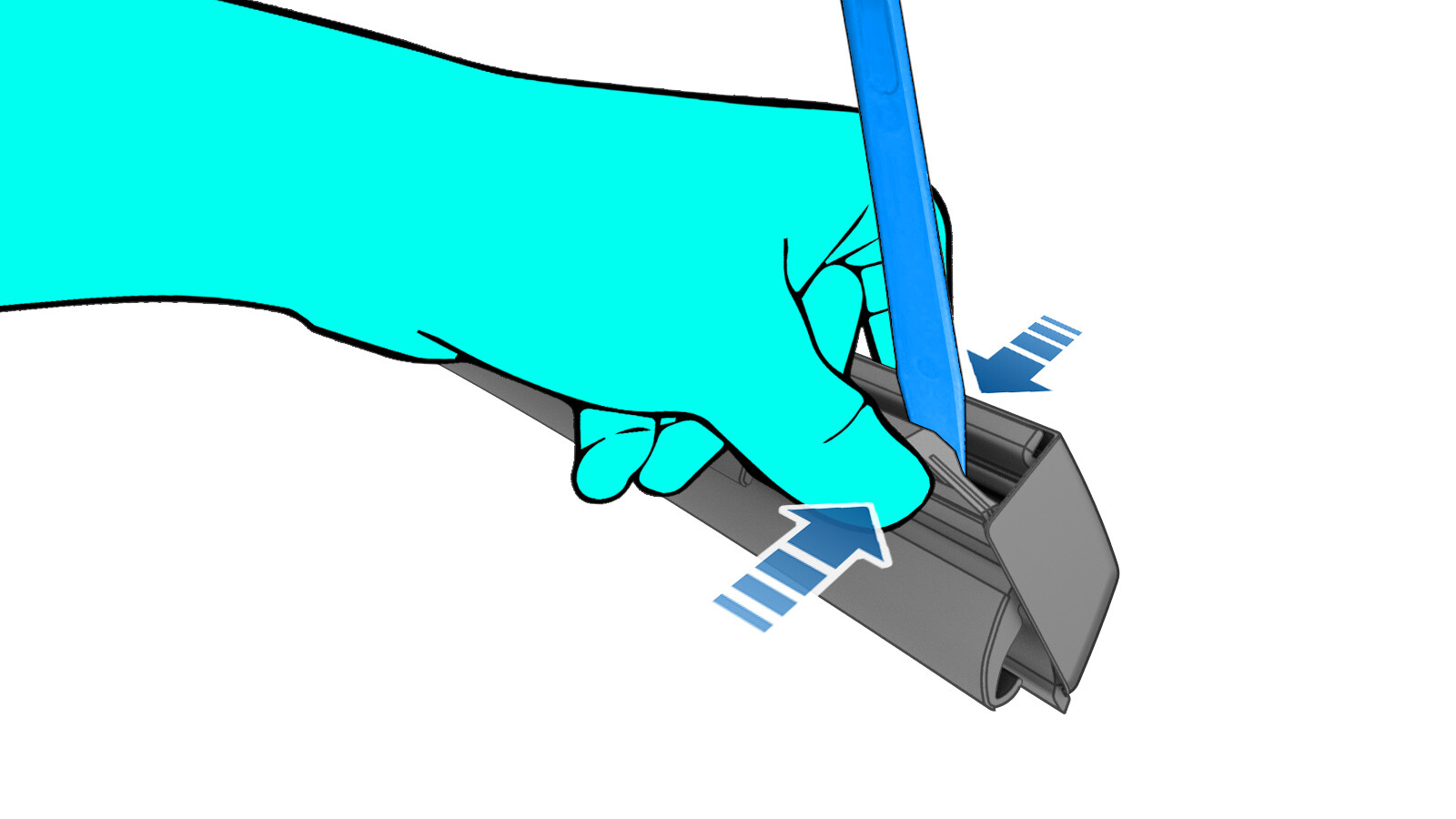

  4. 借助塑料饰板工具，用拇指压紧密封槽。
    Informational PurposesAn informational icon, calling your attention
    注
    确保密封件正确安装在车门折边法兰上。

安装

  1. 将左后车门外密封条向下按压并紧固到车门总成上。
    Informational PurposesAn informational icon, calling your attention
    注
    使用 P-80 乳液润滑剂辅助密封条安装。
  2. 关闭左前车门，升起左前车窗。
