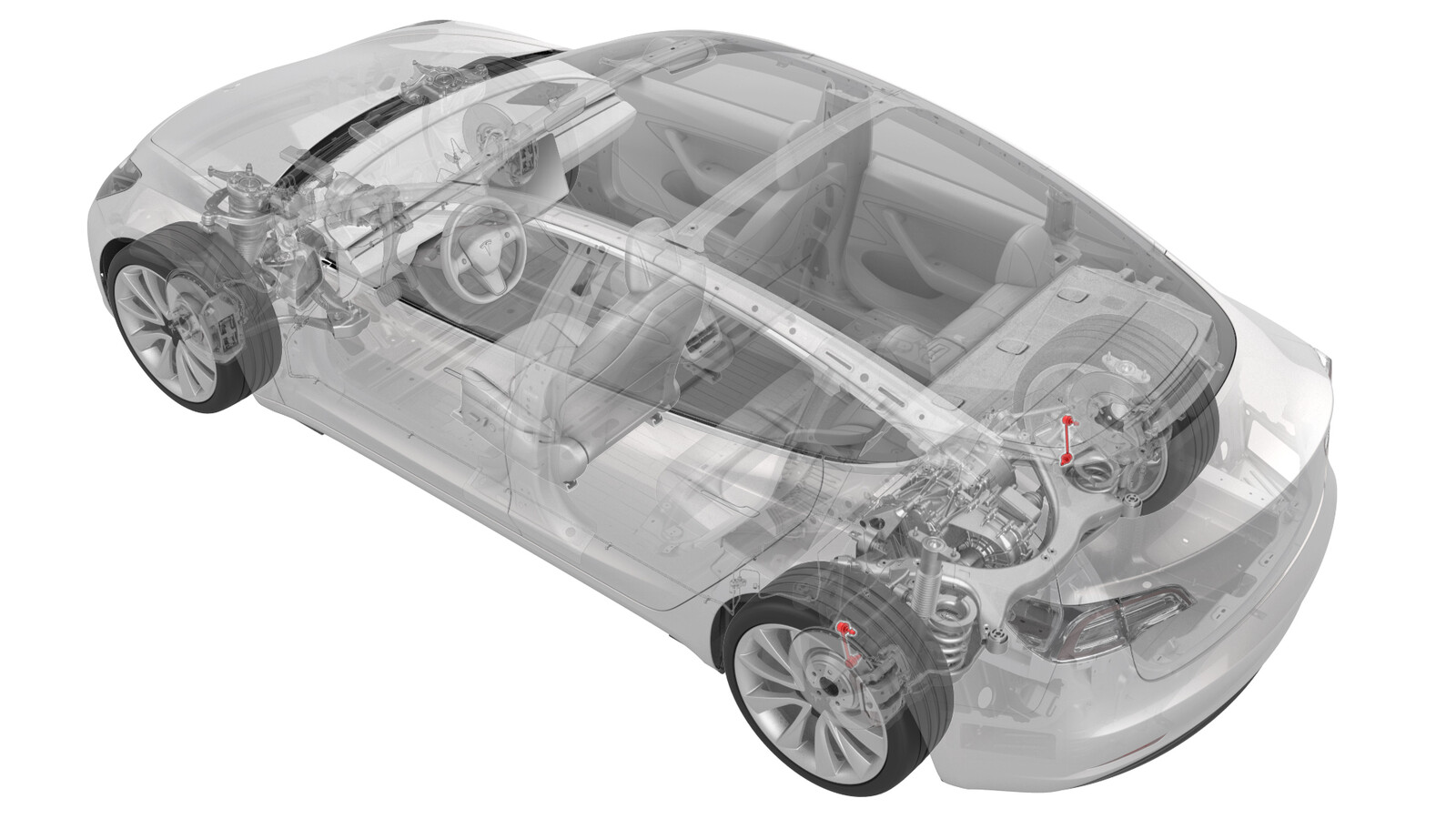

下拉连杆 - 平衡杆 - 后 - 左侧(拆卸和更换)

校正代码 31033402 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2026-09-07: 删除了拆卸/安装后流线型护板的步骤。

扭矩规格

表 1. 扭矩规格: 下拉连杆 - 平衡杆 - 后 - 左侧(拆卸和更换)
描述 扭矩值 推荐工具 重复使用/更换 备注

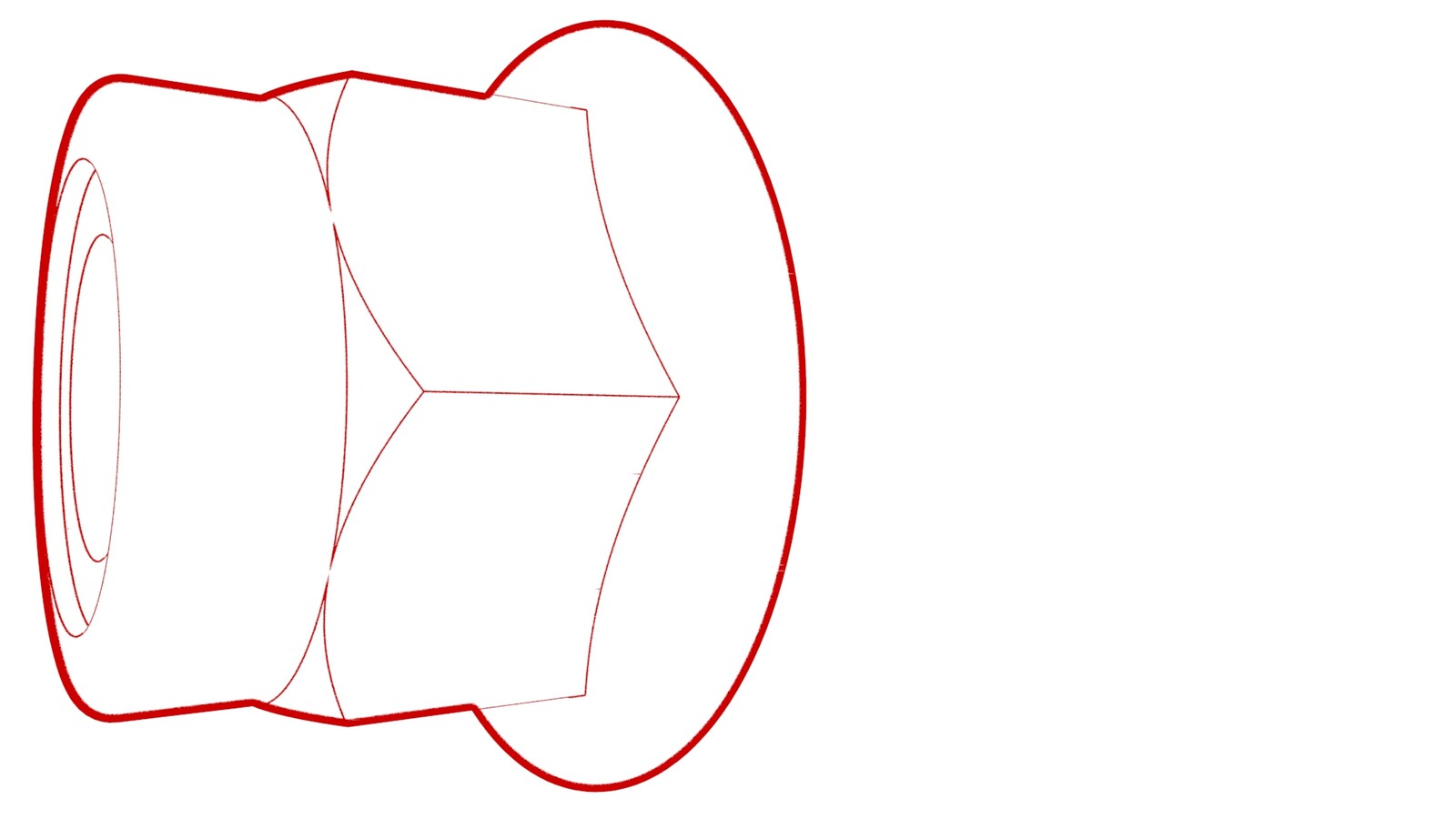

将左侧下拉连杆固定到后平衡杆和左侧后转向节的螺母
55 Nm (40.6 lbs-ft)
  • 5 毫米六角套筒
  • 15 毫米组合回旋头扳手
  • 15 mm 套筒扳手
更换

拆卸

  1. 举升并支撑车辆请参阅 举升车辆 - 双柱举升机。

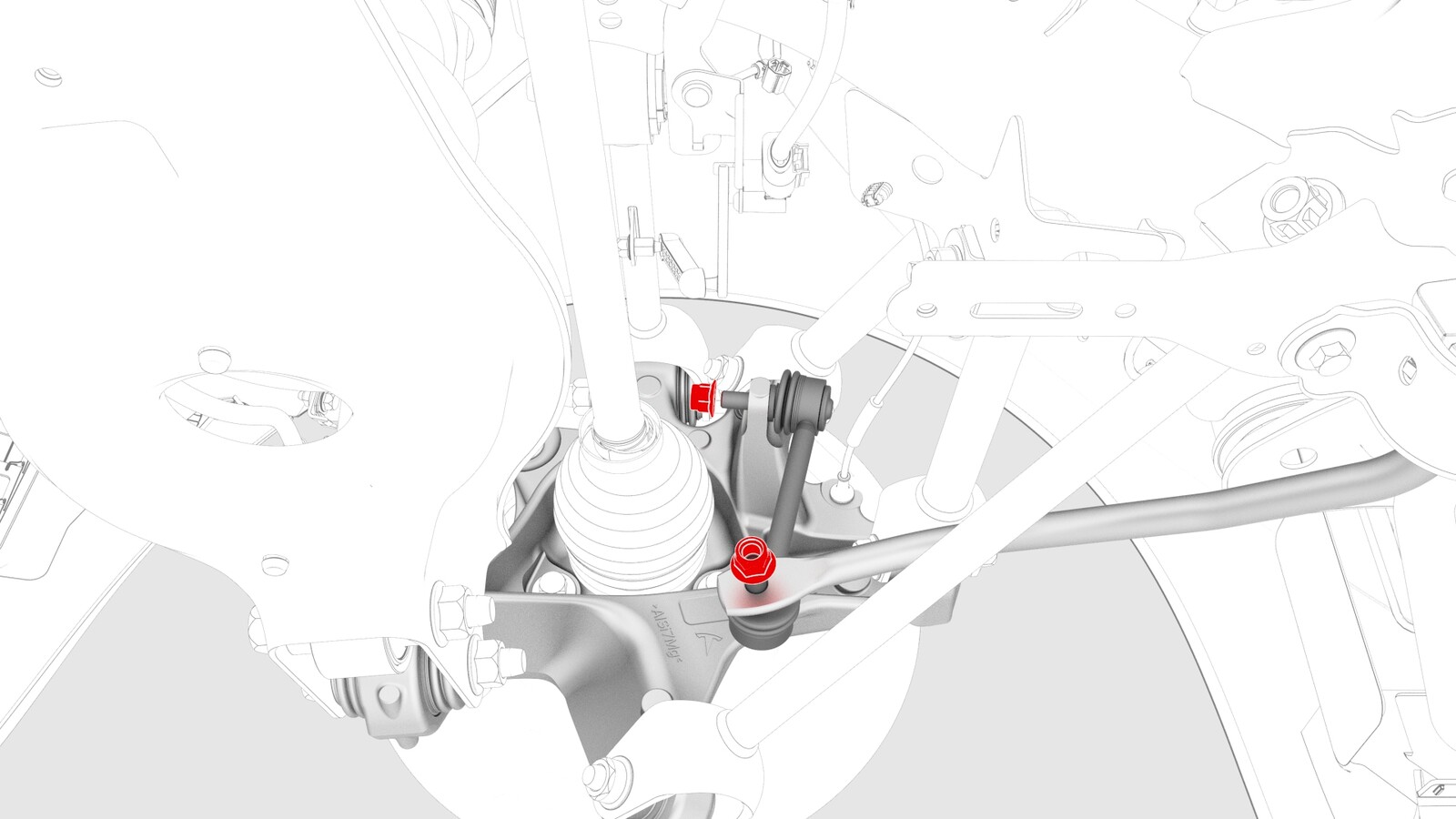

  2. 拆下并弃用将左侧下拉连杆固定到后平衡杆和左侧后转向节的螺母。
    55 Nm (40.6 lbs-ft)
    提示
    建议使用以下工具:
    • 5 毫米六角批头
    • 15 毫米组合回旋头扳手
    • 15 毫米套筒
    • 回旋头棘轮/回旋头扭矩扳手

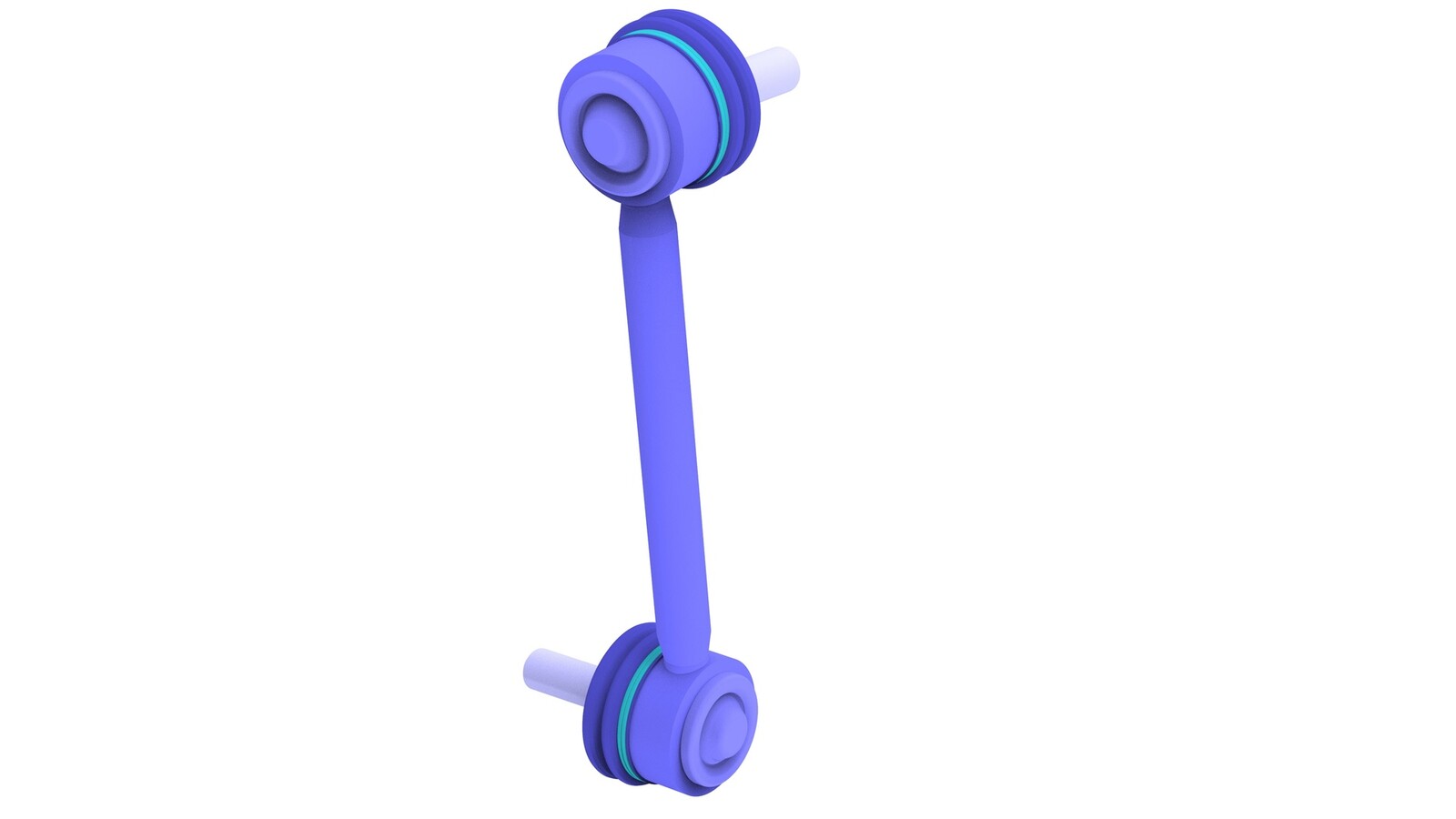

  3. 将下拉连杆从车上拆下。

安装

安装程序与拆卸程序相反,以下各项除外:

警告
Replace all nyloc nuts.
  • 安装后,使用油性记号笔标记螺母。
