雨刮器片(拆卸和更换)

校正代码 两侧: 17501702 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices. ,LH: 17500402 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices. ,RH: 17500502 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

警告
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

拆卸

  1. 在触摸屏上,点击Controls > Service > Wiper Service Mode,以启用“雨刮器维护模式”。
  2. 在雨刮器臂下方放置毛巾或车间毛巾,以防刮伤挡风玻璃。

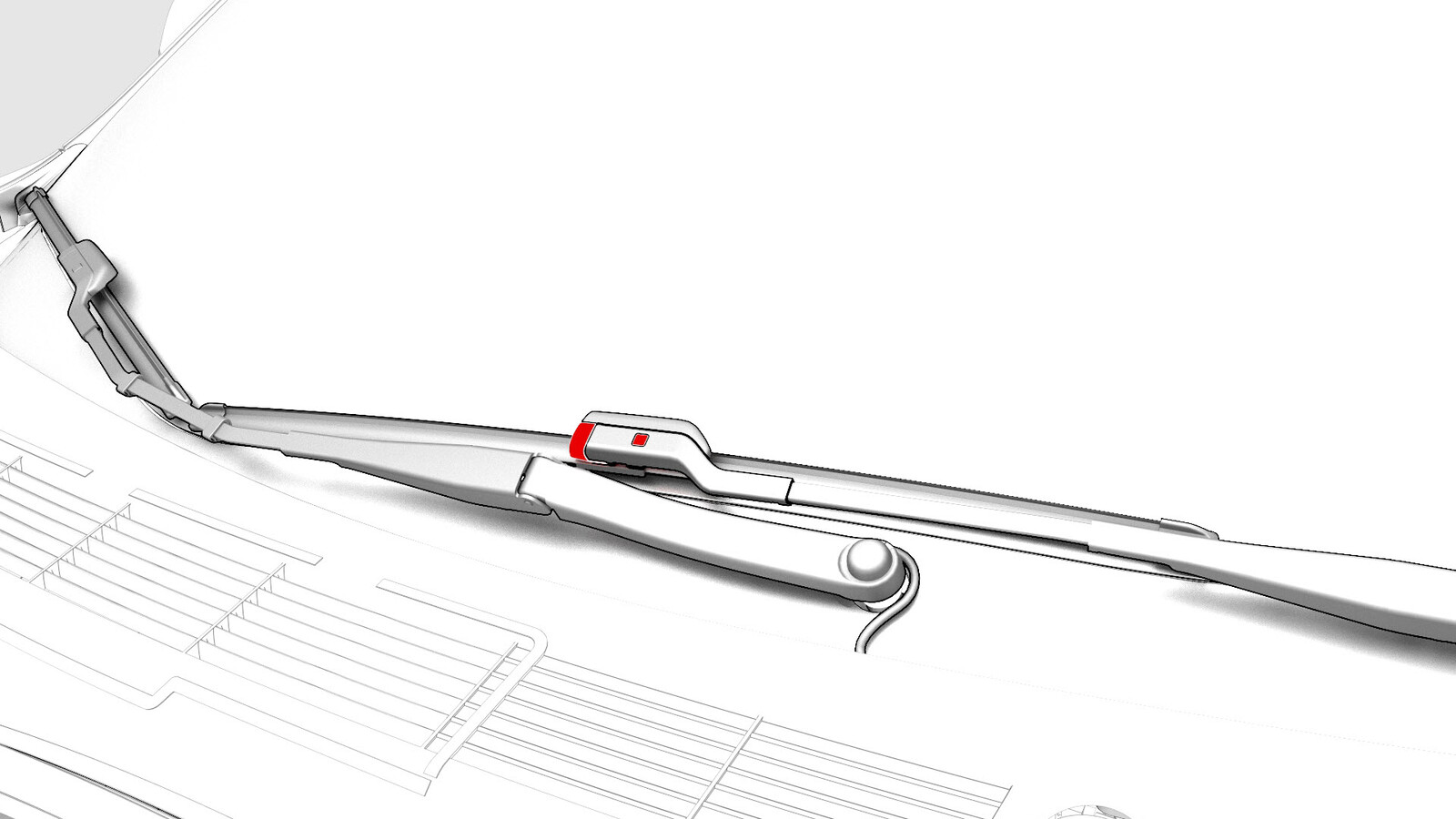

  3. 松开将左侧雨刮器片固定到左侧雨刮器臂的锁片,然后将左侧雨刮器片从车辆上拆下。
  4. 松开将 RH 雨刮器片固定到 RH 雨刮器臂的锁片,然后从车上拆下 RH 雨刮器片。

安装

  1. 将新 RH 雨刮器片安装到 RH 雨刷器臂上,届时可看到剩余的锁片,并听到清脆的锁止声。
  2. 将新 LH 雨刮器片安装到 LH 雨刷器臂上,届时可看到剩余的锁片,并听到清脆的锁止声。
  3. 移除挡风玻璃上的毛巾或车间毛巾。
  4. 在触摸屏上,点击Controls > Service > Wiper Service Mode,以禁用“雨刮器维护模式”。
