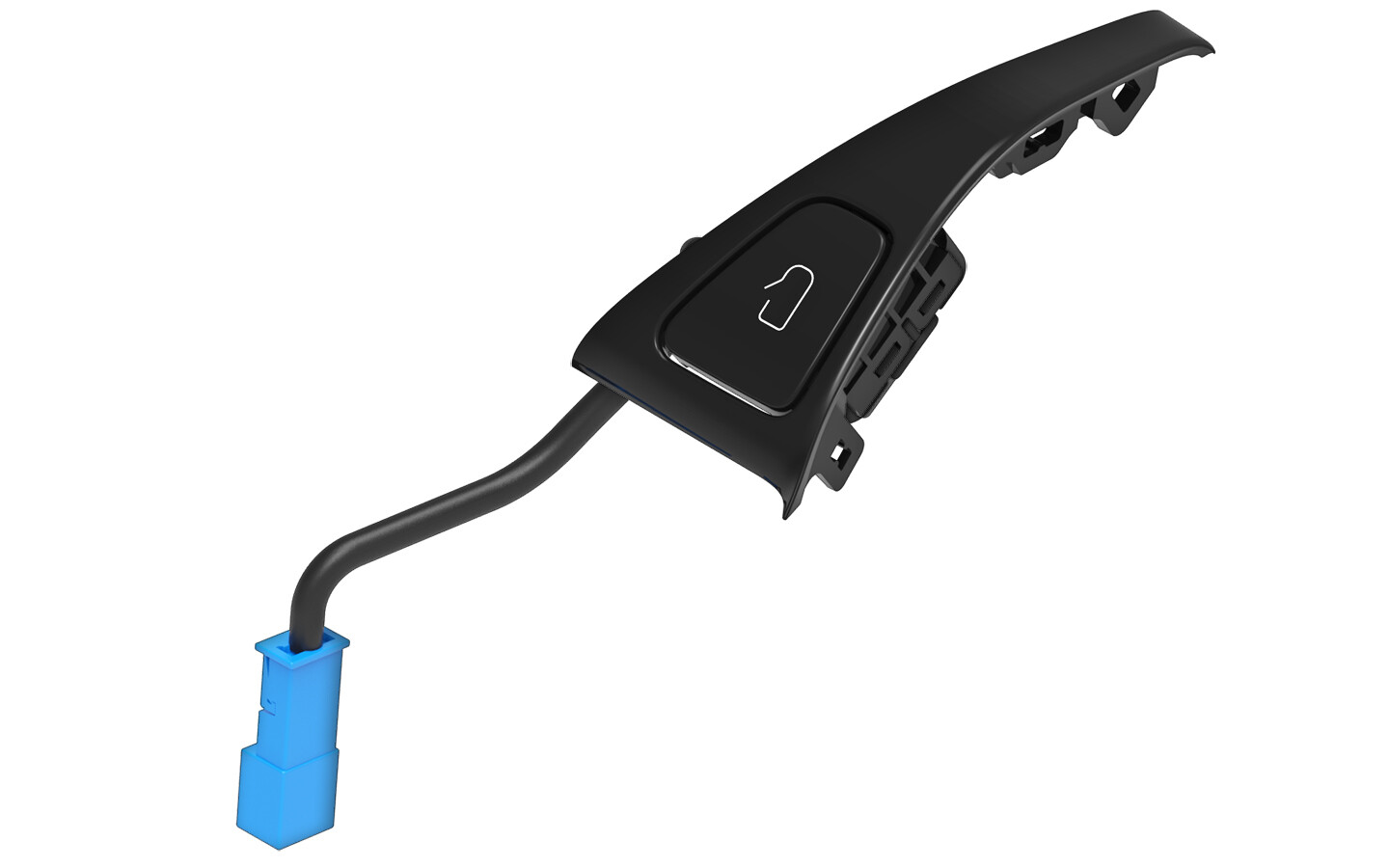

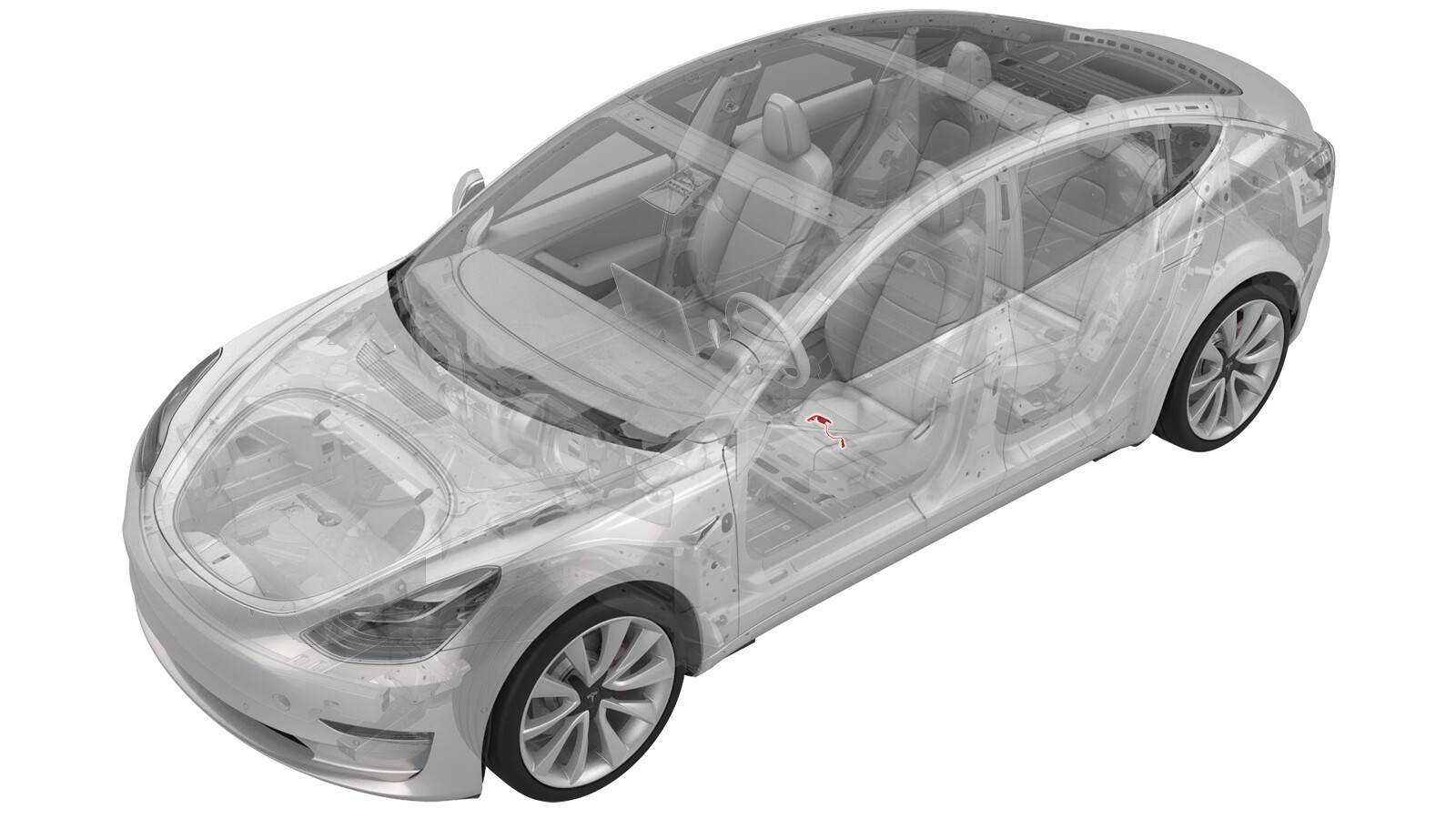

Switch - Interior Door Release - Front - LH (Remove and Replace)

校正代码 15131602 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

拆卸

  1. 拆下 LH 前门饰板。请参阅Panel - Door Trim - Front - LH (Remove and Replace)。

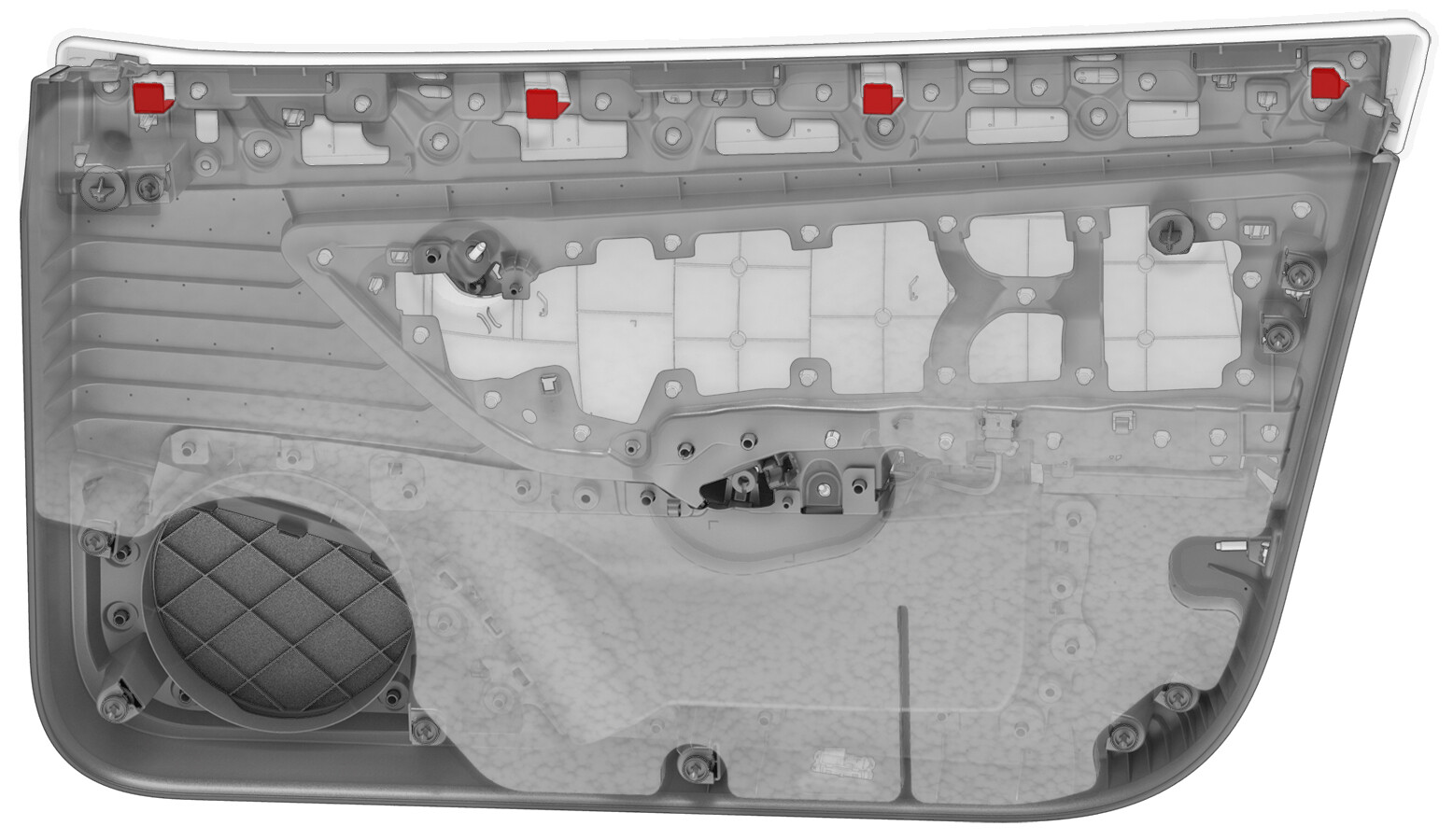

  2. 从锁片 (X4) 上松开 NVH 垫，然后将垫从 LH 车门面板上拆下。
  3. 小心地撬开车门饰板，拆下将车门内部释放把手开关固定到车门饰板的螺栓。
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 梅花 T20 套筒
      Warning IconA warning icon, calling your attention to a possibly risky situation
      警告
      Pry carefully and do not damage the plastic rivets. Damage to the rivets could compromise the integrity of the door trim panel.

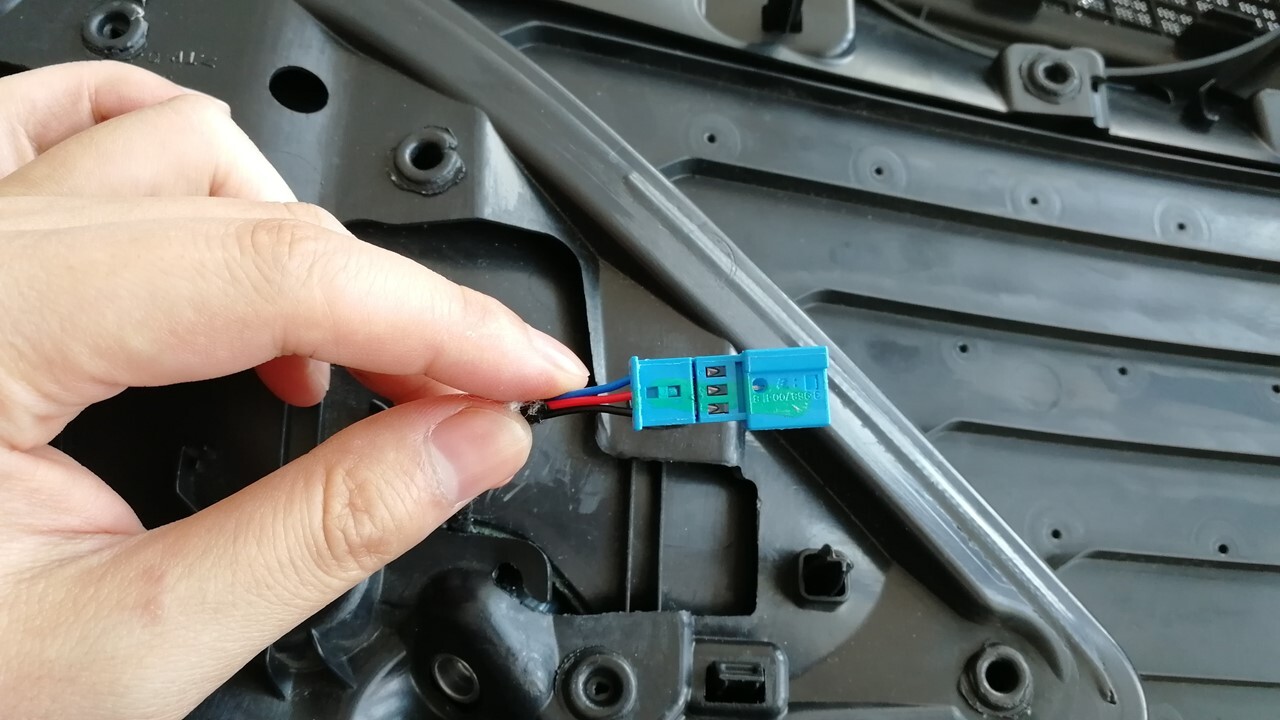

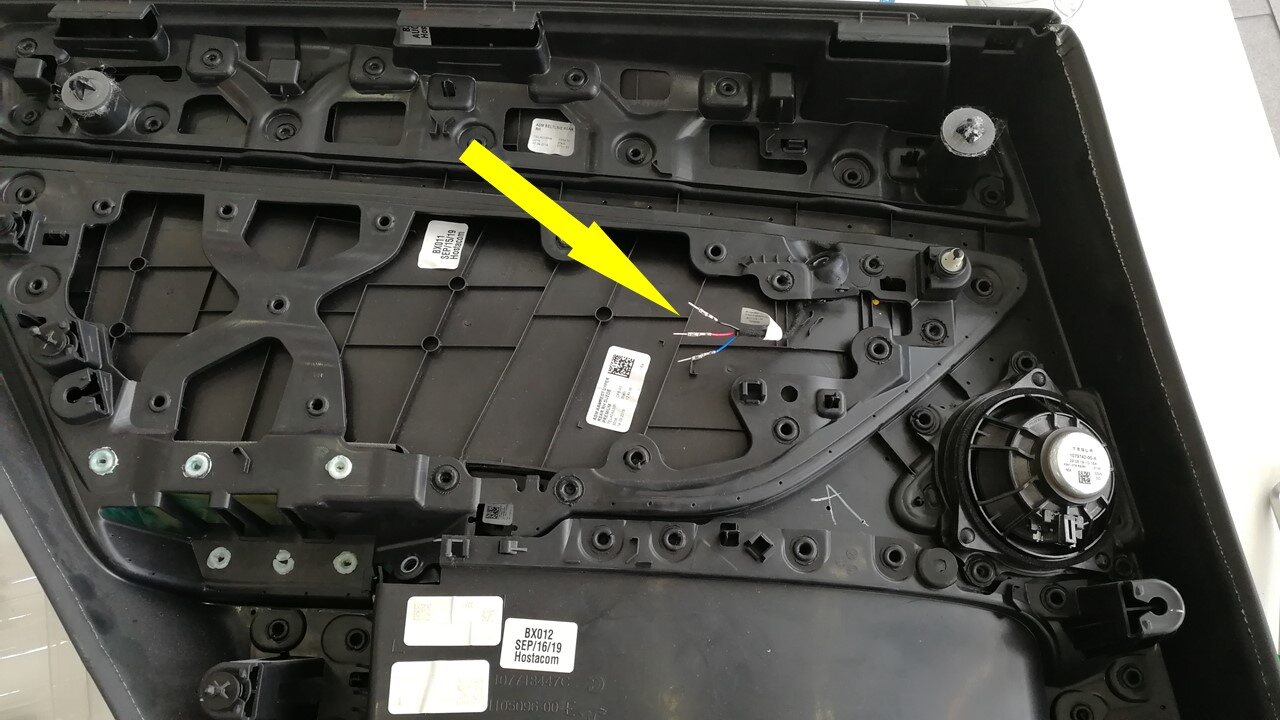

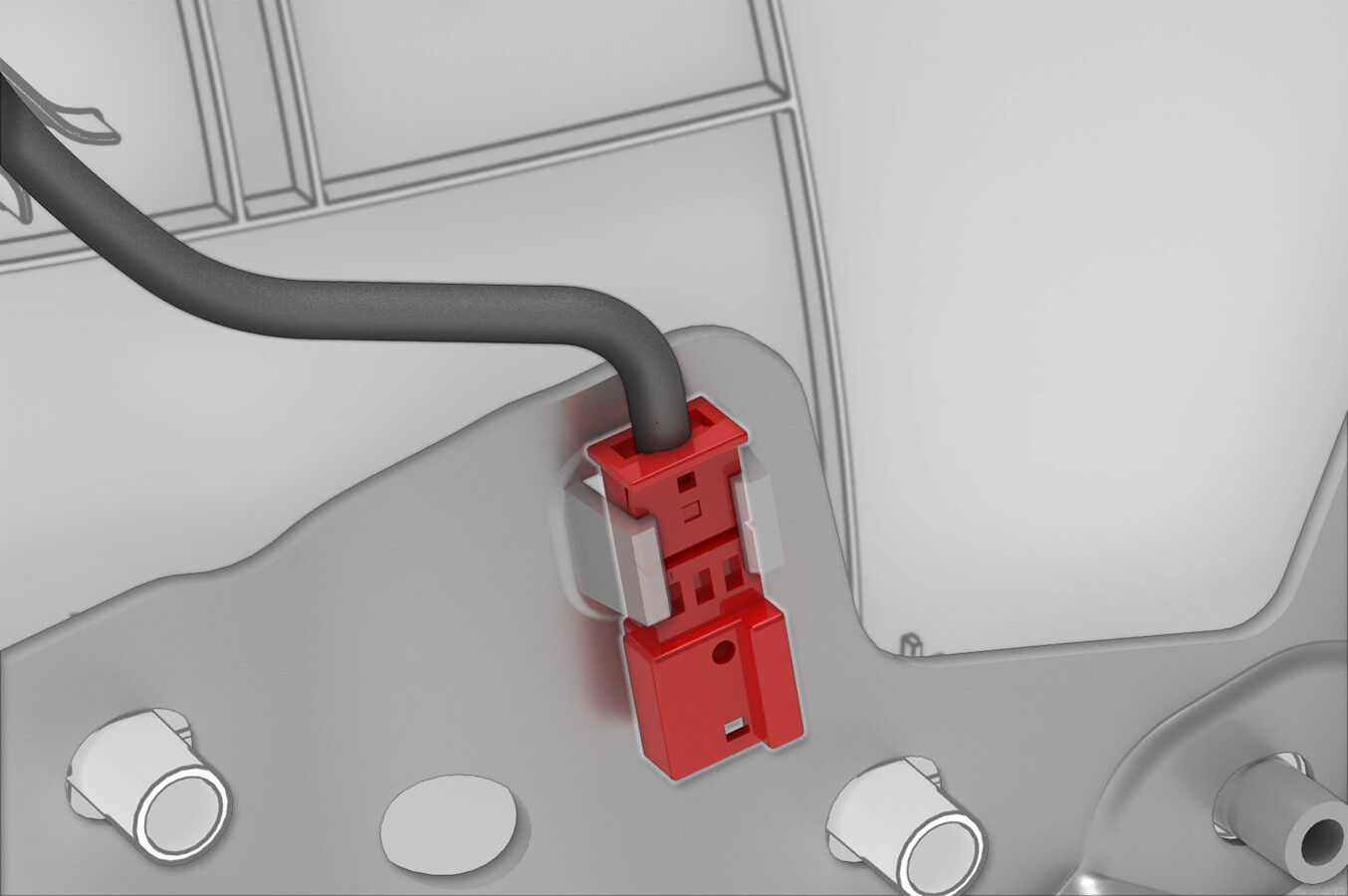

  4. 使用针脚拖动套件将针脚 (x3) 与车门内部释放开关电气连接器分开。
    Informational PurposesAn informational icon, calling your attention
    注
    标记针脚和电气连接器的位置。
    Informational PurposesAn informational icon, calling your attention
    注
    分开针脚和插头，以确保其可以通过狭窄的饰板空间。

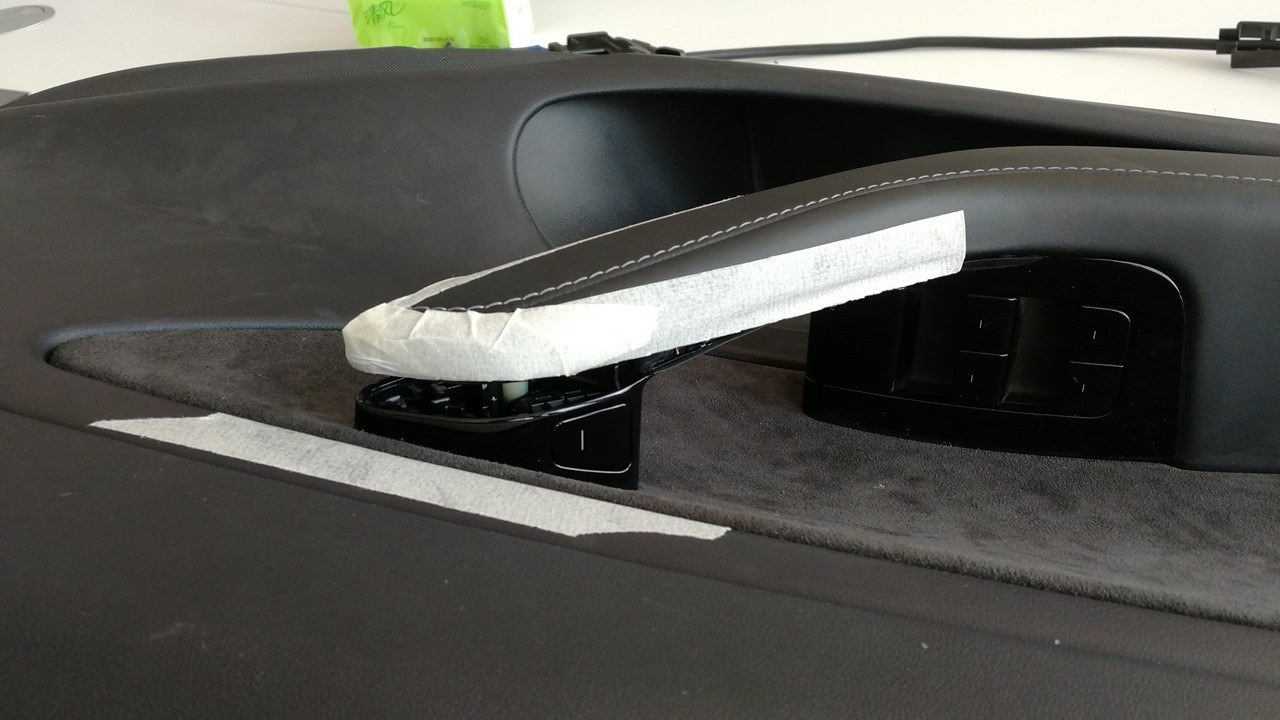

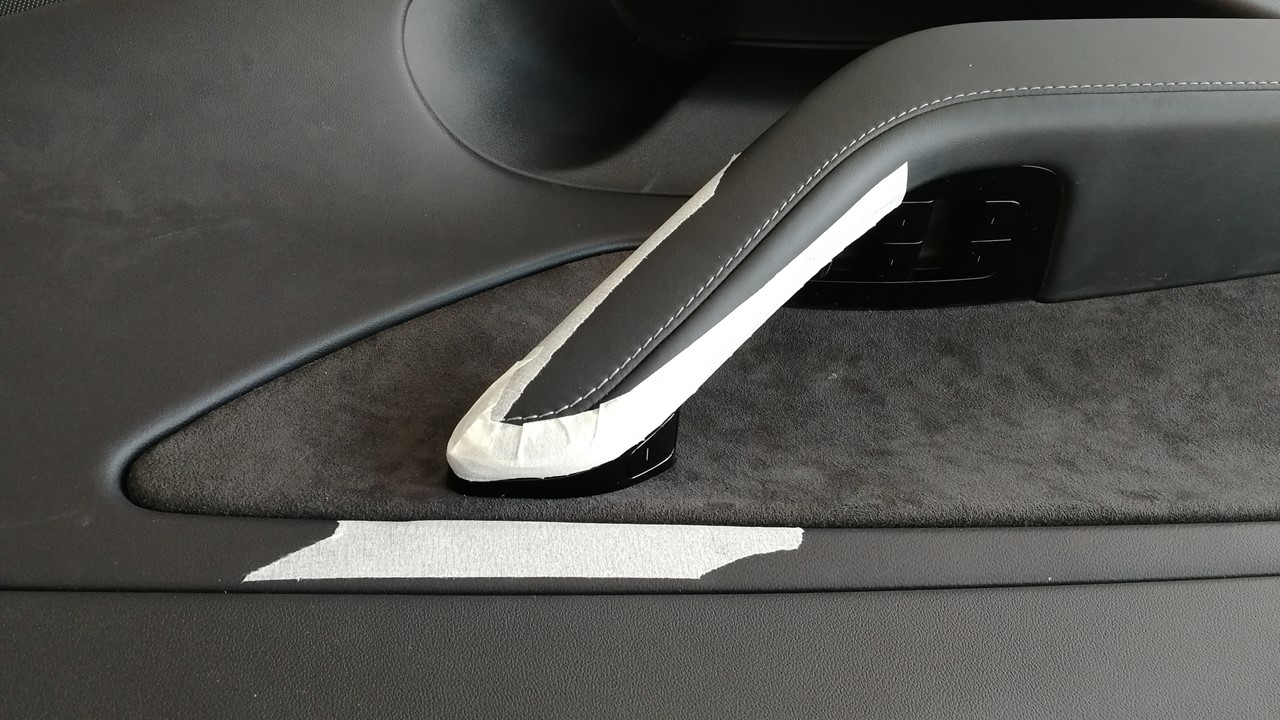

  5. 在作业区域四周粘贴遮蔽胶带，以保护车门饰板。

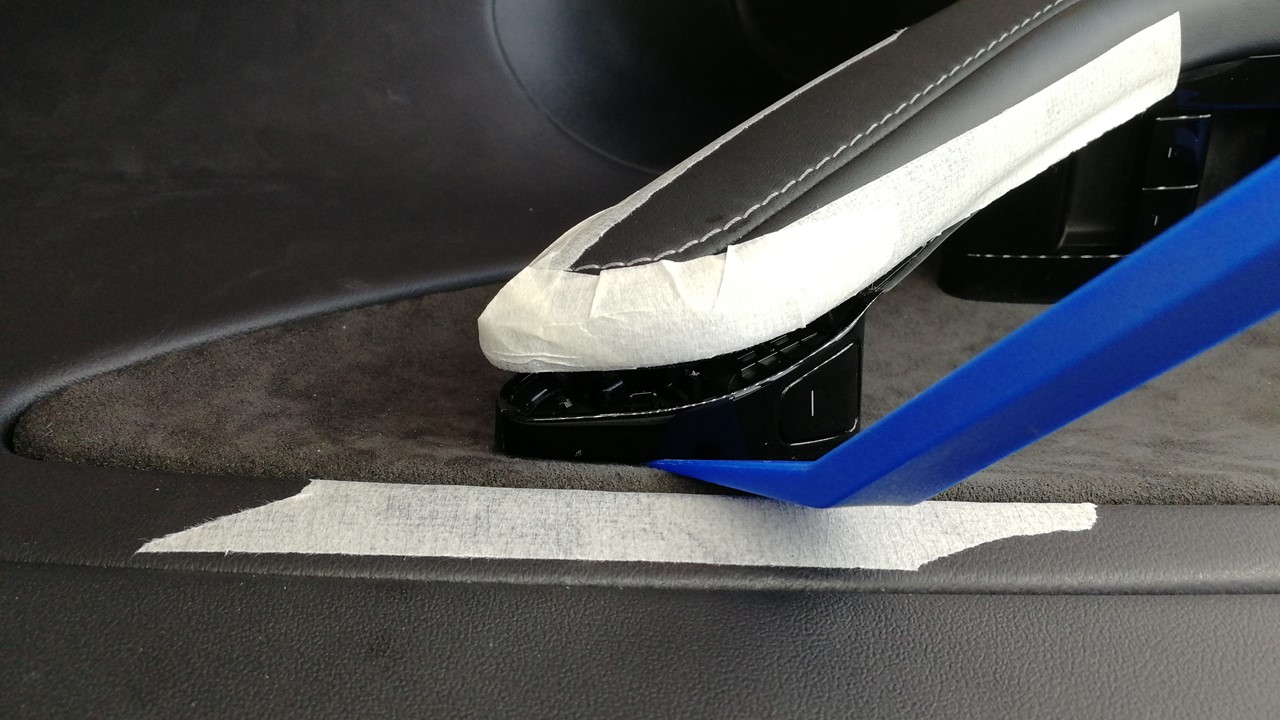

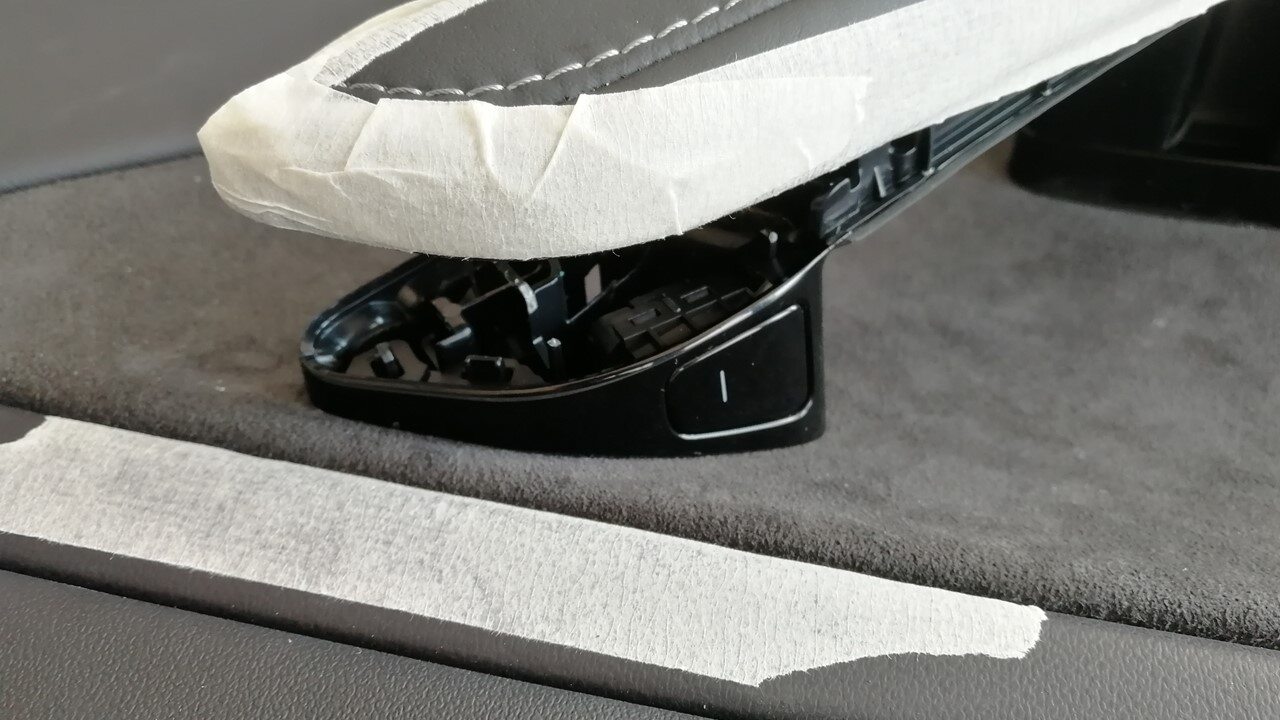

  6. 使用饰板工具将车门内把手的前部与内部释放开关分开。

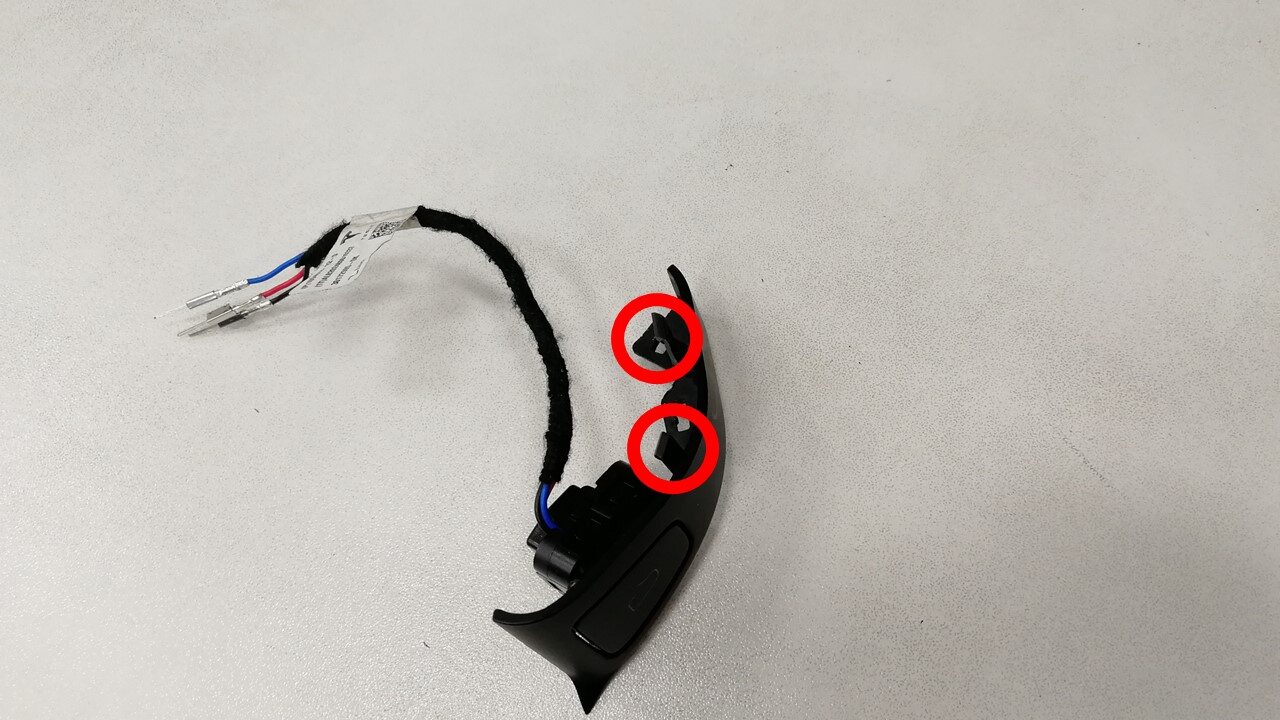

  7. 松开锁片 (x2)，然后从车门饰板上拆下车门内部释放开关。

安装

  1. 使用针脚拖动套件将针脚与新连接器分开。
    Informational PurposesAn informational icon, calling your attention
    注
    标记针脚和电气连接器的位置。
  2. 安装将车门内部释放开关固定到车门饰板的锁片 (x2)。
  3. 将针脚固定到连接器上。
  4. 将车门内把手的前部固定到内部释放开关上。
  5. 轻轻地撬开车门饰板，安装将车门内部释放把手开关固定到车门饰板的螺栓。
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    注
    推荐使用以下工具：
    • 梅花 T20 套筒
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Pry carefully and do not damage the plastic rivets. Damage to the rivets could compromise the integrity of the door trim panel.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Replace the door trim panel if the plastic rivets are damaged during service.
  6. 将 NVH 垫固定到锁片 (X4) 上，然后将 NVH 垫安装到 LH 车门面板上。
  7. 安装 LH 前门饰板。请参阅Panel - Door Trim - Front - LH (Remove and Replace)。
