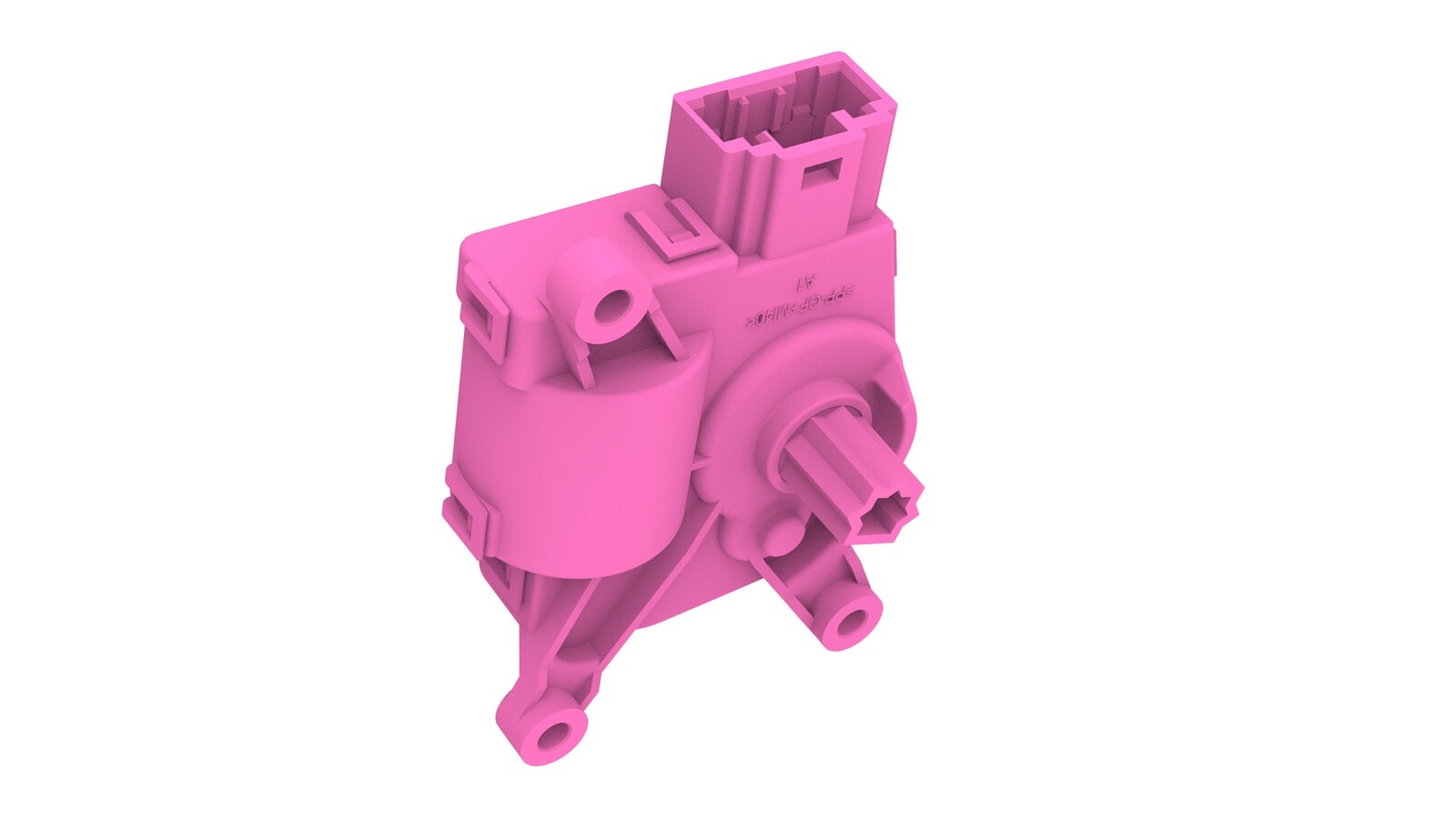

Actuator - Upper Mode (Non-Heat Pump) (Remove and Replace)
校正代码
18102602
0.60
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created. To provide feedback on
FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure.
拆卸
- 拆下第二排下部座垫。请参阅Seat Cushion - Lower - 2nd Row (Remove and Replace)。
- 拆下前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)。
- 断开 12V 电源。请参阅12V/LV Power (Disconnect and Connect)。
- 拆下 LH 仪表板端盖。请参阅End Cap - Instrument Panel - LH (Remove and Replace)。
- 拆下 LH 气流端盖。请参阅End Cap - Air Wave - LH (Remove and Replace)。
- 拆下 RH 仪表板端盖。请参阅End Cap - Instrument Panel - LH (Remove and Replace)。
- 拆下前排乘客脚垫。
- 拆下中控台 RH 板毡毯。请参阅Side Panel - Center Console - LH (Remove and Replace)。
- 拆下副驾位脚部空间罩。请参阅Cover - Footwell - Passenger (LHD) (Remove and Replace)。
- 拆下副驾位膝部气囊。请参阅Airbag - Knee - Front Passenger (Remove and Replace)。
- 拆下 RH 气流端盖。请参阅End Cap - Air Wave - LH (Remove and Replace)。
- 拆下主仪表板饰板。请参阅Decor Trim - Instrument Panel - Main (Remove and Replace)。
- 拆下手套箱。请参阅Glove Box - With Knee Airbags (Non-Heat Pump) (Remove and Replace)。
- 拆下 RH 脚部空间进气槽。请参阅Duct - Footwell - RH (LHD) (Remove and Replace)。

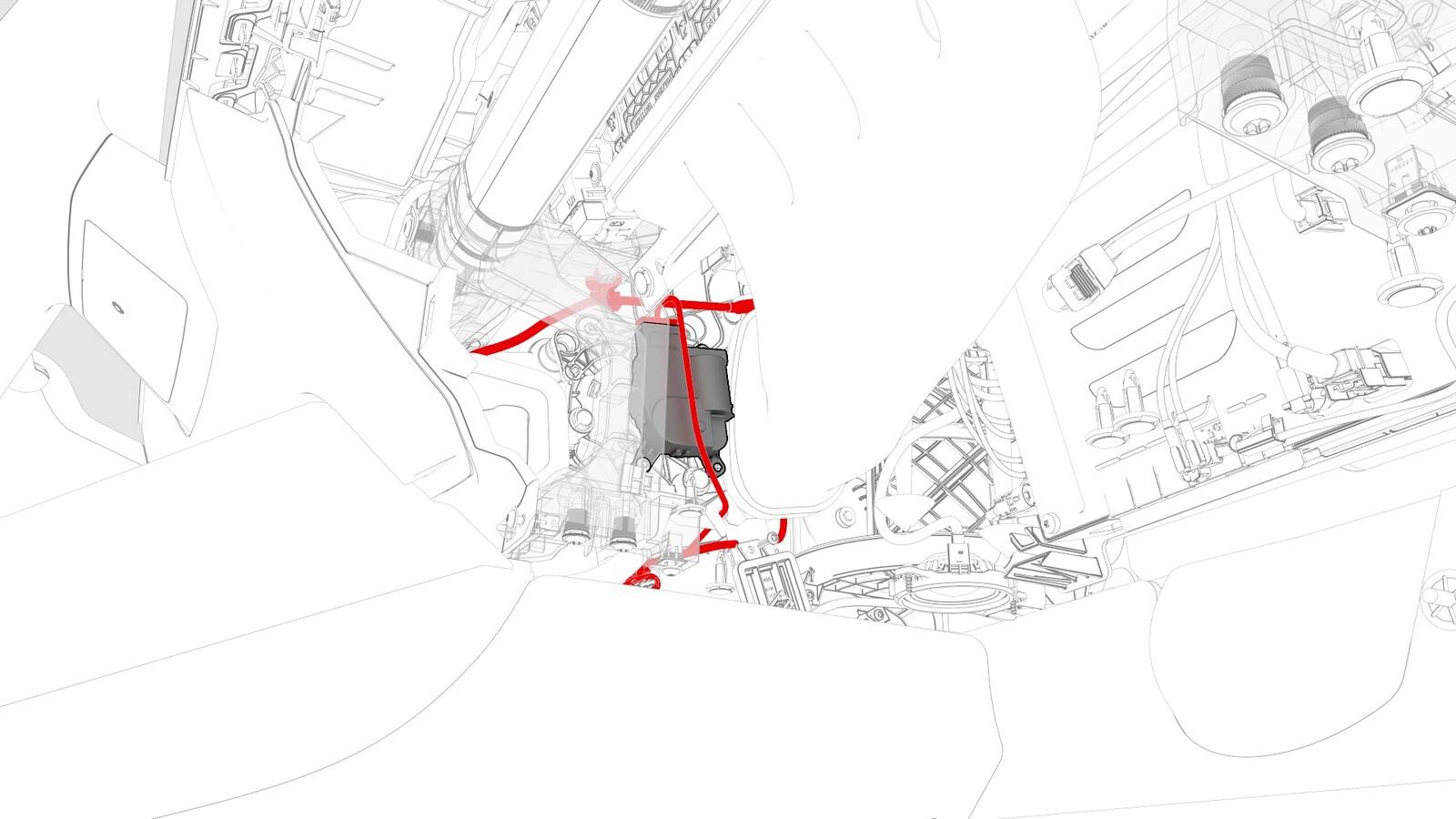

- 松开将仪表板线束固定到供暖、通风和空调总成 RH 的夹子。
- 断开上部模式执行机构上的电气连接器。

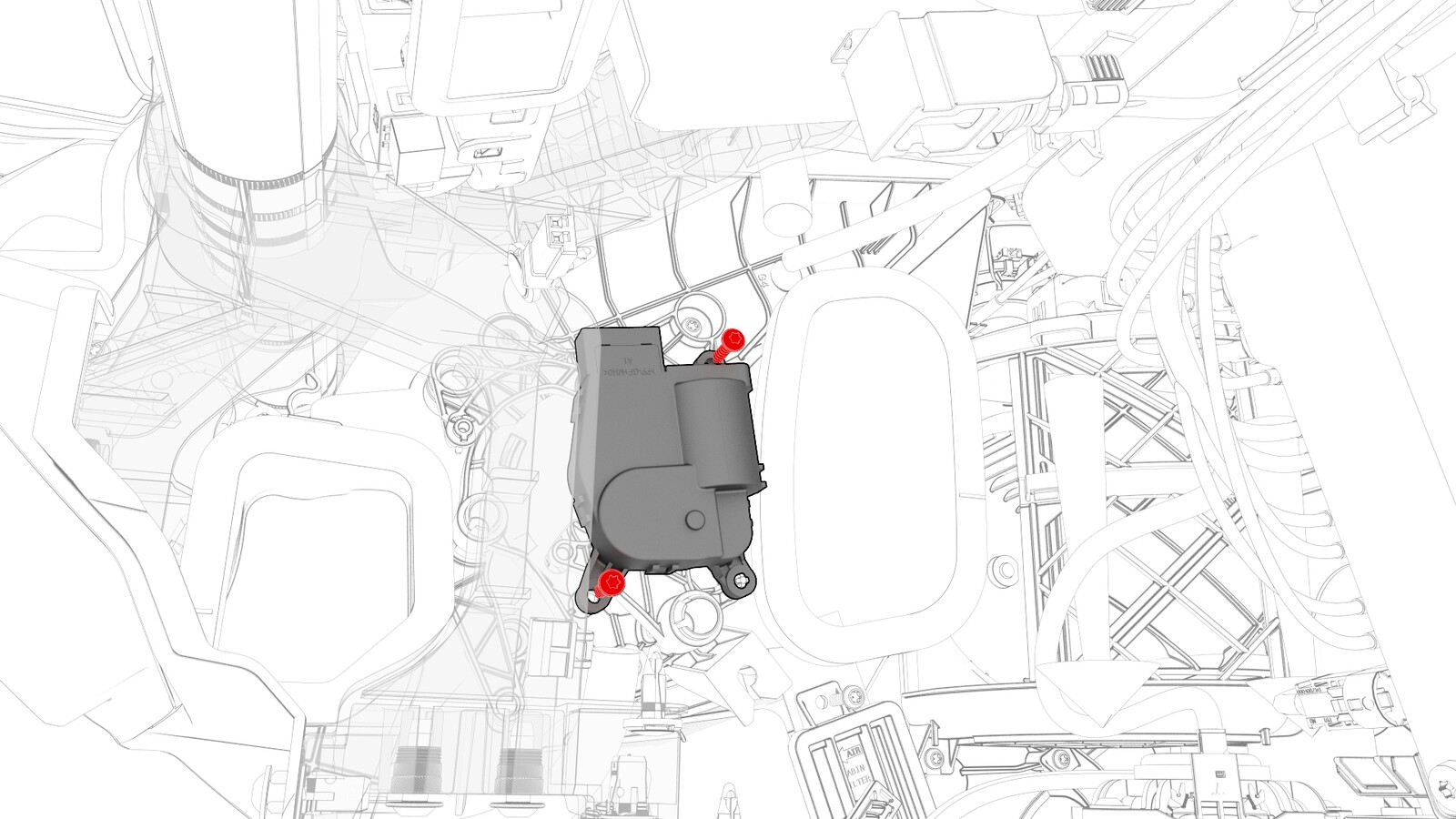

- 拆下将上部模式执行机构固定到供暖、通风和空调总成的螺栓,然后拆下上部模式执行机构。
安装
- 将上部模式执行机构置于供暖、通风和空调总成上;对齐导件,然后将该执行机构向左侧推以进行安装。
-

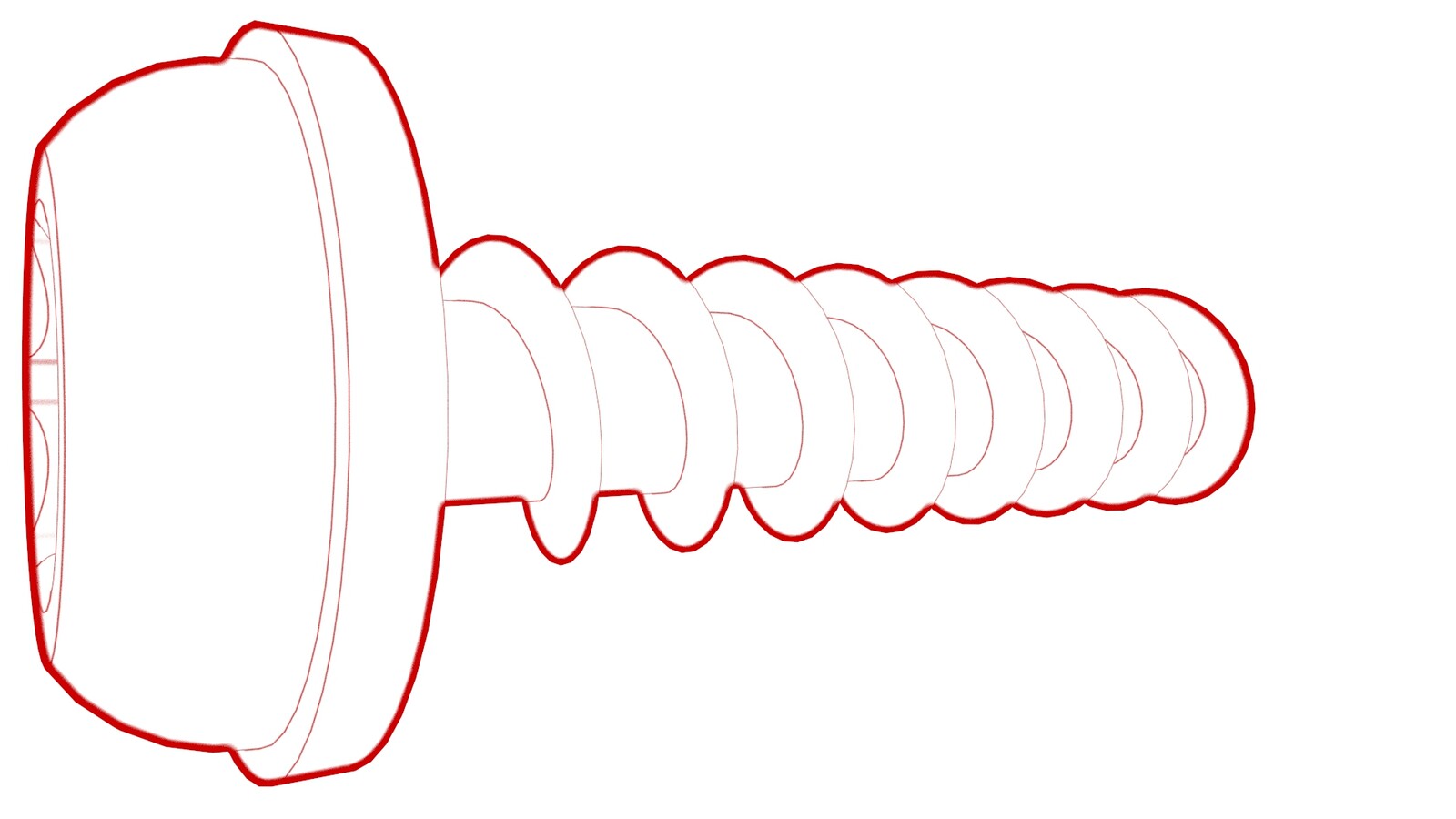

安装将上部模式执行机构固定到供暖、通风和空调总成的螺栓。1.2 Nm (.9 lbs-ft)
- 连接上部模式执行机构电气连接器。
- 安装将仪表板线束固定到供暖、通风和空调总成 RH 的夹子。
- 安装 RH 脚部空间进气槽。请参阅Duct - Footwell - RH (LHD) (Remove and Replace)。
- 安装手套箱。请参阅Glove Box - With Knee Airbags (Non-Heat Pump) (Remove and Replace)。
- 安装主仪表板饰板。请参阅Decor Trim - Instrument Panel - Main (Remove and Replace)。
- 安装 RH 气流端盖。请参阅End Cap - Air Wave - LH (Remove and Replace)。
- 安装副驾位膝部气囊。请参阅Airbag - Knee - Front Passenger (Remove and Replace)。
- 安装副驾位脚部空间罩。请参阅Cover - Footwell - Passenger (LHD) (Remove and Replace)。
- 安装中控台 RH 板毡毯。请参阅Side Panel - Center Console - LH (Remove and Replace)。
- 安装前排乘客脚垫。
- 安装 RH 仪表板端盖。请参阅End Cap - Instrument Panel - LH (Remove and Replace)。
- 安装 LH 气流端盖。请参阅End Cap - Air Wave - LH (Remove and Replace)。
- 安装 LH 仪表板端盖。请参阅End Cap - Instrument Panel - LH (Remove and Replace)。
- 重新连接 12V 电源。请参阅12V/LV Power (Disconnect and Connect)。
- 安装前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)。
- 安装第二排下部座垫。请参阅Seat Cushion - Lower - 2nd Row (Remove and Replace)。
