开关 - 车窗 - 后（拆卸和更换）

校正代码 11503002 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 拆下 LH 后车门饰板。请参阅面板 - 车门饰板 - 后 - 左侧（拆卸和安装）。
  2. 松开将后车窗开关固定到车门饰板的夹子。
    提示
    先松开前部夹子，然后松开后部夹子，期间推动后车窗开关，以便将其从车门饰板上释放出来。
    注
    将电气线束送入车门饰板孔，以便从后车窗开关上拆下电气线束。
    注
    更换所有损坏的车门面板夹。

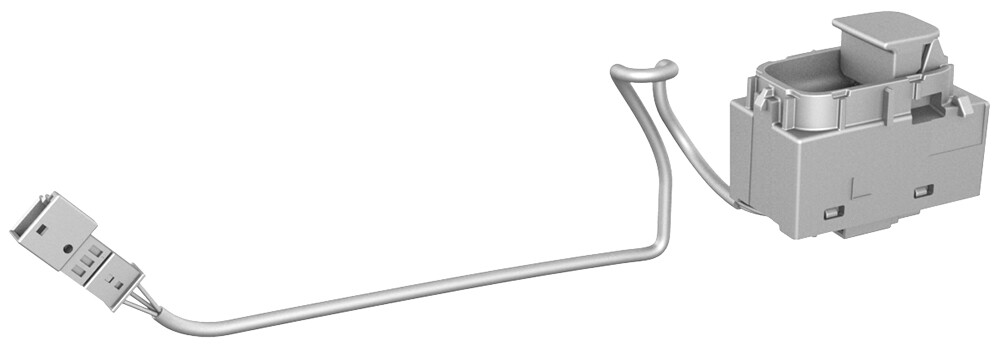

  3. 从车上拆下后车窗开关。
