放大器 - 天线 - 调频（拆卸和更换）

校正代码 21213502 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 拆下 LH 边梁饰板。请参阅饰板 - 纵梁 - 左侧（拆卸和安装）。

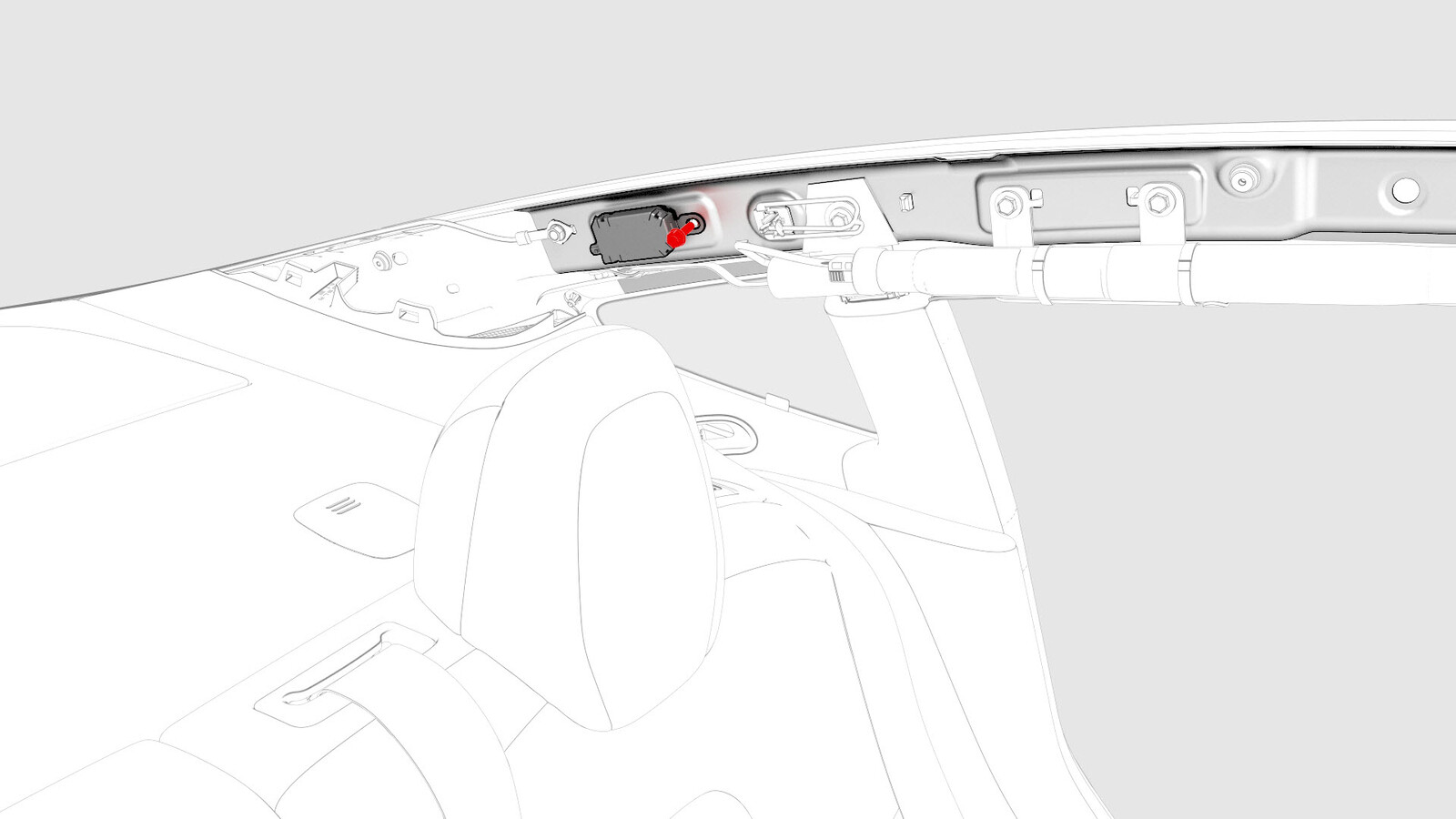

  2. 从 FM 天线放大器上断开电气连接器。

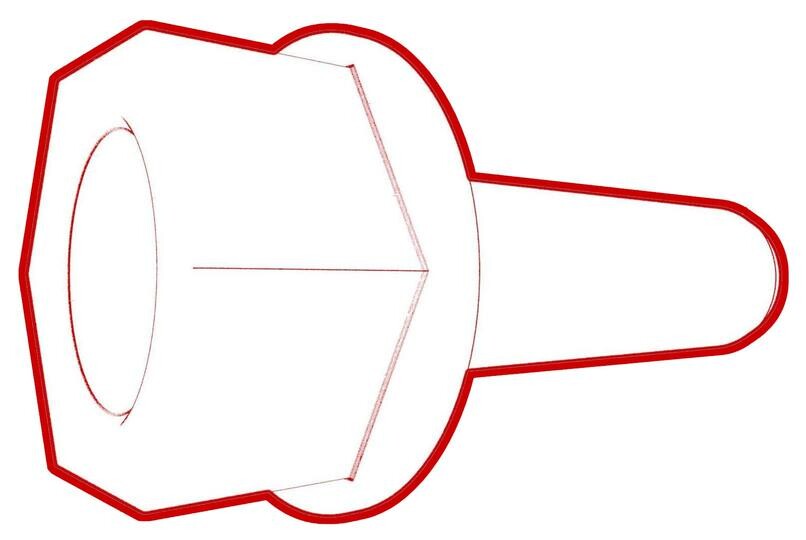

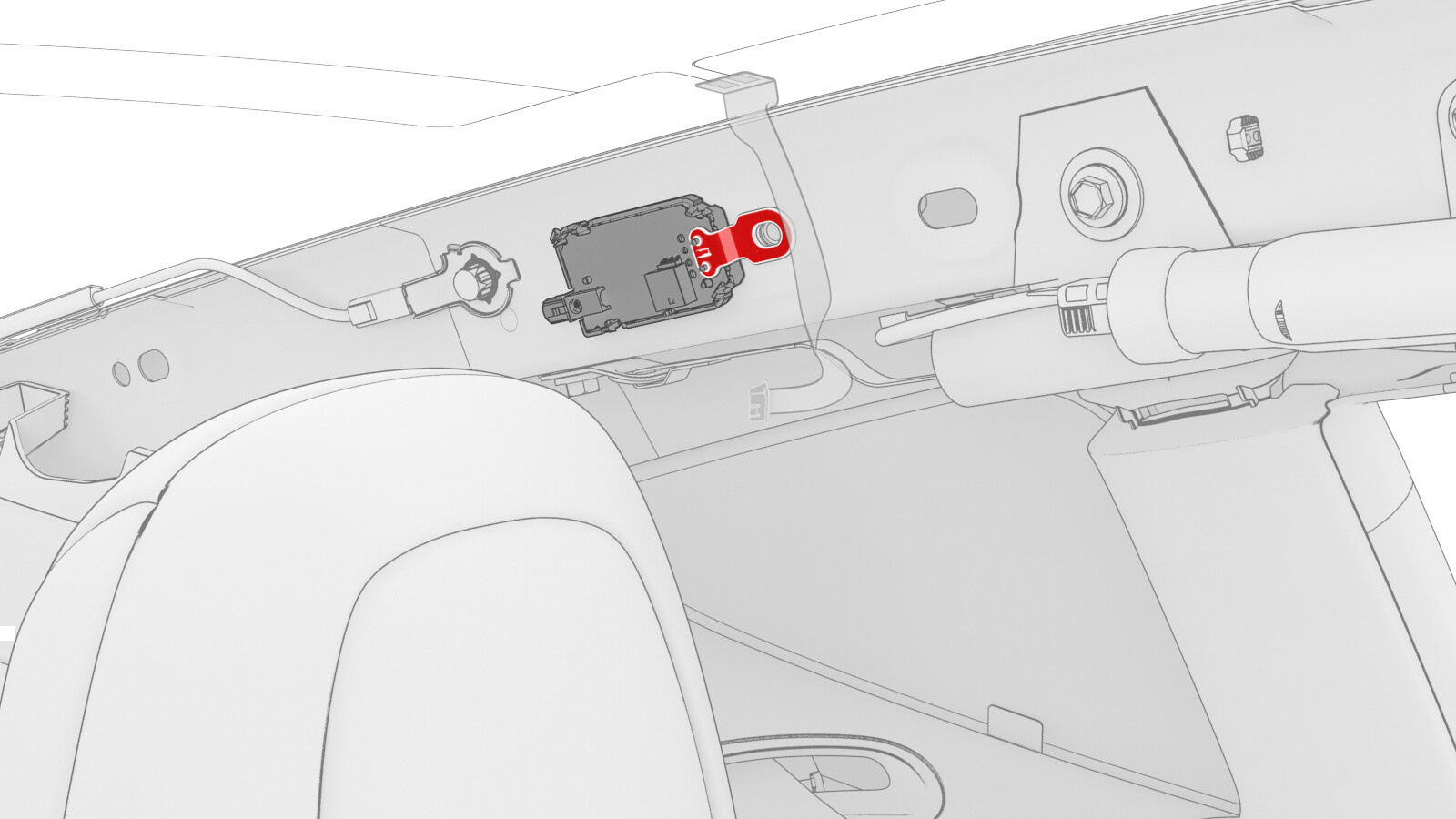

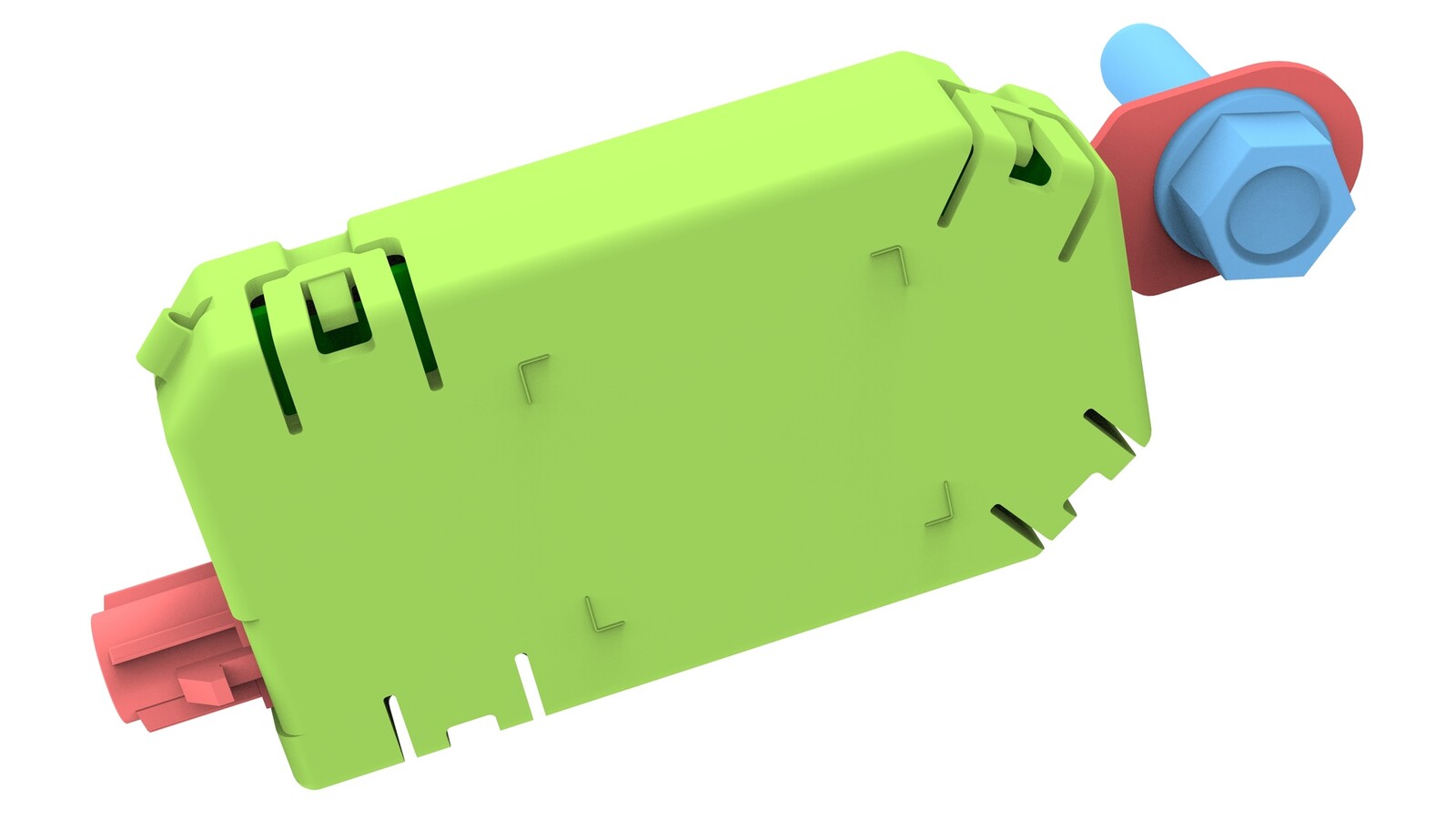

  3. 拆下螺栓，松开将 FM 天线放大器固定到 C 柱的夹子，然后从 C 柱上拆下放大器。
    4 Nm (2.9 lbs-ft)
    注
    FM 天线放大器仍与背光灯线束保持连接。

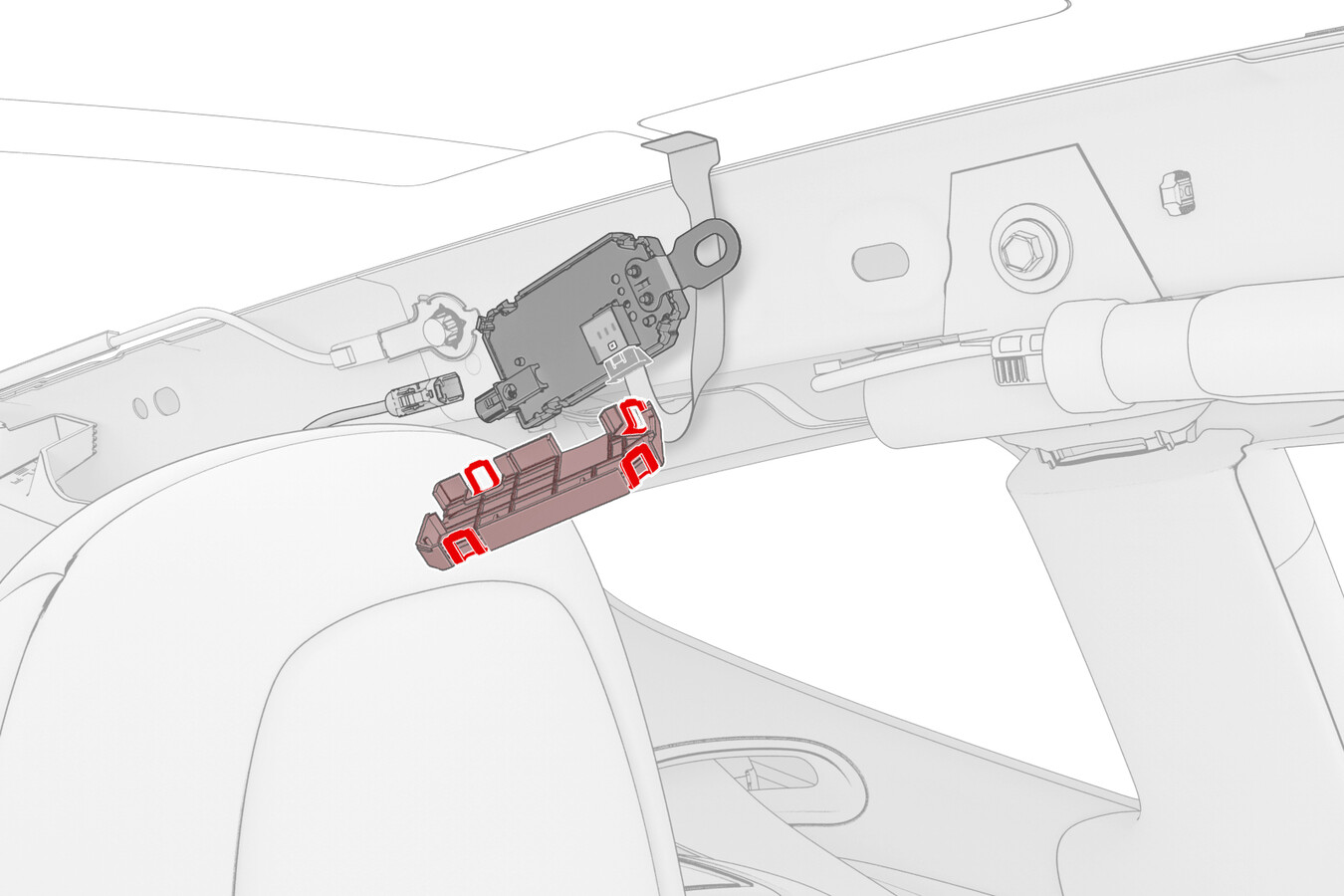

  4. 松开将 FM 天线放大器罩固定到 FM 天线放大器的锁片，然后拆下此罩。
  5. 从 FM 天线放大器上断开背光灯电气连接器。

安装

安装程序与拆卸程序相反。
