Striker - Trunk (Remove and Replace)

校正代码 11353402 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

拆卸

  1. 拆下后备箱门槛饰板。请参阅Trim - Sill - Trunk (Remove and Replace)。
  2. 使用遮蔽胶带标记行李箱撞销的位置。

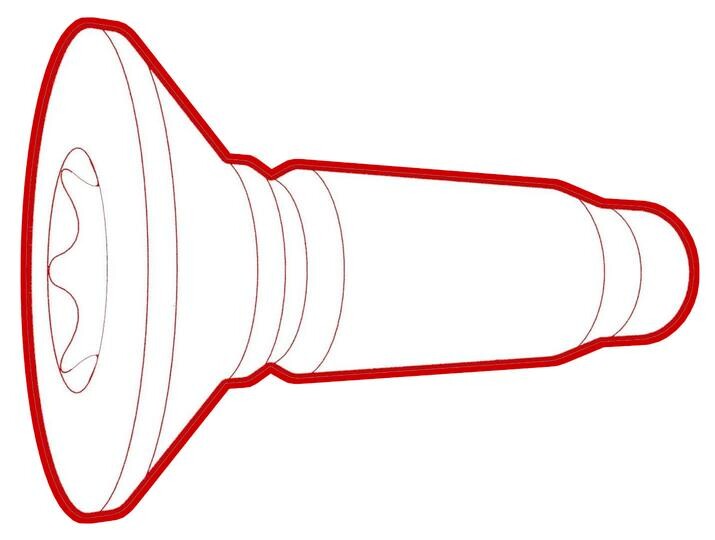

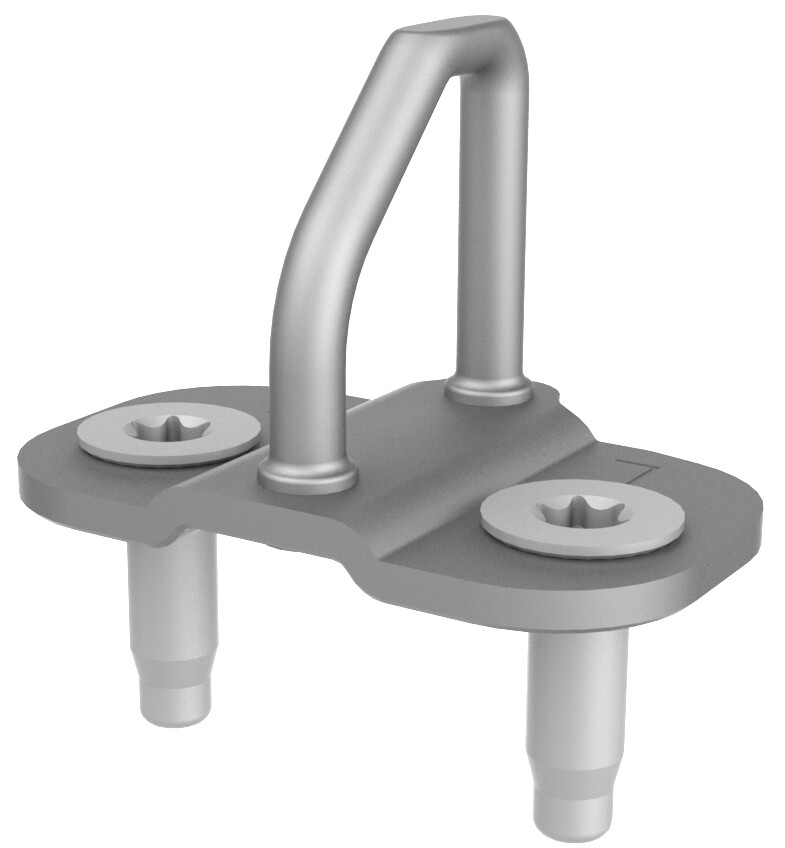

  3. 拆下将行李箱撞销固定到车身的螺栓，然后从车上拆下撞销。

安装

  1. 将行李箱撞销与车身上的遮蔽胶带对齐，然后手动拧紧将后备箱撞销固定到车身的螺栓。
  2. 关闭行李箱，检查缝隙/平整度。
  3. 打开行李箱，按需调节撞销位置。
  4. 重复执行第 2 和第 3 步，直至完全对齐。
  5. 完全拧紧将行李箱撞销固定到车辆的螺栓。
    24 Nm (17.7 lbs-ft)
  6. 拆下遮蔽胶带，安装后备箱门槛饰板。请参阅Trim - Sill - Trunk (Remove and Replace)。
