2021-07-23

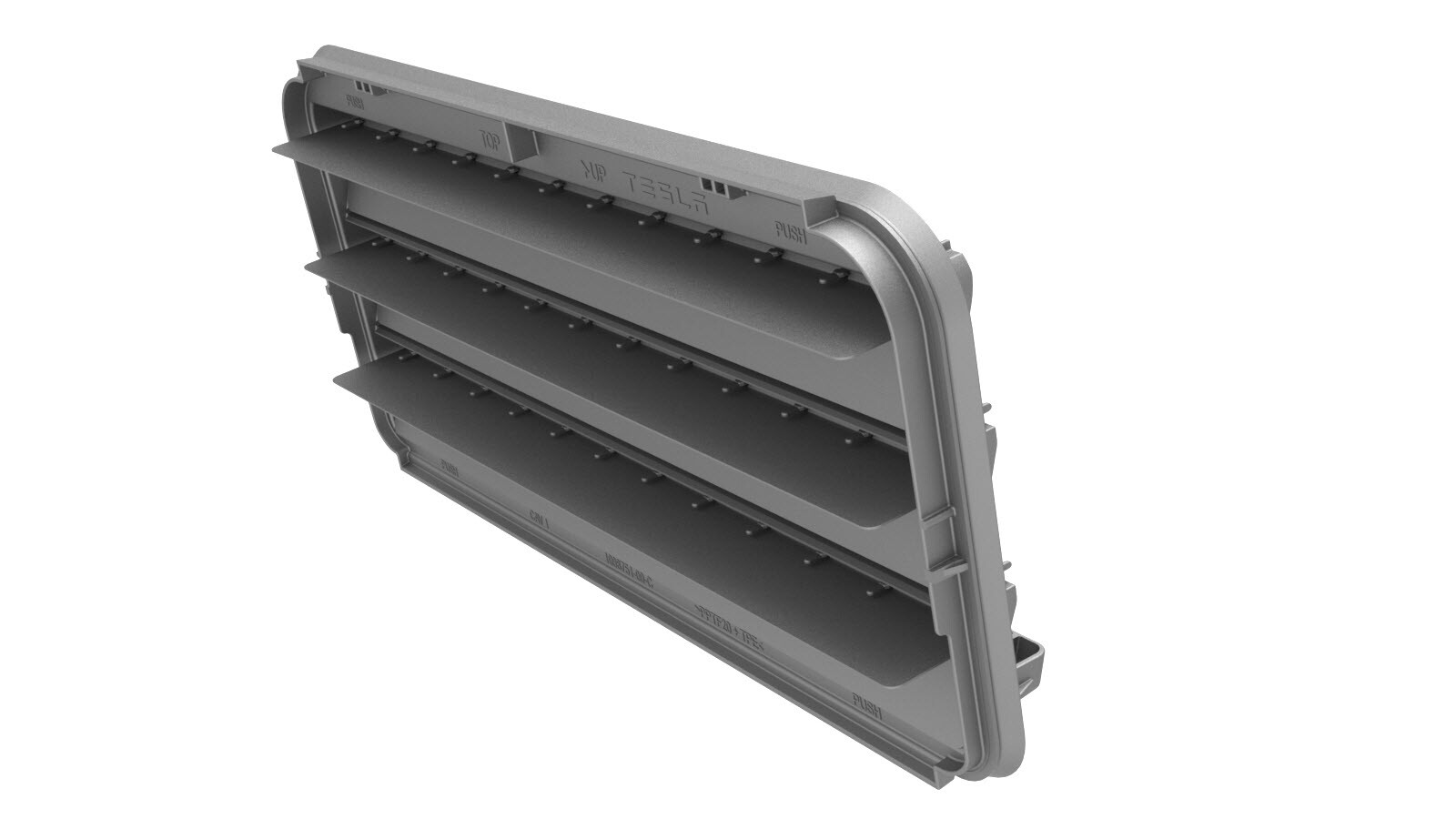

Air Extractor - LH (Remove and Replace)

校正代码 18105302 0.90 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

拆卸

  1. 拆下后饰板。请参阅Fascia - Rear (Remove and Install)

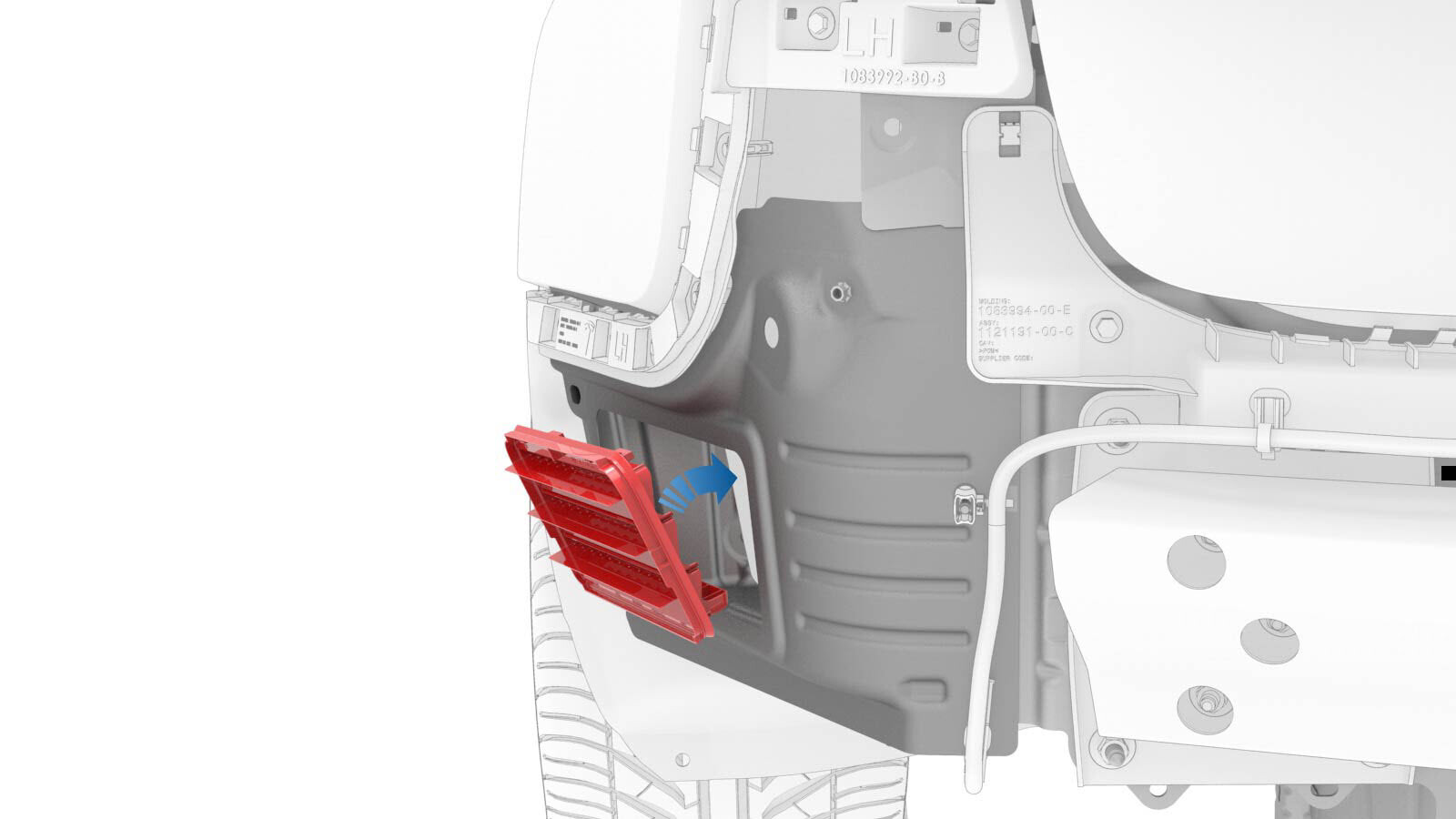

  2. 在顶部向下按压,松开将抽气机固定到车身的锁片,将抽气机的上部向外摆动,然后从车上拆下抽气机。

安装

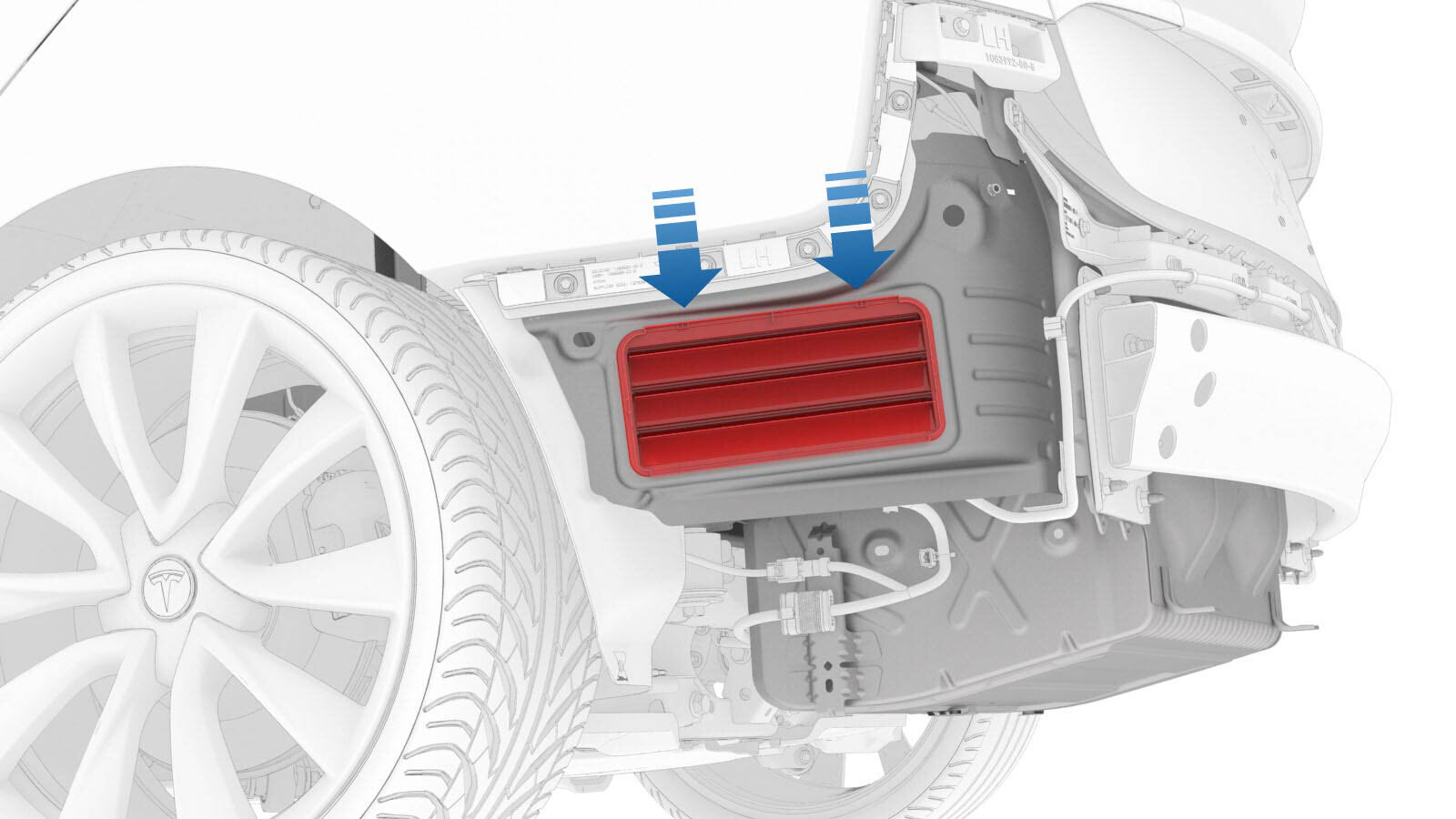

  1. 将抽气机的底部边缘放置到位,然后摆动抽气机的顶部,直至其被 4 个夹子牢固固定住。
  2. 安装后饰板。请参阅Fascia - Rear (Remove and Install)
