Seal - Hood (Remove and Replace)

校正代码 11701802 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

拆卸

  1. 打开前备箱盖。

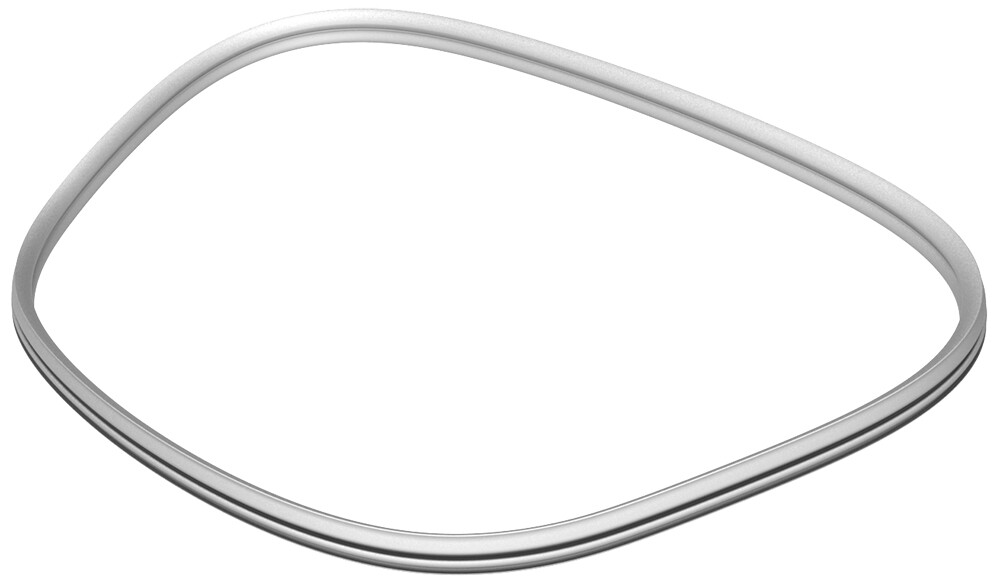

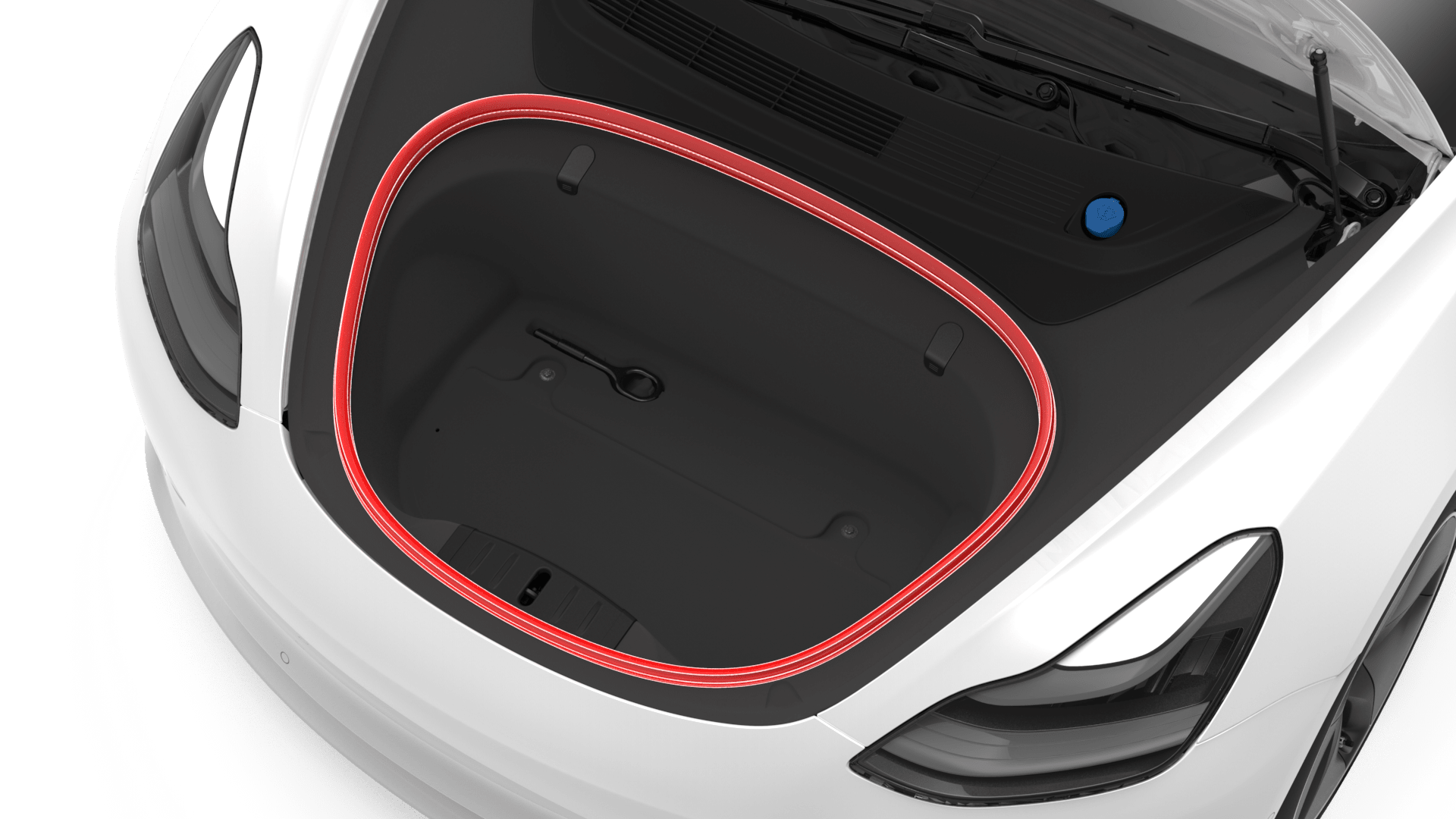

  2. 使前备箱储物单元中的密封件松脱,然后从前备箱储物单元中拆下密封件。

安装

安装程序与拆卸程序相反,以下各项除外:

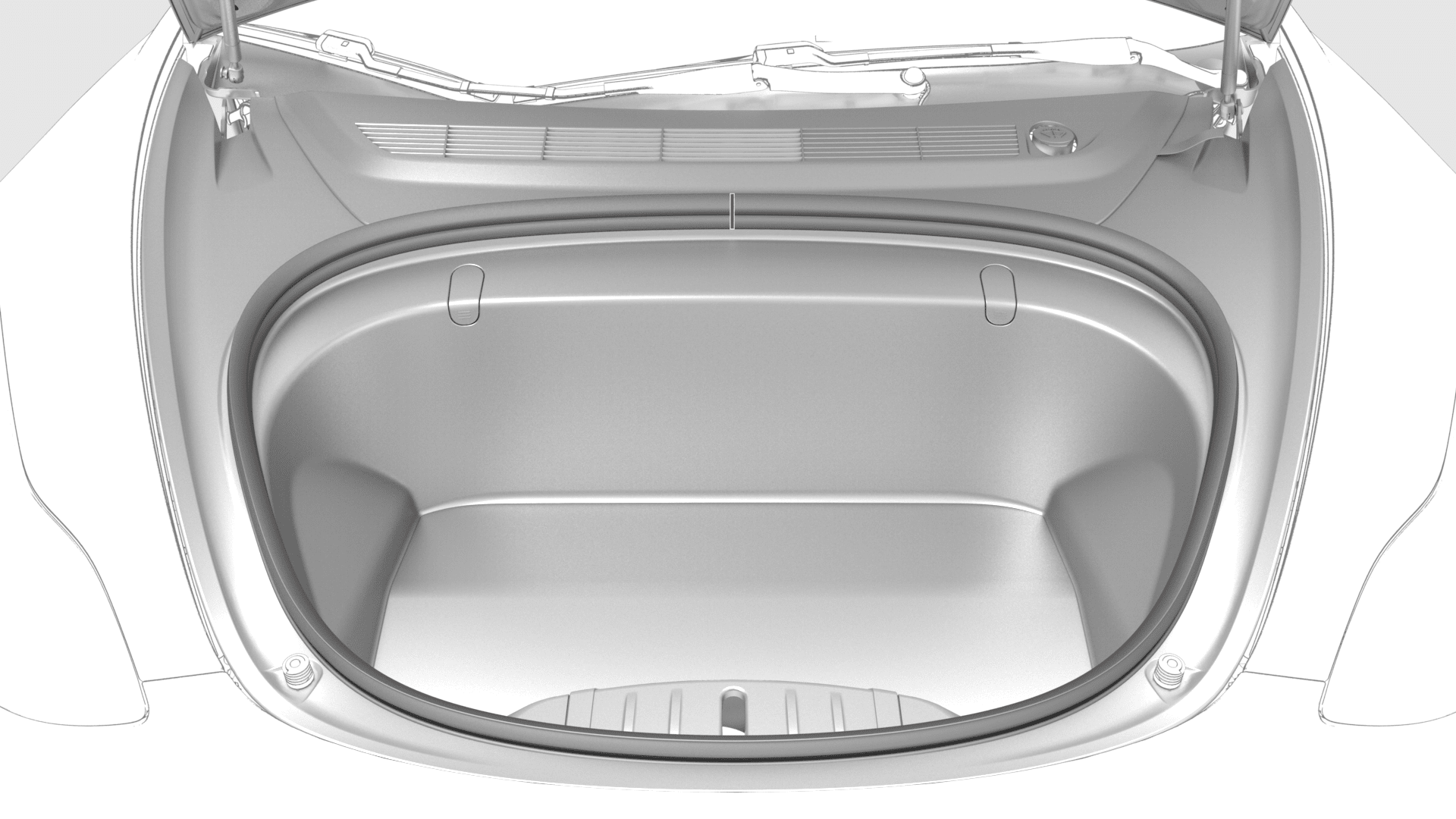

  • 安装期间,将密封件线条对准前备箱储物单元中的线条
