盖板 - 脚部空间 - 副驾位（右侧驾驶）（拆卸和更换）

校正代码 14055412 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 松开将副驾位脚部空间罩固定到仪表板支架的推拉式夹 (x3)。

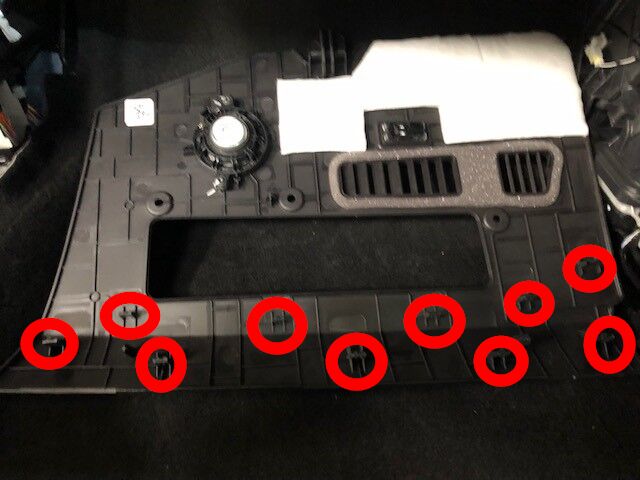

  2. 松开将副驾位脚部空间罩固定到仪表板支架的夹子 (x10)。

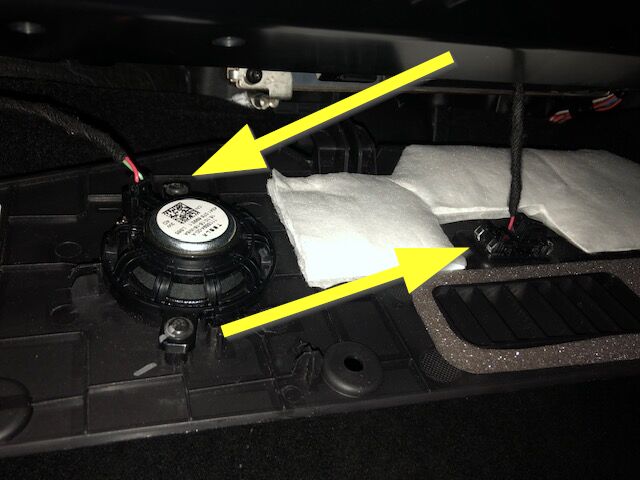

  3. 断开电气线束与路面照明灯连接器和应急扬声器连接器的连接。
  4. 从车辆上拆下脚部空间套。

安装

安装程序与拆卸程序相反。
