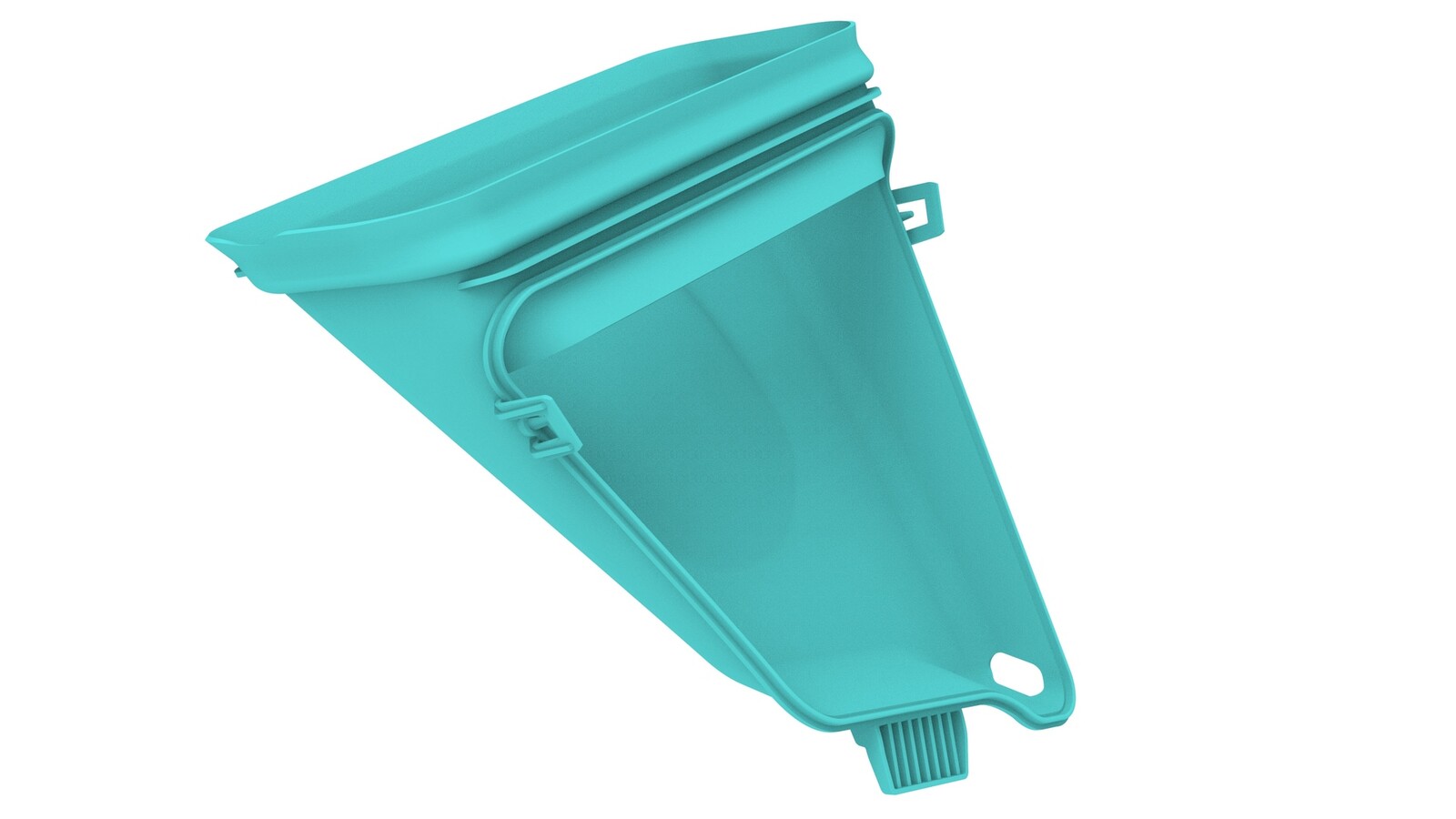

Duct - HVAC Plenum - Outer (Remove and Replace)
校正代码
18109102
0.12
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created. To provide feedback on
FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure.
拆卸
- 拆下前备箱后部挡板。请参阅Underhood Apron - Rear (Remove and Replace)。
- 拆下座舱进气槽。请参阅Duct - Cabin Intake (Remove and Replace)。
- 松开将外侧供暖、通风和空调送气管槽固定到内侧供暖、通风和空调送气管槽的夹子,然后从车上拆下外侧供暖、通风和空调送气管槽。
安装
安装程序与拆卸程序相反,以下各项除外:
- 固定夹子之前,对齐外侧供暖、通风和空调送气管槽底部的锁片。
