轮拱内衬 - 后 - LH(拆卸和更换)

校正代码 12011102 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

设备:
  • 1133569-00-A 卡子拆卸钳

    拆卸

    1. 拆卸左后轮毂。请参阅轮毂(拆卸和安装)。

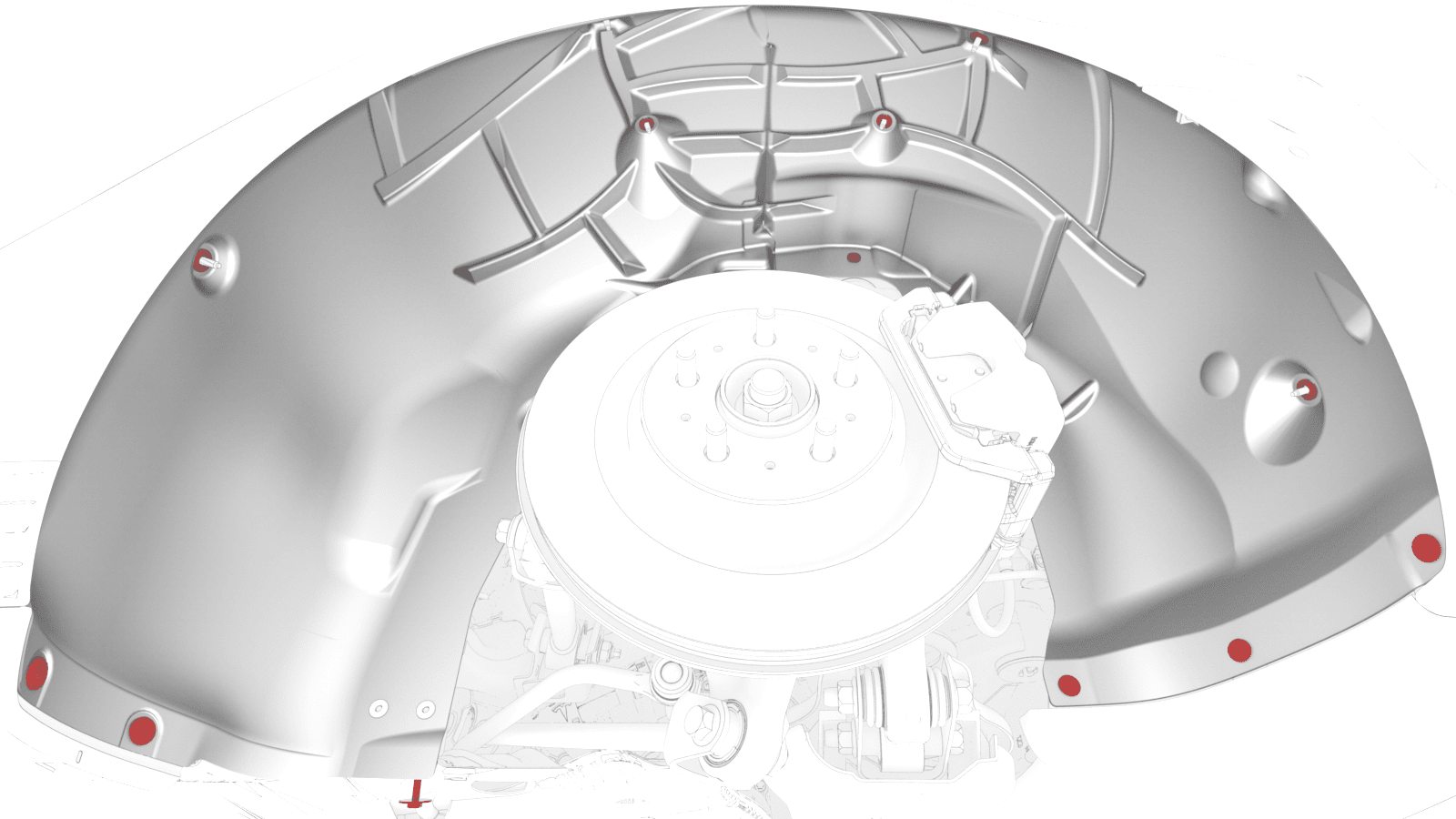

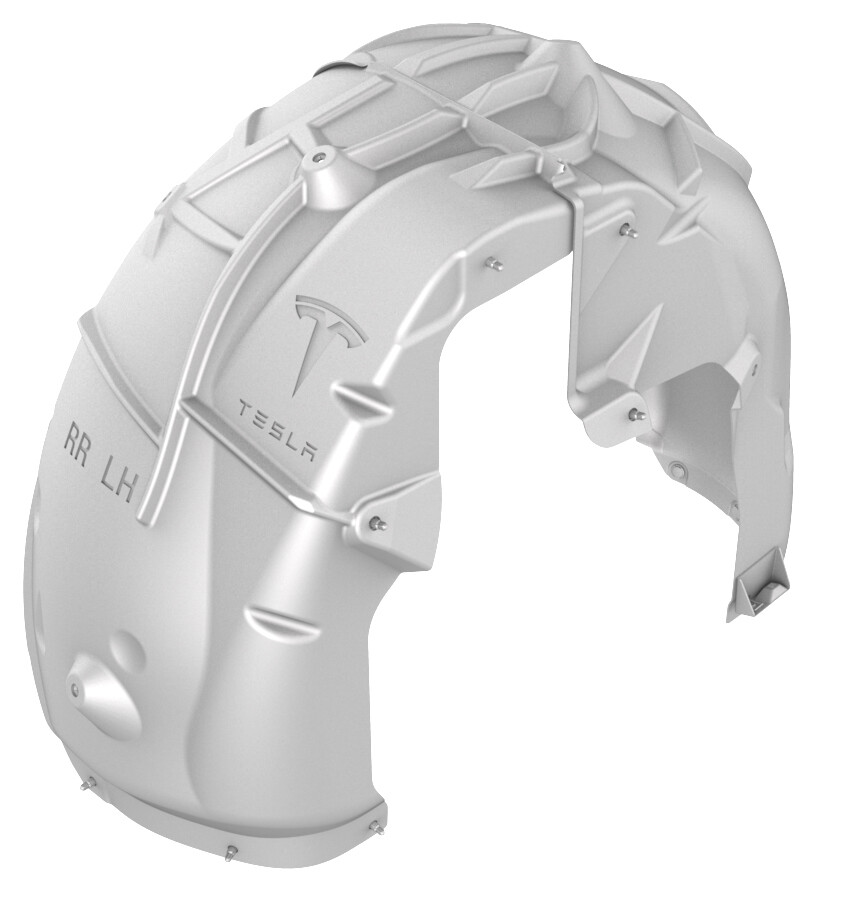

    2. 拆下螺栓,松开夹子 (x16)将 LH 后轮拱内衬固定到车辆的夹子 (x16),然后从车上拆下内衬
      5 Nm (3.7 lbs-ft)

    安装

    安装程序与拆卸程序相反。
