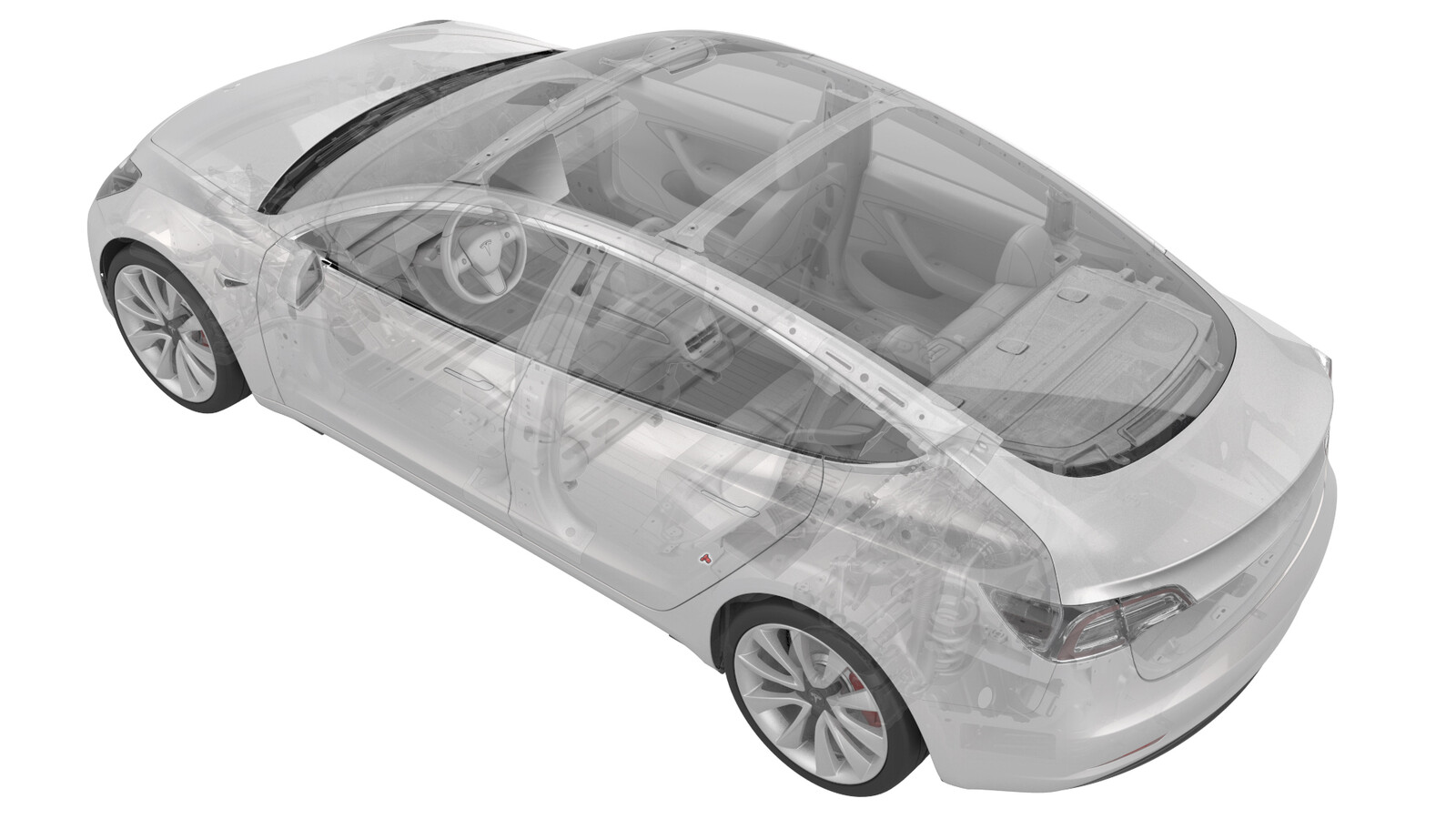

传感器 - 碰撞加速度计 - C 柱 - 左侧（拆卸和更换）

校正代码 20200702 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

警告
Make sure 12V/LV power has been disconnected for at least 1 minute before disconnecting the electrical harness from Supplementary Restraint System (SRS) components, such as Restraint Control Module, sensors, airbags, etc. Disconnect the 12V/LV battery and the First Responder Loop. Failure to do so can result in unintended safety system behaviors. For more information on SRS precautions, see 气囊和辅助约束系统 (SRS) 预防措施.

拆卸

  1. 打开全部车门。
  2. 降下全部车窗。
  3. 拆下第二排下部座垫。请参阅座椅座垫 - 下部 - 第二排（拆卸和更换）。
  4. 拆下前备箱后部挡板。请参阅前备箱挡板 - 后部（拆卸和更换）。
  5. 断开 12V 电源。请参阅12V/低压电源（断开和连接）。
  6. 拆下第二排座椅 LH 侧承梁。请参阅承梁 - 侧 - 座椅 - 第二排 - 左侧（拆卸和更换）。
  7. 拆下 LH 后部门槛板饰板。请参阅饰板 - 门槛板 - 后 - 左侧（拆卸和更换）。

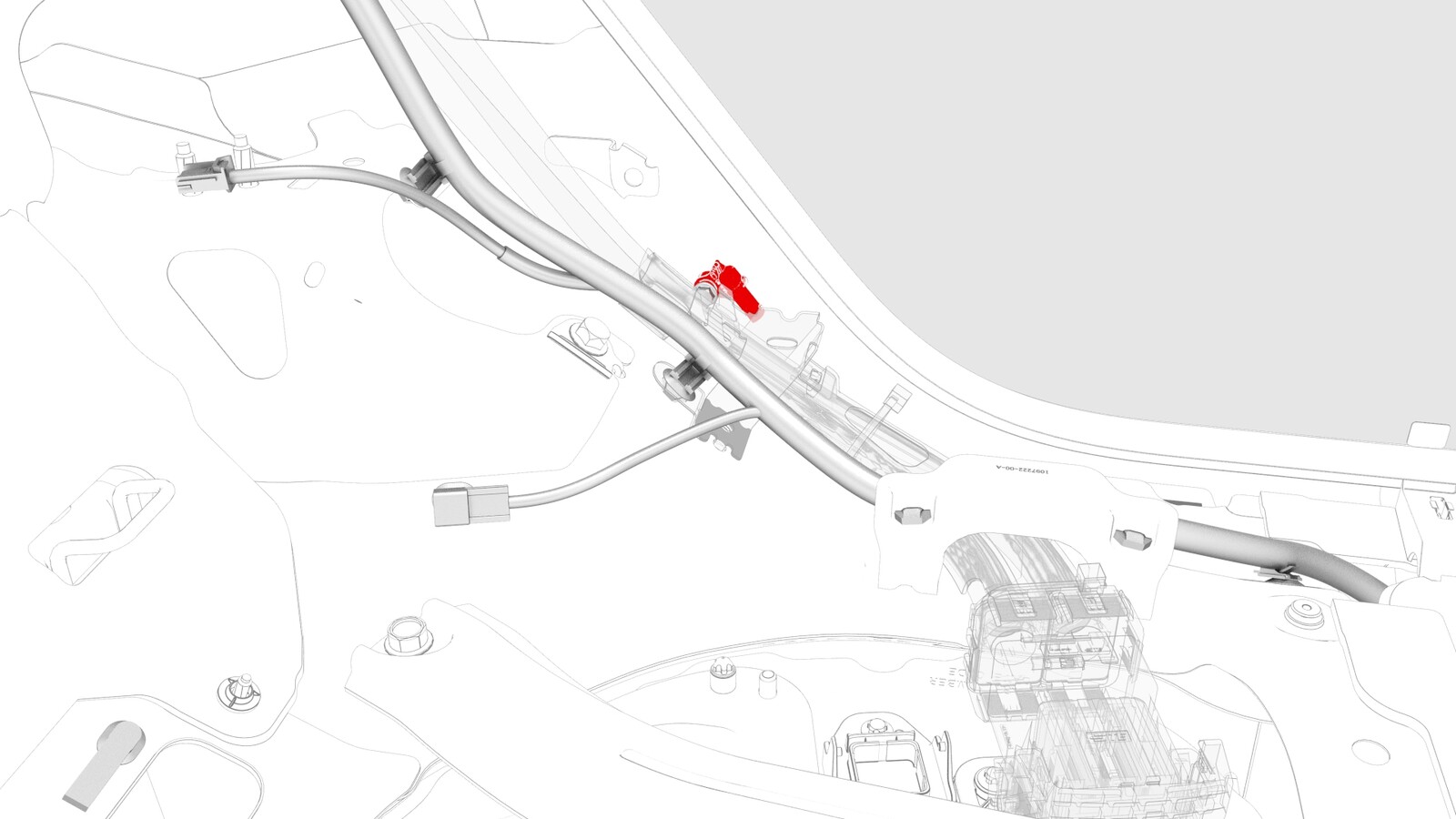

  8. 拆下将充电接口线束支架固定到车身的螺栓，然后从 C 柱上移开充电接口线束。
    10 Nm (7.4 lbs-ft)

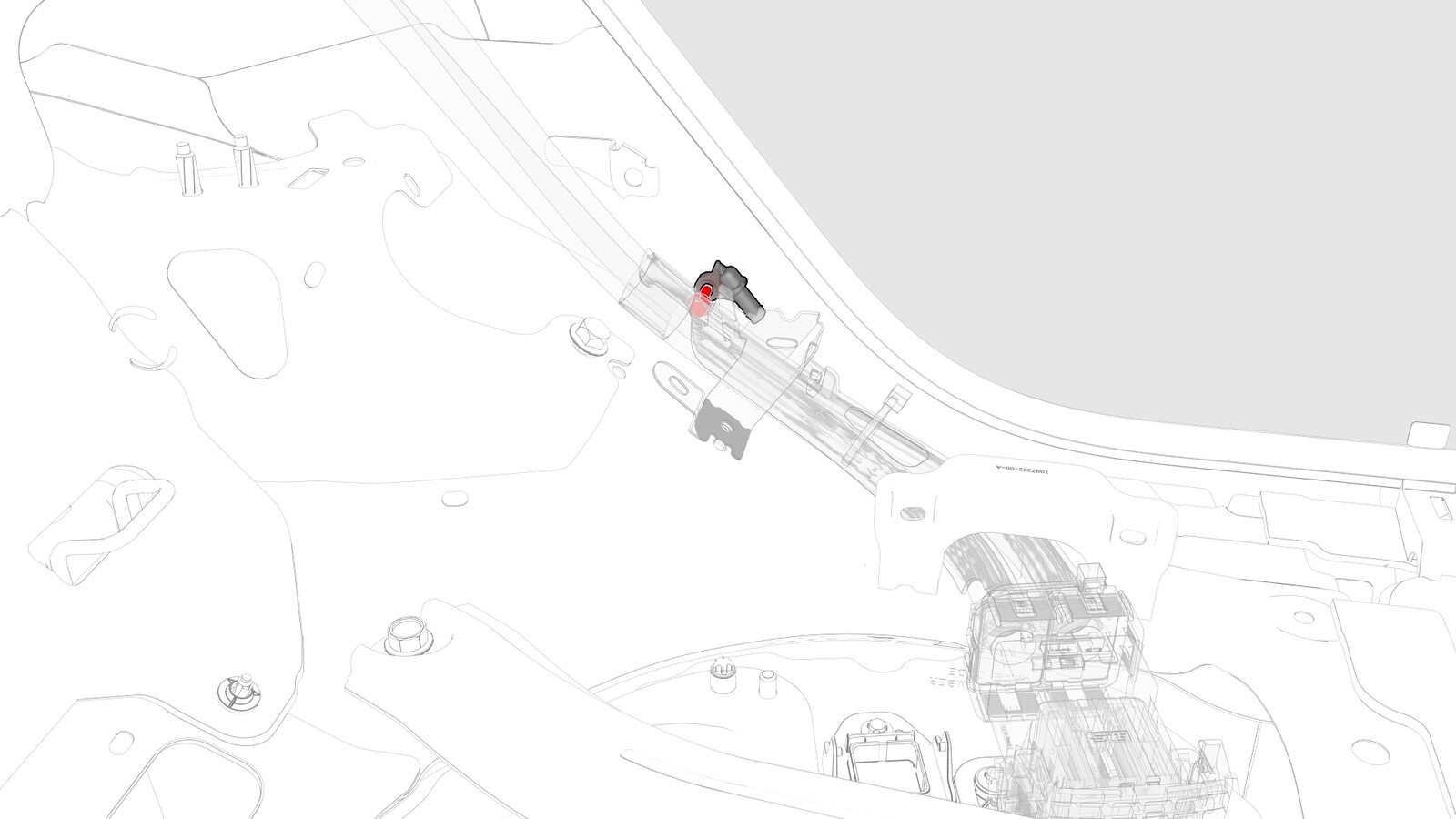

  9. 断开电气线束与气囊传感器连接器的连接。

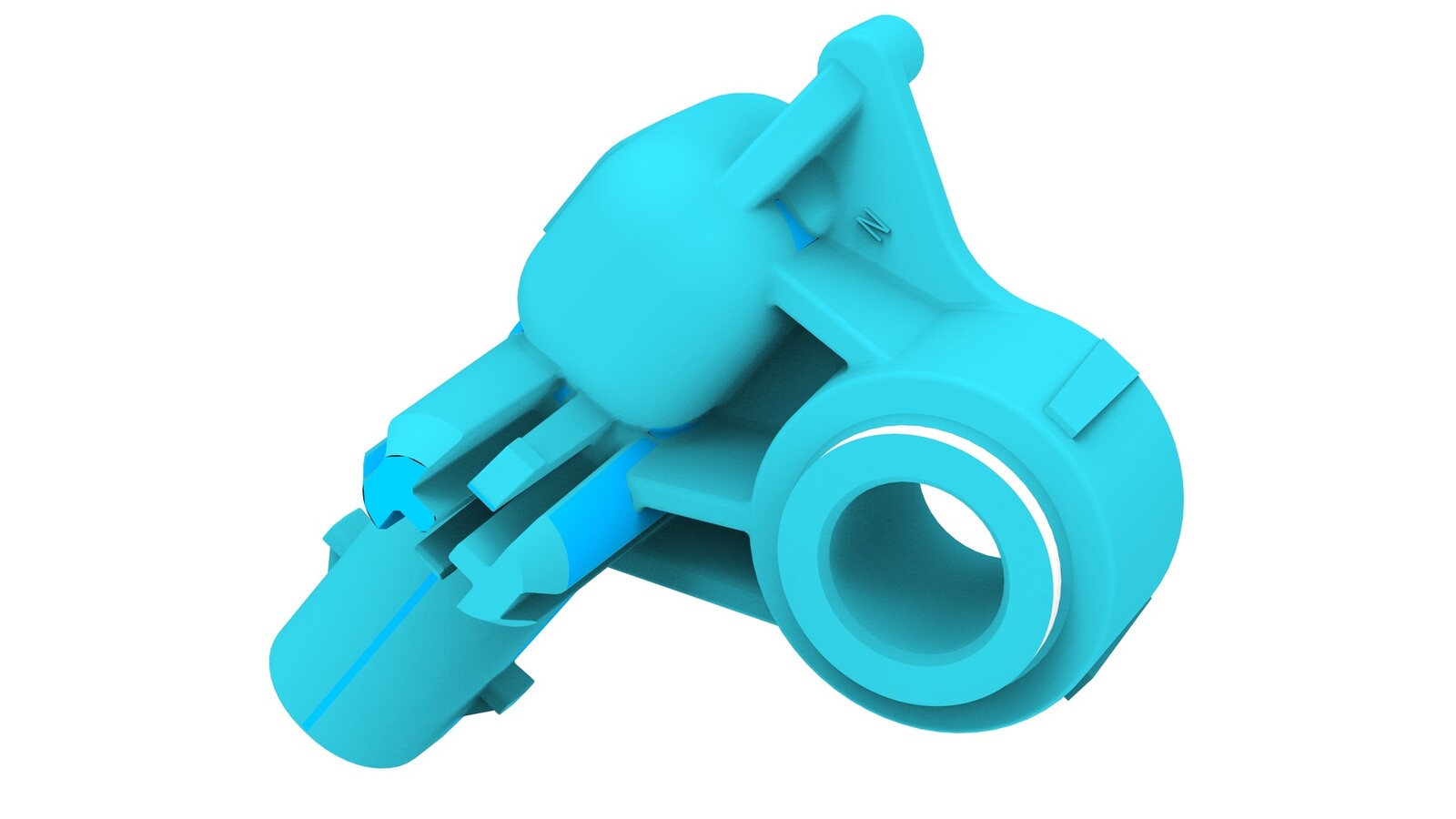

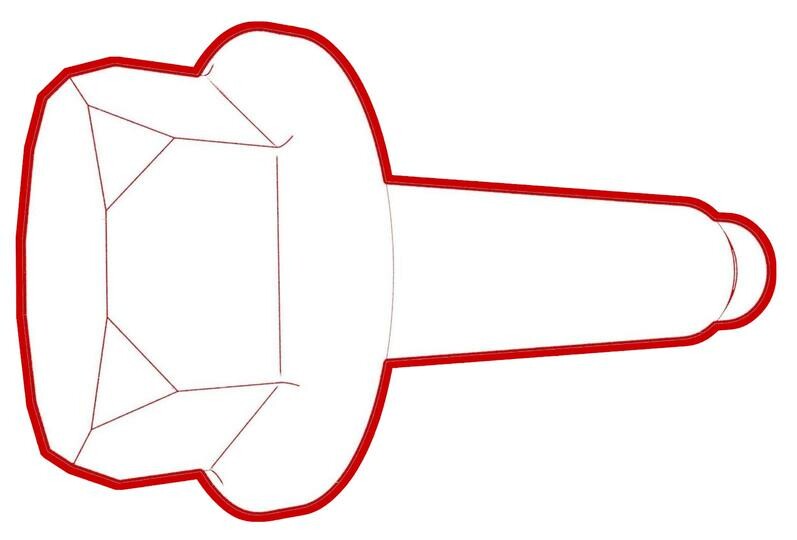

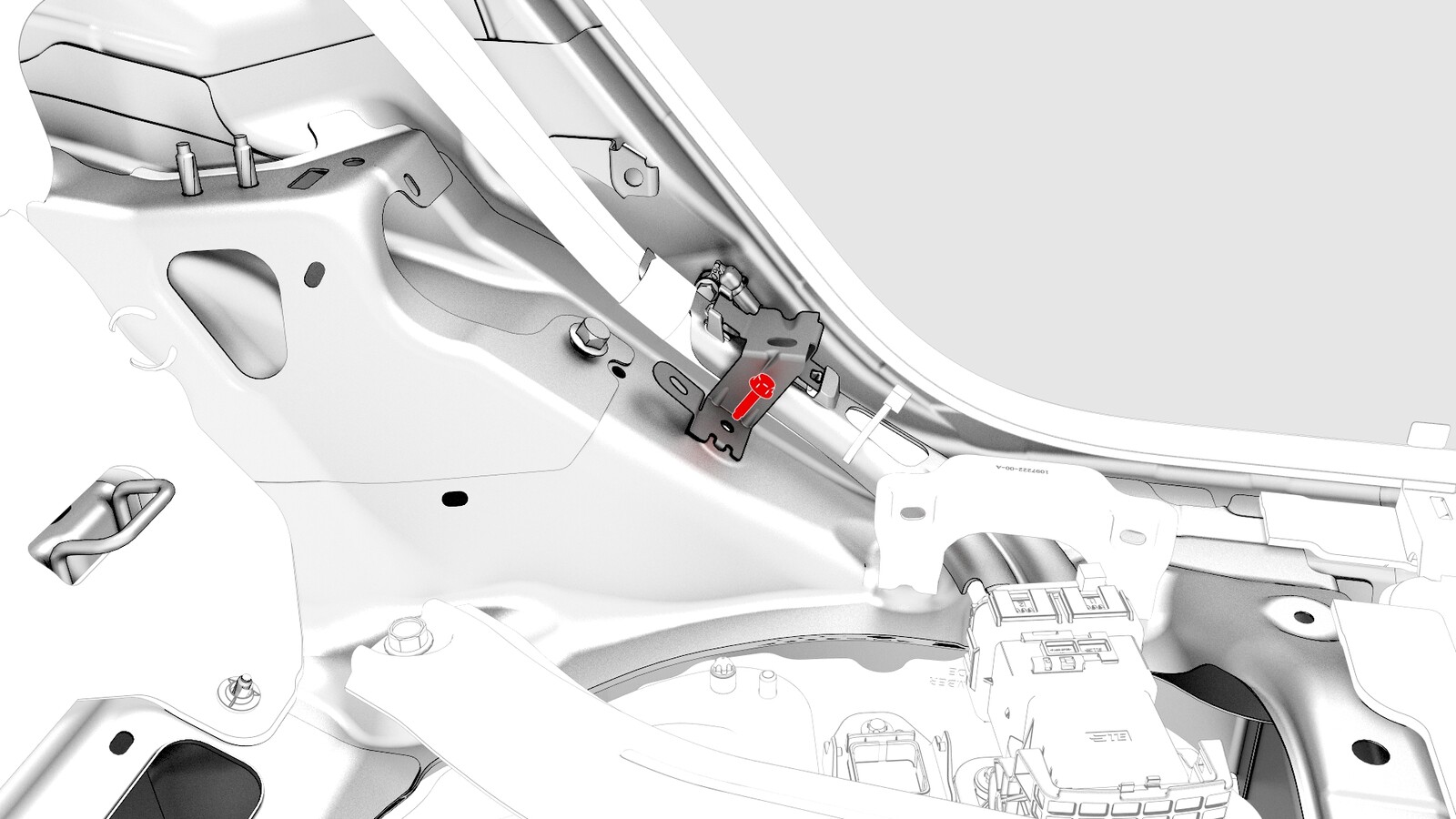

  10. 拆下将气囊传感器固定到 C 柱的螺栓，然后从车上拆下传感器。
    8 Nm (5.9 lbs-ft)

安装

安装程序与拆卸程序相反。
